Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

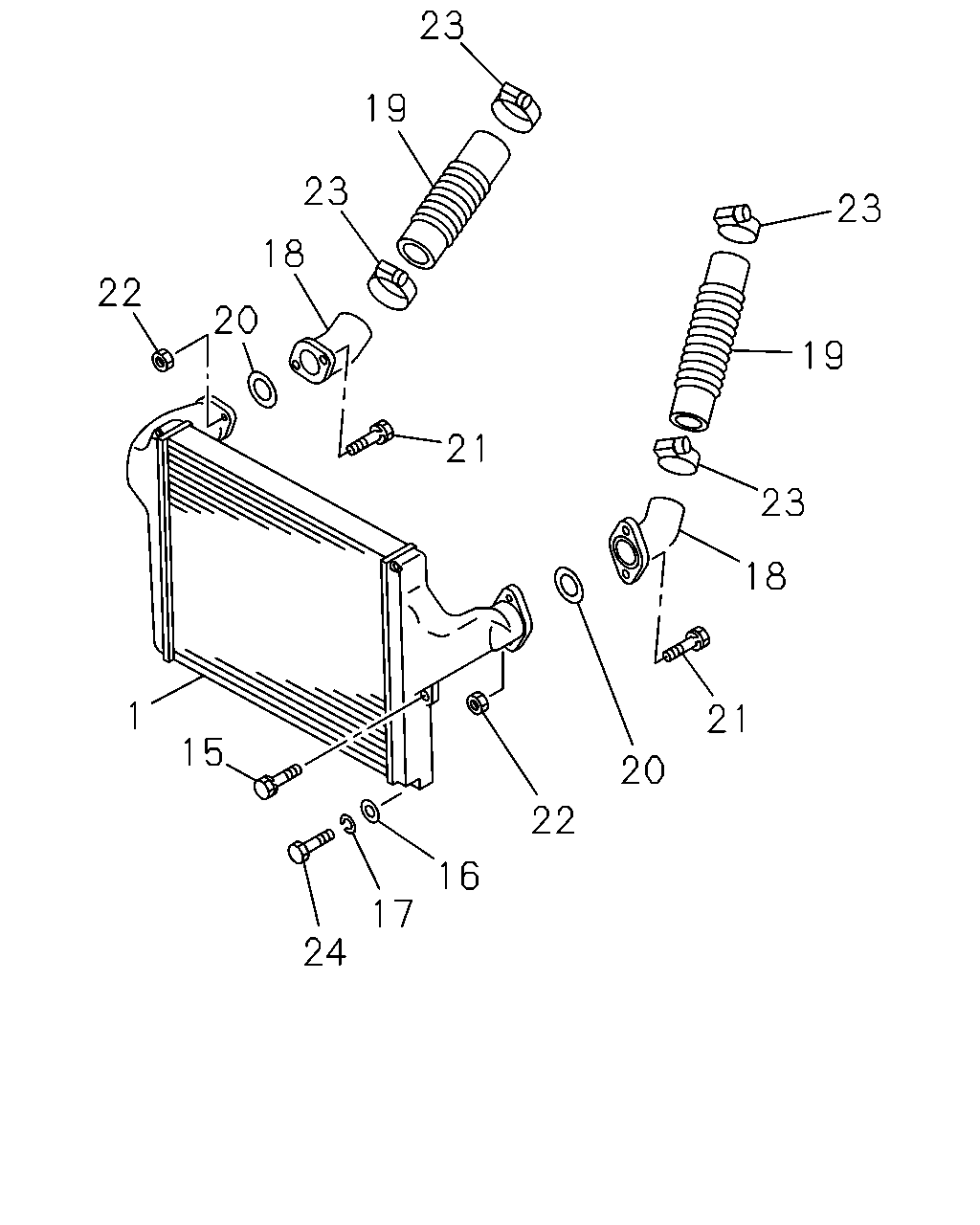

1-35 — CHARGE AIR COOLER
(#3549) — 21 parça
23
19
23
23
18
22
20
19
21
23
18
1
21
15
20
22
16
17
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-023-1
01
1
9012-
15
BOLT; CHARGE AIR COOLER
M8X50
9-01040-850-0
02
1
9012-
15
BOLT; CHARGE AIR COOLER
M10X80
9-01046-080-0
02
1
9012-
16
WASHER; PL,CHARGE AIR COOLER
ID=8.4 OD=18
9-09160-608-0
02
1
9012-
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=22
9-09160-610-0
05
1
9012-
17
WASHER; LK,CHARGE AIR COOLER
ID=8.2
9-09150-508-0
02
1
9012-
17
WASHER; LK,CHARGE AIR COOLER
ID=10.2
9-09150-510-0
06
1
9012-
18
ADAPTER
1-14112-045-2
01
1
9012-9407
18
ADAPTER
EXC. TAIWAN EQUIPMENT(WW5)
1-14112-045-2
01
1
9408-
18
ADAPTER
1-14112-046-2
01
1
9012-
18
ADAPTER
TAIWAN EQUIPMENT(WW5)
1-14112-593-0
01
1
9408-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
L=280
1-09360-757-2
01
1
9012-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
1-09360-758-1
01
1
9012-
20
GASKET
1-09623-372-0
02
1
9012-9111
20
GASKET
ID=84.6
1-09623-431-0
02
1
9112-
21
BOLT
M10X45 W/LK&PL WASHER
0-50141-045-0
04
1
9012-9404
21
BOLT
M10X45 W/LK&PL WASHER
0-50141-045-0
02
1
9405-
22
NUT
M10 FLANGE
5-09440-006-0
02
1
9012-9404
22
NUT
M10 FLANGE
5-09440-006-0
04
1
9405-
23
CLIP; HOSE
ID=77-95
1-09707-114-0
08
1
9012-
24
BOLT; COOLER TO RAD
M10X50
9-01046-050-0
01
1
9012-
