2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#35485) — 32 parça

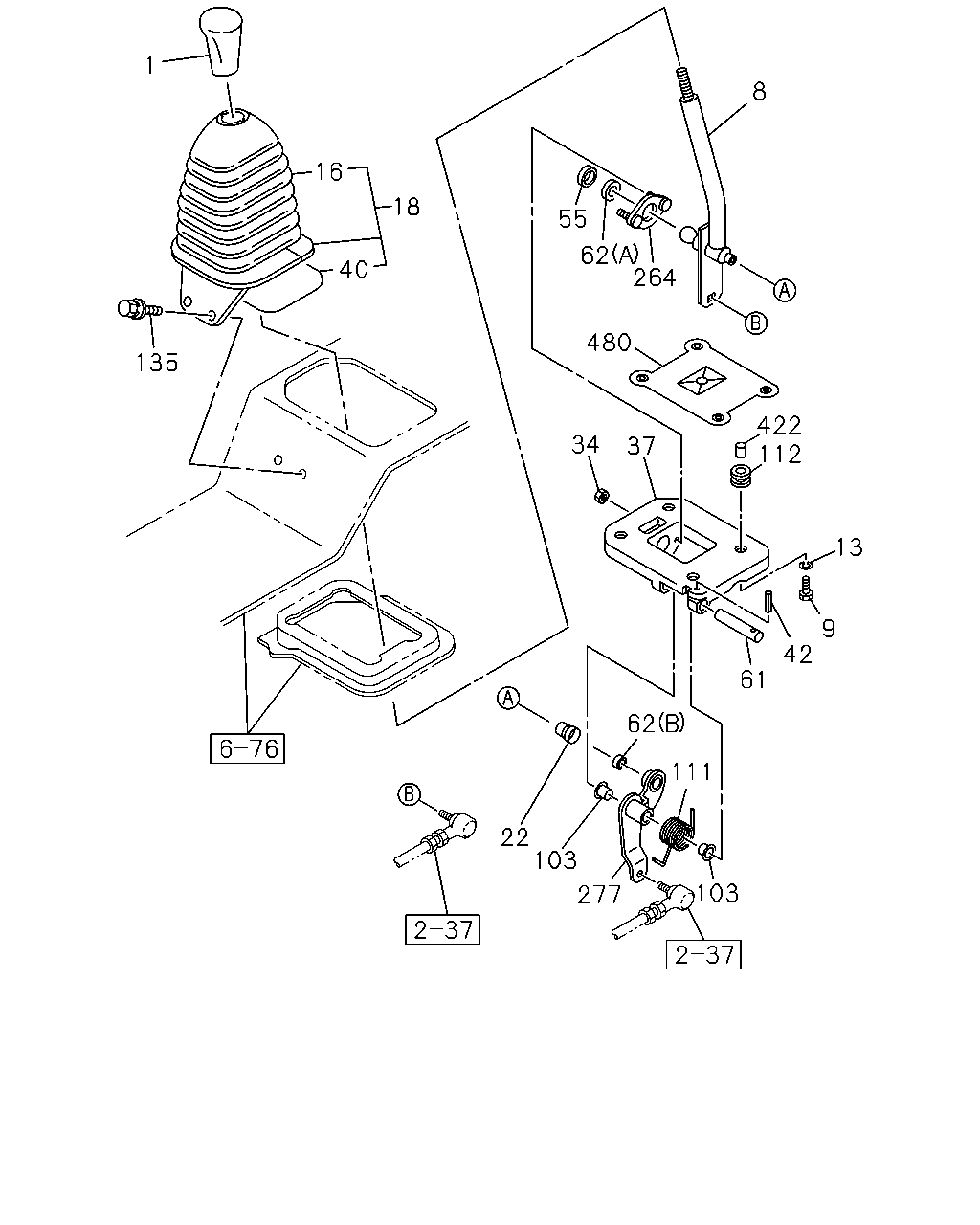

çizim 177515
1 8 16 18 55 62 40 264 480 135 422 112 34 37 13 9 42 61 62 111 22 103 103 277
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
MJT7 M/T<Y9E> 		1-33611-082-1 01 1 0812- ●
1 KNOB; CHANGE LEVER 1-33611-068-1 01 1 0603-0811 ● ●
1 KNOB; CHANGE LEVER
MAL6 M/T<X9G> 		1-33611-068-1 01 1 0812- ●
1 KNOB; CHANGE LEVER 1-33611-068-1 01 1 0812- ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33613-344-0 01 1 0603- ● ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33613-348-0 01 1 0603- ● ●
9 BOLT; CHANGE LEVER
M8X25 FLANGE 		0-28650-825-0 04 1 0603- ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0603-0605 ● ●
13 WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22 		0-91610-708-0 04 1 0606- ● ●
16 BOOT; CHANGE LEVER 1-79996-368-0 01 1 0603- ● ●
18 BOOT; CHANGE LEVER 1-79996-436-2 01 1 0603- ● ●
22 COVER; DUST,CHANGE LEVER 1-33619-573-0 01 1 0603- ● ●
34 NUT
M6 FLANGE 		0-91150-106-0 02 1 0603-0603 ● ●
34 NUT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-467-0 01 1 0603-0802 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98100-876-1 01 1 0803- ● ●
40 SEAL; BOOT HOLDER CHANGE LEVER 1-79996-345-0 01 1 0603- ● ●
42 PIN; SPRING,SELECT LEVER PIN
D=5 L=28 		8-94252-581-0 01 1 0603- ● ●
55 SEAT; RUBBER,SELECT SPRING 1-33619-429-0 01 1 0603-0802 ● ●
61 PIN; SELECT LEVER 1-33619-470-0 01 1 0603- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0603- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0603- ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0603- ● ●
111 SPRING 1-09585-136-0 01 1 0603- ● ●
112 RUBBER; CUSHION 8-97091-426-0 04 1 0603-0810 ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0603-0904 ● ●
135 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
264 PLATE; COVER 1-33619-469-0 01 1 0603- ● ●
277 LEVER; RELAY 1-33651-636-1 01 1 0603- ● ●
422 BUSHING; CHANGE LEVER 8-97091-427-0 04 1 0603- ● ●
480 RUBBER; COVER 1-33619-554-0 01 1 0603-0810 ● ●
480 RUBBER; COVER 8-98119-365-0 01 1 0811- ● ●
