Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#35484) — 404 parça

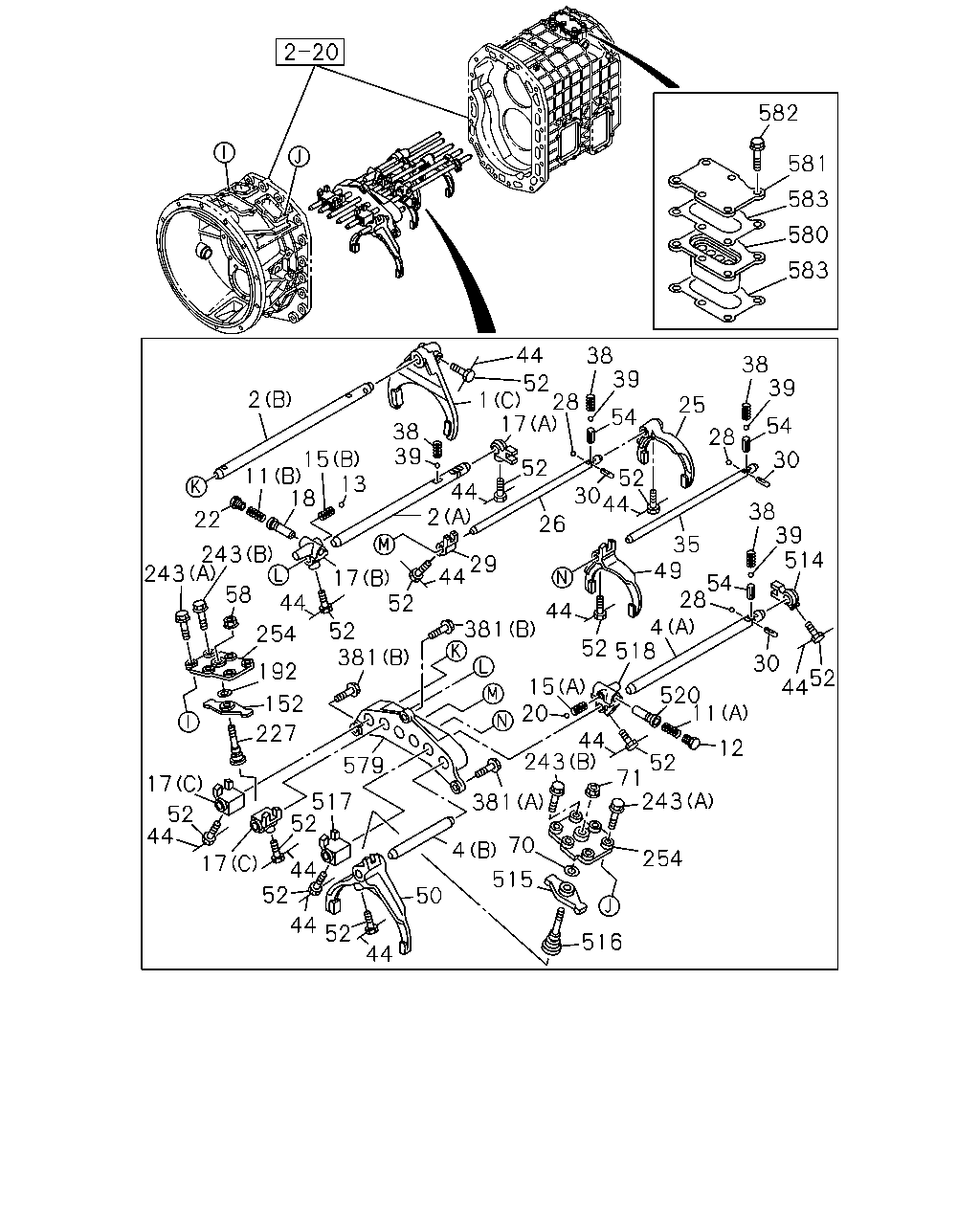

582 581 583 580 583 44 38 39 38 39 52 1 28 17 2 25 28 54 54 38 39 15 11 13 18 30 52 52 30 44 44 2 38 39 514 22 26 35 49 243 243 29 44 17 52 54 28 4 52 518 58 44 44 381 52 381 254 192 30 52 44 15 20 520 11 152 227 44 243 12 579 52 71 243 17 517 52 381 52 44 70 4 254 44 52 17 515 50 44 52 516 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (C)	1-33511-579-0	01	1	0812-	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	0603-		●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	0603-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-438-0	01	1	0812-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-456-0	01	1	0812-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	0603-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	0603-		●
4	ROD; SHIFT,6TH (A)	1-33531-443-1	01	1	0812-	●
4	ROD; SHIFT,6TH (B)	1-33531-445-0	01	1	0812-	●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	0603-		●
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	0603-		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	0812-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0603-0811		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0812-1510	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	8-98294-206-0	01	1	1511-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0812-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0603-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0603-0811		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0812-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	0812-	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	0603-0811		●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	0812-	●	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-202-3	01	1	0812-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-552-1	01	1	0812-	●
17	BLOCK; SHIFT,1ST & REV (C)	1-33511-557-0	02	1	0812-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	0603-		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	0603-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0603-0811		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0812-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0603-0811		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0812-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0812-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0603-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	0812-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	0603-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-440-1	01	1	0812-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	0603-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0603-0811		●
28	BALL; INTER LK	9-00097-501-0	04	1	0812-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0603-0811		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0812-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0603-0811		●
30	PIN; INTER LK	9-33534-003-0	03	1	0812-	●	●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-442-1	01	1	0812-	●
38	SPRING; DETENT	1-09580-379-0	04	1	0603-0811		●
38	SPRING; DETENT	1-09580-379-0	04	1	0812-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0603-0811		●
39	BALL; DETENT	1-09843-012-0	04	1	0812-	●	●
44	WIRE; LK L=180	1-09780-024-0	10	1	0812-	●
44	WIRE; LK L=200	9-08351-020-0	02	1	0812-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	0812-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	0603-		●
50	ARM; SHIFT,6TH	1-33511-550-0	01	1	0812-	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	0603-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	12	1	0812-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0603-0811		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0812-	●	●
58	NUT M12 FLANGE	0-91180-212-0	01	1	0812-	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0812-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0812-	●
152	LEVER; RELAY,SELECT	1-33511-560-1	01	1	0812-	●
192	WASHER; PL ID=16.5	9-09857-042-0	01	1	0812-	●
227	SPINDLE; 1ST & REV	1-33519-104-0	01	1	0812-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0603-		●
243	BOLT; COVER (A) M10X30 FLANGE	0-28151-030-0	08	1	0812-	●
243	BOLT; COVER (B) M10X28 FLANGE REAMER	8-97365-375-0	04	1	0812-	●
254	COVER; LEVER	1-33141-054-0	02	1	0812-	●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0812-	●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0812-	●
514	BLOCK; 6-7 SETTING	1-33511-605-0	01	1	0812-	●
515	LEVER; SHIFT,6TH & 7TH	1-33511-560-1	01	1	0812-	●
516	SPINDLE; 6TH & 7TH	1-33519-104-0	01	1	0812-	●
517	BLOCK; SHIFT,6TH & 7TH	1-33511-557-0	01	1	0812-	●
518	BLOCK ASM; SHIFT,6TH & 7TH	1-33511-558-1	01	1	0812-	●
520	SLEEVE; 6TH & 7TH	1-33516-022-1	01	1	0812-	●
579	BLOCK; SHIFT,ROD GUIDE	1-33539-065-1	01	1	0812-	●
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	0812-	●
581	COVER; BLOCK	1-33141-056-0	01	1	0812-	●
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	0812-	●
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	0812-	●

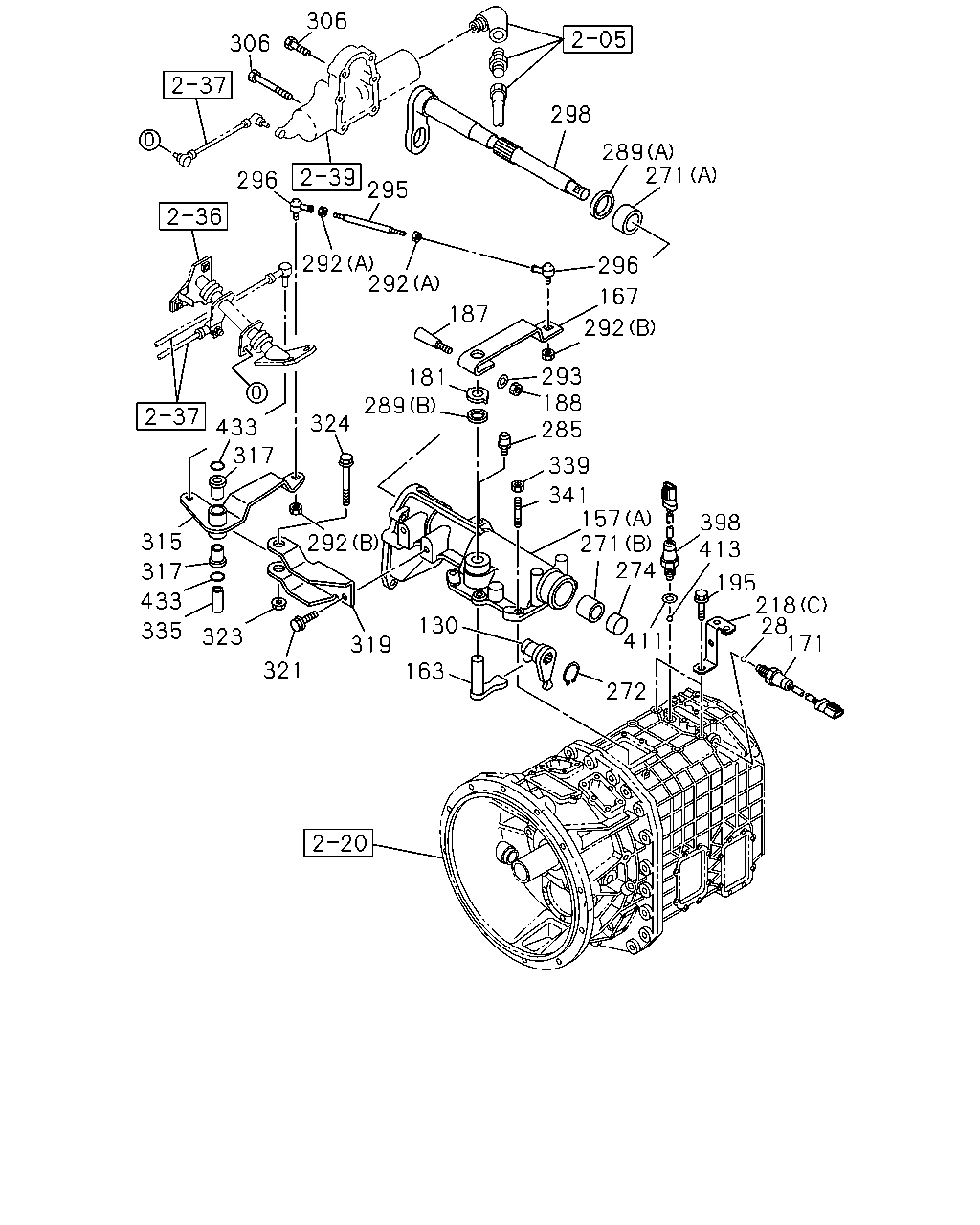

306 306 298 289 271 296 295 292 292 296 167 187 292 293 188 285 181 289 324 433 317 339 341 157 271 274 398 413 315 292 317 195 218 28 171 433 130 411 335 323 319 321 163 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BALL; INTER LK	9-00097-501-0	04	1	0603-0811		●
28	BALL; INTER LK	9-00097-501-0	04	1	0812-	●	●
130	LEVER; SHIFT,INTERNAL MANUAL SHIFT CONTROL<B3G>	1-33521-119-0	01	1	0603-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-124-0	01	1	0603-		●
157	BOX; QUAD,TRANS MANUAL SHIFT CONTROL<B3G> (A)	1-33541-256-2	01	1	0603-		●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	0603-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-507-3	01	1	0603-1311		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	8-98231-390-0	01	1	1312-		●
163	LEVER; SELECT,INTERNAL MANUAL SHIFT CONTROL<B3G>	1-33522-041-4	01	1	0603-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-162-1	01	1	0603-		●
167	LEVER; SELECT,EXTERNAL MANUAL SHIFT CONTROL<B3G>	1-33521-138-0	01	1	0603-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-163-0	01	1	0603-		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1006-1109	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0603-0702		●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-0811		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0812-1005	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	1006-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0603-0811		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0812-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0603-0811		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0812-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0603-0811		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0812-	●	●
195	BOLT M10X25 FLANGE	0-28751-025-0	02	1	0812-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	02	1	0812-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0603-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0603-		●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23	1-33549-016-0	01	1	0603-		●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32	1-33549-104-0	01	1	0603-		●
272	RING; SNAP,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0603-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0603-0811		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0812-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0603-0811		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0812-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0603-0811		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0812-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0603-0811		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0812-	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0603-0811		●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0812-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0603-0811		●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0812-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0603-0605		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-0811		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0812-	●	●
295	ROD; LINK,RELAY LEVER MANUAL SHIFT CONTROL<B3G> L=130	1-09765-262-0	01	1	0603-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-816-0	01	1	0603-		●
296	ROD END	1-09760-108-0	02	1	0603-0811		●
296	ROD END	1-09760-108-0	02	1	0812-	●	●
298	SHAFT; SHIFT LEVER MANUAL SHIFT CONTROL<B3G>	1-33522-146-0	01	1	0603-		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-180-0	01	1	0603-		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28151-045-0	02	1	0603-		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE	0-28151-080-0	04	1	0603-		●
315	LEVER; SELECT MANUAL SHIFT CONTROL<B3G>	1-33651-820-0	01	1	0603-		●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-754-0	01	1	0603-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0603-0811		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0812-	●	●
319	BRACKET; SELECT LEVER MANUAL SHIFT CONTROL<B3G>	1-33657-836-0	01	1	0603-		●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-753-0	01	1	0603-		●
321	BOLT; BRKT,RELAY LEVER MANUAL SHIFT CONTROL<B3G> M10X80	0-10856-080-0	02	1	0603-		●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0603-		●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0603-0811		●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0812-	●	●
324	BOLT; SHAFT ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE	0-28081-060-0	01	1	0603-		●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTOR SHIFT CONTROL<WX8>	1-33659-220-0	01	1	0603-		●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	06	1	0812-	●
341	STUD; QUAD BOX M10X25 L=40	0-44011-025-0	06	1	0812-	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0812-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	0603-		●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0812-	●
413	BALL; BACK SW	9-00097-013-0	01	1	0812-	●
433	GASKET; BUSHING	1-09623-636-0	02	1	0603-0811		●
433	GASKET; BUSHING	1-09623-636-0	02	1	0812-	●	●

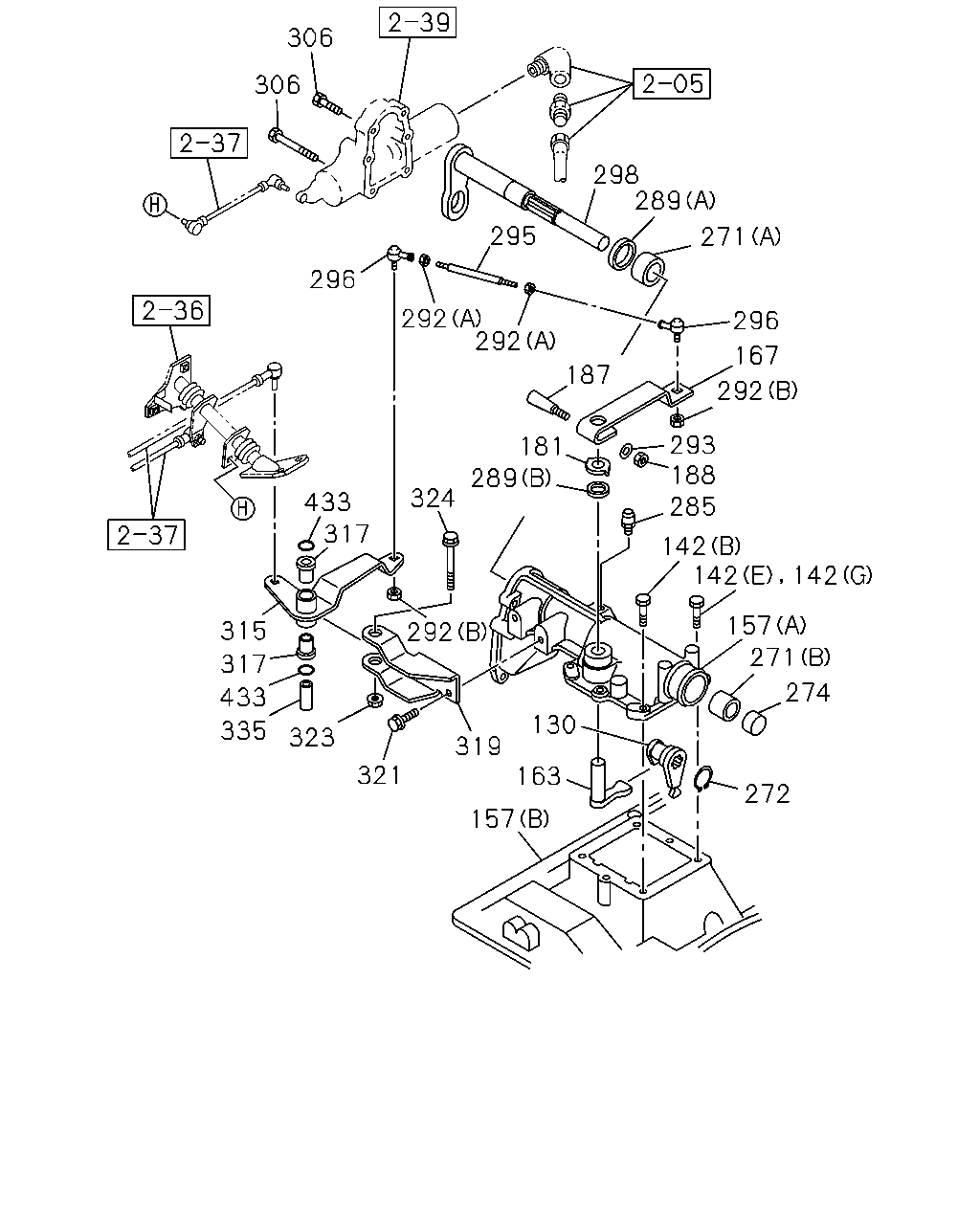

306 306 298 289 295 271 296 292 292 296 167 187 292 293 188 285 181 289 324 433 317 142 142 142 157 315 292 271 317 274 433 130 335 323 319 321 163 272 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL MANUAL SHIFT CONTROL<B3G>	1-33521-119-0	01	1	0603-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-124-0	01	1	0603-		●
142	BOLT; QUAD BOX (G) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	0603-0805		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	0806-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0603-0805		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	0603-0805		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-		●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	0603-0805		●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-		●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	1-09049-016-0	01	1	0603-0805		●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0603-0805		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-		●
157	BOX; QUAD,TRANS MANUAL SHIFT CONTROL<B3G> (A)	1-33541-256-2	01	1	0603-		●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	0603-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-507-3	01	1	0603-1311		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	8-98231-390-0	01	1	1312-		●
163	LEVER; SELECT,INTERNAL MANUAL SHIFT CONTROL<B3G>	1-33522-041-4	01	1	0603-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-162-1	01	1	0603-		●
167	LEVER; SELECT,EXTERNAL MANUAL SHIFT CONTROL<B3G>	1-33521-138-0	01	1	0603-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-163-0	01	1	0603-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0603-0811		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0812-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0603-0811		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0812-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0603-0811		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0812-	●	●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23	1-33549-016-0	01	1	0603-		●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32	1-33549-104-0	01	1	0603-		●
272	RING; SNAP,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0603-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0603-0811		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0812-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0603-0811		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0812-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0603-0811		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0812-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0603-0811		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0812-	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0603-0811		●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0812-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0603-0811		●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0812-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0603-0605		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-0811		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0812-	●	●
295	ROD; LINK,RELAY LEVER MANUAL SHIFT CONTROL<B3G> L=130	1-09765-262-0	01	1	0603-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-816-0	01	1	0603-		●
296	ROD END	1-09760-108-0	02	1	0603-0811		●
296	ROD END	1-09760-108-0	02	1	0812-	●	●
298	SHAFT; SHIFT LEVER MANUAL SHIFT CONTROL<B3G>	1-33522-146-0	01	1	0603-		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-180-0	01	1	0603-		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28151-045-0	02	1	0603-		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE	0-28151-080-0	04	1	0603-		●
315	LEVER; SELECT MANUAL SHIFT CONTROL<B3G>	1-33651-820-0	01	1	0603-		●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-754-0	01	1	0603-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0603-0811		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0812-	●	●
319	BRACKET; SELECT LEVER MANUAL SHIFT CONTROL<B3G>	1-33657-836-0	01	1	0603-		●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-753-0	01	1	0603-		●
321	BOLT; BRKT,RELAY LEVER MANUAL SHIFT CONTROL<B3G> M10X80	0-10856-080-0	02	1	0603-		●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0603-		●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0603-0811		●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0812-	●	●
324	BOLT; SHAFT ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE	0-28081-060-0	01	1	0603-		●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTOR SHIFT CONTROL<WX8>	1-33659-220-0	01	1	0603-		●
433	GASKET; BUSHING	1-09623-636-0	02	1	0603-0811		●
433	GASKET; BUSHING	1-09623-636-0	02	1	0812-	●	●

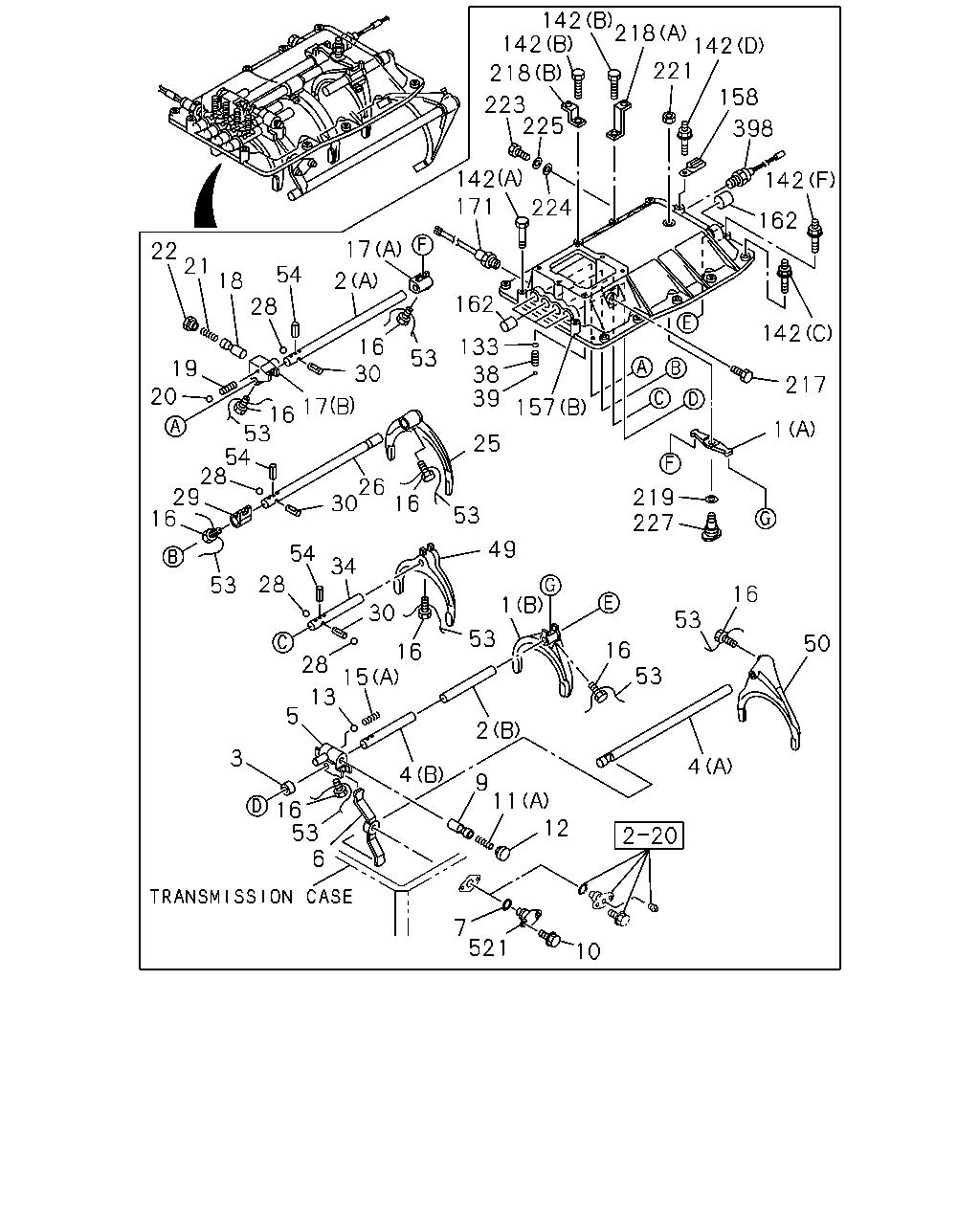

142 218 142 142 221 218 158 223 225 398 142 171 142 224 162 17 22 21 162 54 18 28 2 142 16 30 133 38 39 53 19 20 217 17 157 16 53 54 28 29 16 1 25 26 30 219 227 16 53 49 54 34 28 53 1 16 30 53 53 50 16 53 16 28 15 13 5 2 3 4 9 11 4 16 53 6 12 7 521 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (C)	1-33511-579-0	01	1	0812-	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-458-0	01	1	0603-		●
1	ARM; SHIFT,1ST & REV (A)	1-33511-541-0	01	1	0603-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-438-0	01	1	0812-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-456-0	01	1	0812-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	0603-		●
2	ROD; SHIFT,1ST & REV (A)	1-33531-415-1	01	1	0603-		●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	0603-		●
4	ROD; SHIFT,6TH (A)	1-33531-443-1	01	1	0812-	●
4	ROD; SHIFT,6TH (B)	1-33531-445-0	01	1	0812-	●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	0603-		●
4	ROD; SHIFT,6TH (A)	1-33531-407-1	01	1	0603-		●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	0603-		●
6	LEVER; RELAY	9-33511-402-1	01	1	0603-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0603-		●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	0603-		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0603-		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	0812-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0603-0811		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0812-1510	●	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	8-98294-206-0	01	1	1511-	●	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0812-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0603-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0603-0811		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0812-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	0812-	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	0603-0811		●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	0812-	●	●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	0603-		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-202-3	01	1	0812-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-552-1	01	1	0812-	●
17	BLOCK; SHIFT,1ST & REV (C)	1-33511-557-0	02	1	0812-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	0603-		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-540-0	01	1	0603-		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0603-0811		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0812-	●	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	0603-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0603-0811		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0812-	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	0603-		●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0812-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0603-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	0812-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-440-0	01	1	0603-		●
26	ROD; SHIFT,2ND & 3RD	1-33531-440-1	01	1	0812-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-401-1	01	1	0603-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0603-0811		●
28	BALL; INTER LK	9-00097-501-0	04	1	0812-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0603-0811		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0812-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0603-0811		●
30	PIN; INTER LK	9-33534-003-0	03	1	0812-	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-402-1	01	1	0603-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0603-0811		●
38	SPRING; DETENT	1-09580-379-0	04	1	0812-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0603-0811		●
39	BALL; DETENT	1-09843-012-0	04	1	0812-	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	0812-	●
49	ARM; SHIFT,4TH & 5TH	1-33511-461-0	01	1	0603-		●
50	ARM; SHIFT,6TH	1-33511-550-0	01	1	0812-	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	0603-		●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	0603-		●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	0603-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0603-0811		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0812-	●	●
133	SEAT; SPR	1-33549-072-0	04	1	0603-		●
142	BOLT; QUAD BOX (G) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	0603-0805		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	0806-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0603-0805		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	0603-0805		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-		●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	0603-0805		●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-		●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	1-09049-016-0	01	1	0603-0805		●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0603-0805		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-		●
157	BOX; QUAD,TRANS MANUAL SHIFT CONTROL<B3G> (A)	1-33541-256-2	01	1	0603-		●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	0603-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-507-3	01	1	0603-1311		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	8-98231-390-0	01	1	1312-		●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0603-		●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	0603-		●
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1006-1109	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0603-0702		●
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-0811		●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0812-1005	●	●
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	1006-1109		●
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0603-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-639-1	02	1	0812-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0603-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0603-		●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0603-		●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0603-0603		●
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0603-		●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0603-		●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0603-0605		●
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0606-		●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0603-0603		●
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0604-		●
227	SPINDLE; 1ST & REV	1-33519-104-0	01	1	0812-	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0603-		●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0812-1209	●
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	0603-		●
521	SPINDLE; 6TH	1-33519-008-1	01	1	0603-		●

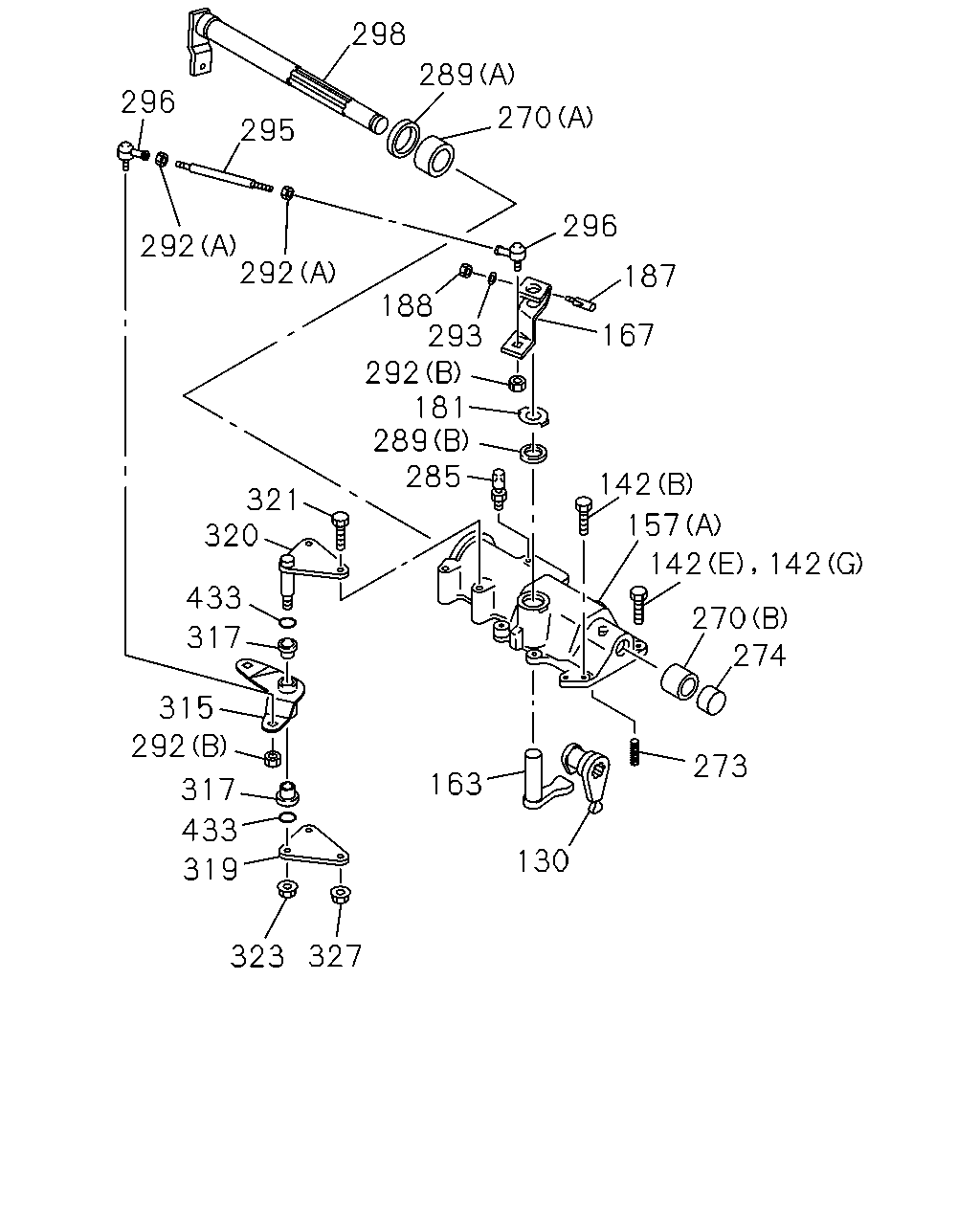

298 289 296 270 295 296 292 292 187 188 293 292 181 289 285 167 142 321 320 157 142 142 433 270 274 317 315 292 273 163 317 433 130 319 327 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL MANUAL SHIFT CONTROL<B3G>	1-33521-119-0	01	1	0603-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-124-0	01	1	0603-		●
142	BOLT; QUAD BOX (G) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	0-28181-028-0	11	1	0603-0805		●
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	11	1	0806-		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	04	1	0603-0805		●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0806-		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	1-09049-014-1	03	1	0603-0805		●
142	BOLT; QUAD BOX (C) M10X20,M10X26 L=56	8-98010-334-0	03	1	0806-		●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	1-09049-015-0	01	1	0603-0805		●
142	BOLT; QUAD BOX (D) M10X20,M10X45 L=75	8-98010-335-0	01	1	0806-		●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	1-09049-016-0	01	1	0603-0805		●
142	BOLT; QUAD BOX (F) M10X20,M10X55 L=85	8-98032-017-0	01	1	0806-		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0603-0805		●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-97365-449-0	02	1	0806-		●
157	BOX; QUAD,TRANS MANUAL SHIFT CONTROL<B3G> (A)	1-33541-256-2	01	1	0603-		●
157	BOX; QUAD,TRANS (B)	1-33541-345-2	01	1	0603-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	1-33541-507-3	01	1	0603-1311		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (A)	8-98231-390-0	01	1	1312-		●
163	LEVER; SELECT,INTERNAL MANUAL SHIFT CONTROL<B3G>	1-33522-041-4	01	1	0603-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-162-1	01	1	0603-		●
167	LEVER; SELECT,EXTERNAL MANUAL SHIFT CONTROL<B3G>	1-33521-138-0	01	1	0603-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-163-0	01	1	0603-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0603-0811		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0812-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0603-0811		●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0812-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0603-0811		●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0812-	●	●
270	BEARING; NEEDLE,QUAD BOX MANUAL SHIFT CONTROL<B3G> (A) NTN	1-09811-006-0	01	1	0603-		●
270	BEARING; NEEDLE,QUAD BOX MANUAL SHIFT CONTROL<B3G> (A) NSK	1-09811-057-0	01	1	0603-		●
270	BEARING; NEEDLE,QUAD BOX MANUAL SHIFT CONTROL<B3G> (B) NTN	1-09811-260-0	01	1	0603-		●
273	PIN; SPR,STOPPER MANUAL SHIFT CONTROL<B3G>	1-09748-016-0	01	1	0603-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0603-0811		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0812-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0603-0811		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0812-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0603-0811		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0812-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0603-0811		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0812-	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0603-0811		●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0812-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0603-0811		●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0812-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0603-0605		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-0811		●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0812-	●	●
295	ROD; LINK,RELAY LEVER MANUAL SHIFT CONTROL<B3G> L=130	1-09765-262-0	01	1	0603-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-816-0	01	1	0603-		●
296	ROD END	1-09760-108-0	02	1	0603-0811		●
296	ROD END	1-09760-108-0	02	1	0812-	●	●
298	SHAFT; SHIFT LEVER MANUAL SHIFT CONTROL<B3G>	1-33522-146-0	01	1	0603-		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-180-0	01	1	0603-		●
315	LEVER; SELECT MANUAL SHIFT CONTROL<B3G>	1-33651-820-0	01	1	0603-		●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-754-0	01	1	0603-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0603-0811		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0812-	●	●
319	BRACKET; SELECT LEVER MANUAL SHIFT CONTROL<B3G>	1-33657-836-0	01	1	0603-		●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-753-0	01	1	0603-		●
320	SHAFT; LEVER MANUAL SHIFT CONTROL<B3G>	1-33619-775-0	01	1	0603-		●
321	BOLT; BRKT,RELAY LEVER MANUAL SHIFT CONTROL<B3G> M10X80	0-10856-080-0	02	1	0603-		●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0603-		●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0603-0811		●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0812-	●	●
327	NUT; BRKT,RELAY LEVER MANUAL SHIFT CONTROL<B3G> M10 FLANGE	0-91150-210-0	02	1	0603-0603		●
327	NUT; BRKT,RELAY LEVER MANUAL SHIFT CONTROL<B3G> M10 FLANGE	0-91180-210-0	02	1	0603-		●
433	GASKET; BUSHING	1-09623-636-0	02	1	0603-0811		●
433	GASKET; BUSHING	1-09623-636-0	02	1	0812-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
