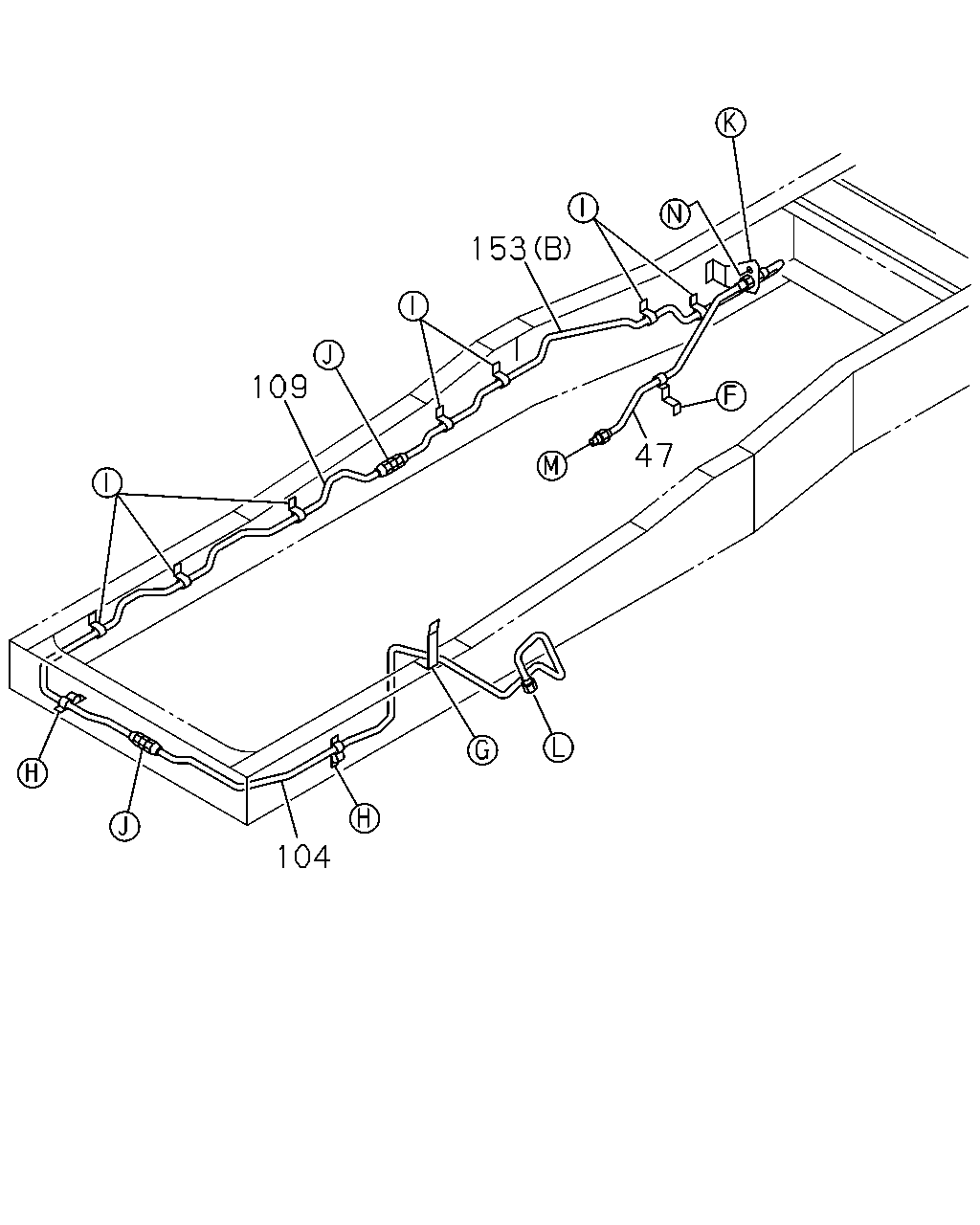

2-05 — CLUTCH PIPING (#35477) — 146 parça

153 109 47 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> MJT7 M/T<Y9E> L=550	1-09364-434-0	01	1	0812-	●
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=600	1-09364-705-0	01	1	0812-	●
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> L=570	1-09364-693-0	01	1	0603-0811	●
47	HOSE; FLEX,CLU CONT MIXER TRUCK<RA2> MAL6 M/T<X9G> L=570	1-09364-693-0	01	1	0812-	●
47	HOSE; FLEX,CLU CONT EXC. MIXER TRUCK<RA2> L=470	1-09364-692-0	01	1	0603-0811	●
47	HOSE; FLEX,CLU CONT L=470	1-09364-692-0	01	1	0603-0811		●
47	HOSE; FLEX,CLU CONT MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> L=470	1-09364-692-0	01	1	0812-	●
47	HOSE; FLEX,CLU CONT L=470	1-09364-692-0	01	1	0812-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1396 SERVICED BY L=1400	1-47428-765-0	01	1	0603-	●	●
109	PIPE; AIR,UNION TO UNION L=1715 SERVICED BY L=1800	1-47426-392-0	01	1	0603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2035 SERVICED BY L=2150	1-47426-394-0	01	1	0812-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2036 SERVICED BY L=2150	1-47428-770-0	01	1	1111-	●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> (B) L=1963 SERVICED BY L=2150	1-47426-394-0	01	1	0603-0811	●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> MAL6 M/T<X9G> (B) L=1963 SERVICED BY L=2150	1-47426-394-0	01	1	0812-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0603-0606	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. MIXER TRUCK<RA2> (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0603-0811	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0603-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0812-1110	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0812-1110		●
153	PIPE ASM; CLU,UNION TO FLEX MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B) L=1858 SERVICED BY L=1950	1-47428-769-0	01	1	1111-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1858 SERVICED BY L=1950	1-47428-769-0	01	1	1111-		●

22 167 153 103 102 27 30 50 133 25 184 27 10 175 180 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0603-0703	●	●
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	0704-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0603-	●	●
22	UNION; CLU PIPE M14	9-09225-208-1	01	1	0603-0607	●	●
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	0608-	●	●
25	BRACKET; OIL PIPE (B)	1-47471-021-0	01	1	0603-0706	●	●
25	BRACKET; OIL PIPE ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-47471-021-0	01	1	0707-	●	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	0603-	●	●
25	BRACKET; OIL PIPE (A)	1-71907-726-0	01	1	0603-	●	●
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0603-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0603-	●	●
30	BOLT; BRKT M8X40 FLANGE	0-28650-840-0	01	1	0603-	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0603-0904	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
50	NUT; UNION M14	0-91111-514-0	01	1	0603-	●	●
56	BRACKET; FLEX HOSE	1-47471-366-0	01	1	0603-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0603-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0603-0603	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0603-0603	●	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2035 SERVICED BY L=2150	1-47426-394-0	01	1	0812-1110	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> (B) L=2036 SERVICED BY L=2150	1-47428-770-0	01	1	1111-	●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> (B) L=1963 SERVICED BY L=2150	1-47426-394-0	01	1	0603-0811	●
153	PIPE ASM; CLU,UNION TO FLEX MIXER TRUCK<RA2> MAL6 M/T<X9G> (B) L=1963 SERVICED BY L=2150	1-47426-394-0	01	1	0812-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0603-0606	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	0607-	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXC. MIXER TRUCK<RA2> (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0603-0811	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0603-0811		●
153	PIPE ASM; CLU,UNION TO FLEX MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0812-1110	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1857 SERVICED BY L=1950	1-47428-769-0	01	1	0812-1110		●
153	PIPE ASM; CLU,UNION TO FLEX MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B) L=1858 SERVICED BY L=1950	1-47428-769-0	01	1	1111-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=1858 SERVICED BY L=1950	1-47428-769-0	01	1	1111-		●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0603-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0603-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0603-0603	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0603-0804	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09656-679-0	01	1	0603-0804	●	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●	●

25 29 117 4 28 30 26 36 37 29 28 34 25 106 33 35 43 44 42 45 46 42 46 45 44 115 116 43 116 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> ID=16 H=25 L=25	1-09701-162-0	01	1	0812-	●
25	BRACKET; OIL PIPE (B)	1-47471-021-0	01	1	0603-0706	●	●
25	BRACKET; OIL PIPE ENGINE CONTROL COMMON RAIL(Q4R) (B)	1-47471-021-0	01	1	0707-	●	●
25	BRACKET; OIL PIPE (C) L=50	1-47475-299-2	02	1	0603-	●	●
25	BRACKET; OIL PIPE (A)	1-71907-726-0	01	1	0603-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0603-0603	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
28	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0603-	●	●
28	CLIP; OIL PIPE (A) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0603-	●	●
29	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28050-816-0	03	1	0603-	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28050-820-0	01	1	0603-	●	●
30	BOLT; BRKT M8X40 FLANGE	0-28650-840-0	01	1	0603-	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0603-0904	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0603-	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0603-	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0603-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0603-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	02	1	0603-	●	●
34	BOLT; PIPE CLIP M8X35 FLANGE	0-28650-835-0	02	1	0603-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0603-0603	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	0603-0603	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	0812-	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0603-	●	●
37	BOLT; CLIP BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28151-020-0	01	1	0812-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> (A)	1-47471-203-0	01	1	0812-	●
42	BRACKET; FLEX HOSE,CLU CONT MIXER TRUCK<RA2> (A)	1-47479-626-0	01	1	0603-0811	●
42	BRACKET; FLEX HOSE,CLU CONT MIXER TRUCK<RA2> MAL6 M/T<X9G> (A)	1-47479-626-0	01	1	0812-	●
42	BRACKET; FLEX HOSE,CLU CONT EXC. MIXER TRUCK<RA2> (B)	1-47479-812-0	01	1	0603-0811	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47479-812-0	01	1	0603-0811		●
42	BRACKET; FLEX HOSE,CLU CONT MAL6 M/T<X9G> EXC. MIXER TRUCK<RA2> (B)	1-47479-812-0	01	1	0812-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47479-812-0	01	1	0812-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X40 FLANGE	0-28650-840-0	02	1	0603-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0603-0603	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0603-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=12.2	9-09150-512-0	01	1	0603-0603	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0604-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0603-0607	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0603-0607	●	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0603-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0603-0603	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●	●
117	BOLT; CLIP,FLEX HOSE MJT7 M/T<Y9E> M8X16 FLANGE	0-28050-816-0	01	1	0812-	●

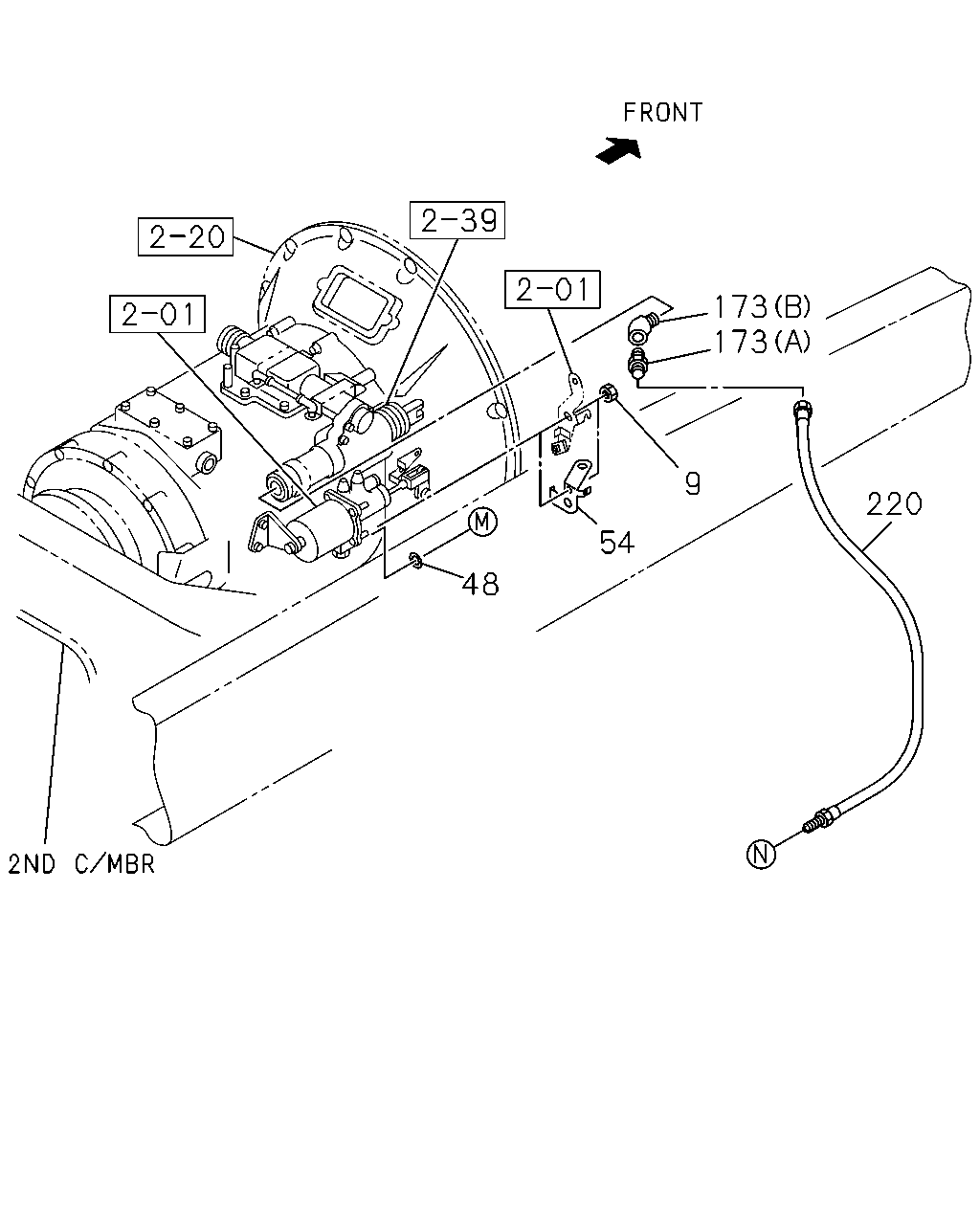

173 173 9 220 54 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0603-0603	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0603-	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0603-0811	●	●
54	BRACKET; AIR,FLEX HOSE MAL6U M/T(Y2R)	1-47477-284-1	01	1	0812-	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0812-		●
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0603-	●	●
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> (B) R1/4 & RC1/4	1-09664-211-0	01	1	0603-	●	●
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=300	1-09363-608-0	01	1	0812-	●
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=350	1-09363-624-0	01	1	0812-	●
220	HOSE; FLEX,POWER ASSIST MIXER TRUCK<RA2> ASSISTOR SHIFT CONTROL<WX8> L=420	1-09363-633-0	01	1	0603-0811	●
220	HOSE; FLEX,POWER ASSIST MIXER TRUCK<RA2> MAL6 M/T<X9G> ASSISTOR SHIFT CONTROL<WX8> L=420	1-09363-633-0	01	1	0812-	●
220	HOSE; FLEX,POWER ASSIST ASSISTOR SHIFT CONTROL<WX8> EXC. MIXER TRUCK<RA2> L=380	1-09363-884-0	01	1	0603-0811	●
220	HOSE; FLEX,POWER ASSIST ASSISTOR SHIFT CONTROL<WX8> L=380	1-09363-884-0	01	1	0603-0811		●
220	HOSE; FLEX,POWER ASSIST MAL6 M/T<X9G> ASSISTOR SHIFT CONTROL<WX8> EXC. MIXER TRUCK<RA2> L=380	1-09363-884-0	01	1	0812-	●
220	HOSE; FLEX,POWER ASSIST ASSISTOR SHIFT CONTROL<WX8> L=380	1-09363-884-0	01	1	0812-		●

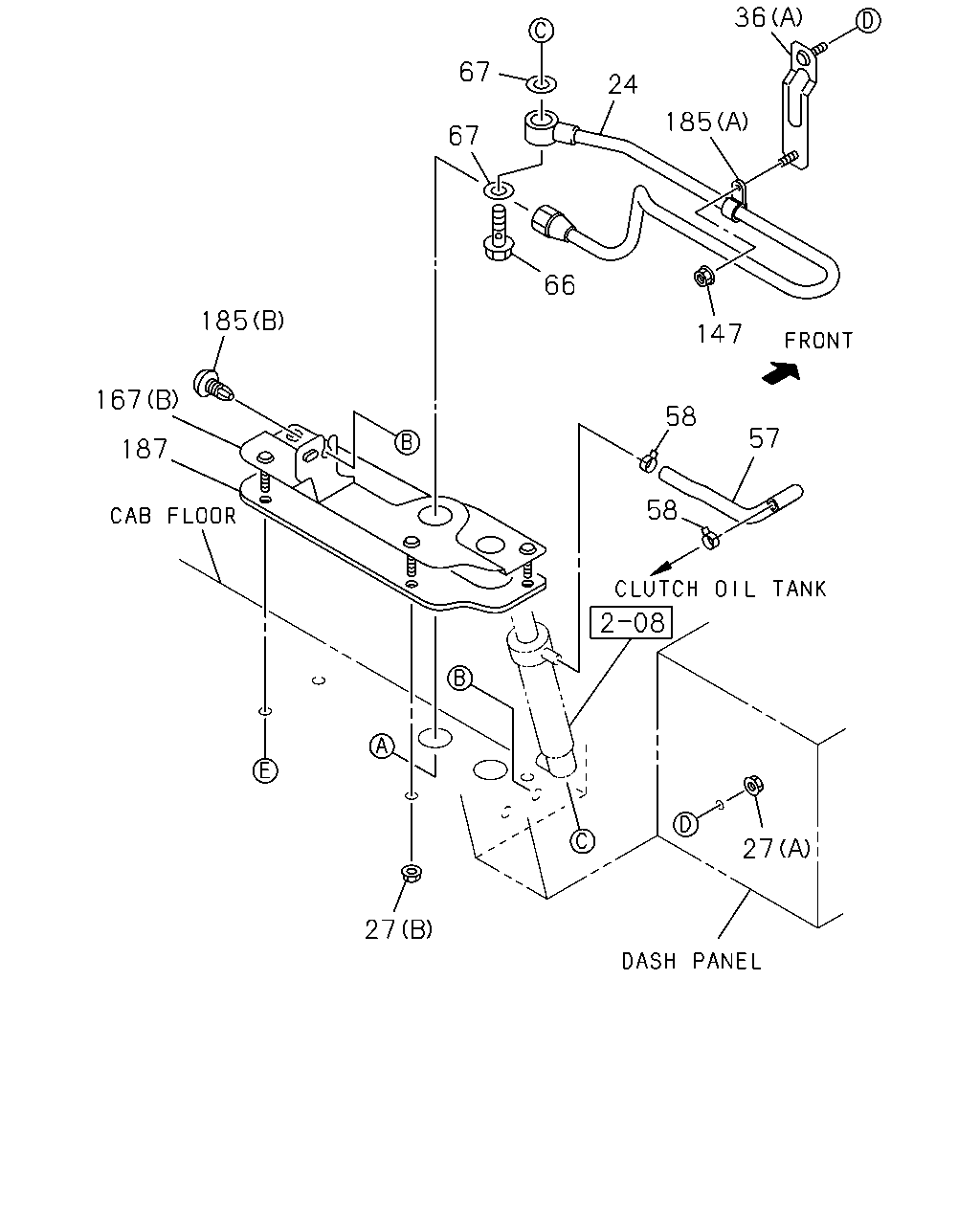

36 67 24 185 67 66 185 147 167 58 57 187 58 27 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION L=621	1-47428-362-1	01	1	0603-	●	●
27	NUT; BRKT (C) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0603-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0603-	●	●
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	0812-	●
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	0603-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0603-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0603-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0603-0805	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0603-1312	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0603-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0603-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0603-	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0603-	●	●
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0603-0606	●	●
185	CLIP; BRKT (A) ID=11 L=16	0-95235-025-0	01	1	0607-	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	0603-	●	●
