2-03 — CLUTCH PEDAL AND CONTROL (#35476) — 66 parça

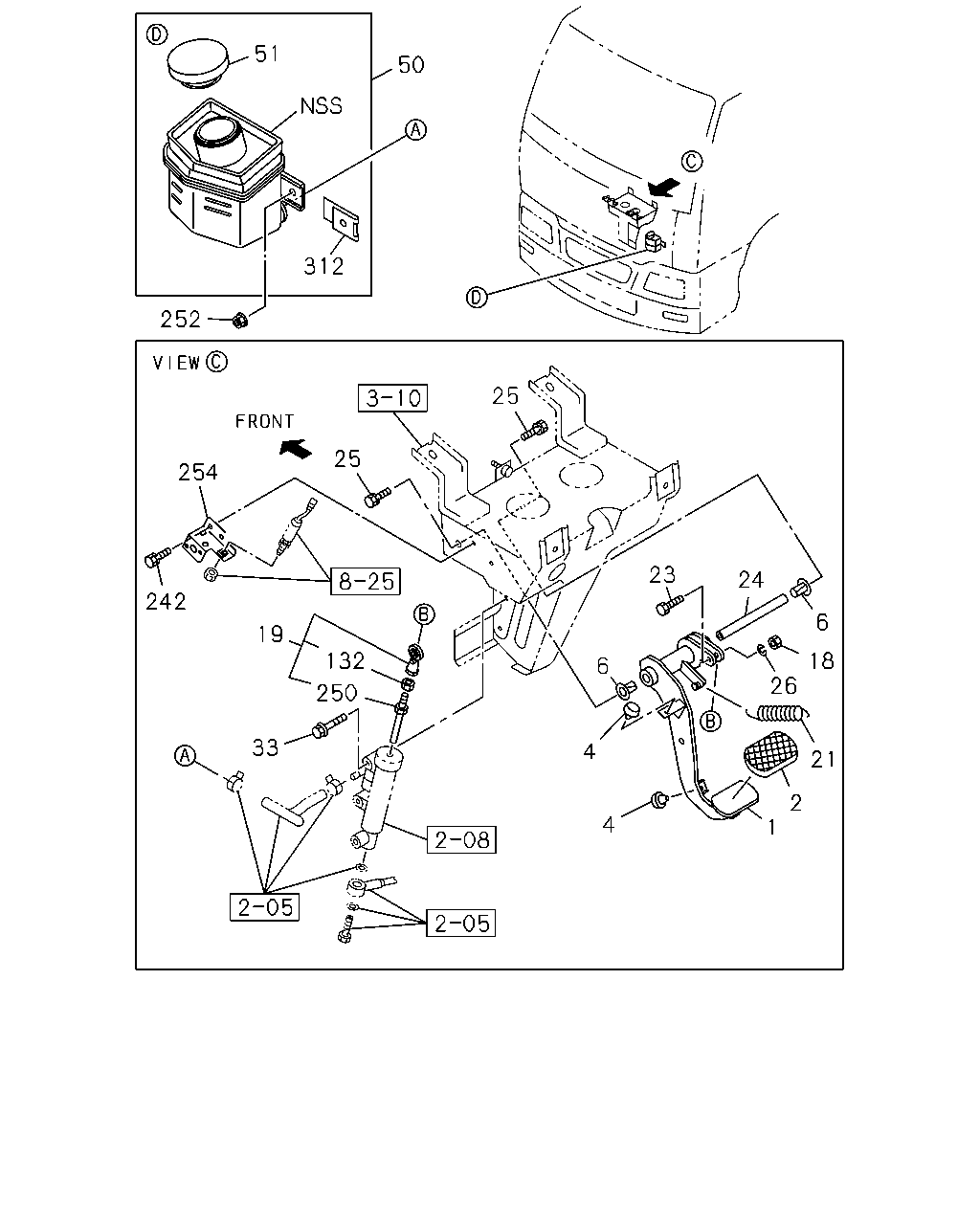

çizim 177482
51 50 312 252 25 25 254 23 24 242 6 19 132 18 6 26 250 33 4 21 2 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 1-73907-440-2 01 1 0603-1312 ● ●
1 PEDAL; CLU
EXC. ECE R29<EFE> 		1-73907-440-2 01 1 1401-1401 ●
1 PEDAL; CLU 1-73907-440-2 01 1 1401-1401 ●
1 PEDAL; CLU 1-73907-440-2 01 1 1402- ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0603-1312 ● ●
2 COVER; CLU PEDAL
EXC. ECE R29<EFE> 		8-97893-618-1 01 1 1401-1401 ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1401-1401 ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 1402- ● ●
4 STOPPER; CLU PEDAL 1-47319-014-1 02 1 0603-0811 ● ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 0812-1312 ● ●
4 STOPPER; CLU PEDAL
EXC. ECE R29<EFE> 		1-47319-014-1 04 1 1401-1401 ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 1401-1401 ●
4 STOPPER; CLU PEDAL 1-47319-014-1 04 1 1402- ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0603-1312 ● ●
6 BUSHING; CLU PEDAL
EXC. ECE R29<EFE> 		1-09330-045-0 02 1 1401-1401 ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1401-1401 ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 1402- ● ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 0603-1312 ● ●
18 NUT; PUSH ROD
EXC. ECE R29<EFE> M8 		0-91110-508-0 01 1 1401-1401 ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 1401-1401 ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 1402- ● ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 0603-1312 ● ●
19 ROD ASM; PUSH,CLU
EXC. ECE R29<EFE> 		1-73907-320-1 01 1 1401-1401 ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 1401-1401 ●
19 ROD ASM; PUSH,CLU 1-73907-320-1 01 1 1402- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0603-1312 ● ●
21 SPRING; RETURN,CLU PEDAL
EXC. ECE R29<EFE> 		1-73908-265-0 01 1 1401-1401 ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 1401-1401 ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 1402- ● ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 0603-1312 ● ●
23 BOLT; PUSH ROD
EXC. ECE R29<EFE> M8X39.7 		1-09009-150-0 01 1 1401-1401 ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 1401-1401 ●
23 BOLT; PUSH ROD
M8X39.7 		1-09009-150-0 01 1 1402- ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0603-1312 ● ●
24 SHAFT; CLU PEDAL
EXC. ECE R29<EFE> 		1-73998-936-1 01 1 1401-1401 ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 1401-1401 ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 1402- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0603-1312 ● ●
25 BOLT; PEDAL
EXC. ECE R29<EFE> M10X25 W/LK WASHER 		0-50051-025-0 02 1 1401-1401 ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 1401-1401 ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 1402- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 0603-1312 ● ●
26 WASHER; LK,PUSH ROD
EXC. ECE R29<EFE> ID=8.2 		0-91510-608-0 01 1 1401-1401 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 1401-1401 ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 1402- ● ●
33 BOLT; CLU M/CYL TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0603- ● ●
50 TANK; OIL,CLU 1-47530-182-0 01 1 0603- ● ●
51 CAP; OIL TANK,CLU 8-94136-483-1 01 1 0603- ● ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 0603-1312 ● ●
132 NUT; LK,PUSH ROD
EXC. ECE R29<EFE> M8 		0-91110-508-0 01 1 1401-1401 ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 1401-1401 ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 1402- ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 0603-1312 ● ●
242 BOLT; BRKT,CLUTCH
EXC. ECE R29<EFE> M6X16 W/LK WASHER 		0-50040-616-0 02 1 1401-1401 ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 1401-1401 ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 1402- ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0603-1312 ● ●
250 ROD; PUSH,CLU
EXC. ECE R29<EFE> 		1-73996-219-0 01 1 1401-1401 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1401-1401 ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 1402- ● ●
252 NUT; OIL TANK
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0603- ● ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 0603-1312 ● ●
254 BRACKET; CLU SENSOR
EXC. ECE R29<EFE> 		1-73998-979-5 01 1 1401-1401 ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 1401-1401 ●
254 BRACKET; CLU SENSOR 1-73998-979-5 01 1 1402- ● ●
312 PLATE; OIL TANK,CLU 1-21249-007-1 01 1 0603- ● ●
