1-50 — EXHAUST PIPE AND SILENCER (#35473) — 126 parça

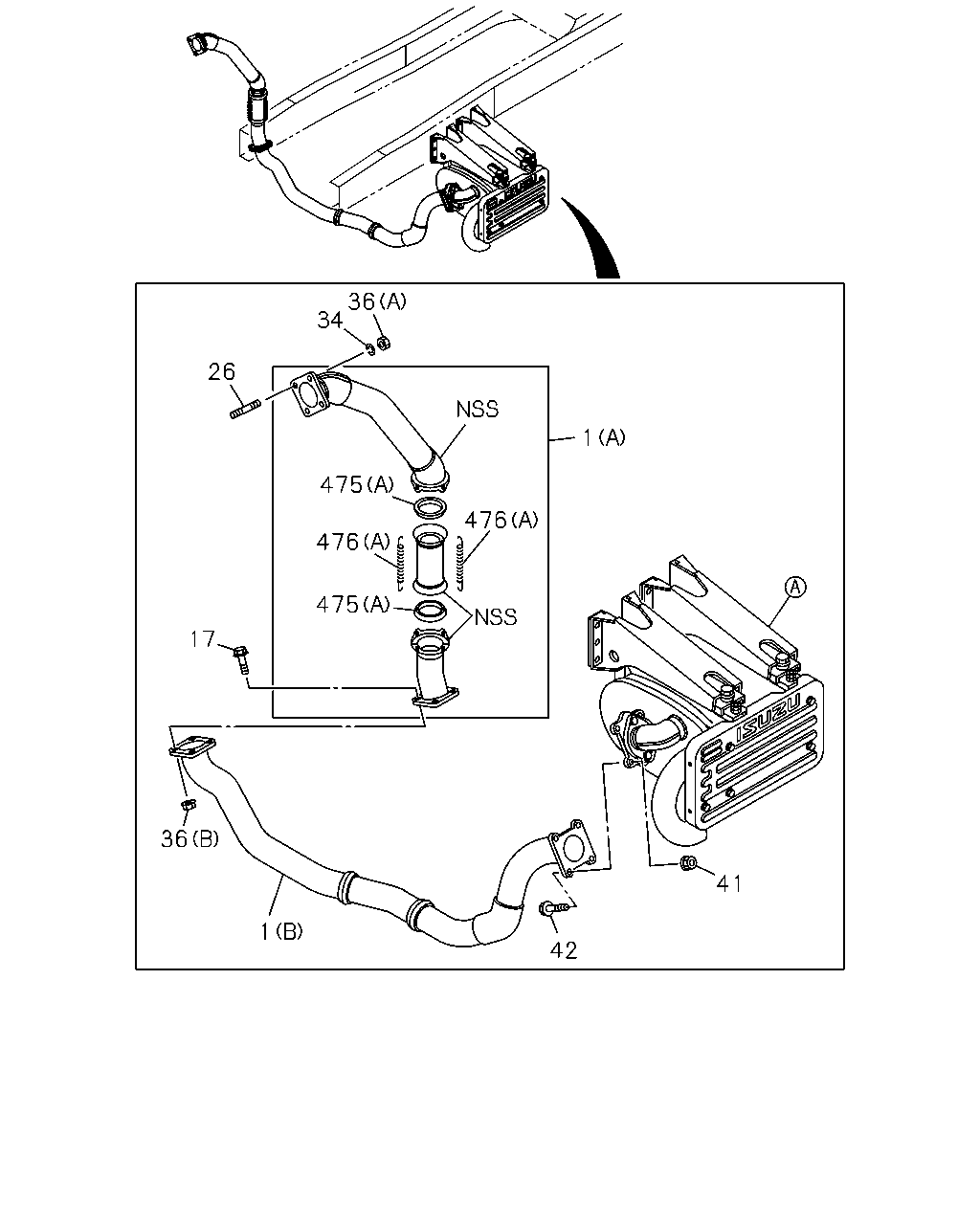

36 34 26 1 475 476 476 475 17 36 41 1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (A)	1-22123-773-2	01	1	0603-0606	●	●
1	PIPE; EXH (A)	1-22124-033-0	01	1	0607-	●	●
1	PIPE; EXH (B)	1-22123-762-1	01	1	0603-0710	●
1	PIPE; EXH EXC. CONCRETE PUMP<RA5> (B)	1-22123-762-1	01	1	0603-0710		●
1	PIPE; EXH (B)	1-22123-762-1	01	1	0711-	●
1	PIPE; EXH CONCRETE PUMP<RA5> (C)	1-22123-768-0	01	1	0603-0612		●
1	PIPE; EXH CONCRETE PUMP<RA5> (C)	8-97618-403-0	01	1	0701-0710		●
1	PIPE; EXH (C)	8-97618-403-0	01	1	0711-		●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0603-	●	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0603-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0603-	●	●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0603-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0603-	●	●
41	NUT; EXH PIPE TO EXH SILENCER CONCRETE PUMP<RA5> M12	0-91110-512-0	08	1	0603-0710		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0711-		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	0603-0710	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. CONCRETE PUMP<RA5> M12	0-91110-512-0	04	1	0603-0710		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	0711-	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0603-0805	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0806-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	0603-0710	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. CONCRETE PUMP<RA5> M12X25 FLANGE	1-09000-604-0	04	1	0603-0710		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	0711-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0603-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0603-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0603-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0603-	●	●

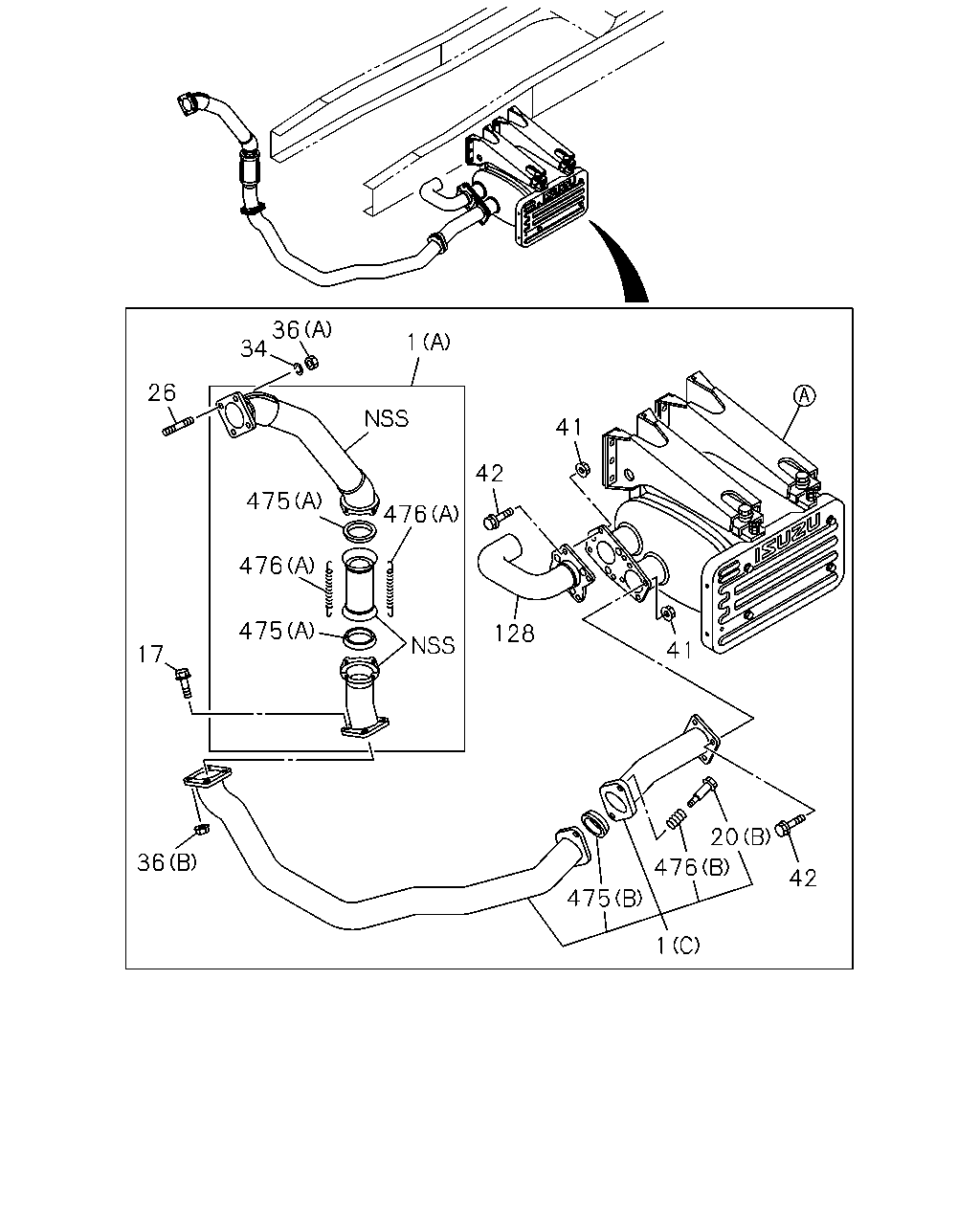

36 34 1 26 41 42 475 476 476 475 128 41 17 20 36 476 42 475 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH (A)	1-22123-773-2	01	1	0603-0606	●	●
1	PIPE; EXH (A)	1-22124-033-0	01	1	0607-	●	●
1	PIPE; EXH (B)	1-22123-762-1	01	1	0603-0710	●
1	PIPE; EXH EXC. CONCRETE PUMP<RA5> (B)	1-22123-762-1	01	1	0603-0710		●
1	PIPE; EXH (B)	1-22123-762-1	01	1	0711-	●
1	PIPE; EXH CONCRETE PUMP<RA5> (C)	1-22123-768-0	01	1	0603-0612		●
1	PIPE; EXH CONCRETE PUMP<RA5> (C)	8-97618-403-0	01	1	0701-0710		●
1	PIPE; EXH (C)	8-97618-403-0	01	1	0711-		●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	0603-	●	●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0603-0708	●
20	BOLT; FLANGE,EXH PIPE EXC. CONCRETE PUMP<RA5> (A) M10X51.4	1-09009-167-0	02	1	0603-0708		●
20	BOLT; FLANGE,EXH PIPE DUMP TRUCK<RA1> SAUDI ARABIA EQUIPMENT(WH1) (A) M10X51.4	1-09009-167-0	02	1	0709-0710	●
20	BOLT; FLANGE,EXH PIPE EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) M10X51.4	1-09009-167-0	02	1	0709-0710	●
20	BOLT; FLANGE,EXH PIPE EXC. CONCRETE PUMP<RA5>,SAUDI ARABIA EQUIPMENT(WH1) (A) M10X51.4	1-09009-167-0	02	1	0709-0710		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0711-	●
20	BOLT; FLANGE,EXH PIPE CONCRETE PUMP<RA5> (B) M10X49.8	8-97039-586-0	02	1	0603-0710		●
20	BOLT; FLANGE,EXH PIPE (B) M10X49.8	8-97039-586-0	02	1	0711-		●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	0603-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	0603-	●	●
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	0603-	●	●
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	0603-	●	●
41	NUT; EXH PIPE TO EXH SILENCER CONCRETE PUMP<RA5> M12	0-91110-512-0	08	1	0603-0710		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	0711-		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	0603-0710	●
41	NUT; EXH PIPE TO EXH SILENCER EXC. CONCRETE PUMP<RA5> M12	0-91110-512-0	04	1	0603-0710		●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	0711-	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0603-0805	●	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	0806-		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	0603-0710	●
42	BOLT; EXH PIPE TO EXH SILENCER EXC. CONCRETE PUMP<RA5> M12X25 FLANGE	1-09000-604-0	04	1	0603-0710		●
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	0711-	●
128	PIPE; EXH,RR CONCRETE PUMP<RA5>	1-22126-604-0	01	1	0603-0612		●
128	PIPE; EXH,RR CONCRETE PUMP<RA5>	8-97618-404-0	01	1	0701-0710		●
128	PIPE; EXH,RR	8-97618-404-0	01	1	0711-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0603-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0603-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0603-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0603-	●	●

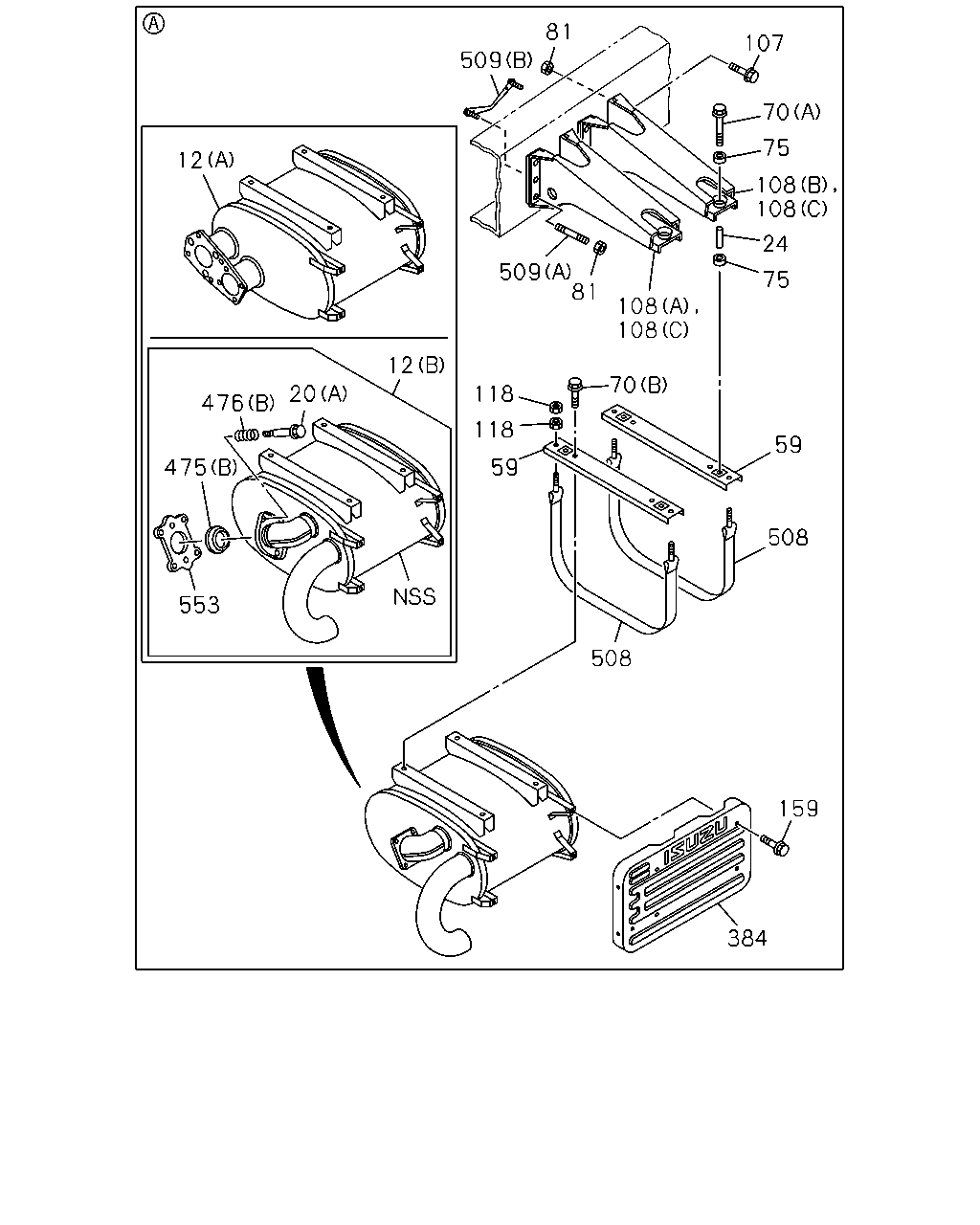

81 107 509 70 75 12 108 108 24 509 81 75 108 108 12 70 118 20 476 118 59 59 475 508 553 508 159 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH DUMP TRUCK<RA1> SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98094-838-0	01	1	0709-0710	●
12	SILENCER ASM; EXH SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98094-838-1	01	1	0711-	●
12	SILENCER ASM; EXH CONCRETE PUMP<RA5> SAUDI ARABIA EQUIPMENT(WH1) (A)	8-98094-839-0	01	1	0709-0710		●
12	SILENCER ASM; EXH SAUDI ARABIA EQUIPMENT(WH1) (A)	8-98094-839-0	01	1	0711-		●
12	SILENCER ASM; EXH (B)	1-22141-170-1	01	1	0603-0708	●
12	SILENCER ASM; EXH EXC. CONCRETE PUMP<RA5> (B)	1-22141-170-1	01	1	0603-0708		●
12	SILENCER ASM; EXH EXC. SAUDI ARABIA EQUIPMENT(WH1) (B)	1-22141-170-1	01	1	0709-0710	●
12	SILENCER ASM; EXH EXC. CONCRETE PUMP<RA5>,SAUDI ARABIA EQUIPMENT(WH1) (B)	1-22141-170-1	01	1	0709-0710		●
12	SILENCER ASM; EXH EXC. SAUDI ARABIA EQUIPMENT(WH1) (B)	1-22141-170-4	01	1	0711-	●
12	SILENCER ASM; EXH CONCRETE PUMP<RA5> (A)	1-22141-130-1	01	1	0603-0708		●
12	SILENCER ASM; EXH CONCRETE PUMP<RA5> EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-22141-130-1	01	1	0709-0710		●
12	SILENCER ASM; EXH EXC. SAUDI ARABIA EQUIPMENT(WH1) (A)	1-22141-130-3	01	1	0711-		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0603-0708	●
20	BOLT; FLANGE,EXH PIPE EXC. CONCRETE PUMP<RA5> (A) M10X51.4	1-09009-167-0	02	1	0603-0708		●
20	BOLT; FLANGE,EXH PIPE DUMP TRUCK<RA1> SAUDI ARABIA EQUIPMENT(WH1) (A) M10X51.4	1-09009-167-0	02	1	0709-0710	●
20	BOLT; FLANGE,EXH PIPE EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) M10X51.4	1-09009-167-0	02	1	0709-0710	●
20	BOLT; FLANGE,EXH PIPE EXC. CONCRETE PUMP<RA5>,SAUDI ARABIA EQUIPMENT(WH1) (A) M10X51.4	1-09009-167-0	02	1	0709-0710		●
20	BOLT; FLANGE,EXH PIPE (A) M10X51.4	1-09009-167-0	02	1	0711-	●
20	BOLT; FLANGE,EXH PIPE CONCRETE PUMP<RA5> (B) M10X49.8	8-97039-586-0	02	1	0603-0710		●
20	BOLT; FLANGE,EXH PIPE (B) M10X49.8	8-97039-586-0	02	1	0711-		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	0603-	●	●
59	BRACKET; EXH SILENCER,FRT	1-22134-147-1	02	1	0603-	●	●
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	04	1	0603-	●	●
70	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0603-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	0603-	●	●
81	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	0603-0603	●	●
81	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	0603-	●	●
107	BOLT; BRKT M12X40 FLANGE	0-28051-240-0	06	1	0603-0710	●
107	BOLT; BRKT EXC. CONCRETE PUMP<RA5> M12X40 FLANGE	0-28051-240-0	06	1	0603-0710		●
107	BOLT; BRKT M12X40 FLANGE	0-28051-240-0	06	1	0711-	●
107	BOLT; BRKT CONCRETE PUMP<RA5> M12X45 FLANGE	0-28051-245-0	04	1	0603-0710		●
107	BOLT; BRKT M12X45 FLANGE	0-28051-245-0	04	1	0711-		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22134-145-0	01	1	0603-0710	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. CONCRETE PUMP<RA5> (A)	1-22134-145-0	01	1	0603-0710		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22134-145-0	01	1	0711-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22134-146-0	01	1	0603-0710	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. CONCRETE PUMP<RA5> (B)	1-22134-146-0	01	1	0603-0710		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (B)	1-22134-146-0	01	1	0711-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR CONCRETE PUMP<RA5> (C)	1-22134-148-2	02	1	0603-0710		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (C)	1-22134-148-3	02	1	0711-		●
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	0603-	●	●
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0603-	●	●
384	PROTECTOR; HEAT SILENCER MTG	1-22119-556-0	01	1	0603-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	0603-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	02	1	0603-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	0603-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	0603-	●	●
508	BAND; EXHAUST SILENCER	1-22159-384-0	02	1	0603-	●	●
509	STUD; BRKT (A) M12X40 L=56	1-09300-123-0	06	1	0603-0710	●
509	STUD; BRKT EXC. CONCRETE PUMP<RA5> (A) M12X40 L=56	1-09300-123-0	06	1	0603-0710		●
509	STUD; BRKT (A) M12X40 L=56	1-09300-123-0	06	1	0711-	●
509	STUD; BRKT CONCRETE PUMP<RA5> (A) M12X40 L=56	1-09300-123-0	04	1	0603-0710		●
509	STUD; BRKT (A) M12X40 L=56	1-09300-123-0	04	1	0711-		●
509	STUD; BRKT CONCRETE PUMP<RA5> (B)	1-22152-152-0	02	1	0603-0710		●
509	STUD; BRKT (B)	1-22152-152-0	02	1	0711-		●
553	FLANGE; SILENCER	1-22115-148-1	01	1	0603-0708	●
553	FLANGE; SILENCER EXC. CONCRETE PUMP<RA5>	1-22115-148-1	01	1	0603-0708		●
553	FLANGE; SILENCER DUMP TRUCK<RA1> SAUDI ARABIA EQUIPMENT(WH1)	1-22115-148-1	01	1	0709-0710	●
553	FLANGE; SILENCER EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-22115-148-1	01	1	0709-0710	●
553	FLANGE; SILENCER EXC. CONCRETE PUMP<RA5>,SAUDI ARABIA EQUIPMENT(WH1)	1-22115-148-1	01	1	0709-0710		●
553	FLANGE; SILENCER	1-22115-148-1	01	1	0711-	●
