◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶

1-41 — FUEL PIPING; CHASSIS (#35471) — 140 parça

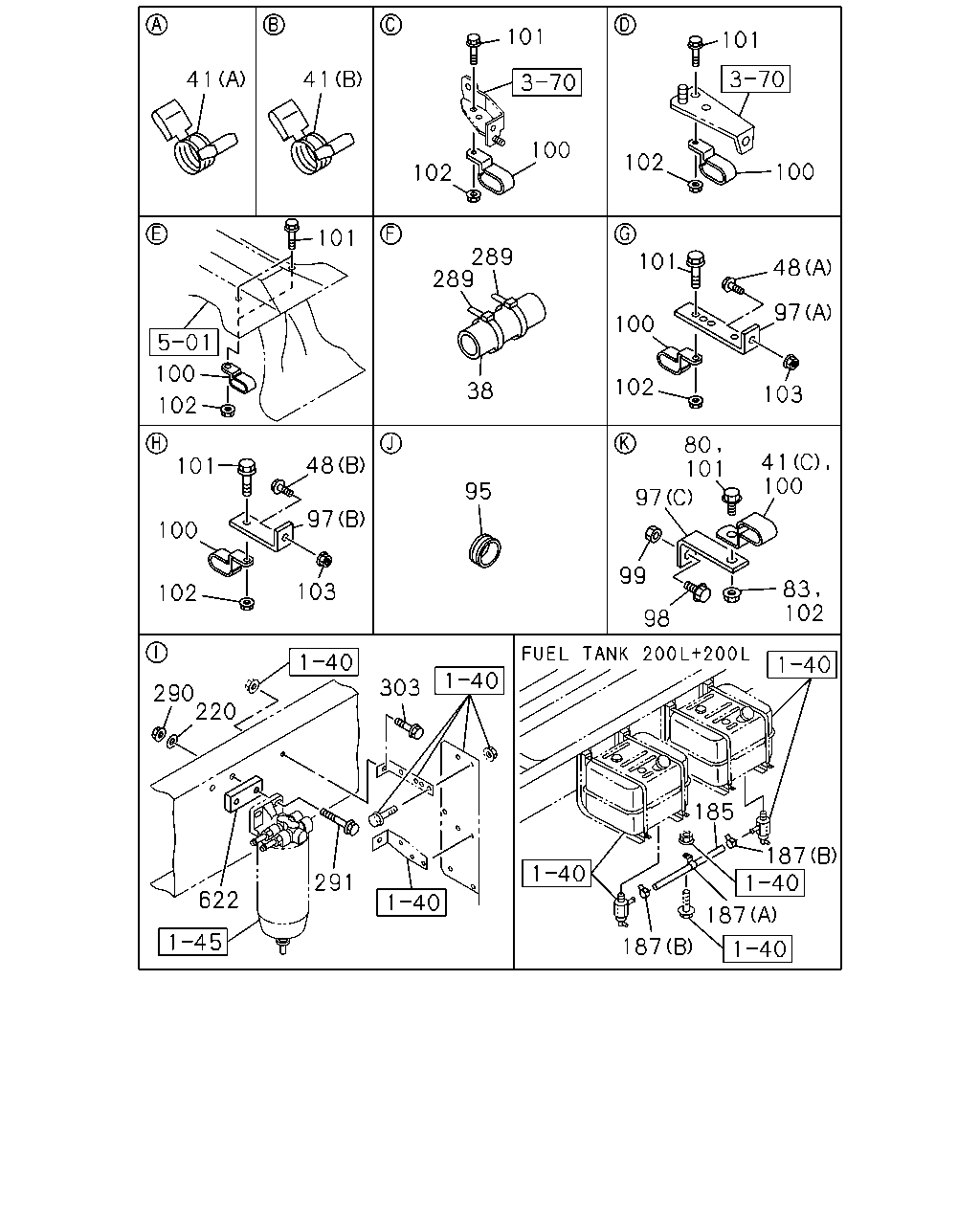

101 101 41 41 100 102 100 102 101 289 289 101 48 97 100 100 102 38 103 102 80 101 41 100 48 101 95 97 97 100 99 83 102 103 102 98 303 290 220 185 187 291 622 187 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0603-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0603-		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0709-0710		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0711-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	02	1	0603-0706	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	02	1	0603-0706	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	02	1	0707-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=14	1-09704-102-0	02	1	0707-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0603-0706	●	●
41	CLIP; FUEL PIPE,FUEL TANK ENGINE CONTROL COMMON RAIL(Q4R) (B) ID=19	8-94238-569-0	02	1	0707-	●	●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) (A) M8X35 FLANGE	0-28650-835-0	01	1	0709-		●
48	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0603-0708		●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0709-		●
48	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	0603-0708		●
48	BOLT; BRKT WHEEL BASE 5900MM(59W) (A) M8X35 FLANGE	0-28650-835-0	02	1	0709-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	0709-0710		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	0711-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0709-0710		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0711-		●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	0603-	●	●
97	BRACKET; CLIP WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> (C)	1-47475-927-0	01	1	0709-0710		●
97	BRACKET; CLIP WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (C)	1-47475-927-0	01	1	0711-1010		●
97	BRACKET; CLIP WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (C) L=68	1-47475-525-0	01	1	1011-		●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A)	1-82698-358-0	01	1	0709-		●
97	BRACKET; CLIP (B) L=55	1-47475-304-0	01	1	0603-		●
97	BRACKET; CLIP (A)	1-82698-358-0	01	1	0603-0708		●
97	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-82698-358-0	02	1	0709-		●
98	BOLT; BRKT,FUEL PIPE WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> M8X35 FLANGE	0-28650-835-0	01	1	0709-0710		●
98	BOLT; BRKT,FUEL PIPE WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M8X35 FLANGE	0-28650-835-0	01	1	0711-		●
99	NUT; BRKT,CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0709-0710		●
99	NUT; BRKT,CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0711-		●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ENGINE CONTROL COMMON RAIL(Q4R) ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0709-		●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	0603-0706	●
100	CLIP; FUEL PIPE ENGINE CONTROL COMMON RAIL(Q4R) ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	0707-	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0603-0706		●
100	CLIP; FUEL PIPE ENGINE CONTROL COMMON RAIL(Q4R) ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0707-0708		●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W) ENGINE CONTROL COMMON RAIL(Q4R) ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0709-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	05	1	0709-		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	0603-	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0603-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	0603-0708		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) M8X20 FLANGE	0-28650-820-0	06	1	0709-		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0603-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	07	1	0709-		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	04	1	0603-0603	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	07	1	0603-0603		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	07	1	0603-0708		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	08	1	0709-		●
103	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+200L<NF7> L=1050 SERVICED BY L=3000	0-01262-300-0	01	1	0603-		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (B) ID=17.1	8-94122-679-0	02	1	0603-		●
187	CLIP; FUEL PIPE TANK TO TANK FUEL TANK 200L+200L<NF7> (A) ID=19 H=25 L=25	9-09917-035-0	02	1	0603-		●
220	WASHER; PL FUEL SEDIMENTER WITH HEATER<6HU> ID=12.5 OD=26	0-91610-612-0	02	1	0807-	●	●
220	WASHER; PL ID=10.5 OD=26	9-09164-710-0	02	1	0603-0605	●	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	0606-0806	●	●
220	WASHER; PL EXC. FUEL SEDIMENTER WITH HEATER<6HU> ID=10.5 OD=26	0-91614-710-0	02	1	0807-	●	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	03	1	0603-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	05	1	0603-		●
290	NUT; FILTER TO BRKT FUEL SEDIMENTER WITH HEATER<6HU> M12 FLANGE	0-91180-212-0	02	1	0807-	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91150-210-0	02	1	0603-0603	●	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-0806	●	●
290	NUT; FILTER TO BRKT EXC. FUEL SEDIMENTER WITH HEATER<6HU> M10 FLANGE	0-91180-210-0	02	1	0807-	●	●
291	BOLT; FILER TO BRKT M10X50 FLANGE	0-28051-050-0	02	1	0603-0806	●	●
291	BOLT; FILER TO BRKT FUEL SEDIMENTER WITH HEATER<6HU> M12X60 FLANGE	0-28051-260-0	02	1	0807-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	0603-0806	●	●
291	BOLT; FILER TO BRKT EXC. FUEL SEDIMENTER WITH HEATER<6HU> M10X60 FLANGE	0-28051-060-0	02	1	0807-	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0603-	●
622	SPACER; BRKT	1-53168-492-0	01	1	0603-0806	●	●
622	SPACER; BRKT	8-98124-944-0	01	1	0807-	●	●

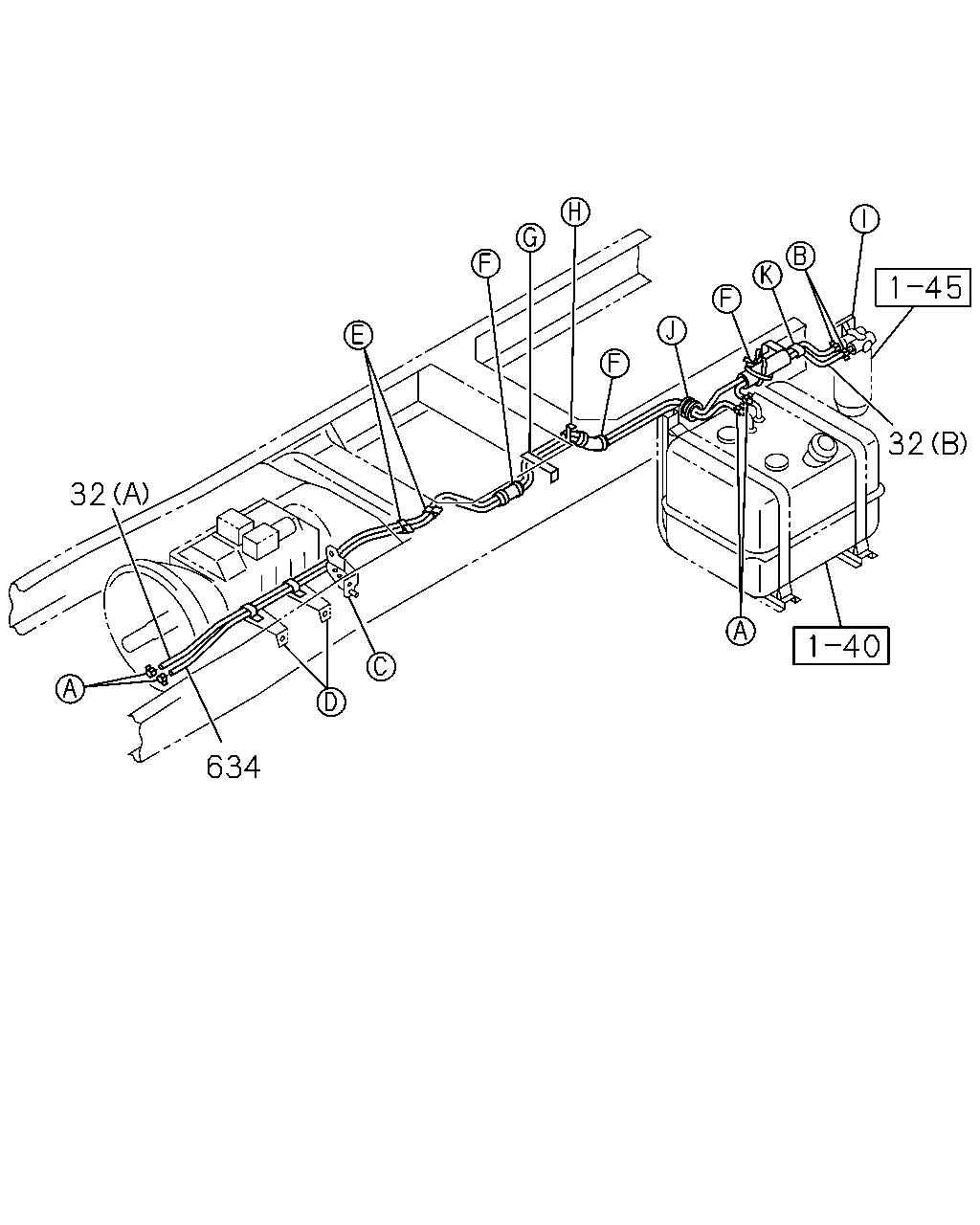

32 32 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 400L<SDH> (A) L=3050 SERVICED BY L=5050	0-01262-505-0	01	1	0709-		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> (A) L=3100 SERVICED BY L=5350	0-01262-535-0	01	1	0709-0710		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (A) L=3100 SERVICED BY L=5350	0-01262-535-0	01	1	0711-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0702-0708	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0709-	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5900MM(59W) (B) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0709-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (A) L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	0702-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0603-0701	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L AL<EBF> (B) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	0702-	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	0603-0701	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 300L AL<EBF> (A) L=1950 SERVICED BY L=3000	0-01262-300-0	01	1	0702-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	0603-0708		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (B) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	0709-		●
32	PIPE; DELIVERY,FUEL TANK (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	0603-0708		●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) (A) L=2750 SERVICED BY L=3000	0-01262-300-0	01	1	0709-		●
634	HOSE; RUBBER RETURN WHEEL BASE 5900MM(59W) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0709-		●
634	HOSE; RUBBER RETURN L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	0603-0708		●
634	HOSE; RUBBER RETURN WHEEL BASE 6600MM(66W) L=2500 SERVICED BY L=3000	0-01260-300-0	01	1	0709-		●
634	HOSE; RUBBER RETURN L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0603-0701	●
634	HOSE; RUBBER RETURN EXC. FUEL TANK 300L AL<EBF> L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0702-	●
634	HOSE; RUBBER RETURN FUEL TANK 300L AL<EBF> L=1850 SERVICED BY L=3000	0-01260-300-0	01	1	0702-	●

48 101 100 80 101 97 100 41 99 97 83 103 102 102 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0709-0710		●
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	0711-		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	02	1	0603-0706	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	02	1	0603-0706	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	02	1	0707-	●	●
41	CLIP; FUEL PIPE,FUEL TANK ENGINE CONTROL COMMON RAIL(Q4R) (A) ID=14	1-09704-102-0	02	1	0707-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	0603-0706	●	●
41	CLIP; FUEL PIPE,FUEL TANK ENGINE CONTROL COMMON RAIL(Q4R) (B) ID=19	8-94238-569-0	02	1	0707-	●	●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) (A) M8X35 FLANGE	0-28650-835-0	01	1	0709-		●
48	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0603-0708		●
48	BOLT; BRKT WHEEL BASE 6600MM(66W) (B) M8X25 FLANGE	0-28650-825-0	02	1	0709-		●
48	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	01	1	0603-0708		●
48	BOLT; BRKT WHEEL BASE 5900MM(59W) (A) M8X35 FLANGE	0-28650-835-0	02	1	0709-		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	0709-0710		●
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	0711-		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0709-0710		●
83	NUT; CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0711-		●
97	BRACKET; CLIP WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> (C)	1-47475-927-0	01	1	0709-0710		●
97	BRACKET; CLIP WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (C)	1-47475-927-0	01	1	0711-1010		●
97	BRACKET; CLIP WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> (C) L=68	1-47475-525-0	01	1	1011-		●
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A)	1-82698-358-0	01	1	0709-		●
97	BRACKET; CLIP (B) L=55	1-47475-304-0	01	1	0603-		●
97	BRACKET; CLIP (A)	1-82698-358-0	01	1	0603-0708		●
97	BRACKET; CLIP WHEEL BASE 5900MM(59W) (A)	1-82698-358-0	02	1	0709-		●
98	BOLT; BRKT,FUEL PIPE WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> M8X35 FLANGE	0-28650-835-0	01	1	0709-0710		●
98	BOLT; BRKT,FUEL PIPE WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M8X35 FLANGE	0-28650-835-0	01	1	0711-		●
99	NUT; BRKT,CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0709-0710		●
99	NUT; BRKT,CLIP,FUEL TANK WHEEL BASE 5900MM(59W) FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	01	1	0711-		●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) ENGINE CONTROL COMMON RAIL(Q4R) ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0709-		●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	0603-0706	●
100	CLIP; FUEL PIPE ENGINE CONTROL COMMON RAIL(Q4R) ID=19X32 H=17.5 L=22.5	1-09701-315-0	04	1	0707-	●
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0603-0706		●
100	CLIP; FUEL PIPE ENGINE CONTROL COMMON RAIL(Q4R) ID=19X32 H=17.5 L=22.5	1-09701-315-0	07	1	0707-0708		●
100	CLIP; FUEL PIPE WHEEL BASE 5900MM(59W) ENGINE CONTROL COMMON RAIL(Q4R) ID=19X32 H=17.5 L=22.5	1-09701-315-0	08	1	0709-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	05	1	0709-		●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	03	1	0603-	●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0603-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	0603-0708		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) M8X20 FLANGE	0-28650-820-0	06	1	0709-		●
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0603-		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	07	1	0709-		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	04	1	0603-0603	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	04	1	0603-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	07	1	0603-0603		●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	07	1	0603-0708		●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 5900MM(59W) M8 FLANGE	0-91180-108-0	08	1	0709-		●
103	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0603-0603		●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-		●
