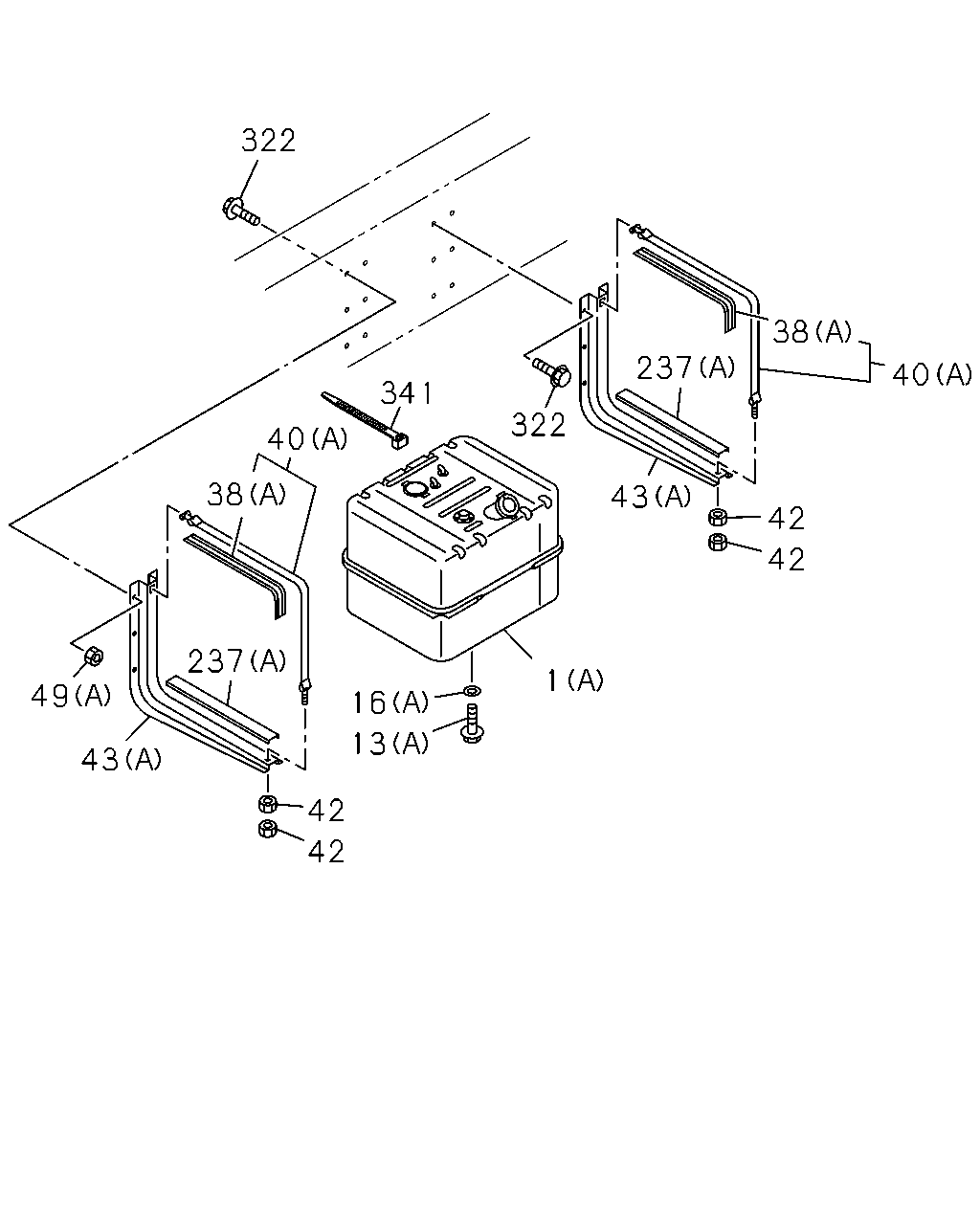

1 |
TANK; FUEL
FUEL TANK 400L<SDH>
EXC. CHINA EQUIPMENT(YT2)
(F)
1050X680X625 400L
|
1-87411-788-3 |
01 |
1 |
1110- |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 400L<SDH>
(F)
1050X680X625 400L
|
1-87411-173-1 |
01 |
1 |
0709-0810 |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 400L<SDH>
(F)
1050X680X625 400L
|
1-87411-699-1 |
01 |
1 |
0811-1109 |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 400L<SDH>
CHINA EQUIPMENT(YT2)
(G)
1050X680X625 400L
|
1-87412-299-1 |
01 |
1 |
1110- |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 300L AL<EBF>
(E)
790X730X635 300L
|
1-22401-150-4 |
01 |
1 |
0702-0810 |
|
● |
| |
1 |
TANK; FUEL
FUEL TANK 300L AL<EBF>
(E)
790X730X635 300L
|
8-98115-603-1 |
01 |
1 |
0811-1308 |
|
● |
| |
1 |
TANK; FUEL
FUEL TANK 300L AL<EBF>
(E)
790X730X635 300L
|
8-98248-751-0 |
01 |
1 |
1309- |
|
● |
| |
1 |
TANK; FUEL
FUEL TANK 200L AL<THF>
(B)
745X650X480 200L
|
1-87411-169-0 |
01 |
1 |
0603- |
● |
● |
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(B)
745X650X480 200L
|
1-87411-169-0 |
02 |
1 |
0603- |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
EXC. CHINA EQUIPMENT(YT2)
(A)
720X610X496 200L
|
1-22401-190-2 |
01 |
1 |
0603-1505 |
● |
● |
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
EXC. CHINA EQUIPMENT(YT2)
(A)
720X610X496 200L
|
8-98298-797-0 |
01 |
1 |
1506- |
● |
● |
| |
1 |
TANK; FUEL
FUEL TANK 300L<RF5>
(D)
1040X602X502 300L
|
1-22400-946-4 |
01 |
1 |
0603-1302 |
|
● |
| |
1 |
TANK; FUEL
FUEL TANK 300L<RF5>
(D)
1040X602X502 300L
|
8-98236-809-0 |
01 |
1 |
1303- |
|
● |
| |
1 |
TANK; FUEL
FUEL TANK 200L+200L<NF7>
EXC. CHINA EQUIPMENT(YT2)
(C)
720X610X496 200L
|
1-22401-212-1 |
01 |
1 |
0603- |
● |
|
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 400L<SDH>
|
8-98217-749-0 |
01 |
1 |
1211- |
● |
|
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 200L AL<THF>
|
8-98217-750-0 |
01 |
1 |
1211-1212 |
● |
● |
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
|
8-98217-750-0 |
01 |
1 |
1211-1212 |
● |
|
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 200L AL<THF>
|
8-98217-750-0 |
01 |
1 |
1301- |
|
● |
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 200L AL<THF>
EXC. CHINA EQUIPMENT(YT2)
|
8-98217-750-0 |
01 |
1 |
1301- |
● |
|
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF>
CHINA EQUIPMENT(YT2)
|
8-98217-750-0 |
01 |
1 |
1301- |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L AL<THF>
(C)
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
1211- |
|
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
(C)
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
1211- |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(C)
ID=18.2 T=1.6
|
8-98030-453-0 |
02 |
1 |
1211- |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(D)
|
8-98030-605-0 |
02 |
1 |
1211- |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 300L AL<EBF>
(B)
|
1-22416-006-0 |
01 |
1 |
0702- |
|
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
EXC. CHINA EQUIPMENT(YT2)
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0603- |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 200L+200L<NF7>
EXC. CHINA EQUIPMENT(YT2)
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0603- |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 300L<RF5>
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
03 |
1 |
0603- |
|
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L AL<THF>
(C)
M18X12
|
0-92002-418-0 |
01 |
1 |
1211- |
|
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
(C)
M18X12
|
0-92002-418-0 |
01 |
1 |
1211- |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(D)
|
9-09904-176-0 |
02 |
1 |
1211- |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 300L AL<EBF>
(B)
M36
|
1-09604-052-0 |
01 |
1 |
0702- |
|
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
EXC. CHINA EQUIPMENT(YT2)
(A)
M14X14
|
9-09862-156-0 |
01 |
1 |
0603- |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 200L+200L<NF7>
EXC. CHINA EQUIPMENT(YT2)
(A)
M14X14
|
9-09862-156-0 |
01 |
1 |
0603- |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 300L<RF5>
(A)
M14X14
|
9-09862-156-0 |
03 |
1 |
0603- |
|
● |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FUEL TANK 200L FRAME SIDE<N20>
(A)
M14X14
|
9-09862-156-0 |
01 |
1 |
0603- |
● |
● |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FUEL TANK 200L AL<THF>
(B)
M18X12
|
9-99202-318-0 |
01 |
1 |
0603-0606 |
● |
● |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FUEL TANK 200L AL<THF>
(B)
M18X12
|
0-92002-418-0 |
01 |
1 |
0607-0708 |
● |
● |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FUEL TANK 200L AL<THF>
(B)
M18X12
|
0-92002-418-0 |
01 |
1 |
0709-1210 |
|
● |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
(B)
M18X12
|
0-92002-418-0 |
01 |
1 |
0709-1210 |
● |
|
| |
16 |
GASKET; PLUG
FUEL TANK 200L FRAME SIDE<N20>
(A)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0603- |
● |
● |
| |
16 |
GASKET; PLUG
FUEL TANK 200L AL<THF>
(B)
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
0603-0708 |
● |
● |
| |
16 |
GASKET; PLUG
FUEL TANK 200L AL<THF>
(B)
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
0709-1210 |
|
● |
| |
16 |
GASKET; PLUG
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
(B)
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
0709-1210 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
EXC. CHINA EQUIPMENT(YT2)
(A)
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0603- |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L<RF5>
(C)
ID=45 OD=67
|
1-83149-003-0 |
01 |
1 |
0603-1308 |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L AL<EBF>,FUEL TANK 300L<RF5>
(C)
ID=45 OD=67
|
1-83149-003-0 |
01 |
1 |
1309- |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L AL<EBF>
(A)
|
1-22459-001-1 |
02 |
1 |
0702-1308 |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L AL<EBF>
(A)
|
1-22459-001-1 |
01 |
1 |
1309- |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L AL<THF>
(B)
ID=58
|
1-83149-005-0 |
01 |
1 |
0603-0708 |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(B)
ID=58
|
1-83149-005-0 |
01 |
1 |
0603-0708 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L AL<THF>
(B)
ID=58
|
1-83149-005-0 |
01 |
1 |
0709-1210 |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(B)
ID=58
|
1-83149-005-0 |
01 |
1 |
0709-1210 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
(B)
ID=58
|
1-83149-005-0 |
01 |
1 |
0709-1210 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L AL<THF>
(B)
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1211-1212 |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>
EXC. CHINA EQUIPMENT(YT2)
(B)
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1211-1212 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>
CHINA EQUIPMENT(YT2)
(B)
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1211-1212 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L AL<THF>
(B)
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1301- |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L AL<THF>
EXC. CHINA EQUIPMENT(YT2)
(B)
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1301- |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L AL<THF>
CHINA EQUIPMENT(YT2)
(B)
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1301- |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>
(B)
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1301- |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 400L<SDH>
(E)
|
1-83141-132-0 |
01 |
1 |
0709-1210 |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
|
1-83141-146-0 |
01 |
1 |
0702-1308 |
|
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
|
8-98232-859-0 |
01 |
1 |
1309- |
|
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
EXC. CHINA EQUIPMENT(YT2)
(A)
|
1-83141-124-0 |
01 |
1 |
0603-1505 |
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
EXC. CHINA EQUIPMENT(YT2)
(A)
|
8-98296-671-0 |
01 |
1 |
1506- |
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 300L<RF5>
(B)
|
1-83141-111-0 |
01 |
1 |
0603-1302 |
|
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 300L<RF5>
(B)
|
8-98232-363-0 |
01 |
1 |
1303- |
|
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L AL<THF>
(C)
|
1-83141-131-0 |
01 |
1 |
0603-1210 |
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(C)
|
1-83141-131-0 |
01 |
1 |
0603-1210 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
EXC. CHINA EQUIPMENT(YT2)
(D)
|
8-98182-306-0 |
01 |
1 |
1110-1210 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
|
8-98115-780-0 |
01 |
1 |
0811-0811 |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
|
8-98115-780-0 |
01 |
1 |
0811-1109 |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
(D)
|
8-98115-780-0 |
01 |
1 |
0811-1109 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
|
8-98182-306-0 |
01 |
1 |
1110-1210 |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
|
8-98182-306-0 |
01 |
1 |
1211- |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
EXC. CHINA EQUIPMENT(YT2)
(D)
|
8-98182-306-0 |
01 |
1 |
1211- |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>
FUEL TANK CAP KEY LOCK<N05>
(E)
|
8-98108-595-0 |
01 |
1 |
0808-1210 |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
FUEL TANK CAP KEY LOCK<N05>
(E)
|
8-98108-595-0 |
01 |
1 |
0808-1210 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>
FUEL TANK CAP KEY LOCK<N05>
(E)
|
8-98108-595-0 |
01 |
1 |
1211- |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
FUEL TANK CAP KEY LOCK<N05>
EXC. CHINA EQUIPMENT(YT2)
(E)
|
8-98108-595-0 |
01 |
1 |
1211- |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
CHINA EQUIPMENT(YT2)
(E)
|
8-98108-595-0 |
01 |
1 |
1211- |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
FUEL TANK 200L AL<THF>
(F)
|
1-22440-057-2 |
01 |
1 |
0808-1210 |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF>
(F)
|
1-22440-057-2 |
01 |
1 |

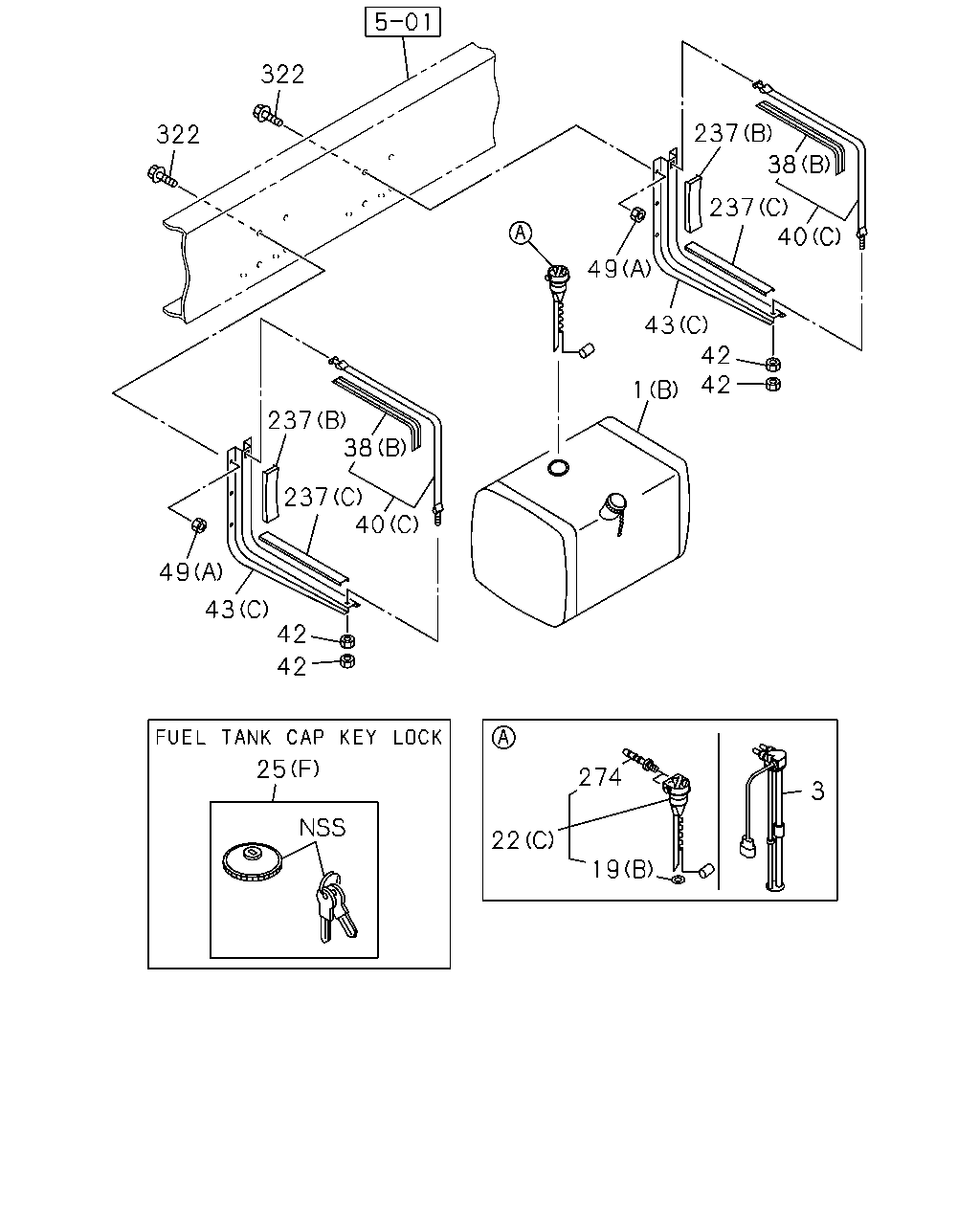

1211-1212 |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
FUEL TANK 200L AL<THF>
EXC. CHINA EQUIPMENT(YT2)
(F)
|
1-22440-057-2 |
01 |
1 |
1211-1212 |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF>
CHINA EQUIPMENT(YT2)
(F)
|
1-22440-057-2 |
01 |
1 |
1301- |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05>
FUEL TANK 200L AL<THF>
EXC. CHINA EQUIPMENT(YT2)
(F)
|
1-22440-057-2 |
01 |
1 |
1301- |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L<NF7>
FUEL TANK CAP KEY LOCK<N05>
CHINA EQUIPMENT(YT2)
(F)
|
1-22440-057-2 |
02 |
1 |
0808-1210 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(F)
|
1-22440-057-2 |
02 |
1 |

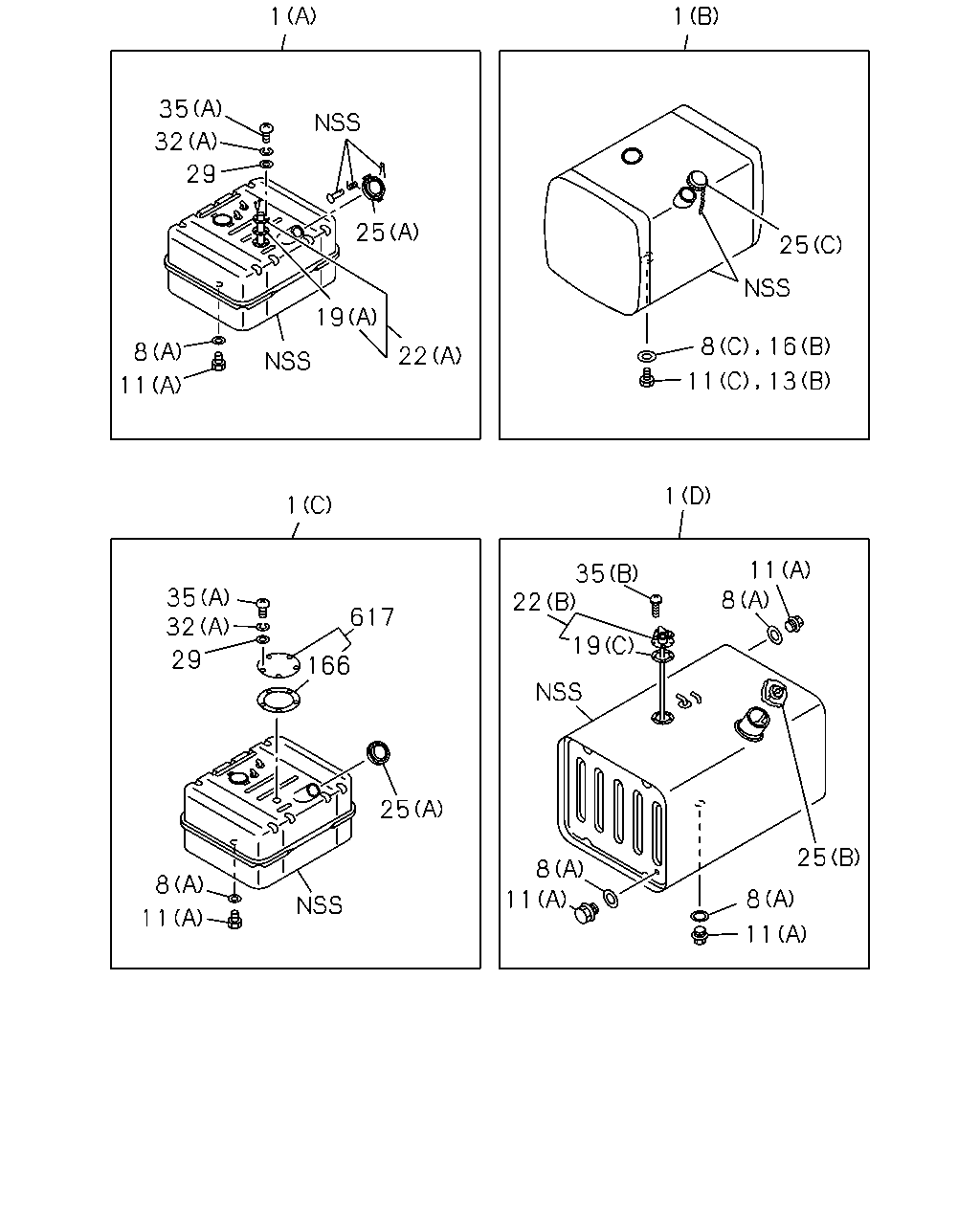

1211- |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
|
1-22440-063-1 |
01 |
1 |

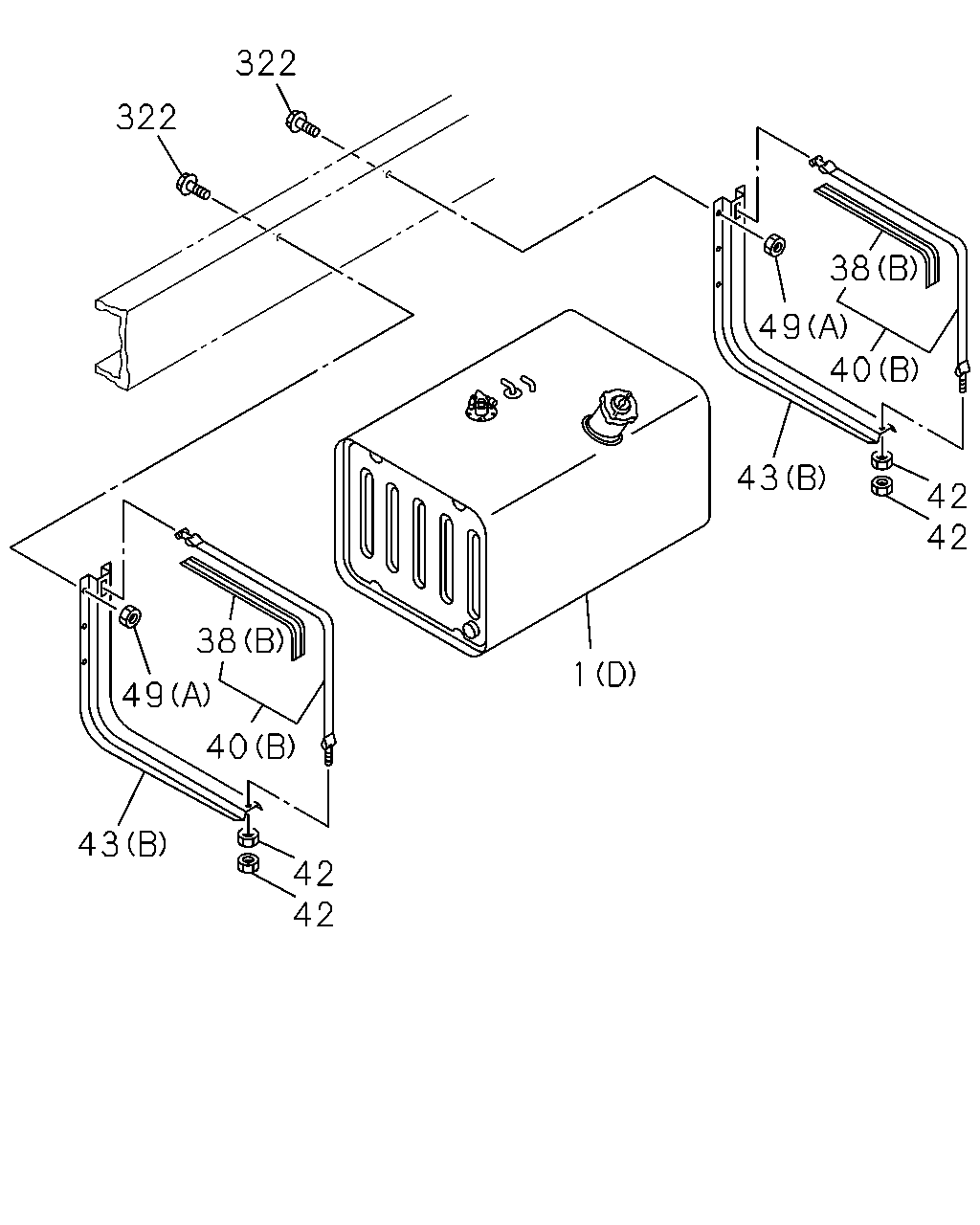

0702-0709 |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
|
1-22440-063-1 |
01 |
1 |

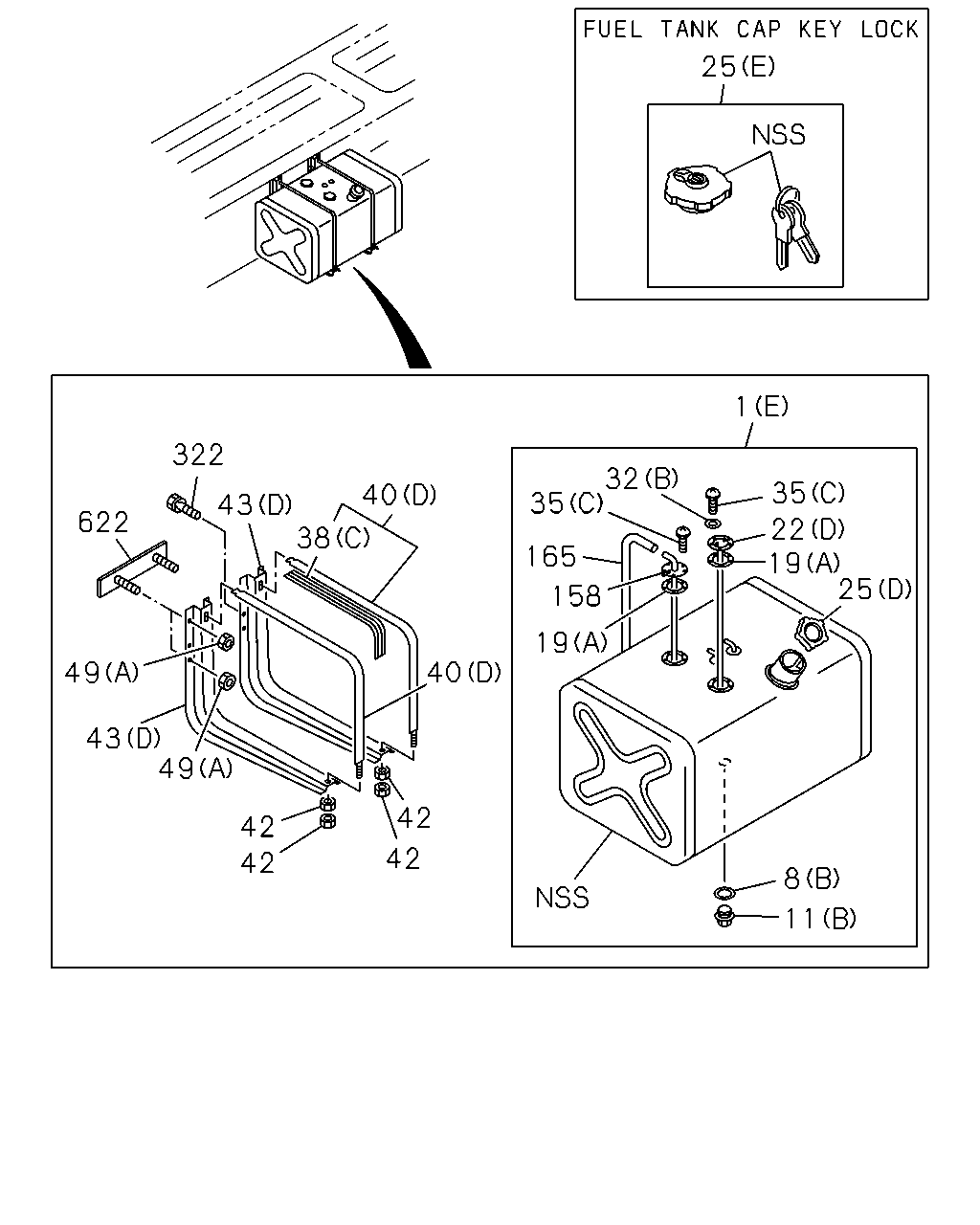

0710-0810 |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
(D)
|
1-22440-063-1 |
01 |
1 |
0710-0810 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH>
(D)
|
1-22440-063-1 |
01 |
1 |

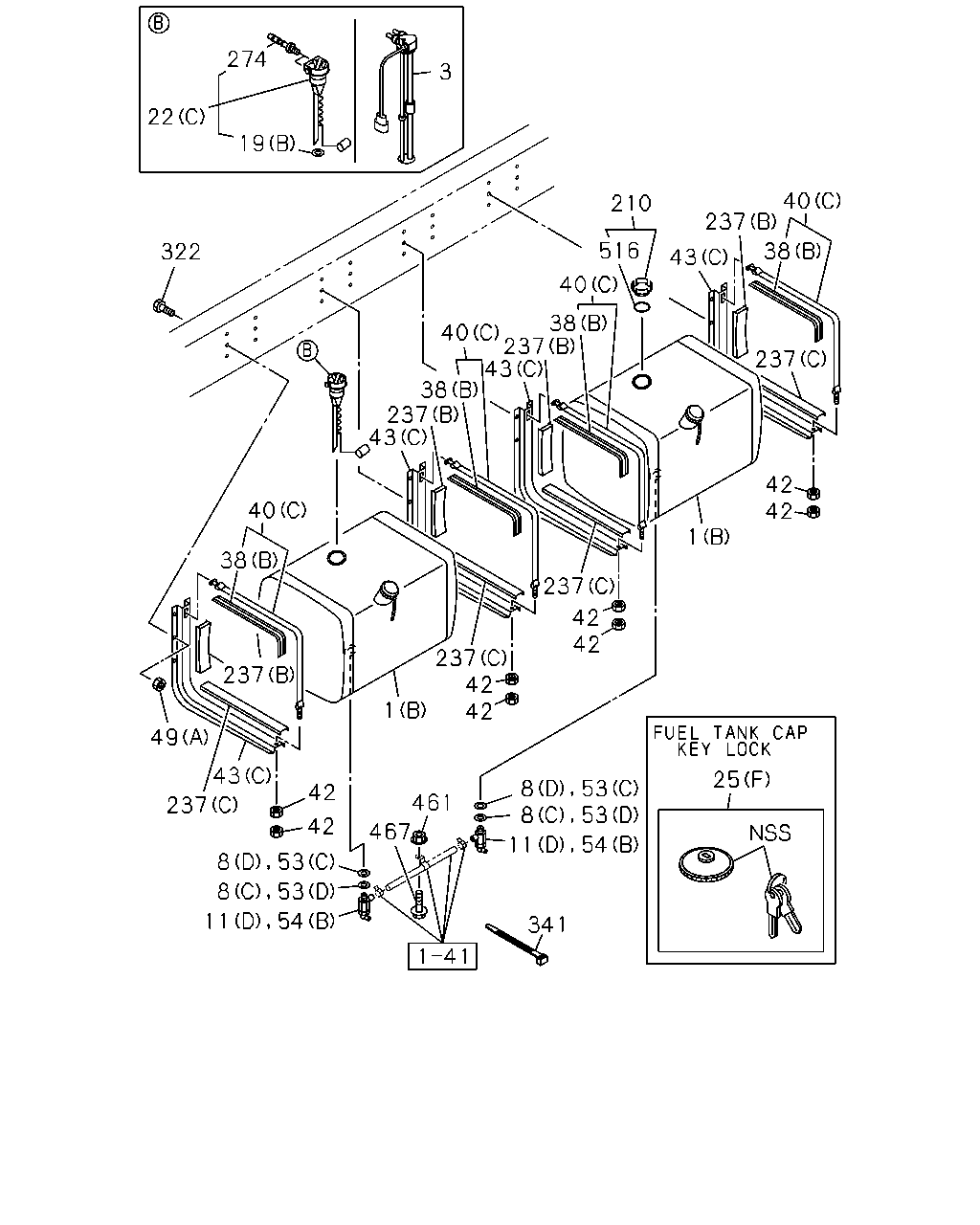

0811-0811 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L<NF7>,FUEL TANK 200L FRAME
SIDE<N20>
EXC. CHINA EQUIPMENT(YT2)
(A)
|
1-22440-046-1 |
01 |
1 |

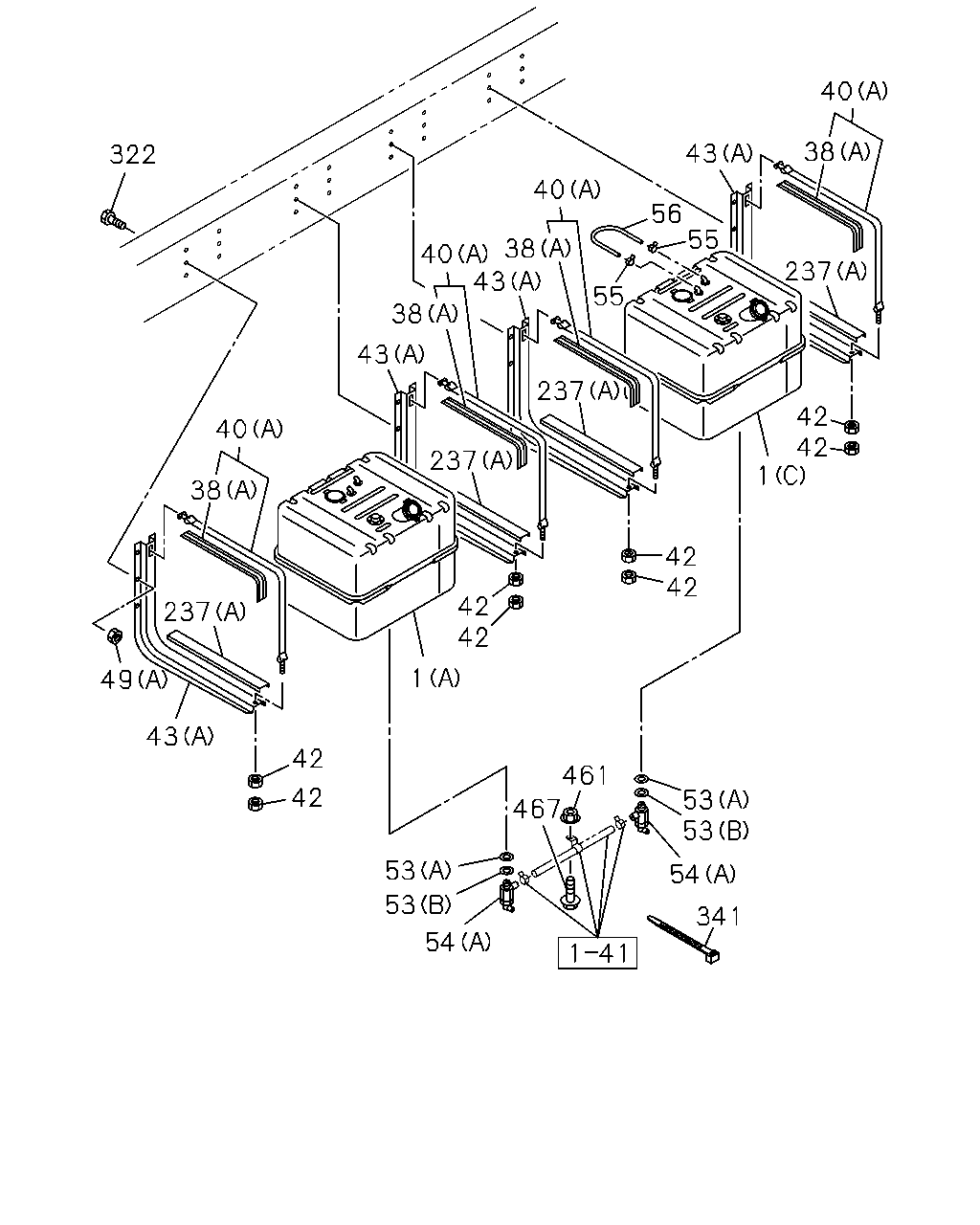

0603- |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L<NF7>
EXC. CHINA EQUIPMENT(YT2)
(A)
|
1-22440-046-1 |
01 |
1 |
0603- |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L<RF5>
(B)
|
1-22440-045-0 |
01 |
1 |
0603- |
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF>
(C)
|
1-22440-056-0 |
01 |
1 |
0603- |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(C)
|
1-22440-056-0 |
02 |
1 |
0603- |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 300L AL<EBF>
(C)
L=1156
|
1-22553-039-1 |
02 |
1 |
0702-0708 |
|
● |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 300L AL<EBF>
(C)
L=1156
|
1-22553-039-1 |
02 |
1 |
0709- |
|
● |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 400L<SDH>
(C)
L=1156
|
1-22553-039-1 |
02 |
1 |
0709- |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20>
(A)
L=650
|
1-22553-022-1 |
02 |
1 |
0603- |
● |
● |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 300L<RF5>,FUEL TANK 200L AL<THF>
(B)
L=960
|
1-22553-044-0 |
02 |
1 |
0603- |
● |
● |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(B)
L=960
|
1-22553-044-0 |
04 |
1 |
0603- |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L+200L<NF7>
EXC. CHINA EQUIPMENT(YT2)
(A)
L=650
|
1-22553-022-1 |
04 |
1 |
0603- |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
L=1210
|
1-22550-261-0 |
02 |
1 |
0702-0708 |
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
L=1210
|
1-22550-261-0 |
02 |
1 |
0709-1110 |
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH>
(D)
L=1210
|
1-22550-261-0 |
02 |
1 |
0709-1110 |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
L=1210
|
8-98202-448-0 |
02 |
1 |
1111- |
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L<SDH>
(D)
L=1210
|
8-98202-448-0 |
02 |
1 |
1111- |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
L=1030
|
1-22550-204-2 |
02 |
1 |
0603- |
● |
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 300L<RF5>
(B)
L=1040
|
1-22550-237-0 |
02 |
1 |
0603- |
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L AL<THF>
(C)
L=1045
|
1-22550-262-0 |
02 |
1 |
0603- |
● |
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(C)
L=1045
|
1-22550-262-0 |
04 |
1 |
0603- |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L+200L<NF7>
EXC. CHINA EQUIPMENT(YT2)
(A)
L=1030
|
1-22550-204-2 |
04 |
1 |
0603- |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5>
,FUEL TANK 200L AL<THF>
M10
|
0-91110-510-0 |
04 |
1 |
0603-0701 |
● |
● |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 300L AL<EBF>,FUEL TANK 200L FRAME
SIDE<N20>,FUEL TANK 300L<RF5>,FUEL TANK 200L AL<THF>
M10
|
0-91110-510-0 |
04 |
1 |
0702-0708 |
|
● |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 200L
AL<THF>
M10
|
0-91110-510-0 |
04 |
1 |
0702-0708 |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 300L AL<EBF>,FUEL TANK 200L FRAME
SIDE<N20>,FUEL TANK 300L<RF5>,FUEL TANK 200L AL<THF>
M10
|
0-91110-510-0 |
04 |
1 |
0709- |
|
● |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>
,FUEL TANK 200L AL<THF>
M10
|
0-91110-510-0 |
04 |
1 |
0709- |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L+200L<NF7>
M10
|
0-91110-510-0 |
08 |
1 |
0603- |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 400L<SDH>
(E)
|
1-53461-525-1 |
02 |
1 |
0709- |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 300L AL<EBF>
(D)
|
8-97620-945-0 |
02 |
1 |
0702- |
|
● |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
|
1-53461-279-4 |
02 |
1 |
0603- |
● |
● |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 300L<RF5>
(B)
|
1-53461-530-3 |
02 |
1 |
0603- |
|
● |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L AL<THF>
(C)
|
1-53461-543-0 |
02 |
1 |
0603- |
● |
● |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(C)
|
1-53461-543-0 |
04 |
1 |
0603- |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L+200L<NF7>
EXC. CHINA EQUIPMENT(YT2)
(A)
|
1-53461-279-4 |
04 |
1 |
0603- |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 300L AL<EBF>
(A)
M12
|
0-91110-512-0 |
12 |
1 |
0702-0708 |
|
● |
| |
49 |
NUT; BRKT
FUEL TANK 300L AL<EBF>
(A)
M12
|
0-91110-512-0 |
12 |
1 |
0709- |
|
● |
| |
49 |
NUT; BRKT
FUEL TANK 400L<SDH>
(A)
M12
|
0-91110-512-0 |
12 |
1 |
0709- |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5>
,FUEL TANK 200L AL<THF>
(A)
M12
|
0-91110-512-0 |
08 |
1 |
0603- |
● |
● |
| |

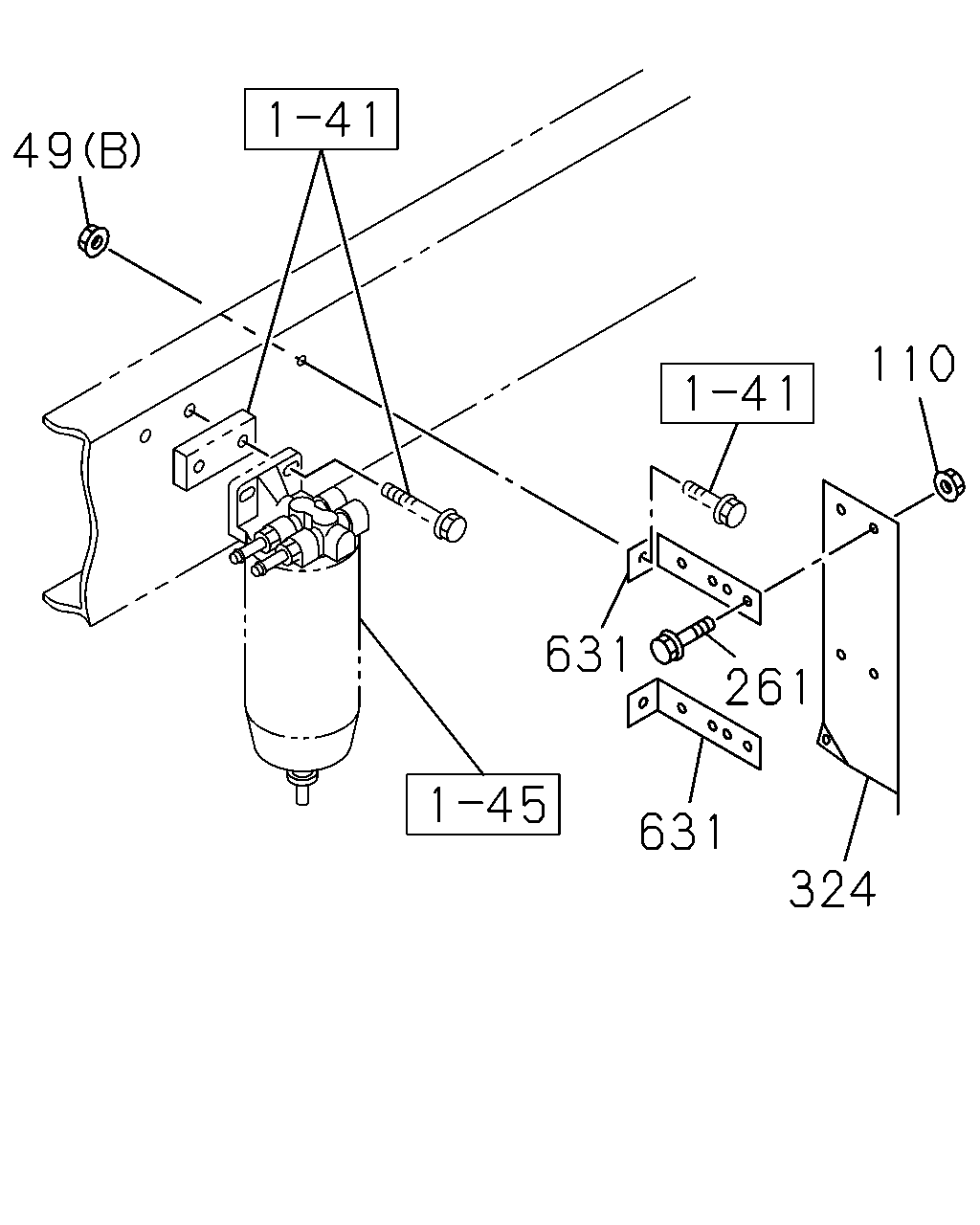

49 |
NUT; BRKT
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0603-0603 |
|
● |
| |
49 |
NUT; BRKT
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
|
● |
| |
49 |
NUT; BRKT
FUEL TANK 200L+200L<NF7>
(A)
M12
|
0-91110-512-0 |
16 |
1 |
0603- |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH>
(D)
|
1-22553-037-1 |
04 |
1 |
0709- |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
L=580
|
1-22553-003-0 |
02 |
1 |
0603- |
● |
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF>
(B)
L=340
|
1-22553-043-2 |
02 |
1 |
0603- |
● |
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF>
(C)
L=540
|
1-22553-064-1 |
02 |
1 |
0603- |
● |
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(B)
L=340
|
1-22553-043-2 |
04 |
1 |
0603- |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
(C)
L=540
|
1-22553-064-1 |
04 |
1 |
0603- |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L+200L<NF7>
EXC. CHINA EQUIPMENT(YT2)
(A)
L=580
|
1-22553-003-0 |
04 |
1 |
0603- |
● |
|
| |
274 |
CONNECTOR; ELBOW,FUEL TANK PIPE
FUEL TANK 200L AL<THF>
|
1-83149-006-0 |
02 |
1 |
0603-0708 |
● |
● |
| |
274 |
CONNECTOR; ELBOW,FUEL TANK PIPE
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
|
1-83149-006-0 |
02 |
1 |
0603-0708 |
● |
|
| |
274 |
CONNECTOR; ELBOW,FUEL TANK PIPE
FUEL TANK 200L AL<THF>
|
1-83149-006-0 |
02 |
1 |
0709-1210 |
|
● |
| |
274 |
CONNECTOR; ELBOW,FUEL TANK PIPE
FUEL TANK 200L+200L<NF7>
CHINA EQUIPMENT(YT2)
|
1-83149-006-0 |
02 |
1 |
0709-1210 |
● |
|
| |
274 |
CONNECTOR; ELBOW,FUEL TANK PIPE
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
|
1-83149-006-0 |
02 |
1 |
0709-1210 |
● |
|
| |
322 |
BOLT; BRKT FIX
FUEL TANK 400L<SDH>
M12X40 FLANGE
|
0-28051-240-0 |
10 |
1 |
0709- |
● |
|
| |
322 |
BOLT; BRKT FIX
FUEL TANK 300L AL<EBF>
M12X45 FLANGE
|
0-28051-245-0 |
10 |
1 |
0702- |
|
● |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 300L<RF5>
,FUEL TANK 200L AL<THF>
M12X35 FLANGE
|
0-28051-235-0 |
08 |
1 |
0603- |
● |
● |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 200L+200L<NF7>
M12X35 FLANGE
|
0-28051-235-0 |
16 |
1 |
0603- |
● |
|
| |
341 |
CLIP; BAND,RUBBER HOSE
FUEL TANK 200L FRAME SIDE<N20>
L=350
|
1-09707-183-0 |
01 |
1 |
0603- |
● |
● |
| |
341 |
CLIP; BAND,RUBBER HOSE
FUEL TANK 200L+200L<NF7>
L=350
|
1-09707-183-0 |
02 |
1 |
0603-0708 |
● |
|
| |
341 |
CLIP; BAND,RUBBER HOSE
FUEL TANK 200L+200L<NF7>,FUEL TANK 400L<SDH>
L=350
|
1-09707-183-0 |
02 |
1 |
0709- |
● |
|
| |

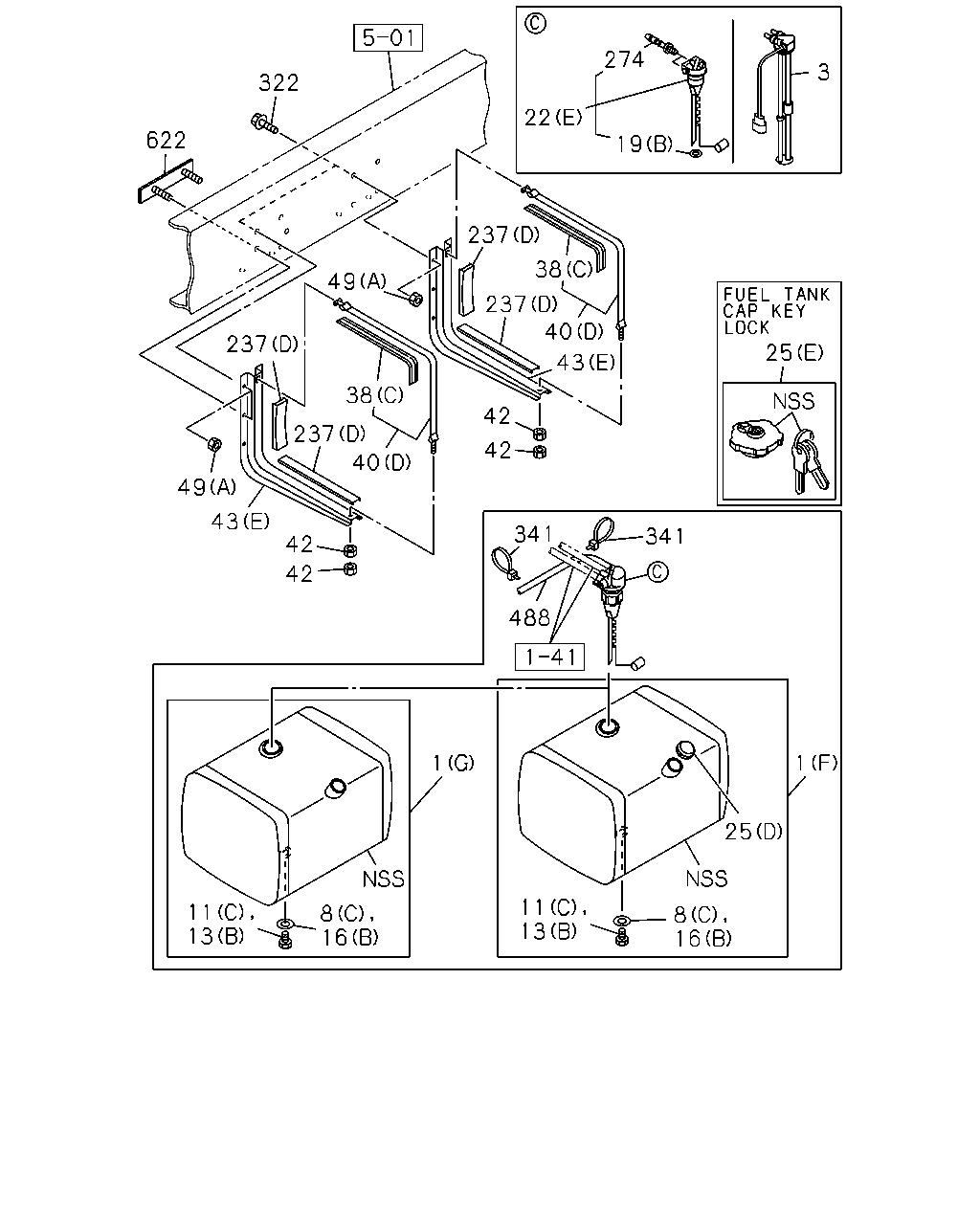

488 |
HOSE; RUBBER
FUEL TANK 400L<SDH>
|
8-98049-832-0 |
01 |
1 |
0709-0811 |
● |
|
| |
488 |
HOSE; RUBBER
FUEL TANK 400L<SDH>
|
8-98134-936-0 |
01 |
1 |
0812- |
● |
|
| |
622 |
STUD; BRACKET
FUEL TANK 300L AL<EBF>
|
1-53461-534-0 |
01 |
1 |
0702-0708 |
|
● |
| |
622 |
STUD; BRACKET
FUEL TANK 300L AL<EBF>
|
1-53461-534-0 |
01 |
1 |
0709- |
|
● |
| |
622 |
STUD; BRACKET
FUEL TANK 400L<SDH>
|
1-53461-534-0 |
01 |
1 |
0709- |
● |
|
