◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#35467) — 49 parça

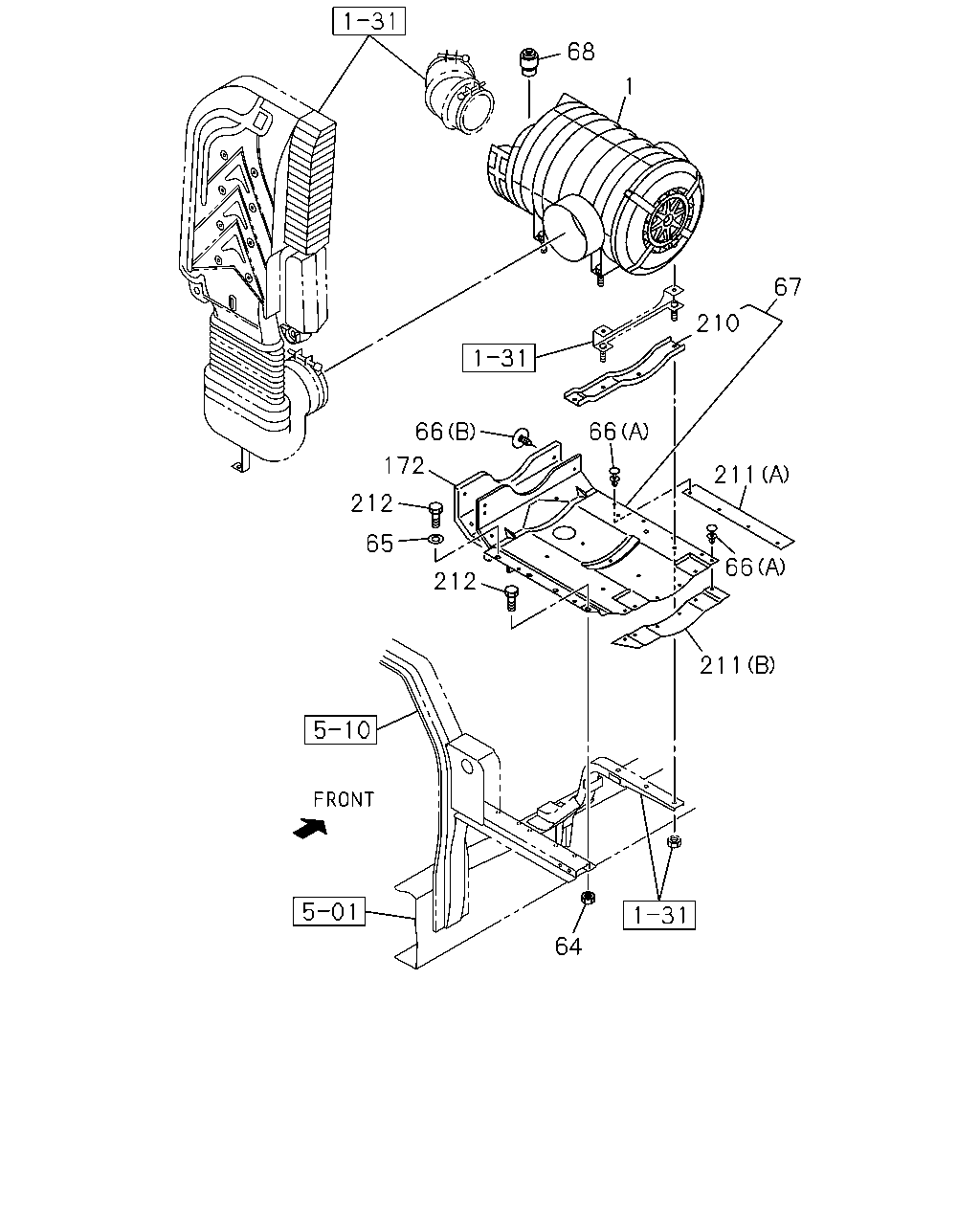

çizim 177495
68 1 67 210 66 66 172 211 212 212 65 66 211 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-832-0 01 1 0603-0811 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-832-0 01 1 0812- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0603-0811 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0812- ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 0603-0603 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-0811 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 0812- ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0603-0811 ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0812-1204 ● ●
65 WASHER; PL
ID=10.5 		0-91610-710-0 04 1 1205- ● ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 0603-0811 ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 0812- ● ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 0603-0811 ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 0812-1210 ● ●
66 CLIP; ACL
EXC. CHINA EQUIPMENT(YT2) (B) 		8-94279-048-0 07 1 1211- ● ●
67 COVER; ACL 1-53419-388-0 01 1 0603-0811 ●
67 COVER; ACL 1-53419-388-0 01 1 0812- ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0603-0811 ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0812- ● ●
172 INSULATOR; NOISE 1-53449-105-0 01 1 0603-0811 ●
172 INSULATOR; NOISE 1-53449-105-0 01 1 0812-1210 ● ●
172 INSULATOR; NOISE
EXC. CHINA EQUIPMENT(YT2) 		1-53449-105-0 01 1 1211- ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0603-0811 ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0812- ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0603-0811 ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0812- ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0603-0811 ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0812- ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 0603-0811 ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 0812- ● ●

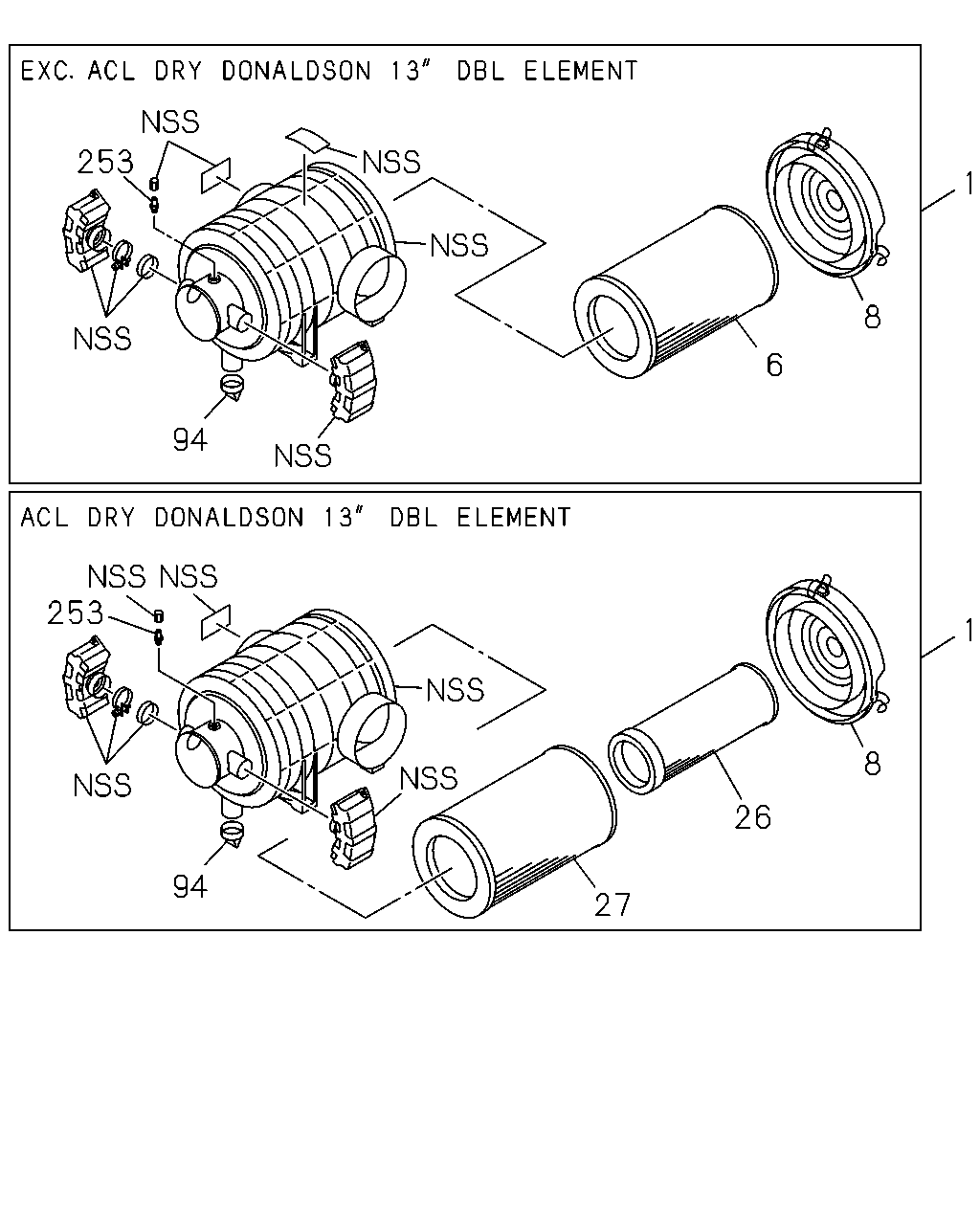

çizim 177512
253 1 8 6 94 253 1 8 26 94 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-832-0 01 1 0603-0811 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-832-0 01 1 0812- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0603-0811 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0812- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0603-0811 ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0812- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-111-1 01 1 0603- ●
8 COVER ASM; ACL 1-14212-129-0 01 1 0603-0811 ●
8 COVER ASM; ACL 1-14212-129-0 01 1 0812- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-217-0 01 1 0603-0811 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-217-0 01 1 0812- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-112-1 01 1 0603- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0603-0811 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0812- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-111-1 01 1 0603- ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 0603-0811 ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 0812- ● ●
253 NIPPLE 1-14219-252-0 01 1 0603-0811 ●
253 NIPPLE 1-14219-252-0 01 1 0812- ● ●
