◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11023 - CYZ LHD WITH 2STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#35465) — 115 parça
çizim 177492
1 528 526 529 232 267 89 528 529 527 267 235 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-921-3 01 1 0603-0811 ●
1 RADIATOR ASM 1-21410-921-4 01 1 0812- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0603-0811 ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0812- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0603-0811 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 0812- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0603-0811 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 0812- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0603-0811 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 0812- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0603-0811 ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 0812- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0603-0811 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 0812- ● ●
526 TANK; UPR,RADIATOR CORE 1-21414-031-1 01 1 0603-0811 ●
526 TANK; UPR,RADIATOR CORE 1-21414-031-1 01 1 0812- ● ●
527 TANK; LWR,RADIATOR CORE 1-21415-031-2 01 1 0603-0811 ●
527 TANK; LWR,RADIATOR CORE 1-21415-031-2 01 1 0812- ● ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-125-0 01 1 0603-0811 ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-125-0 01 1 0812- ● ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-126-0 01 1 0603-0811 ●
528 PLATE; SIDE,RADIATOR CORE 1-21416-126-0 01 1 0812- ● ●
529 GASKET; CORE,RADIATOR 1-21439-121-0 02 1 0603-0811 ●
529 GASKET; CORE,RADIATOR 1-21439-121-0 02 1 0812- ● ●

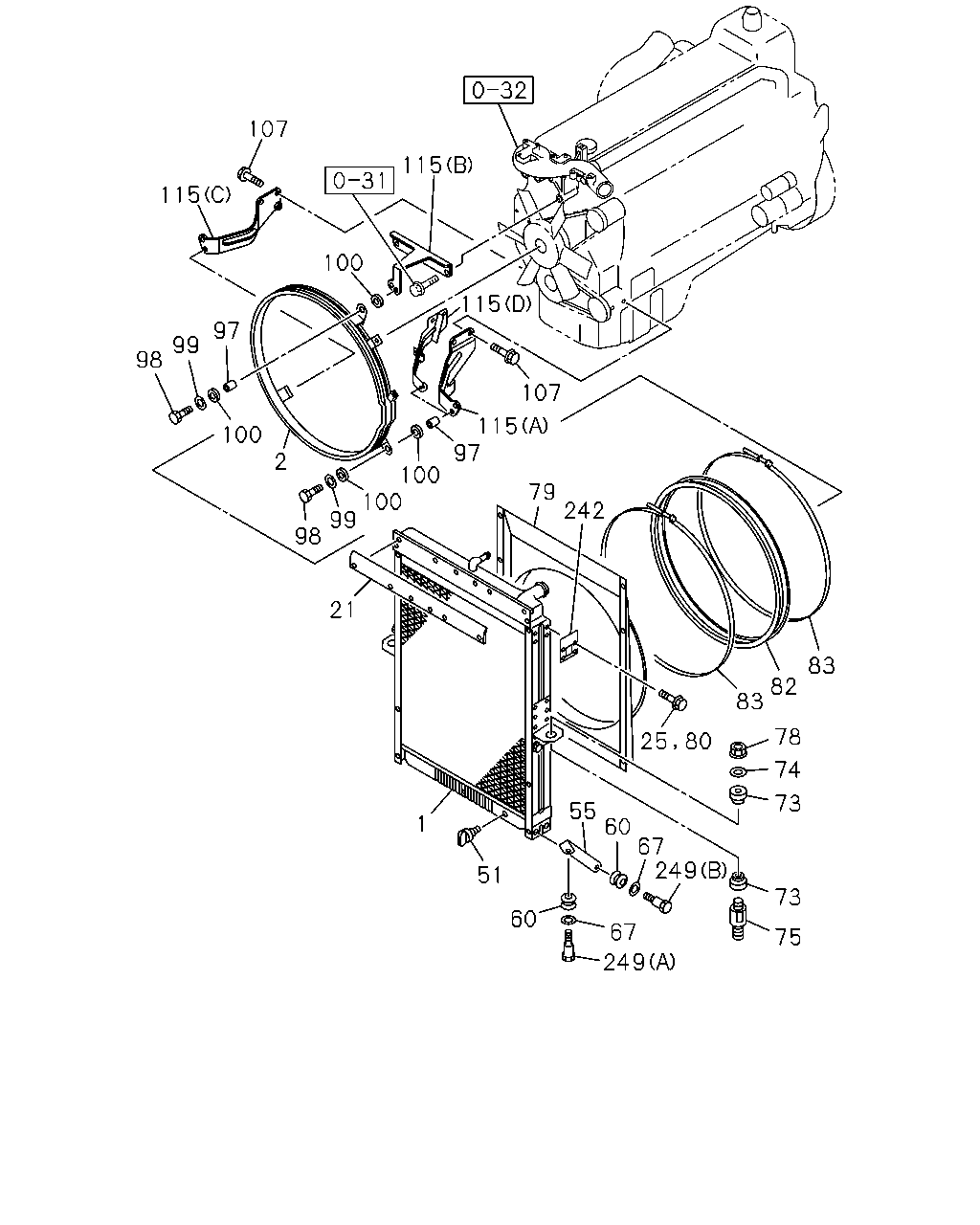

çizim 177538
115 100 107 115 98 99 97 100 98 2 99 97 100 100 115 107 115 79 21 242 1 51 55 25 60 67 80 83 82 83 78 74 73 73 249 60 67 249 75
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-921-3 01 1 0603-0811 ●
1 RADIATOR ASM 1-21410-921-4 01 1 0812- ● ●
2 GUIDE; FAN 1-21551-445-0 01 1 0603-0606 ●
2 GUIDE; FAN 8-97615-750-0 01 1 0607-0811 ●
2 GUIDE; FAN 8-97615-750-0 01 1 0812-1006 ● ●
2 GUIDE; FAN 8-98171-163-0 01 1 1007- ● ●
21 SEAL; RAD
CONCRETE PUMP<RA5> 		1-21460-139-0 01 1 1201- ●
21 SEAL; RAD 1-21460-139-0 01 1 0603-0811 ●
21 SEAL; RAD 1-21460-139-0 01 1 0812-0908 ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0603-0811 ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 0812- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0603-0811 ●
51 PLUG; DRAIN
W/GASKET 		1-09609-023-0 01 1 0812-0908 ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 0909- ● ●
55 STAY; RAD TO UPR MBR 1-21464-766-0 01 1 0603-0811 ●
55 STAY; RAD TO UPR MBR 1-21464-766-0 01 1 0812- ● ●
55 STAY; RAD TO UPR MBR 1-21464-767-0 01 1 0603-0811 ●
55 STAY; RAD TO UPR MBR 1-21464-767-0 01 1 0812- ● ●
60 GROMMET 1-09332-117-0 04 1 0603-0811 ●
60 GROMMET 1-09332-117-0 04 1 0812- ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0603-0605 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606-0811 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0812- ● ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0603-0811 ●
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 0812- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0603-0811 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 0812- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0603-0811 ●
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 0812- ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0603-0603 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603-0811 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0812- ● ●
79 GUIDE; FAN,RAD 1-21551-548-0 01 1 0603-0811 ●
79 GUIDE; FAN,RAD 1-21551-548-0 01 1 0812-0908 ● ●
79 GUIDE; FAN,RAD 1-21551-558-0 01 1 0909- ● ●
80 BOLT; FAN GUIDE
M8X16 FLANGE 		0-28050-816-0 06 1 0603-0811 ●
80 BOLT; FAN GUIDE
M8X16 FLANGE 		0-28050-816-0 06 1 0812- ● ●
82 COVER; FAN,RAD 1-21559-465-0 01 1 0603-0811 ●
82 COVER; FAN,RAD 1-21559-465-0 01 1 0812- ● ●
83 CLIP; FAN COVER 1-09707-152-2 02 1 0603-0811 ●
83 CLIP; FAN COVER 1-09707-152-2 02 1 0812- ● ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 0603-0811 ●
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 0812- ● ●
98 BOLT; RAD FAN GUIDE
M10X40 FLANGE 		0-28051-040-0 02 1 0804-0811 ●
98 BOLT; RAD FAN GUIDE
M10X40 FLANGE 		0-28051-040-0 02 1 0812- ● ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 03 1 0603-0803 ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 01 1 0804-0811 ●
98 BOLT; RAD FAN GUIDE
M10X45 FLANGE 		0-28051-045-0 01 1 0812- ● ●
99 WASHER; PL
ID=10.5 OD=26 		9-09164-710-0 03 1 0603-0605 ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 0606-0811 ●
99 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 03 1 0812- ● ●
100 RUBBER; MTG 1-09337-017-0 06 1 0603-0811 ●
100 RUBBER; MTG 1-09337-017-0 06 1 0812- ● ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28951-425-0 04 1 0603-0811 ●
107 BOLT; BRKT TO STAY
M14X25 FLANGE 		0-28951-425-0 04 1 0812- ● ●
115 BRACKET; FAN GUIDE
(A) 		1-21559-420-1 01 1 0603-0603 ●
115 BRACKET; FAN GUIDE
(D) 		8-97612-230-0 01 1 0603-0811 ●
115 BRACKET; FAN GUIDE
(D) 		8-97612-230-0 01 1 0812-1301 ● ●
115 BRACKET; FAN GUIDE
(D) 		8-97643-212-0 01 1 1302- ● ●
115 BRACKET; FAN GUIDE
(C) 		1-21559-421-1 01 1 0603-0811 ●
115 BRACKET; FAN GUIDE
(C) 		1-21559-421-1 01 1 0812- ● ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-422-0 01 1 0603-0811 ●
115 BRACKET; FAN GUIDE
(B) 		1-21559-422-0 01 1 0812-1301 ● ●
115 BRACKET; FAN GUIDE
(B) 		8-97643-211-0 01 1 1302- ● ●
242 BRACKET; RAD
CONCRETE PUMP<RA5> 		1-21464-799-0 01 1 1201- ●
242 BRACKET; RAD
CONCRETE PUMP<RA5> 		1-21464-800-0 01 1 1201- ●
242 BRACKET; RAD 1-21464-799-0 01 1 0603-0811 ●
242 BRACKET; RAD 1-21464-799-0 01 1 0812-0908 ● ●
242 BRACKET; RAD 1-21464-801-0 01 1 0909-1112 ● ●
242 BRACKET; RAD
EXC. CONCRETE PUMP<RA5> 		1-21464-801-0 01 1 1201- ●
242 BRACKET; RAD 1-21464-801-0 01 1 1201- ●
242 BRACKET; RAD 1-21464-800-0 01 1 0603-0811 ●
242 BRACKET; RAD 1-21464-800-0 01 1 0812-0908 ● ●
242 BRACKET; RAD 1-21464-802-0 01 1 0909-1112 ● ●
242 BRACKET; RAD
EXC. CONCRETE PUMP<RA5> 		1-21464-802-0 01 1 1201- ●
242 BRACKET; RAD 1-21464-802-0 01 1 1201- ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0603-0811 ●
249 BOLT; STAY,RAD MBR
(A) M8X30 		1-09009-020-1 02 1 0812- ● ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 0603-0811 ●
249 BOLT; STAY,RAD MBR
(B) M8X26 		1-09009-175-0 02 1 0812- ● ●

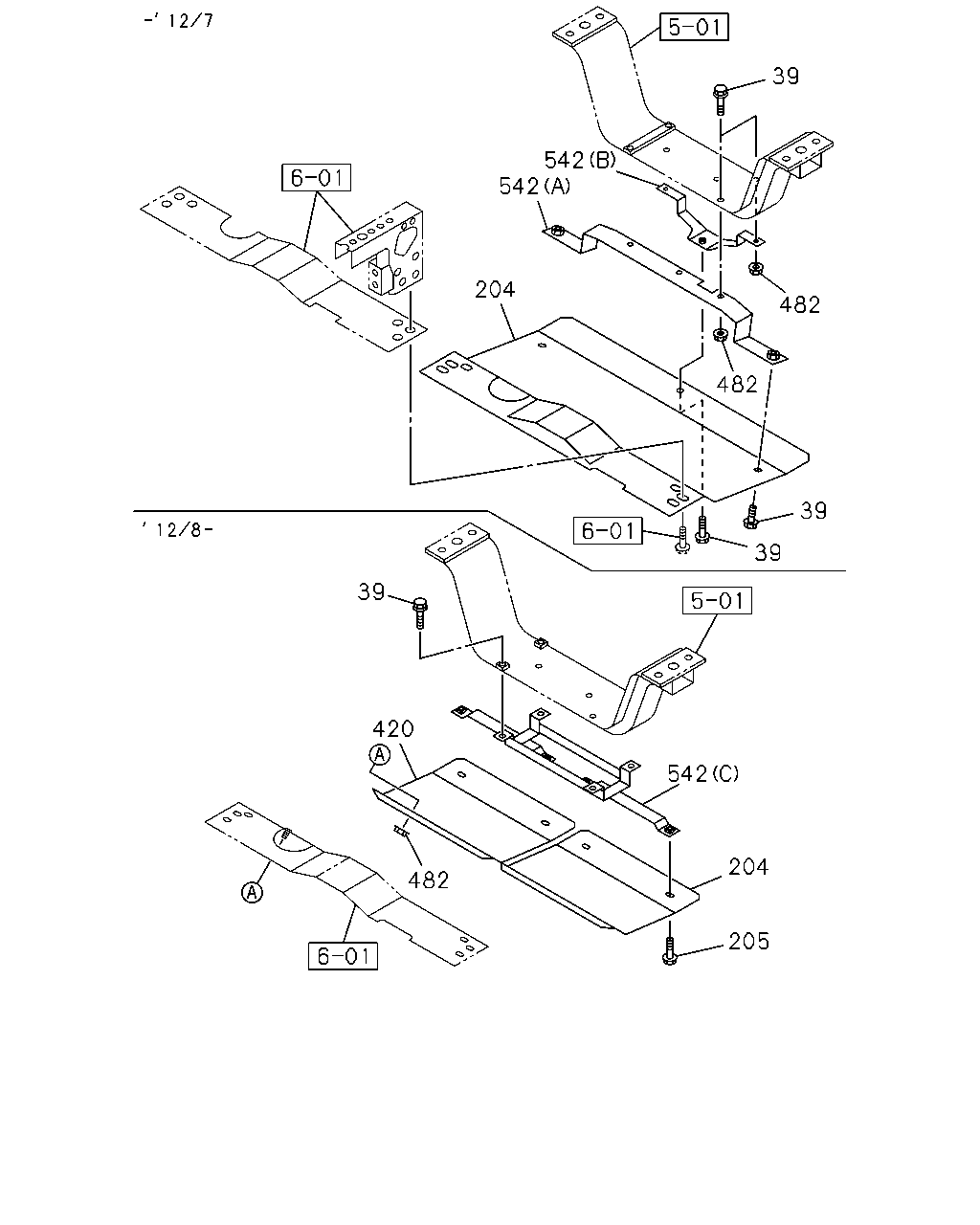

çizim 319343
39 542 542 204 482 482 39 39 542 204 205 39 420 482
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8X25 FLANGE 		0-28660-825-0 08 1 1108-1207 ● ●
39 BOLT; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M10X25 FLANGE 		0-28661-025-0 04 1 1208- ● ●
204 GUIDE ASM; AIR
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) 		8-98196-925-0 01 1 1108-1207 ● ●
204 GUIDE ASM; AIR
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) 		8-98210-491-0 01 1 1208- ● ●
205 BOLT; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8X25 FLANGE 		8-98074-570-0 04 1 1208- ● ●
420 GUIDE; AIR,RAD
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) 		8-98210-490-0 01 1 1208- ● ●
482 NUT; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE 		0-91180-208-0 05 1 1108-1207 ● ●
482 NUT; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) M8 FLANGE 		1-09440-049-0 04 1 1208- ● ●
542 BRACKET; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (A) 		8-98196-927-0 01 1 1108-1207 ● ●
542 BRACKET; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (C) 		8-98210-495-0 01 1 1208- ● ●
542 BRACKET; AIR GUIDE
CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (B) 		8-98196-928-0 01 1 1108-1207 ● ●
