0-60 — ENGINE ELECTRICAL CONTROL PARTS (#35464) — 38 parça

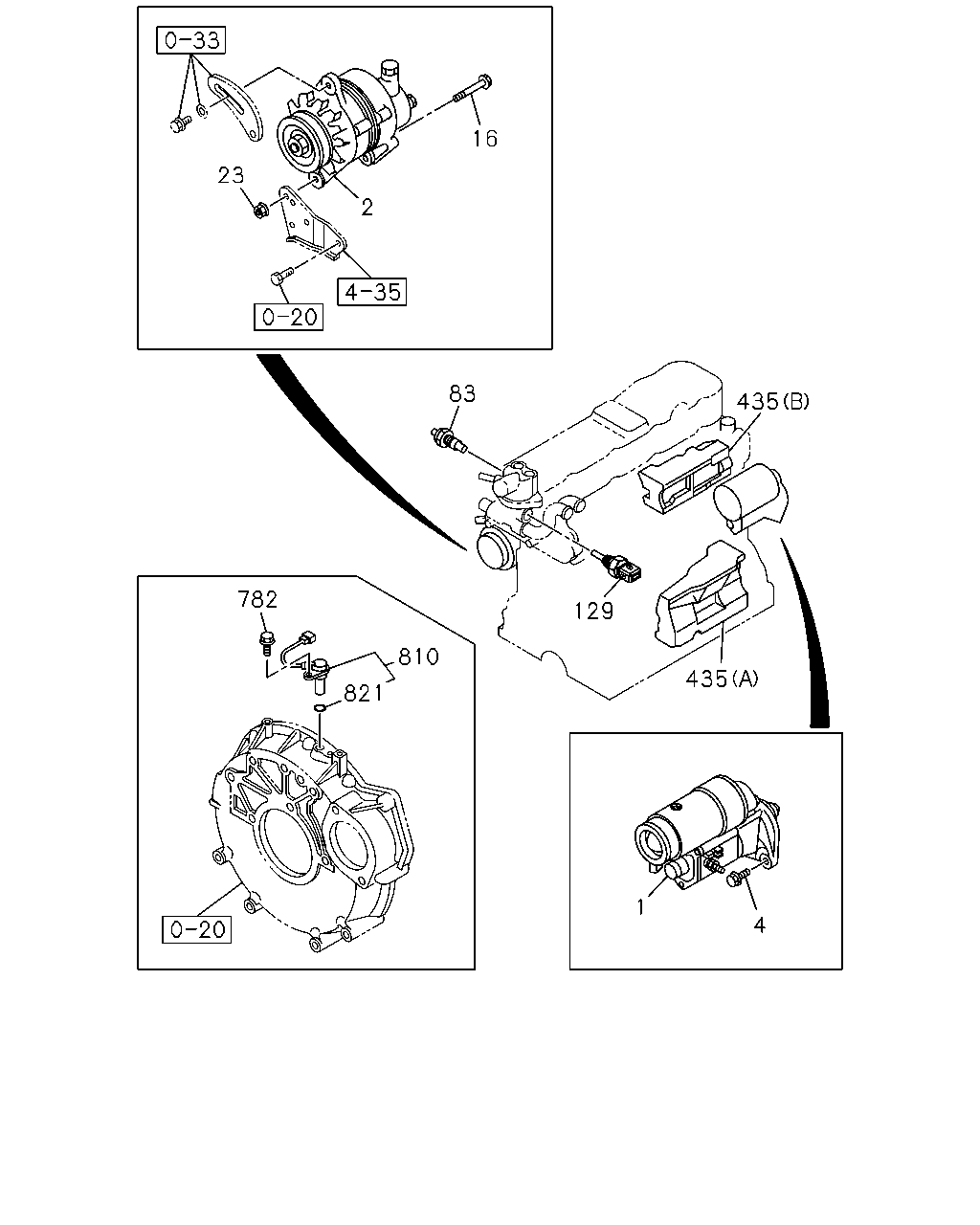

çizim 18829
23 2 16 83 782 821 810 129 435 435 1 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0211-0501 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0502- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0507-0507 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-2 01 1 0211-0501 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 80A 		8-97249-209-3 01 1 0502-0506 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-3 01 1 0507-0507 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 80A 		8-97249-209-3 01 1 0507- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-2 01 1 0211-0501 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0211-0501 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0502-0512 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28751-235-0 02 1 0601- ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0211-0501 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0502-0512 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28056-013-0 01 1 0601- ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0211-0501 ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 0502-0602 ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0603- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0211-0501 ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0502- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0211-0501 ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0502- ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0211-0501 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0502- ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0211-0501 ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0502- ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0211-0501 ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0502- ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0211-0501 ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0502-0512 ●
782 02.510 BOLT; SENSOR
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0601- ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-0 01 1 0211-0501 ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-2 01 1 0502- ●
821 02.510 GASKET; CRANKSHAFT SENSOR
02.363 		8-98158-639-0 01 1 0211-0501 ●
821 02.510 GASKET; CRANKSHAFT SENSOR
02.363 		8-98158-639-0 01 1 0502- ●
çizim 72595
46 10 10 46 578 578
BalonParca AdiParca NoAdetTipApplied Date A B
10 02.100 RELAY; STARTER
02.510 12V 80A 		8-97173-951-0 01 1 0211- ● ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0211-0501 ●
46 02.510 RELAY; GLOW PLUG
12V 80A 		8-97173-951-0 01 1 0502- ●
578 02.510 RELAY; CHARGE WARNING
12V 		8-97063-441-2 01 1 0211- ● ●
