0-57 — EMISSION PIPING (#35463) — 77 parça

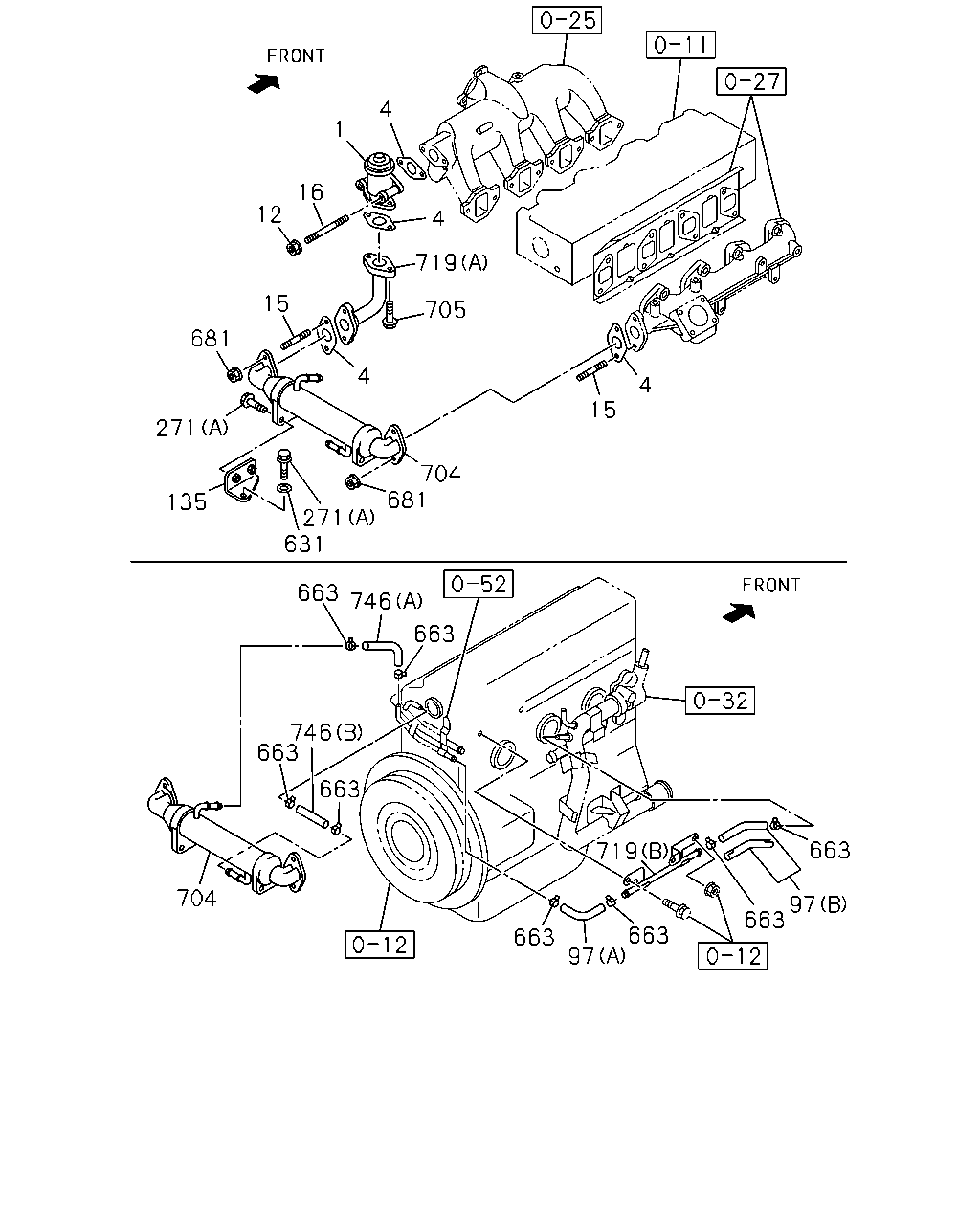

4 1 16 12 4 719 15 705 681 4 4 15 271 704 681 135 271 631 663 746 663 746 663 663 719 663 704 97 663 663 663 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0211-0501	●
1	03.670 VALVE; EGR	8-97208-656-4	01	1	0502-		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0211-0501	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0502-		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0211-0501	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0502-0602		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-		●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0211-0408	●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0409-0501	●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0502-		●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0211-0501	●
16	03.275 STUD; EGR VLV 00.413 M8X55 L=67	9-04110-855-0	02	1	0502-0604		●
16	03.275 STUD; EGR VLV 01.097 M8X55 L=67	0-41010-855-0	02	1	0605-		●
97	03.675 HOSE; RUBBER (A)	8-97240-636-0	01	1	0211-0501	●
97	03.675 HOSE; RUBBER (A)	8-97240-636-0	01	1	0502-		●
97	03.675 HOSE; RUBBER (B)	8-97312-730-0	01	1	0211-0501	●
97	03.675 HOSE; RUBBER (B)	8-97312-730-0	01	1	0502-		●
135	03.680 BRACKET; EGR	8-97247-717-2	01	1	0211-0501	●
135	03.680 BRACKET; EGR	8-97247-717-2	01	1	0502-		●
271	03.675 BOLT; BRKT 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0501	●
271	03.675 BOLT; BRKT 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0502-0512		●
271	03.675 BOLT; BRKT 04.338 (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
271	03.675 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●
271	03.675 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
271	03.675 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
631	03.417 WASHER; PL,BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	0211-0501	●
631	03.417 WASHER; PL,BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	0502-0605		●
631	03.417 WASHER; PL,BRKT 06.168 ID=8.4 OD=18	0-91610-608-0	01	1	0606-		●
663	03.417 CLIP; HOSE 01.153 ID=12.8	8-94367-943-0	08	1	0211-0501	●
663	03.417 CLIP; HOSE 01.153 ID=12.8	8-94367-943-0	08	1	0502-		●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0211-0501	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0502-		●
704	03.337 COOLER ASM; EGR	8-97239-982-3	01	1	0211-0501	●
704	03.337 COOLER ASM; EGR	8-97239-982-4	01	1	0502-		●
705	03.675 BOLT; EGR VLV TO EGR PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0501	●
705	03.675 BOLT; EGR VLV TO EGR PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
705	03.675 BOLT; EGR VLV TO EGR PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
719	03.675 PIPE; EGR (B)	8-97240-635-2	01	1	0211-0501	●
719	03.675 PIPE; EGR (B)	8-97240-635-2	01	1	0502-		●
719	03.675 PIPE; EGR (A)	8-97245-757-2	01	1	0211-0501	●
719	03.675 PIPE; EGR (A)	8-97245-757-2	01	1	0502-		●
746	03.675 HOSE; WATER,EGR COOLER 01.097 (B) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0211-0501	●
746	03.675 HOSE; WATER,EGR COOLER 01.097 (B) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0502-		●
746	03.675 HOSE; WATER,EGR COOLER (A)	8-97313-126-1	01	1	0211-0501	●
746	03.675 HOSE; WATER,EGR COOLER (A)	8-97313-126-1	01	1	0502-		●

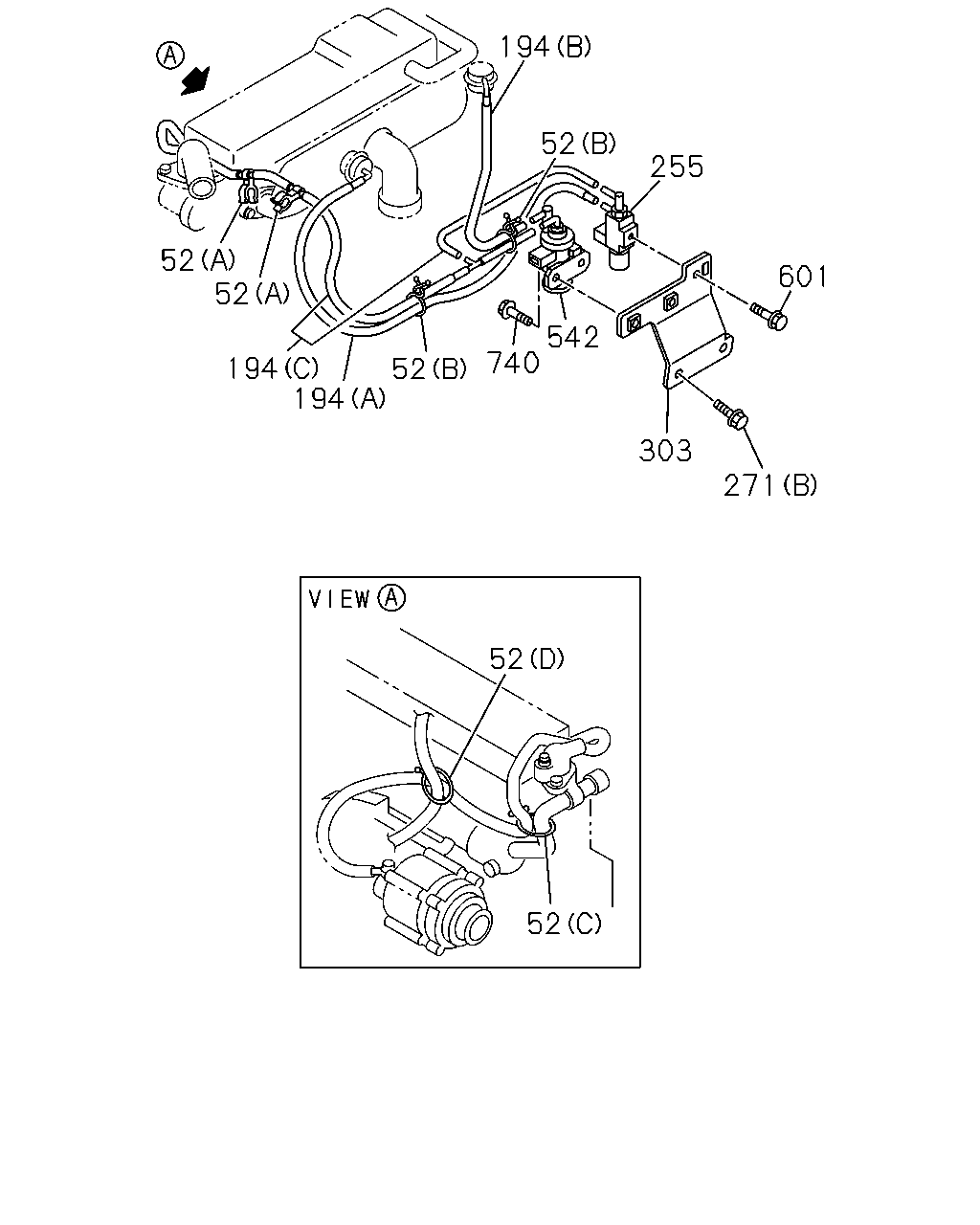

194 52 255 52 52 601 542 740 194 194 52 303 271 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0211-0501	●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0502-		●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0211-0501	●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0502-		●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0211-0501	●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0502-		●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0211-0501	●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0502-		●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0211-0501	●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0502-		●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0211-0501	●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0502-		●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0211-0501	●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0502-		●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0211-0501	●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0502-		●
271	03.675 BOLT; BRKT 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0211-0501	●
271	03.675 BOLT; BRKT 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	0502-0512		●
271	03.675 BOLT; BRKT 04.338 (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-		●
271	03.675 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0501	●
271	03.675 BOLT; BRKT 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0502-0512		●
271	03.675 BOLT; BRKT 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
303	03.671 BRACKET; VAC SW	8-97361-243-0	01	1	0211-0501	●
303	03.671 BRACKET; VAC SW	8-97361-243-0	01	1	0502-		●
542	03.670 VALVE; VAC REGULATING	8-97240-699-0	01	1	0211-0501	●
542	03.670 VALVE; VAC REGULATING	8-97240-699-0	01	1	0502-		●
601	03.417 SCREW; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0211-0501	●
601	03.417 SCREW; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0502-0604		●
601	03.417 SCREW; VSV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0605-		●
740	03.680 BOLT; VAC REG VALVE 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0501	●
740	03.680 BOLT; VAC REG VALVE 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0512		●
740	03.680 BOLT; VAC REG VALVE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-		●
