0-52 — OIL AND VACUUM PIPING; ENGINE (#35462) — 82 parça

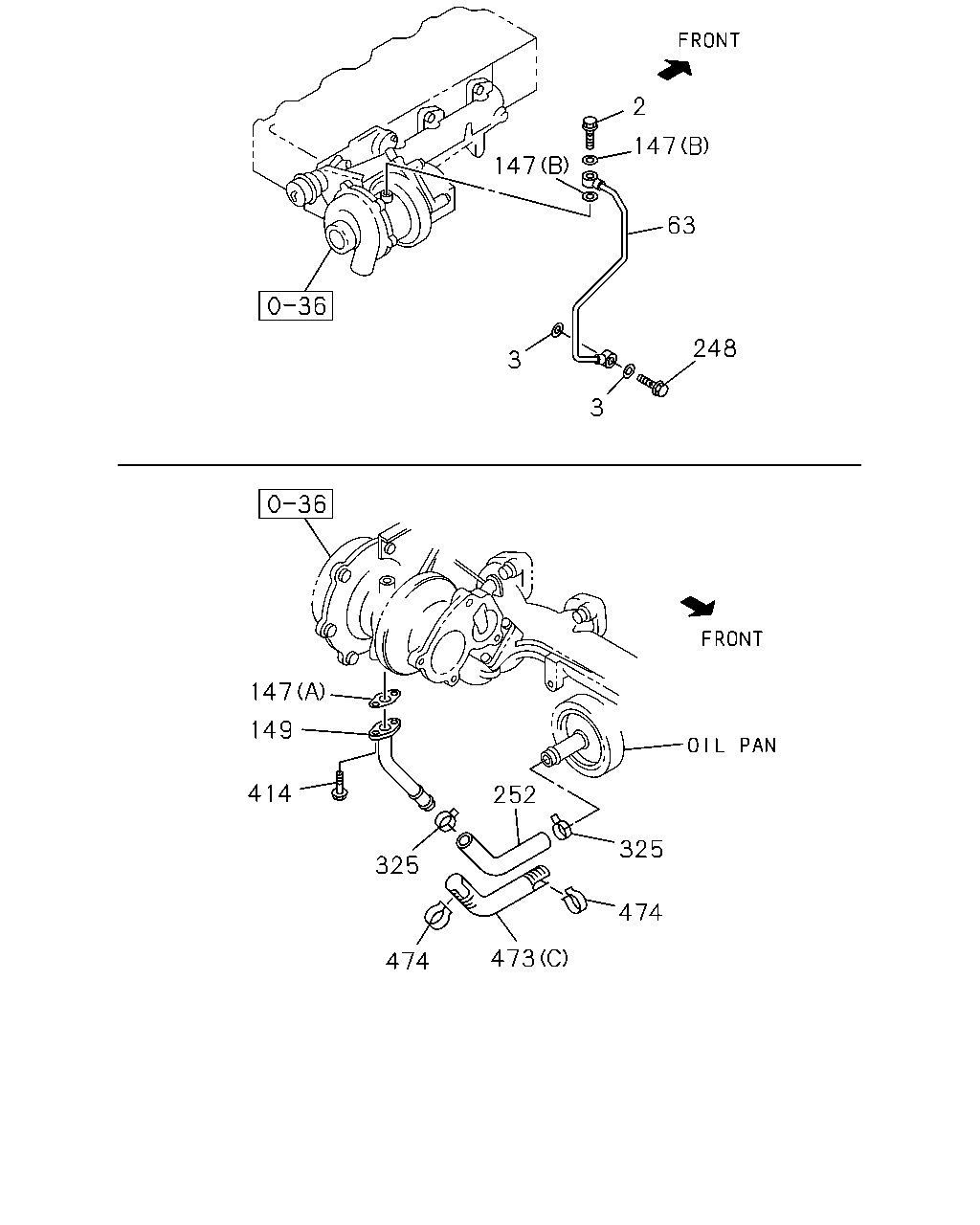

çizim 18204
2 147 147 63 248 3 3 147 149 414 252 325 325 474 473 474
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.531 BOLT; EYE,OIL PIPE
M10X27 		8-94443-535-0 01 1 0211-0501 ●
2 01.531 BOLT; EYE,OIL PIPE
M10X27 		8-94443-535-0 01 1 0502- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0211-0501 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0502- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0211-0501 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED 8-97239-974-4 01 1 0502- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 0211-0501 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 0502- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0211-0501 ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0502- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97258-833-0 01 1 0211-0501 ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER 8-97258-833-0 01 1 0502- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 0211-0501 ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
03.162 M14X27 FLANGE 		1-09675-086-0 01 1 0502- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97258-872-1 01 1 0211-0501 ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN 8-97258-872-1 01 1 0502- ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 0211-0501 ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
01.166 ID=20.8 		8-94125-862-1 02 1 0502- ●
414 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0211-0501 ●
414 01.531 BOLT; OIL PIPE
00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0502-0512 ●
414 01.531 BOLT; OIL PIPE
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 0601- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0211-0501 ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0502- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0211-0501 ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0502- ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0211-0501 ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0502- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0211-0501 ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0502- ●

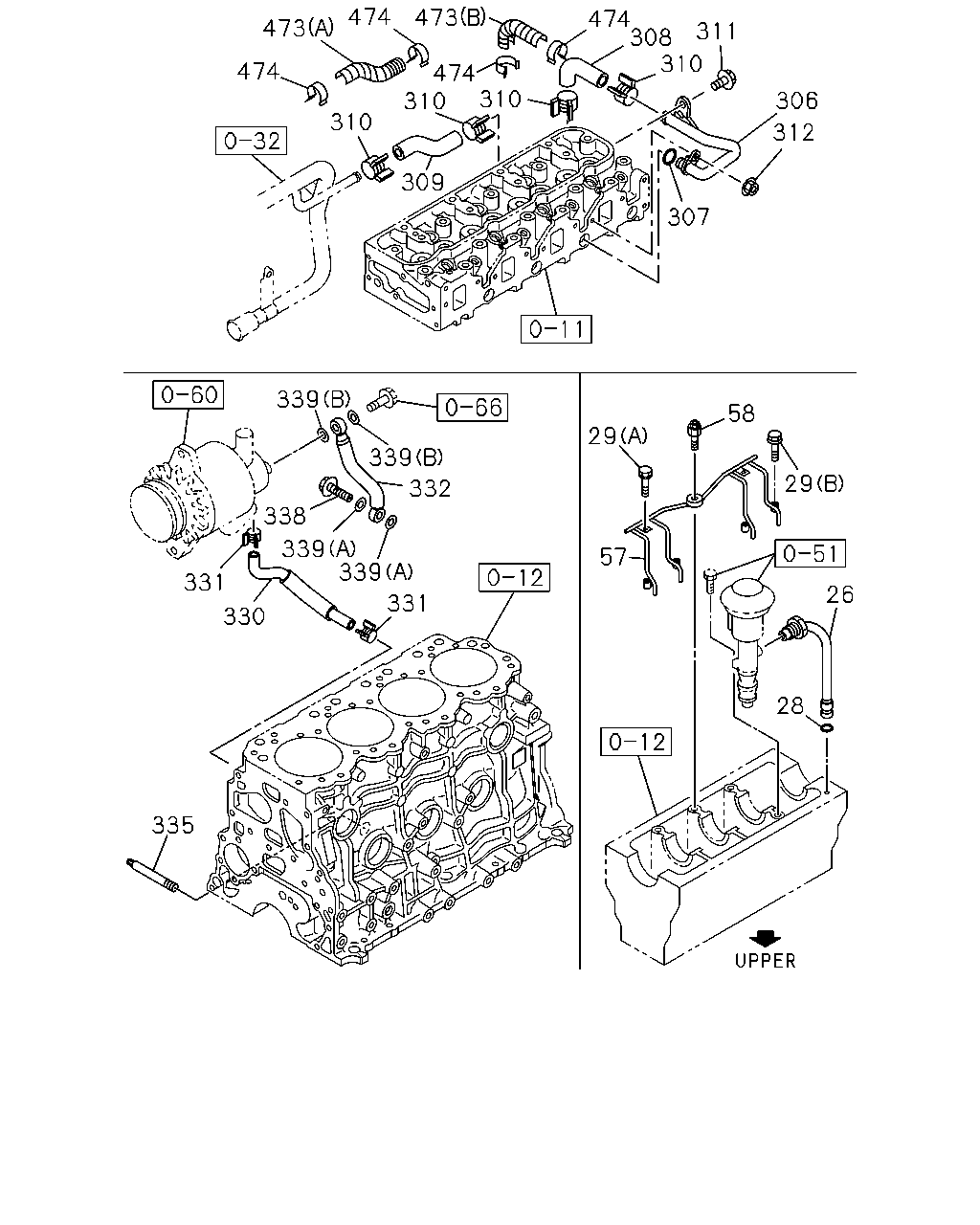

çizim 74009
474 473 474 308 310 473 311 474 474 310 310 306 310 312 309 307 339 58 29 339 29 332 338 339 339 57 331 26 331 330 28 335
BalonParca AdiParca NoAdetTipApplied Date A B
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0211-0308 ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0309-0501 ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0502-0801 ●
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97923-928-0 01 1 0802- ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 0211-0501 ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 0502- ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0211-0501 ●
29 01.531 BOLT; OIL PIPE,OIL JET
(B) M6X20 		8-97117-298-1 04 1 0502- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0211-0501 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0502-0512 ●
29 01.531 BOLT; OIL PIPE,OIL JET
03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0601- ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0211-0501 ●
57 01.519 PIPE; OIL,OIL JET 8-97116-971-1 01 1 0502- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-0 01 1 0211-0501 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-97239-048-1 01 1 0502-1407 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO 8-98285-334-0 01 1 1408- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97239-979-2 01 1 0211-0501 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97239-979-2 01 1 0502- ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0211-0501 ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0502- ●
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 0211-0501 ●
308 01.540 HOSE; OIL COOLER FEED 8-97300-062-0 01 1 0502- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 0211-0501 ●
309 01.540 HOSE; OIL COOLER RETURN 8-97300-063-0 01 1 0502- ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0211-0501 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0502- ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0211-0501 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0502- ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0211-0501 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0502-0805 ●
312 01.531 NUT; PIPE FIX
04.634 M8 FLANGE 		8-97581-233-0 01 1 0806- ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 0211-0501 ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-2 01 1 0502- ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0211-0501 ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0502- ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0211-0501 ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0502- ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 0211-0501 ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 0502- ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0211-0501 ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 0502- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0211-0501 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0502- ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0211-0501 ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0502- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0211-0501 ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 0502- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0211-0501 ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 0502- ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0211-0501 ●
473 01.540 INSULATOR; HOSE
(C) 		8-97305-283-1 01 1 0502- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0211-0501 ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 06 1 0502- ●
