◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶
0-51 — OIL PUMP AND OIL STRAINER (#35461) — 26 parça

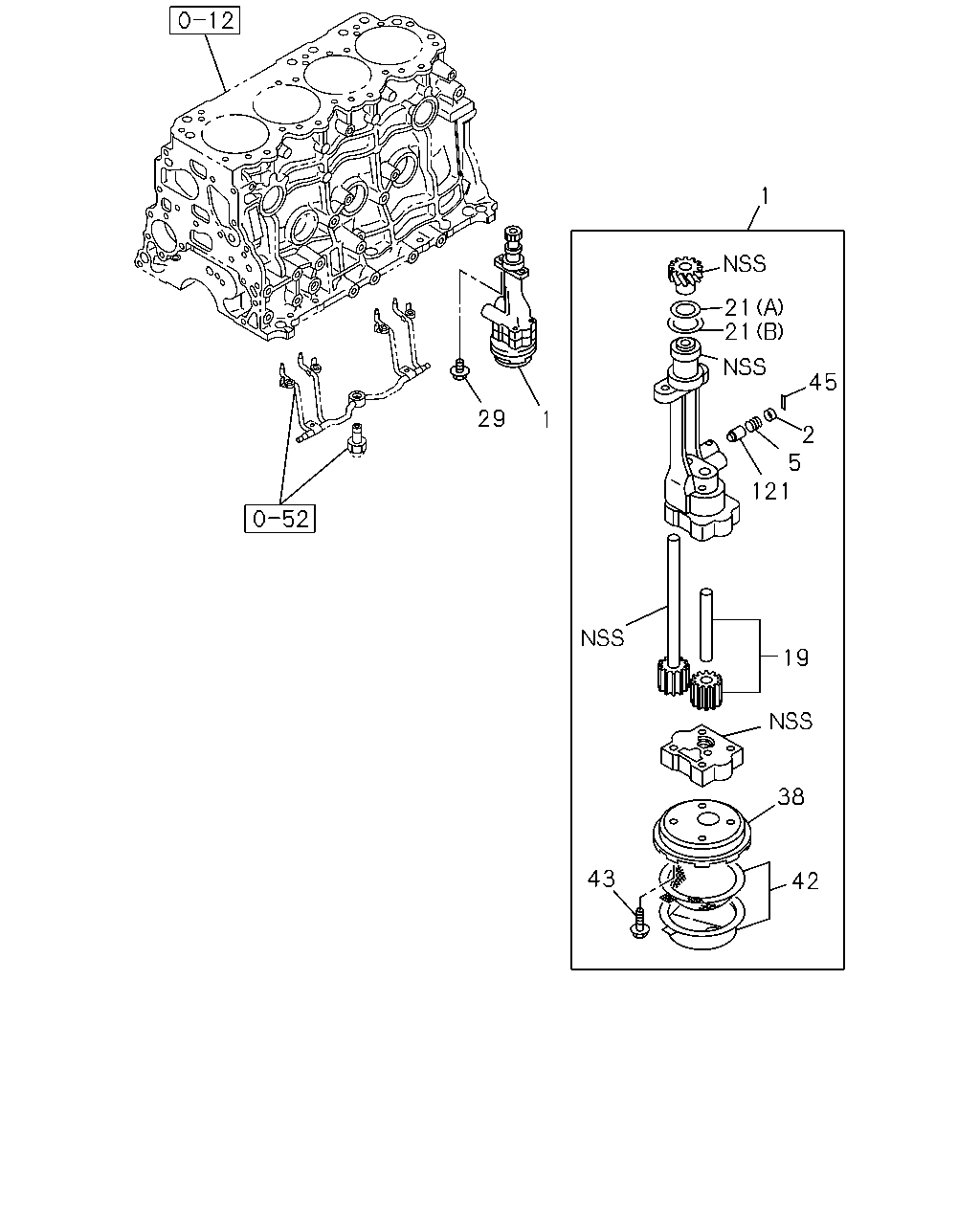

çizim 74204
1 21 21 45 29 1 2 5 121 19 38 43 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-97308-115-2 01 1 0211-0407 ●
1 01.652 PUMP ASM; OIL 8-97385-988-0 01 1 0408-0501 ●
1 01.652 PUMP ASM; OIL 8-97385-988-0 01 1 0502- ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0211-0501 ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 0502- ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0211-0501 ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 0502- ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0211-0501 ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 0502- ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7 		1-09623-170-0 01 1 0211-0501 ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A) ID=27.7 		1-09623-170-0 01 1 0502- ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2 		1-09623-220-0 01 1 0211-0501 ●
21 01.655 GASKET; OIL PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (B) ID=31.2 		1-09623-220-0 01 1 0502- ●
29 01.652 BOLT; OIL PUMP
01.531 M8X25 FLANGE 		0-28080-825-0 02 1 0211-0501 ●
29 01.652 BOLT; OIL PUMP
01.531 M8X25 FLANGE 		0-28080-825-0 02 1 0502-0512 ●
29 01.652 BOLT; OIL PUMP
03.275 M8X25 FLANGE 		0-28050-825-0 02 1 0601- ●
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 0211-0501 ●
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 0502- ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 0211-0501 ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 0502- ●
43 01.656 BOLT; CASE
04.866 M8X30 FLANGE 		0-28010-830-0 04 1 0211-0501 ●
43 01.656 BOLT; CASE
04.866 M8X30 FLANGE 		0-28010-830-0 04 1 0502- ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0211-0501 ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 0502- ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0211-0501 ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 		8-94235-567-1 01 1 0502- ●
