◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#35460) — 30 parça

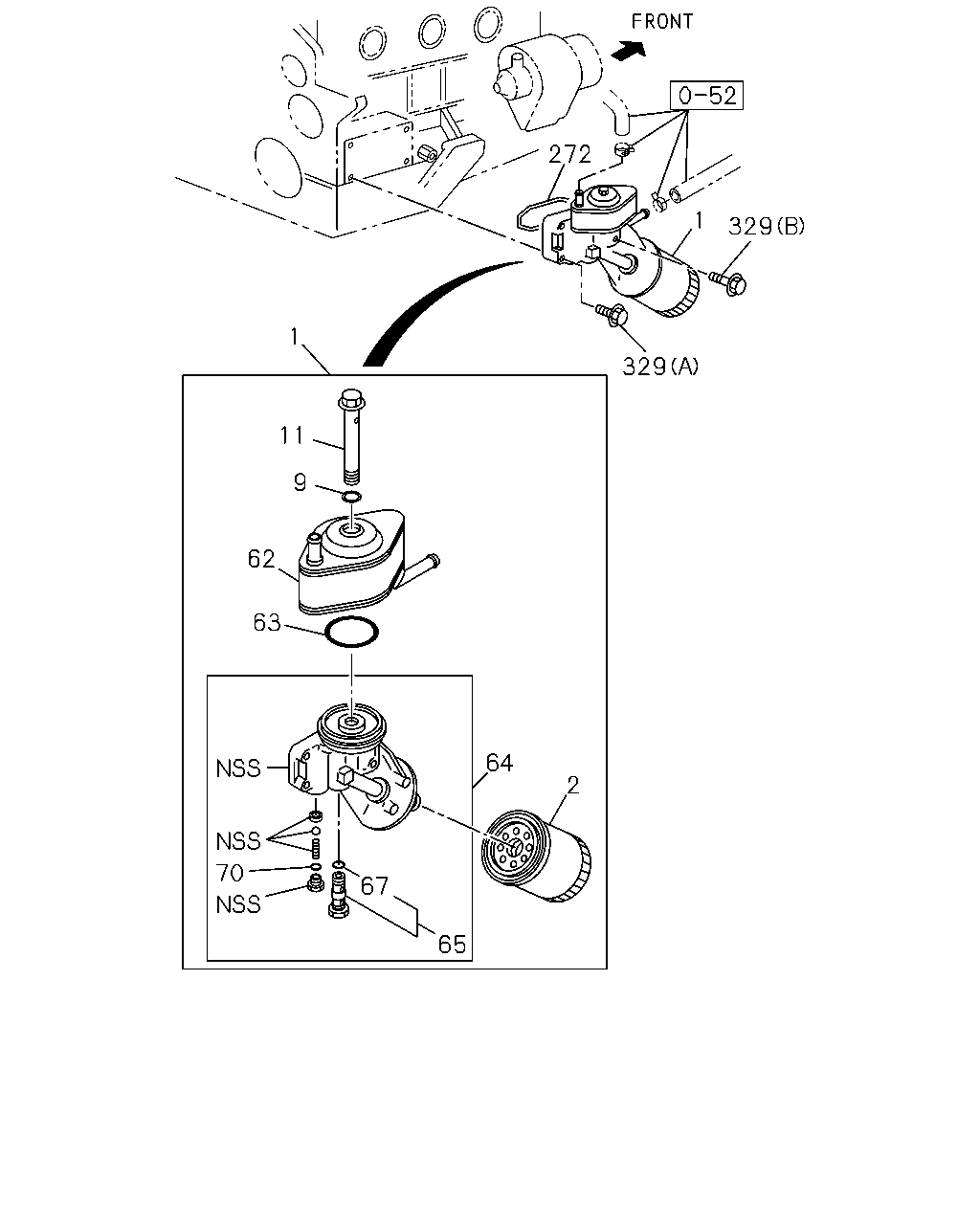

çizim 72596
272 1 329 1 329 11 9 62 63 64 2 70 67 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.540 FILTER & COOLER ASM; OIL 8-97239-978-1 01 1 0211-0501 ●
1 01.540 FILTER & COOLER ASM; OIL 8-97239-978-2 01 1 0502- ●
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 0211-0501 ●
2 01.836 ELEMENT; OIL FILTER 8-97329-911-0 01 1 0502- ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 0211-0501 ●
2 01.836 ELEMENT; OIL FILTER
BEST VALUE PARTS 		5-87610-021-0 01 1 0502- ●
9 01.840 GASKET; CENTER BOLT 8-97047-000-0 01 1 0211-0501 ●
9 01.840 GASKET; CENTER BOLT 8-97047-000-0 01 1 0502- ●
11 01.840 BOLT; CENTER 8-97094-724-1 01 1 0211-0501 ●
11 01.840 BOLT; CENTER 8-97094-724-1 01 1 0502- ●
62 01.540 COOLER ASM; OIL 8-97301-588-0 01 1 0211-0501 ●
62 01.540 COOLER ASM; OIL 8-97301-588-0 01 1 0502- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 0211-0501 ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 0502- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97313-207-1 01 1 0211-0501 ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97313-207-2 01 1 0502- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 0211-0501 ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 0502- ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 0211-0501 ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 0502- ●
70 01.844 GASKET; PLUG,OIL FILTER 9-09921-193-0 01 1 0211-0501 ●
70 01.844 GASKET; PLUG,OIL FILTER 9-09921-193-0 01 1 0502- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 0211-0501 ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-1 01 1 0502-0706 ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 		8-98087-965-0 01 1 0707- ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0211-0501 ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0502- ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 0211-0501 ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 0502-0512 ●
329 01.840 BOLT; OIL FILTER
04.686 (B) M8X60 FLANGE 		0-28050-860-0 02 1 0601- ●
