1 |

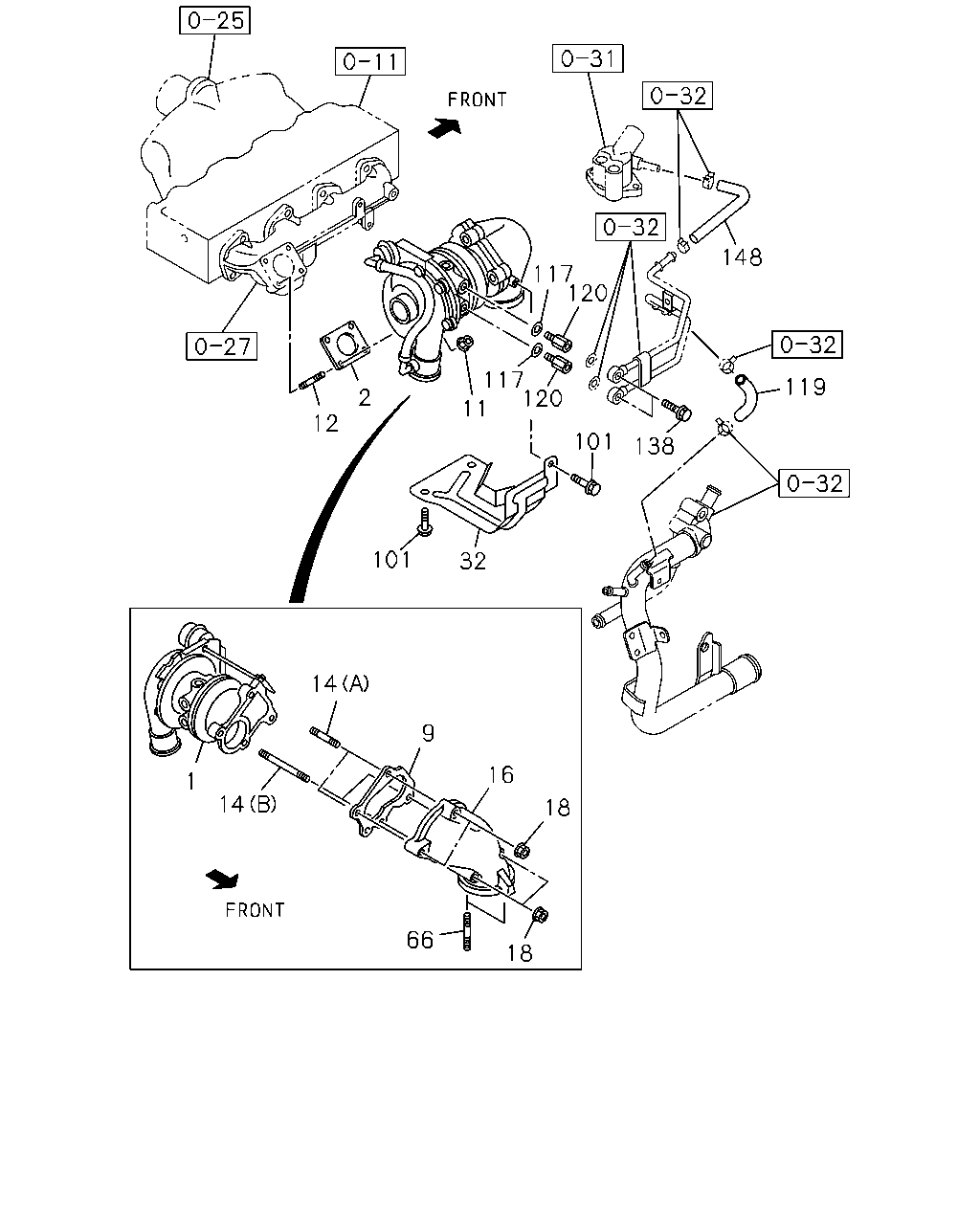

03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
8-97240-008-3 |
01 |
1 |
0211-0501 |
● |
|
| |
1 |
03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
8-97240-008-5 |
01 |
1 |
0502- |
|
● |
| |
2 |
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-97288-577-0 |
01 |
1 |
0211-0501 |
● |
|
| |
2 |
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
8-97288-577-0 |
01 |
1 |
0502- |
|
● |
| |
9 |
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
03.611
|
8-97263-123-0 |
01 |
1 |
0211-0501 |
● |
|
| |
9 |
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
03.611
|
8-97263-123-0 |
01 |
1 |
0502- |
|
● |
| |
11 |
03.342 NUT; TURBOCHARGER
03.613
M8 FLANGE
|
8-97161-607-0 |
04 |
1 |
0211-0501 |
● |
|
| |
11 |
03.342 NUT; TURBOCHARGER
03.613
M8 FLANGE
|
8-97161-607-0 |
04 |
1 |
0502- |
|
● |
| |
12 |
03.342 STUD; TURBOCHARGER
M8X20 L=31
|
8-97104-508-1 |
04 |
1 |
0211-0408 |
● |
|
| |
12 |
03.342 STUD; TURBOCHARGER
M8X20 L=31
|
8-97378-060-0 |
04 |
1 |
0409-0501 |
● |
|
| |
12 |
03.342 STUD; TURBOCHARGER
M8X20 L=31
|
8-97378-060-0 |
04 |
1 |
0502- |
|
● |
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(B)
M8X41 L=52
|
8-97188-452-0 |
04 |
1 |
0211-0406 |
● |
|
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(B)
M8X41 L=52
|
8-97188-452-0 |
02 |
1 |
0407-0408 |
● |
|
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(A)
M8X81
|
8-94107-532-1 |
02 |
1 |
0211-0408 |
● |
|
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(A)
M8X81 L=92
|
8-97378-068-0 |
02 |
1 |
0409-0501 |
● |
|
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(A)
M8X81 L=92
|
8-97378-068-0 |
02 |
1 |
0502- |
|
● |
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(B)
M8X43 L=54
|
8-97104-507-1 |
02 |
1 |
0407-0501 |
● |
|
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(B)
M8X43 L=54
|
8-97104-507-1 |
02 |
1 |
0502-0607 |
|
● |
| |
14 |
03.342 STUD; TURBOCHARGER TO EXH PIPE
(B)
M8X43 L=54
|
8-97378-067-0 |
02 |
1 |
0608- |
|
● |
| |
16 |
03.609 ADAPTER; EXH PIPE
|
8-97240-009-0 |
01 |
1 |
0211-0501 |
● |
|
| |
16 |
03.609 ADAPTER; EXH PIPE
|
8-97240-009-0 |
01 |
1 |
0502- |
|
● |
| |
18 |
03.613 NUT; EXH PIPE
M8 FLANGE
|
8-97161-607-0 |
04 |
1 |
0211-0501 |
● |
|
| |
18 |
03.613 NUT; EXH PIPE
M8 FLANGE
|
8-97161-607-0 |
04 |
1 |
0502- |
|
● |
| |
32 |
03.342 PROTECTOR; HEAT,TURBOCHARGER
|
8-97258-821-0 |
01 |
1 |
0211-0501 |
● |
|
| |
32 |
03.342 PROTECTOR; HEAT,TURBOCHARGER
|
8-97258-821-0 |
01 |
1 |
0502- |
|
● |
| |
66 |
03.342 STUD; EXH PIPE
03.613
M10X45 L=60 PLATING
|
5-09302-008-1 |
02 |
1 |
0211-0501 |
● |
|
| |
66 |
03.342 STUD; EXH PIPE
03.613
M10X45 L=60 PLATING
|
5-09302-008-1 |
02 |
1 |
0502- |
|
● |
| |
101 |
03.602 BOLT; HEAT PROTECTOR
08.900
M8X12 FLANGE
|
0-28080-812-0 |
03 |
1 |
0211-0501 |
● |
|
| |
101 |
03.602 BOLT; HEAT PROTECTOR
08.900
M8X12 FLANGE
|
0-28080-812-0 |
03 |
1 |
0502-0512 |
|
● |
| |
101 |
03.602 BOLT; HEAT PROTECTOR
02.343
M8X12 FLANGE
|
0-28050-812-0 |
03 |
1 |
0601- |
|
● |
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
T=2.5
|
8-94472-584-1 |
02 |
1 |
0211-0501 |
● |
|
| |
117 |
03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE).
T=2.5
|
8-94472-584-1 |
02 |
1 |
0502- |
|
● |
| |
119 |
03.342 HOSE; WATER,TURBOCHARGER
|
8-97312-729-0 |
01 |
1 |
0211-0501 |
● |
|
| |
119 |
03.342 HOSE; WATER,TURBOCHARGER
|
8-97312-729-0 |
01 |
1 |
0502- |
|
● |
| |
120 |
01.097 ADAPTER; WATER
|
8-94472-583-0 |
02 |
1 |
0211-0501 |
● |
|
| |
120 |
01.097 ADAPTER; WATER
|
8-94472-583-0 |
02 |
1 |
0502- |
|
● |
| |
138 |
03.342 BOLT; EYE,WATER PIPE
01.531
M12X24 EYE-BOLT
|
1-09675-081-0 |
02 |
1 |
0211-0501 |
● |
|
| |
138 |
03.342 BOLT; EYE,WATER PIPE
01.531
M12X24 EYE-BOLT
|
1-09675-081-0 |
02 |
1 |
0502- |
|
● |
| |
148 |
03.417 HOSE; TURBOCHARGER,INL
01.097
L=280
SERVICED BY L=3000
|
0-03559-300-0 |
01 |
1 |
0211-0501 |
● |
|
| |
148 |
03.417 HOSE; TURBOCHARGER,INL
01.097
L=280
SERVICED BY L=3000
|
0-03559-300-0 |
01 |
1 |
0502- |
|
● |
