◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#35453) — 35 parça

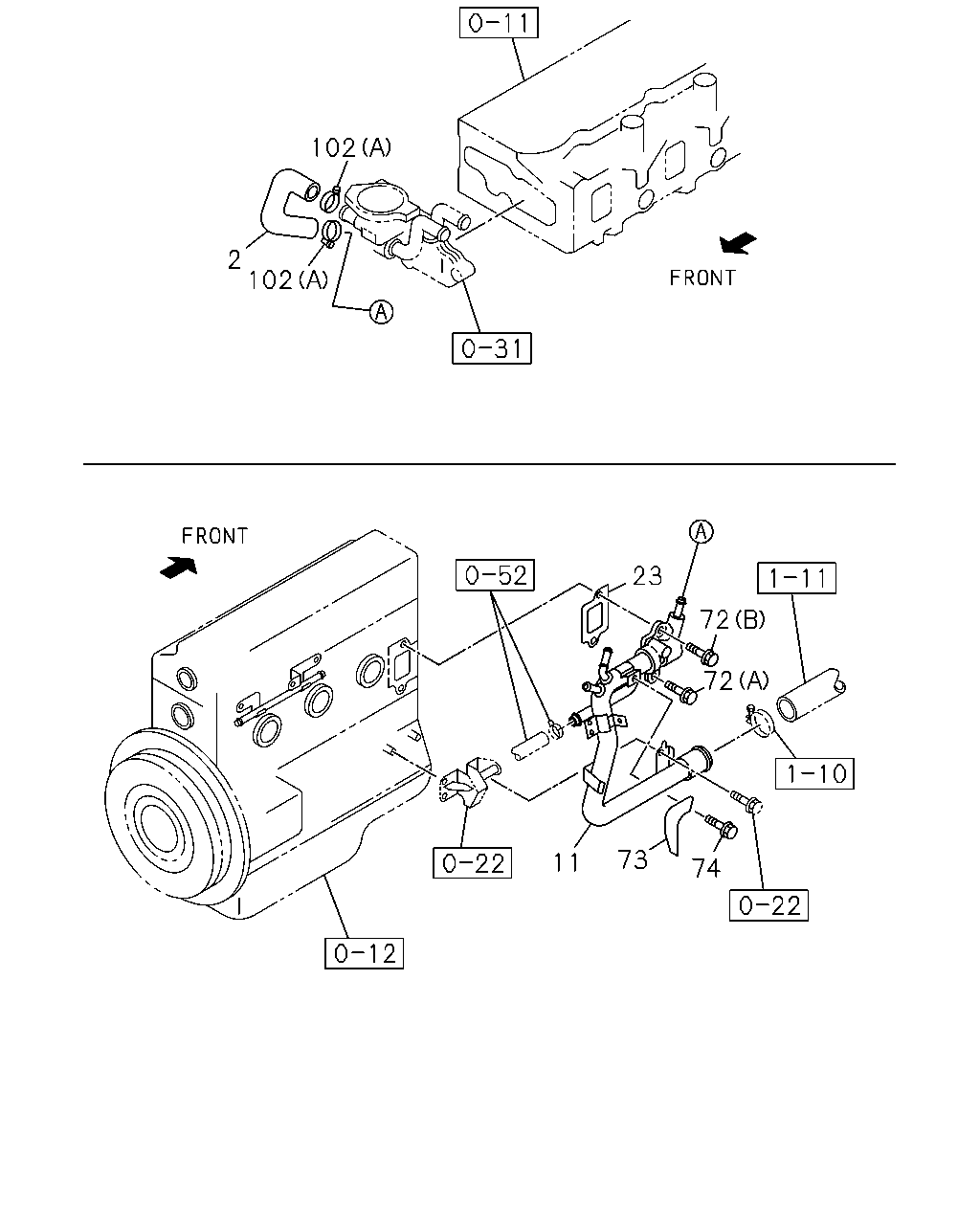

çizim 71414
102 2 102 23 72 72 73 11 74
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.097 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 0211-0501 ●
2 01.097 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 0502- ●
11 01.097 PIPE; INL,WATER PUMP 8-97239-994-3 01 1 0211-0501 ●
11 01.097 PIPE; INL,WATER PUMP 8-97239-994-3 01 1 0502- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 0211-0501 ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 0502- ●
72 00.206 BOLT; WATER PIPE
07.010 (A) M8X20 FLANGE 		0-28080-820-0 01 1 0211-0501 ●
72 00.206 BOLT; WATER PIPE
07.010 (A) M8X20 FLANGE 		0-28080-820-0 01 1 0502-0512 ●
72 00.206 BOLT; WATER PIPE
04.338 (A) M8X20 FLANGE 		0-28050-820-0 01 1 0601- ●
72 00.206 BOLT; WATER PIPE
01.252 (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0211-0501 ●
72 00.206 BOLT; WATER PIPE
01.252 (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0502-0909 ●
72 00.206 BOLT; WATER PIPE
03.704 (B) M8X45 W/LK WASHER 		0-50540-845-0 01 1 0910- ●
73 01.097 PROTECTOR; HEAT,WATER PIPE 8-97043-743-1 01 1 0211-0501 ●
73 01.097 PROTECTOR; HEAT,WATER PIPE 8-97043-743-1 01 1 0502-1403 ●
73 01.097 PROTECTOR; HEAT,WATER PIPE 8-97520-577-0 01 1 1404- ●
74 01.097 BOLT; HEAT PROTECTOR FIX
12.187 M8X16 W/LK&PL WASHER 		0-50140-816-0 03 1 0211-0501 ●
74 01.097 BOLT; HEAT PROTECTOR FIX
12.187 M8X16 W/LK&PL WASHER 		0-50140-816-0 03 1 0502-0512 ●
74 01.097 BOLT; HEAT PROTECTOR FIX
M8X16 W/LK&PL WASHER 		0-50640-816-0 03 1 0601- ●
102 01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 02 1 0211-0501 ●
102 01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 02 1 0502- ●
102 01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8 		8-94367-943-0 04 1 0211-0501 ●
102 01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8 		8-94367-943-0 04 1 0502- ●

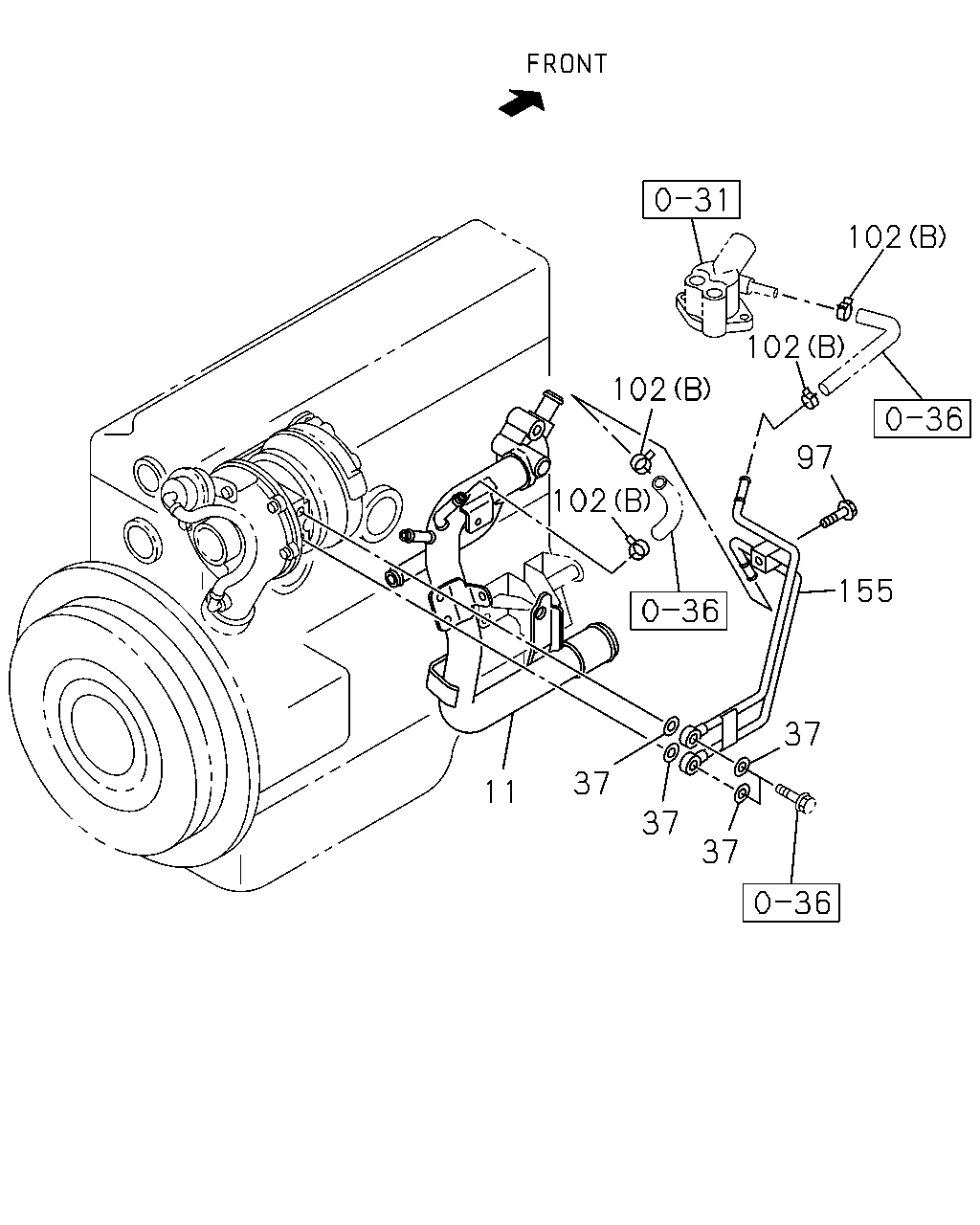

çizim 71878
102 102 102 102 97 155 37 37 37 37 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 01.097 PIPE; INL,WATER PUMP 8-97239-994-3 01 1 0211-0501 ●
11 01.097 PIPE; INL,WATER PUMP 8-97239-994-3 01 1 0502- ●
37 01.242 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=12.2 		9-09571-412-0 04 1 0211-0501 ●
37 01.242 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=12.2 		9-09571-412-0 04 1 0502- ●
97 04.866 BOLT; WATER PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
97 04.866 BOLT; WATER PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ●
97 04.866 BOLT; WATER PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
102 01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 02 1 0211-0501 ●
102 01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 02 1 0502- ●
102 01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8 		8-94367-943-0 04 1 0211-0501 ●
102 01.252 CLIP; WATER HOSE
01.153 (B) ID=12.8 		8-94367-943-0 04 1 0502- ●
155 01.153 PIPE ASM; WATER 8-97239-995-0 01 1 0211-0501 ●
155 01.153 PIPE ASM; WATER 8-97239-995-0 01 1 0502- ●
