0-22 — ENGINE MOUNTING (#35447) — 57 parça
çizim 19540
20 166 252 177 1 22 2 298 166 252 2 20 298 20 177 1 22
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-0 01 1 0211-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 0502- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-0 01 1 0211-0501 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 0502- ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0211-0501 ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0502- ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0211-0501 ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0502- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0211-0501 ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0502- ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 0211-0501 ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 0502-0512 ●
20 00.029 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50541-425-0 01 1 0601- ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0211-0501 ●
20 00.029 BOLT; ENG FOOT
02.277 (A) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0502-0909 ●
20 00.029 BOLT; ENG FOOT
(A) M10X22 W/LK WASHER 		0-50541-022-0 05 1 0910- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 M10 FLANGE 		0-91150-210-0 04 1 0211-0602 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
166 00.002 NUT; SUPPORT RUBBER
04.634 M12 		9-99110-512-0 02 1 0211-0501 ●
166 00.002 NUT; SUPPORT RUBBER
04.634 M12 		9-99110-512-0 02 1 0502-0512 ●
166 00.002 NUT; SUPPORT RUBBER
05.002 M12 		0-91110-512-0 02 1 0601- ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0211- ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0211-0501 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0502-0603 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604- ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-925-0 01 1 0211-0501 ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-925-0 01 1 0502-1012 ●
298 00.027 RUBBER; SPACE,ENG FOOT
00.002 		8-97205-805-0 01 1 1101- ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-926-0 01 1 0211-0501 ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-926-0 01 1 0502-1012 ●
298 00.027 RUBBER; SPACE,ENG FOOT
00.002 		8-97205-803-0 01 1 1101- ●

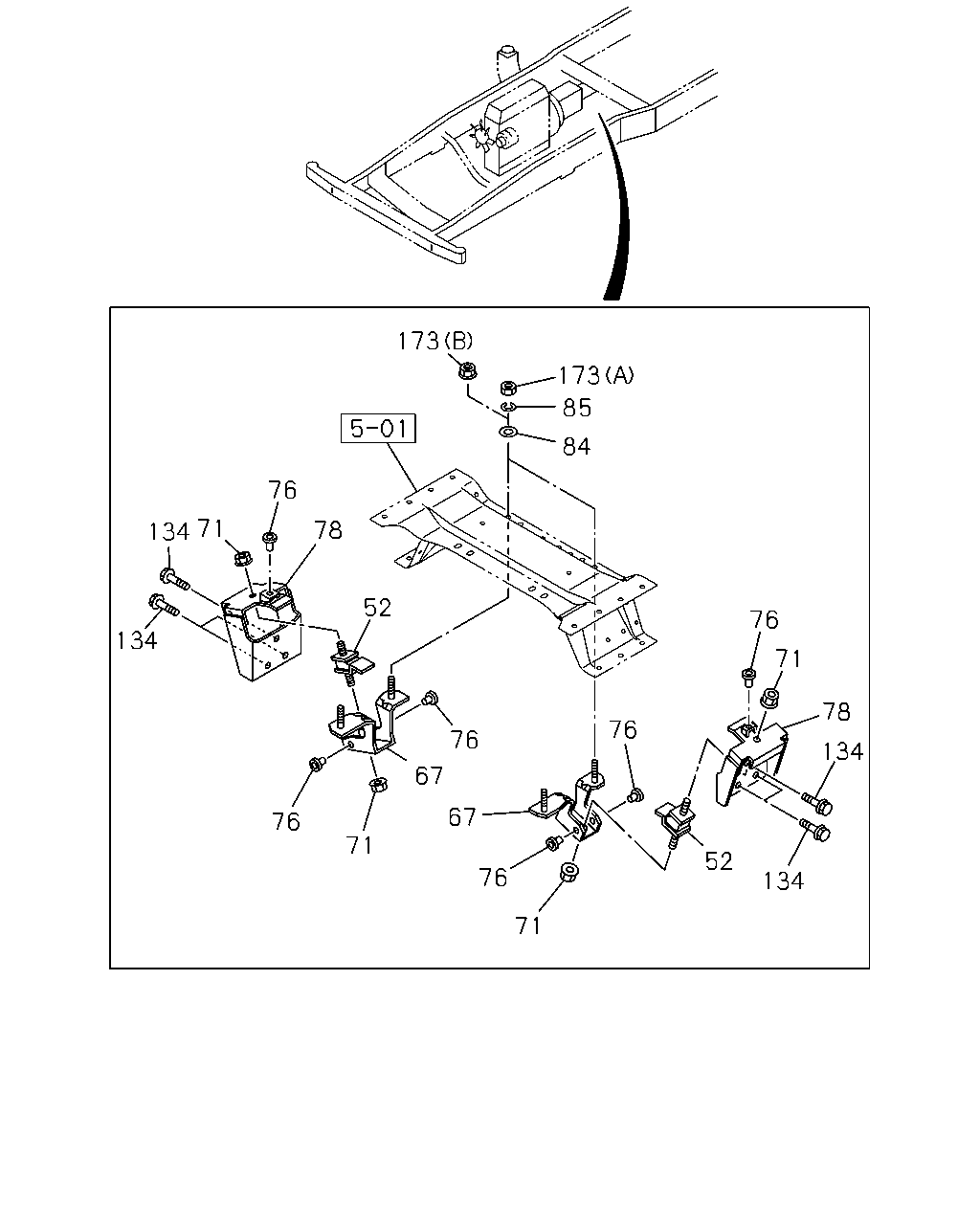

çizim 69282
173 173 85 84 76 134 71 78 52 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71
BalonParca AdiParca NoAdetTipApplied Date A B
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0211-0501 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-569-0 01 1 0211-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-569-1 01 1 0502- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-568-0 01 1 0211-0306 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-919-0 01 1 0307-0501 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-919-1 01 1 0502- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0211-0501 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0502-0602 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0603- ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 06 1 0211-0501 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 		8-94111-904-0 06 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-560-0 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-560-1 01 1 0502- ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-561-0 01 1 0211-0501 ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-561-1 01 1 0502- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0211-0605 ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0211-0603 ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0604-0610 ● ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0211-0501 ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0502-0512 ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0601- ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 (A) M10 		9-09110-410-0 04 1 0211-0512 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 (A) M10 		0-91110-510-0 04 1 0601-0610 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
03.162 (B) M10 FLANGE 		0-91180-110-0 04 1 0611- ● ●
