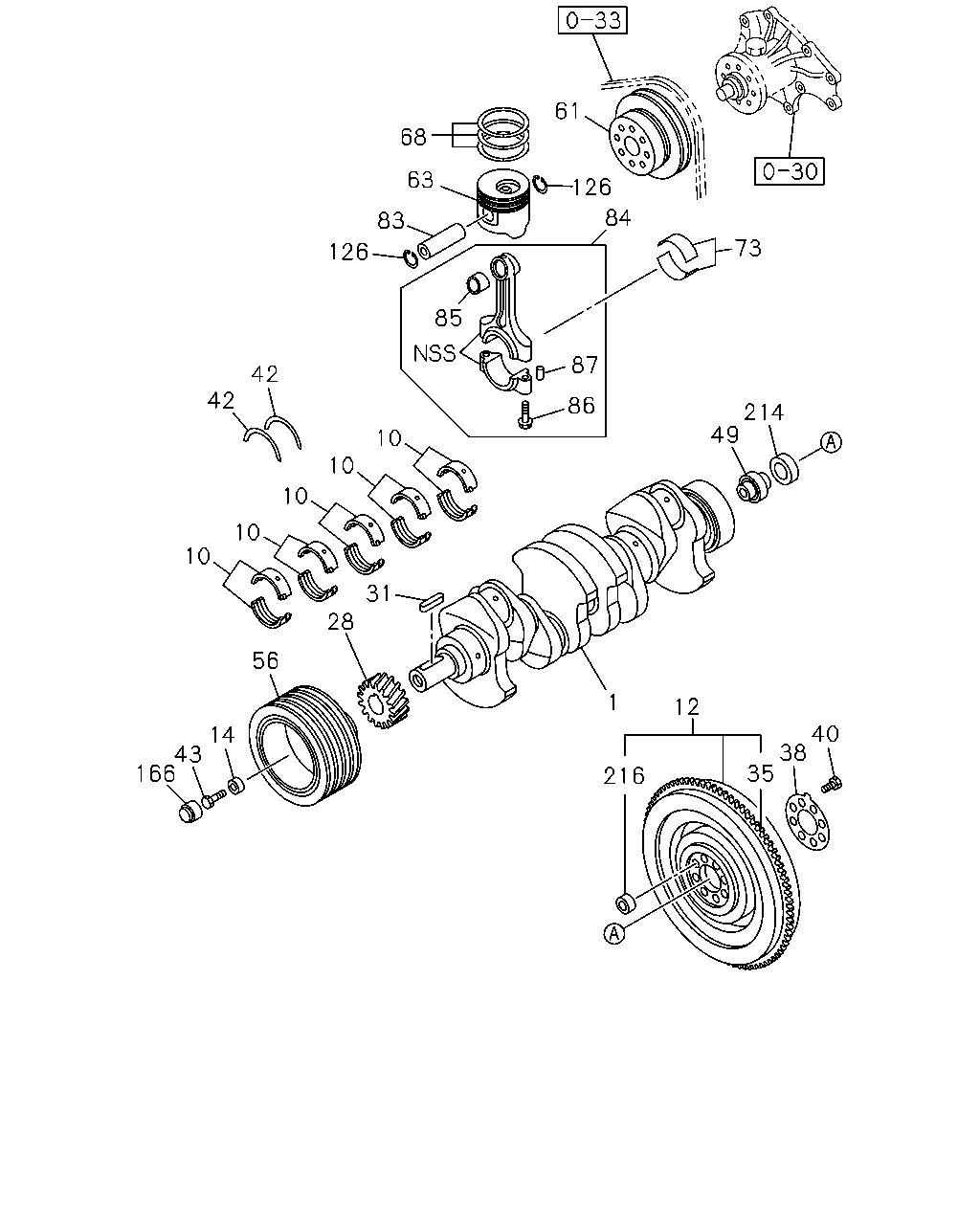

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#35445) — 75 parça

40 38 35 12 216 1 214 49 86 87 85 10 10 10 10 10 31 28 56 14 43 166 42 42 126 83 63 68 61 126 73 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0211-0501	●
1	00.646 CRANKSHAFT	8-97254-611-2	01	1	0502-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0211-0411	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0412-0501	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0502-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0211-0411	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0412-0501	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0502-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0211-0411	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0412-0501	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0502-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0211-0411	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0412-0501	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0502-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0211-0411	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0412-0501	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0502-		●
12	00.666 FLYWHEEL	8-97333-111-1	01	1	0211-0501	●
12	00.666 FLYWHEEL	8-97333-111-1	01	1	0502-0911		●
12	00.666 FLYWHEEL	8-98148-091-0	01	1	0912-		●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0211-0501	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0502-		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0211-0501	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0502-		●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0211-0501	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0502-		●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0211-0501	●
35	00.673 GEAR; RING Z=122	8-94364-395-1	01	1	0502-		●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0211-0501	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-1	01	1	0502-1005		●
38	00.862 WASHER; FLYWHEEL	8-98171-700-0	01	1	1006-		●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0211-0501	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	0502-		●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0211-0411	●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0412-0501	●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0502-1108		●
42	00.095 WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1109-		●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0211-0501	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0502-		●
49	00.669 BEARING; PILOT	8-97325-153-0	01	1	0211-0501	●
49	00.669 BEARING; PILOT	8-97325-153-0	01	1	0502-		●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	0502-		●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0211-0501	●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97254-844-0	01	1	0502-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0211-0501	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0502-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0211-0501	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97305-585-3	04	1	0502-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0211-0501	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97305-586-3	04	1	0502-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0211-0501	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0502-		●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0211-0501	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97184-534-0	04	1	0502-		●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0211-0501	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0502-		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0211-0501	●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0502-0502		●
84	00.603 ROD ASM; CONN	8-98012-602-2	04	1	0503-		●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0211-0501	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	0502-		●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0211-0501	●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0502-0701		●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0702-		●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0211-0501	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0502-		●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0211-0501	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0502-		●
166	00.659 RUBBER; SPACE,PULLEY	8-97231-528-0	01	1	0211-0501	●
166	00.659 RUBBER; SPACE,PULLEY	8-97231-528-0	01	1	0502-		●
214	00.724 STOPPER; BEARING	8-97316-560-0	01	1	0211-0501	●
214	00.724 STOPPER; BEARING	8-97316-560-0	01	1	0502-0911		●
216	00.293 DOWEL	8-97259-856-0	01	1	0211-0410	●
216	00.293 DOWEL	8-97378-354-0	01	1	0411-0501	●
216	00.293 DOWEL	8-97378-354-0	01	1	0502-		●
