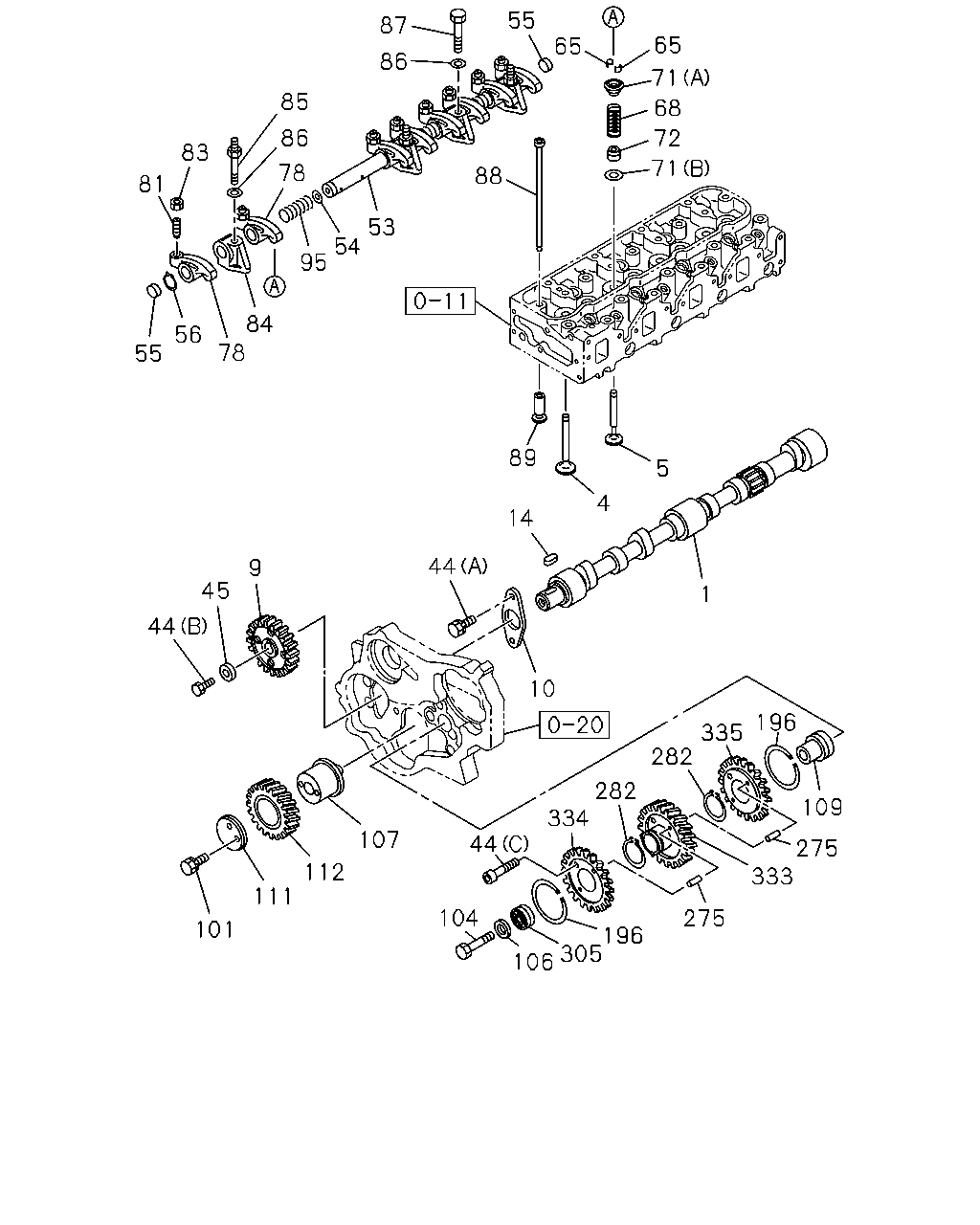

0-14 — CAMSHAFT AND VALVE (#35444) — 94 parça

44 14 4 5 1 10 282 282 335 196 109 275 333 275 196 305 106 104 44 334 107 112 111 101 44 45 9 55 56 78 84 95 54 53 88 71 72 68 71 65 65 55 86 87 85 86 78 83 81 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0211-0501	●
1	00.519 CAMSHAFT	8-97287-657-1	01	1	0502-		●
4	00.296 VALVE; INL	8-97131-729-0	04	1	0211-0501	●
4	00.296 VALVE; INL	8-97131-729-2	04	1	0502-		●
5	00.297 VALVE; EXH	8-97043-861-1	04	1	0211-0501	●
5	00.297 VALVE; EXH	8-97043-861-2	04	1	0502-		●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0211-0501	●
9	00.736 GEAR; CM/SHF Z=60	8-97240-012-2	01	1	0502-		●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0211-0501	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0502-		●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0211-0501	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0502-		●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0211-0501	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0502-		●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0211-0501	●
44	00.738 BOLT (C) M6X30 HEX SOCKET	9-05820-630-0	01	1	0502-		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0502-0512		●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0211-0409	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	8-97918-881-0	01	1	0410-0410	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0410-0501	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0502-		●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0211-0501	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0502-		●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0211-0501	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0502-		●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0211-0501	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0502-		●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0211-0501	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0502-		●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0211-0501	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0502-		●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	0211-0501	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	0502-		●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0211-0501	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0502-		●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0211-0501	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0502-		●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0211-0501	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0502-		●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0211-0501	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0502-		●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0211-0501	●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0502-		●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0211-0501	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0502-0512		●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0601-		●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0211-0501	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0502-		●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0211-0501	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0502-		●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0211-0501	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0502-		●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0211-0501	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0502-		●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0211-0501	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0502-		●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0211-0501	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0502-		●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0211-0501	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0502-		●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0211-0501	●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0502-		●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0211-0501	●
104	00.724 BOLT; SHAFT IDLE M12X77	8-94129-384-1	01	1	0502-		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0211-0409	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	8-97918-881-0	01	1	0410-0410	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0410-0501	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0502-		●
107	00.724 SHAFT; IDLE GEAR	8-97240-021-0	01	1	0211-0309	●
107	00.724 SHAFT; IDLE GEAR	8-97943-224-0	01	1	0310-0501	●
107	00.724 SHAFT; IDLE GEAR	8-97943-224-0	01	1	0502-		●
109	00.724 SHAFT; IDLE GEAR	8-97240-023-1	01	1	0211-0308	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	0309-0501	●
109	00.724 SHAFT; IDLE GEAR	8-97943-225-0	01	1	0502-		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0211-0501	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94171-289-0	01	1	0502-		●
112	00.724 GEAR; IDLE Z=43	8-97240-014-1	01	1	0211-0501	●
112	00.724 GEAR; IDLE Z=43	8-97240-014-1	01	1	0502-		●
196	00.724 RING; SNAP	8-97245-684-1	02	1	0211-0501	●
196	00.724 RING; SNAP	8-97245-684-1	02	1	0502-		●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0211-0501	●
275	00.724 PIN; IDLE GEAR OD=5 L=7.5	8-97245-683-0	04	1	0502-		●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	0211-0501	●
282	00.738 SPRING; GEAR	8-97245-337-0	02	1	0502-		●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0211-0501	●
305	00.724 BEARING; IDLE GEAR	8-97240-019-1	01	1	0502-		●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0211-0501	●
333	00.724 GEAR; IDLE,MAIN Z=52	8-97240-018-2	01	1	0502-		●
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0211-0501	●
334	00.724 GEAR; IDLE,FRT Z=52	8-97245-232-2	01	1	0502-		●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0211-0501	●
335	00.724 GEAR; IDLE,RR Z=52	8-97245-231-1	01	1	0502-		●
