◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#35443) — 31 parça

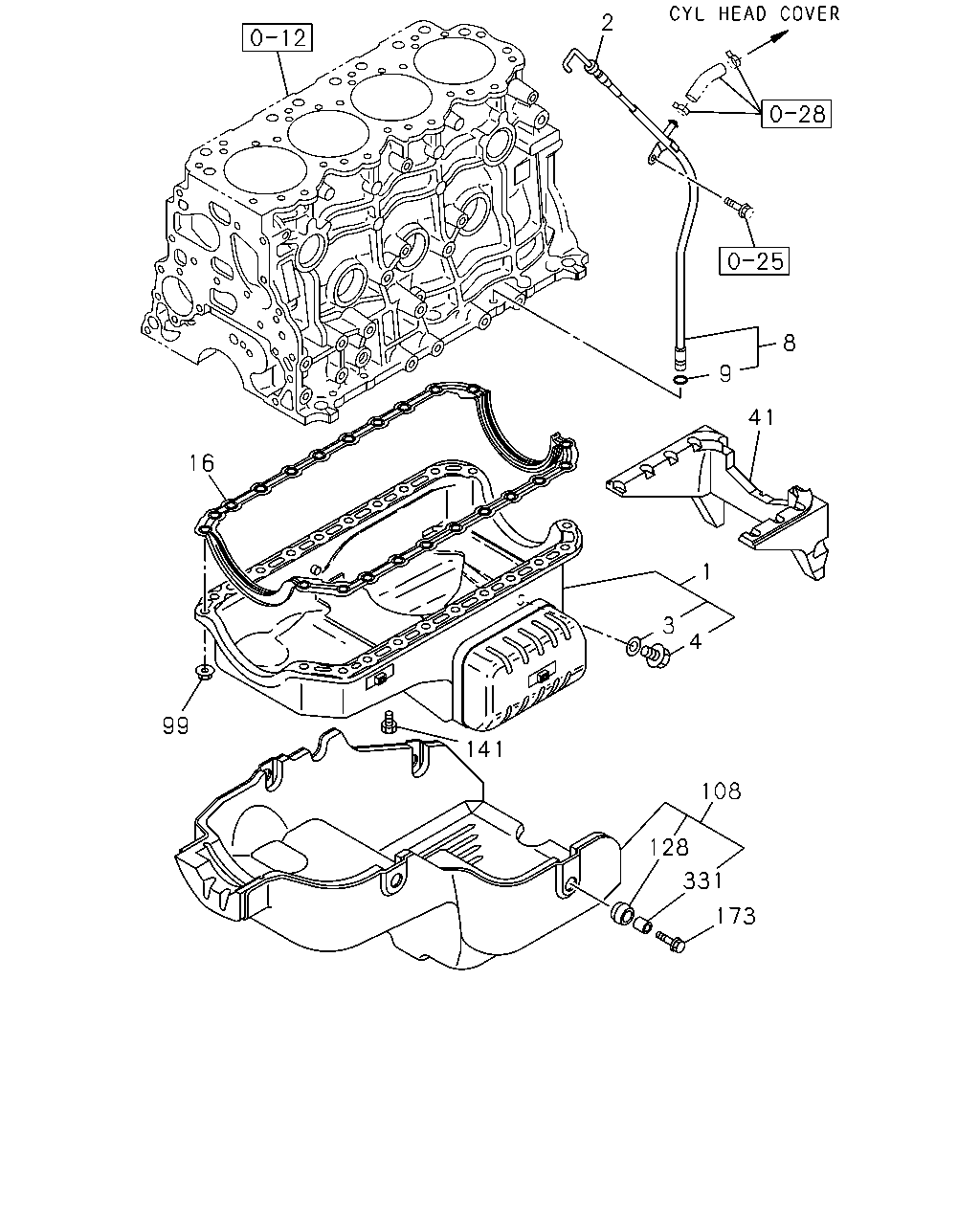

çizim 71386
2 8 9 41 16 1 3 4 141 99 108 128 331 173
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.426 PAN ASM; OIL 8-97223-955-0 01 1 0211-0411 ●
1 01.426 PAN ASM; OIL 8-98000-124-0 01 1 0412-0501 ●
1 01.426 PAN ASM; OIL 8-98000-124-0 01 1 0502- ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0211-0501 ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0502- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0211-0501 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0502- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0211-0501 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0502- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97239-977-0 01 1 0211-0501 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97239-977-0 01 1 0502- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0211-0501 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0502- ●
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 0211-0501 ●
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 0502- ●
41 00.137 RUBBER; SPACE 8-97286-992-0 01 1 0211-0501 ●
41 00.137 RUBBER; SPACE 8-97286-992-0 01 1 0502- ●
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 0211-0501 ●
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 0502- ●
108 01.426 COVER; OIL PAN 8-97248-296-2 01 1 0211-0305 ●
108 01.426 COVER; OIL PAN 8-97370-031-0 01 1 0306-0501 ●
108 01.426 COVER; OIL PAN 8-97370-031-0 01 1 0502-0612 ●
108 01.426 COVER; OIL PAN 8-98067-854-0 01 1 0701- ●
128 01.516 RUBBER; MTG,OIL PAN 8-97227-521-0 04 1 0211-0501 ●
128 01.516 RUBBER; MTG,OIL PAN 8-97227-521-0 04 1 0502- ●
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 0211-0501 ●
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 0502- ●
173 01.428 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0211-0501 ●
173 01.428 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0502- ●
331 01.516 COLLAR; MTG RUBBER 8-97224-450-0 04 1 0211-0501 ●
331 01.516 COLLAR; MTG RUBBER 8-97224-450-0 04 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
