0-12 — CYLINDER BLOCK (#35442) — 152 parça

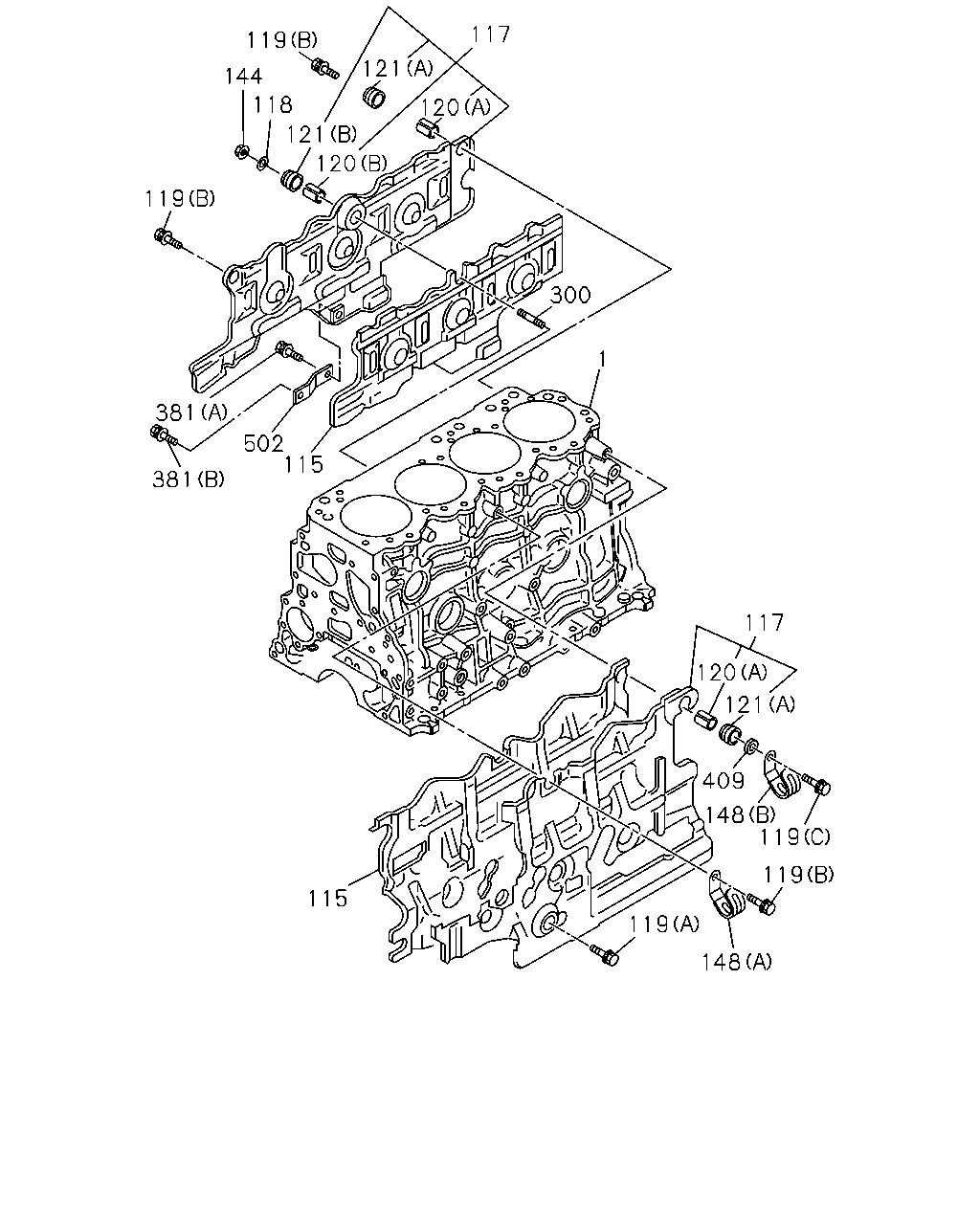

117 119 121 144 118 120 121 120 119 300 1 381 502 115 381 117 120 121 409 148 119 119 115 119 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0211-0501	●
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0502-		●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	0211-0501	●
115	00.034 RUBBER; SPACE	8-97204-193-0	01	1	0502-		●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	0211-0501	●
115	00.034 RUBBER; SPACE	8-97204-194-0	01	1	0502-		●
117	00.030 COVER ASM; C/BL	8-97259-600-0	01	1	0211-0501	●
117	00.030 COVER ASM; C/BL	8-97259-600-0	01	1	0502-		●
117	00.030 COVER ASM; C/BL	8-97300-309-1	01	1	0211-0501	●
117	00.030 COVER ASM; C/BL	8-97300-309-1	01	1	0502-		●
118	00.446 WASHER; PL,COVER FIX 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0211-0501	●
118	00.446 WASHER; PL,COVER FIX 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0502-0605		●
118	00.446 WASHER; PL,COVER FIX 03.706 ID=8.4 OD=26	0-91614-808-0	01	1	0606-		●
119	00.034 BOLT; COVER FIX 00.004 (C) M8X32 FLANGE	0-28080-832-0	01	1	0211-0501	●
119	00.034 BOLT; COVER FIX 00.004 (C) M8X32 FLANGE	0-28080-832-0	01	1	0502-		●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	0211-0501	●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	0502-		●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0211-0501	●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0502-		●
120	00.034 BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	05	1	0211-0501	●
120	00.034 BUSHING; MTG RUBBER (A) OD=13 T=9.5	8-94140-427-1	05	1	0502-		●
120	00.034 BUSHING; MTG RUBBER (B) OD=18 T=4.5	8-97188-506-0	01	1	0211-0501	●
120	00.034 BUSHING; MTG RUBBER (B) OD=18 T=4.5	8-97188-506-0	01	1	0502-		●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0211-0501	●
121	00.034 RUBBER; MTG,COVER (A) OD=22	8-94140-428-1	05	1	0502-		●
121	00.034 RUBBER; MTG,COVER (B) OD=16	8-97188-507-0	01	1	0211-0501	●
121	00.034 RUBBER; MTG,COVER (B) OD=16	8-97188-507-0	01	1	0502-		●
144	02.100 NUT; COVER FIX 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501	●
144	02.100 NUT; COVER FIX 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602		●
144	02.100 NUT; COVER FIX 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-		●
148	02.313 CLIP; HARNESS 01.516 (A) ID=13 L=20	9-09525-235-0	01	1	0211-0501	●
148	02.313 CLIP; HARNESS 01.516 (A) ID=13 L=20	9-09525-235-0	01	1	0502-0504		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0211-0501	●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0502-0504		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0505-0801		●
148	02.313 CLIP; HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-		●
148	02.313 CLIP; HARNESS 04.686 (B) ID=21 L=24	8-94176-807-1	01	1	0211-0501	●
148	02.313 CLIP; HARNESS 04.686 (B) ID=21 L=24	8-94176-807-1	01	1	0502-0504		●
148	02.313 CLIP; HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0505-		●
300	02.042 STUD; COVER 05.387 M8X30 L=41	9-04110-830-0	01	1	0211-0501	●
300	02.042 STUD; COVER 05.387 M8X30 L=41	9-04110-830-0	01	1	0502-0604		●
300	02.042 STUD; COVER M8X30 L=41	0-41010-830-0	01	1	0605-		●
381	01.531 BOLT; BRKT 00.206 (B) M8X10 FLANGE	0-28080-810-0	01	1	0211-0501	●
381	01.531 BOLT; BRKT 00.206 (B) M8X10 FLANGE	0-28080-810-0	01	1	0502-0512		●
381	01.531 BOLT; BRKT 03.407 (B) M8X10 FLANGE	0-28050-810-0	01	1	0601-		●
381	01.531 BOLT; BRKT 11.377 (A) M10X20 W/LK WASHER	0-50041-020-0	01	1	0211-0501	●
381	01.531 BOLT; BRKT 11.377 (A) M10X20 W/LK WASHER	0-50041-020-0	01	1	0502-0512		●
381	01.531 BOLT; BRKT 00.034 (A) M10X20 W/LK WASHER	0-50541-020-0	01	1	0601-		●
409	00.033 SPACER; COVER ID=8.5 L=10	5-13642-077-0	01	1	0211-0501	●
409	00.033 SPACER; COVER ID=8.5 L=10	5-13642-077-0	01	1	0502-		●
502	00.340 BRACKET; BODY COVER	8-97209-129-0	01	1	0211-0501	●
502	00.340 BRACKET; BODY COVER	8-97209-129-0	01	1	0502-		●

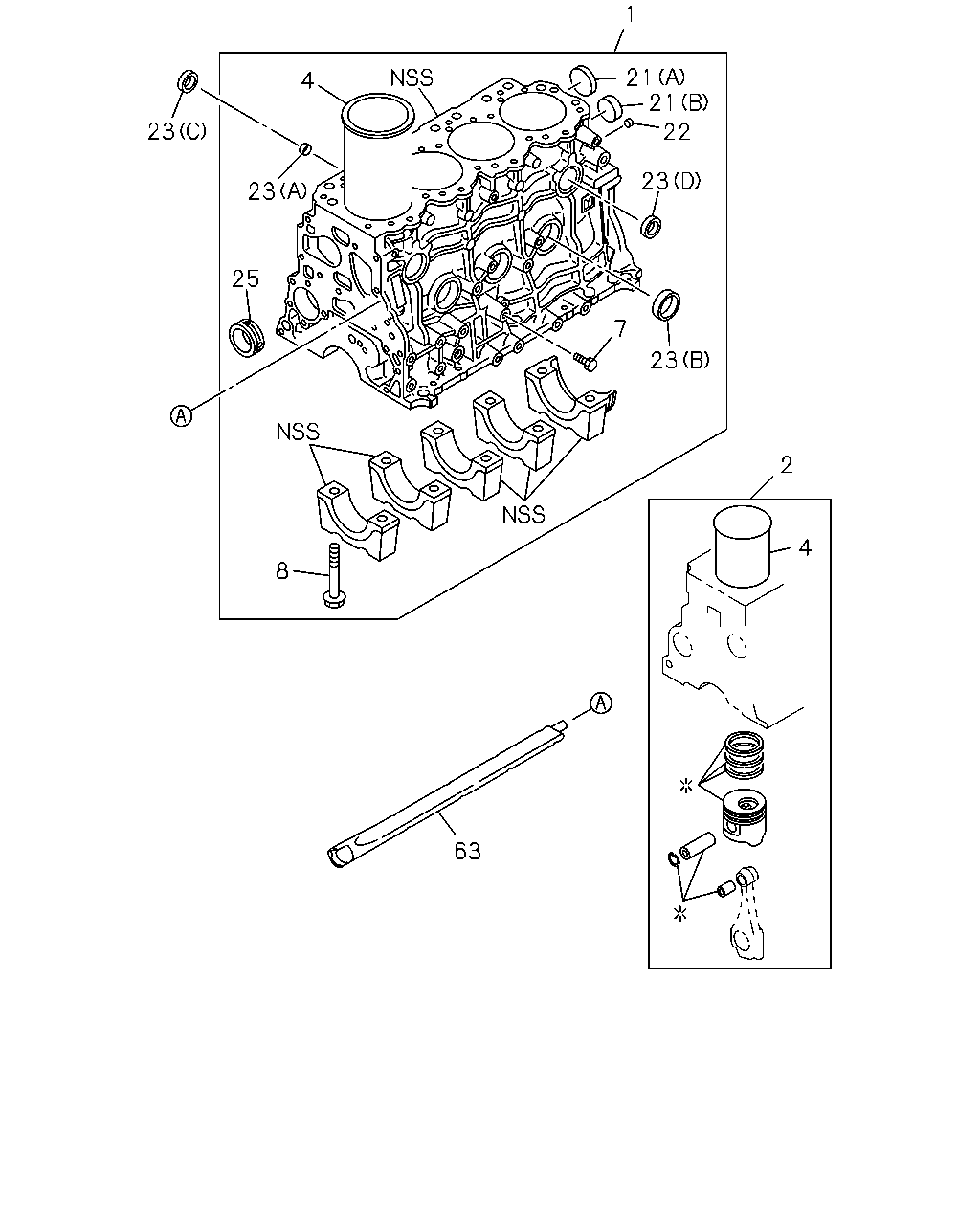

1 21 21 22 23 7 23 4 23 25 8 23 2 4 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0211-0501	●
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0502-		●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-090-2	04	1	0211-0501	●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-090-2	04	1	0502-		●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-091-2	04	1	0211-0501	●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-091-2	04	1	0502-		●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-092-2	04	1	0211-0501	●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-092-2	04	1	0502-		●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-093-2	04	1	0211-0501	●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-093-2	04	1	0502-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0211-0501	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0502-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0211-0501	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0502-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0211-0501	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0502-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0211-0501	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0502-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0211-0501	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0502-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0211-0501	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0502-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0211-0501	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0502-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0211-0501	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0502-		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0211-0501	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0502-		●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0211-0501	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0502-		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0211-0501	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0502-		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0211-0501	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0502-		●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0211-0501	●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0502-		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	0211-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (A) OD=18	5-11219-008-0	03	1	0502-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0211-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0502-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0211-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0502-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0211-0501	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0502-		●
25	00.539 METAL; CM/SHF CENTER & REAR	8-94427-201-2	02	1	0211-0411	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-97378-147-0	02	1	0412-0501	●
25	00.539 METAL; CM/SHF CENTER & REAR	8-97378-147-0	02	1	0502-		●
25	00.539 METAL; CM/SHF FRONT	8-94427-206-2	01	1	0211-0411	●
25	00.539 METAL; CM/SHF FRONT	8-97378-148-0	01	1	0412-0501	●
25	00.539 METAL; CM/SHF FRONT	8-97378-148-0	01	1	0502-		●
63	01.153 DUCT; WATER,C/BL	8-94456-794-3	01	1	0211-0501	●
63	01.153 DUCT; WATER,C/BL	8-94456-794-3	01	1	0502-		●

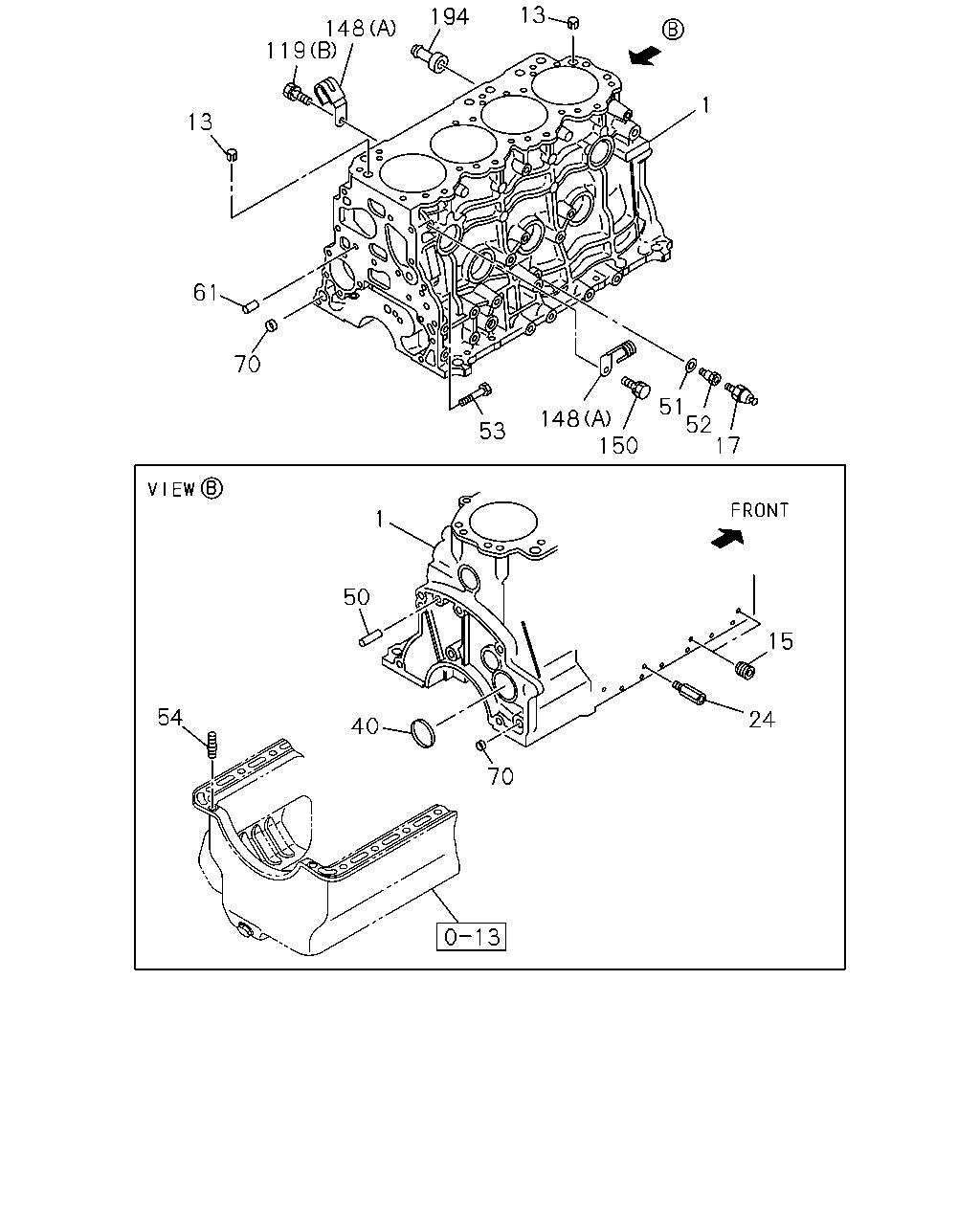

13 194 148 119 1 13 61 70 51 52 17 148 150 53 1 50 15 54 24 40 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0211-0501	●
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0502-		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0211-0501	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0502-		●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	02	1	0211-0501	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	02	1	0502-		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0211-0501	●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0502-		●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	0211-0501	●
24	01.531 NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	0502-		●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0211-0501	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0502-		●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0211-0501	●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0502-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0211-0501	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0502-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0211-0501	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0502-0709		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	0710-1501		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1502-		●
53	00.862 BOLT; REAMER M10X43	9-09606-535-0	01	1	0211-0501	●
53	00.862 BOLT; REAMER M10X43	9-09606-535-0	01	1	0502-		●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0211-0501	●
54	01.428 STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0502-		●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0211-0501	●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0502-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0211-0501	●
70	00.034 CUP; SEALING,FRT & RR 00.253 OD=16	5-11129-006-0	02	1	0502-		●
119	00.034 BOLT; COVER FIX 00.004 (C) M8X32 FLANGE	0-28080-832-0	01	1	0211-0501	●
119	00.034 BOLT; COVER FIX 00.004 (C) M8X32 FLANGE	0-28080-832-0	01	1	0502-		●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	0211-0501	●
119	00.034 BOLT; COVER FIX (A) M10X28	8-94329-952-1	01	1	0502-		●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0211-0501	●
119	00.034 BOLT; COVER FIX (B) M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	0502-		●
148	02.313 CLIP; HARNESS 01.516 (A) ID=13 L=20	9-09525-235-0	01	1	0211-0501	●
148	02.313 CLIP; HARNESS 01.516 (A) ID=13 L=20	9-09525-235-0	01	1	0502-0504		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0211-0501	●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	02	1	0502-0504		●
148	02.313 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0505-0801		●
148	02.313 CLIP; HARNESS 03.671 (A) ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-		●
148	02.313 CLIP; HARNESS 04.686 (B) ID=21 L=24	8-94176-807-1	01	1	0211-0501	●
148	02.313 CLIP; HARNESS 04.686 (B) ID=21 L=24	8-94176-807-1	01	1	0502-0504		●
148	02.313 CLIP; HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0505-		●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512		●
150	02.313 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
194	00.439 PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	0211-0501	●
194	00.439 PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	0502-		●
