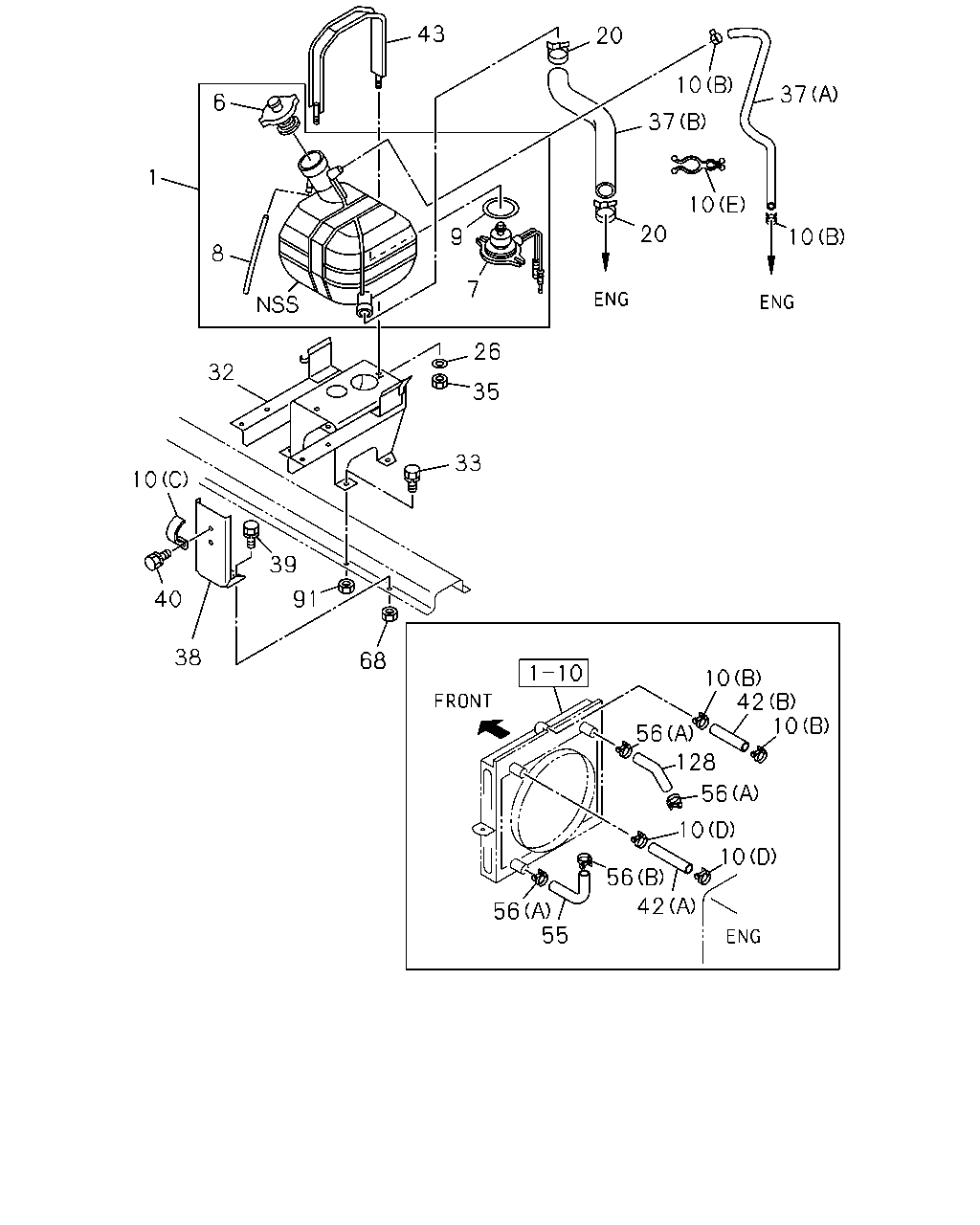

1-11B — RADIATOR HOSE AND SUB TANK (#3544) — 55 parça

43 20 10 37 6 37 1 10 20 9 10 8 7 26 32 35 33 10 39 40 91 38 68 10 42 10 56 128 56 10 56 42 56 55 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD	1-21481-080-1	01	1	9307-	●	●
1	TANK; SURGE,RAD CAUTIONS ARABIAN<WJ7>	1-21481-055-1	01	1	9002-9306	●
1	TANK; SURGE,RAD CAUTIONS CHINESE<SL7>	1-21481-054-1	01	1	9002-9306	●
1	TANK; SURGE,RAD EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>	1-21481-039-5	01	1	9002-9306	●
1	TANK; SURGE,RAD CAUTIONS FRENCH<WJ8>	1-21481-053-1	01	1	9002-9306	●
6	CAP; SUB TANK	1-21450-083-4	01	1	9307-	●	●
6	CAP; SUB TANK CAUTIONS ARABIAN<WJ7>	1-21450-093-1	01	1	9002-9306	●
6	CAP; SUB TANK CAUTIONS CHINESE<SL7>	1-21450-092-1	01	1	9002-9306	●
6	CAP; SUB TANK EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>	1-21450-083-4	01	1	9002-9306	●
6	CAP; SUB TANK CAUTIONS FRENCH<WJ8>	1-21450-091-1	01	1	9002-9306	●
7	SWITCH ASM; TANK	1-82480-022-3	01	1	9002-9306	●
7	SWITCH ASM; TANK	1-82480-045-0	01	1	9307-	●	●
8	HOSE; VINYL L=1000 SERVICED BY L=3000	0-03259-300-0	01	1	9002-9306	●	●
8	HOSE; VINYL L=680 SERVICED BY L=3000	0-03259-300-0	01	1	9307-	●	●
9	GASKET; SWITCH ID=28 OD=35	1-09630-101-0	01	1	9002-9306	●	●
9	GASKET; SWITCH ID=27.7	9-09565-228-0	01	1	9307-	●	●
10	CLIP; RUBBER HOSE (C) D=43	1-09700-703-0	01	1	9002-	●	●
10	CLIP; RUBBER HOSE (D) ID=44	1-09704-077-0	02	1	9002-	●	●
10	CLIP; RUBBER HOSE (E) ID=44 & 16	1-09709-125-0	03	1	9002-	●	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	9002-	●	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	9002-	●	●
26	WASHER CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> ID=8.4	9-09160-508-0	02	1	9002-9306	●	●
26	WASHER ID=8.4	9-09160-508-0	04	1	9307-	●	●
26	WASHER EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> ID=8.4	9-09160-508-0	04	1	9002-9306	●	●
32	BRACKET; SUB TANK	1-21489-111-0	01	1	9002-9109	●
32	BRACKET; SUB TANK	1-21489-137-1	01	1	9110-	●	●
33	BOLT; BRKT M10X25	9-01911-025-0	04	1	9002-9002	●
33	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-	●	●
35	NUT M8	9-09110-408-0	04	1	9002-	●	●
37	HOSE; RUBBER (A) L=1150 SERVICED BY L=3000	0-03259-300-0	01	1	9002-	●	●
37	HOSE; RUBBER (B)	1-21437-161-1	01	1	9002-	●	●
38	BRACKET; RUBBER HOSE	1-21464-092-0	01	1	9002-9212	●
38	BRACKET; RUBBER HOSE	1-21464-341-0	01	1	9301-	●	●
39	BOLT; BRKT FIX M10X25	9-01911-025-0	02	1	9002-9002	●
39	BOLT; BRKT FIX M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-9506	●	●
39	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	9507-	●	●
40	BOLT; CLIP M10X25	9-01911-025-0	01	1	9002-9002	●
40	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9506	●	●
40	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-	●	●
42	HOSE; RUBBER (B)	0-03209-350-0	01	1	9002-9306	●
42	HOSE; RUBBER (B) L=350 SERVICED BY L=3000	0-03259-300-0	01	1	9307-	●
42	HOSE; RUBBER (A) L=290	1-09360-536-0	01	1	9002-9306	●
42	HOSE; RUBBER (A) L=290 SERVICED BY L=3000	5-09361-047-0	01	1	9307-	●
42	HOSE; RUBBER (B) L=290 SERVICED BY L=3000	0-03259-300-0	01	1	9307-		●
42	HOSE; RUBBER (A) L=250 L=350	1-09360-535-0	01	1	9307-		●
43	BAND ASM	1-21489-062-2	01	1	9002-9109	●
43	BAND ASM	1-21489-139-2	01	1	9110-	●	●
55	HOSE; WATER,RAD OUTLET	1-21437-199-2	01	1	9002-	●
55	HOSE; WATER,RAD OUTLET	1-21437-469-0	01	1	9307-		●
56	CLIP; WATER HOSE,RAD (A) ID=72	1-09704-068-0	03	1	9002-	●	●
56	CLIP; WATER HOSE,RAD (B) ID=83	1-09704-075-0	01	1	9002-	●	●
68	NUT; BRKT M10	9-09110-510-0	02	1	9002-	●	●
91	NUT; SUB TANK TO BRKT M10	9-09110-510-0	04	1	9002-	●	●
128	HOSE; WATER,RAD INL	1-21437-025-1	01	1	9002-	●
128	HOSE; WATER,RAD INL	1-21437-024-1	01	1	9307-		●
