◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#35439) — 18 parça

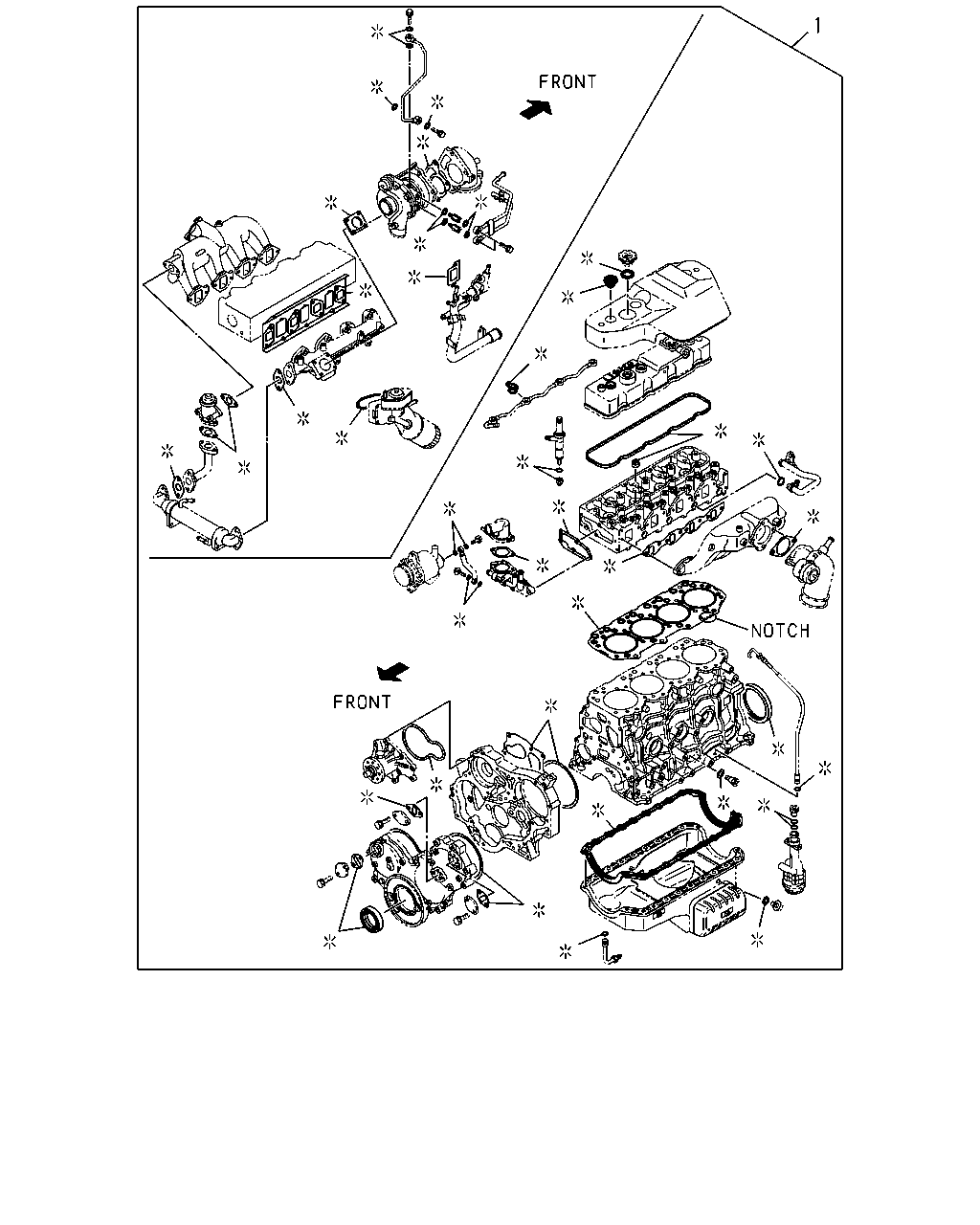

çizim 18935
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87815-200-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87815-201-3 01 1 0707- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0211-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0502-0706 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87815-202-3 01 1 0707- ●

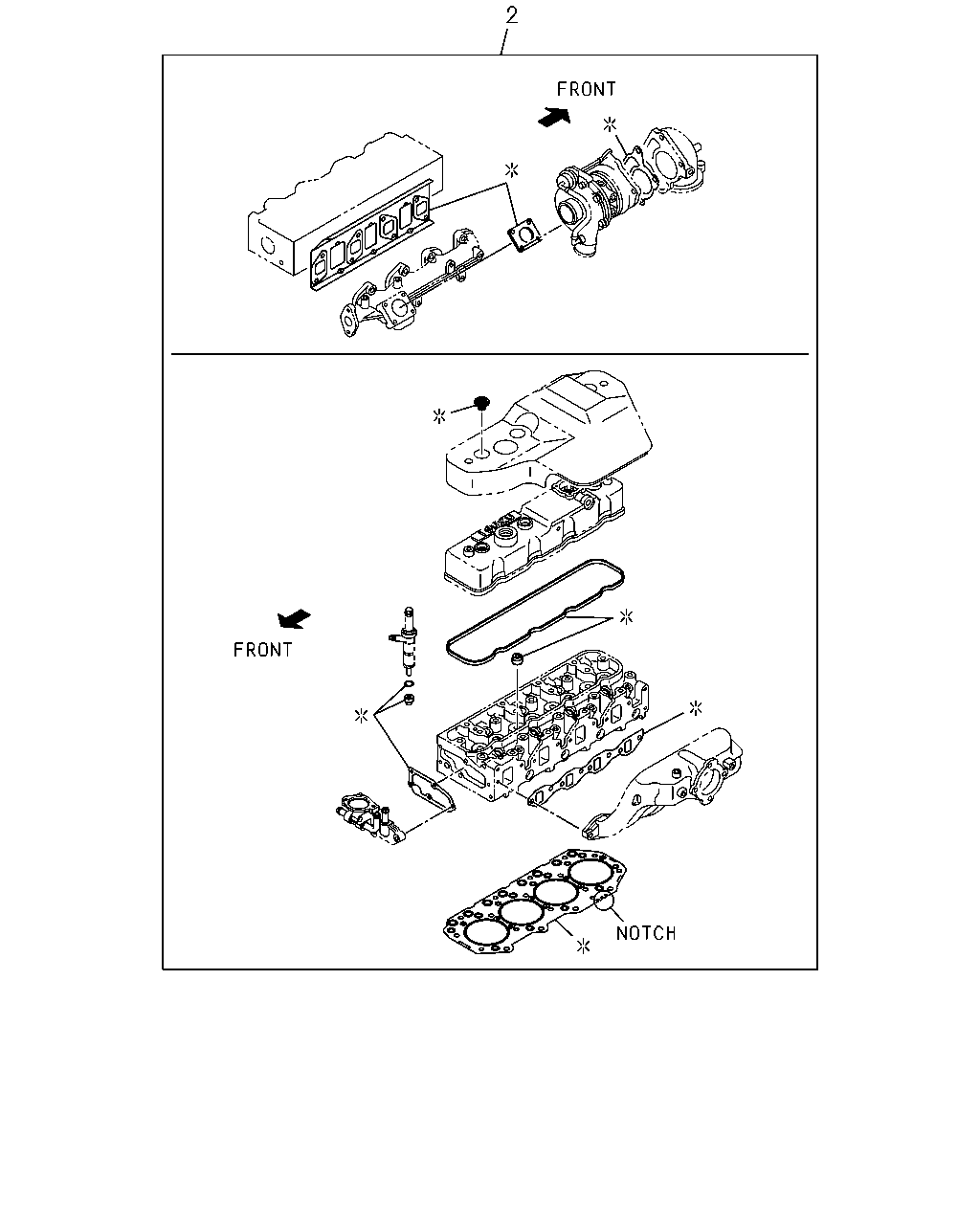

çizim 71299
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-6 01 1 0502- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0211-0501 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-6 01 1 0502- ●
