Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#35435) — 189 parça

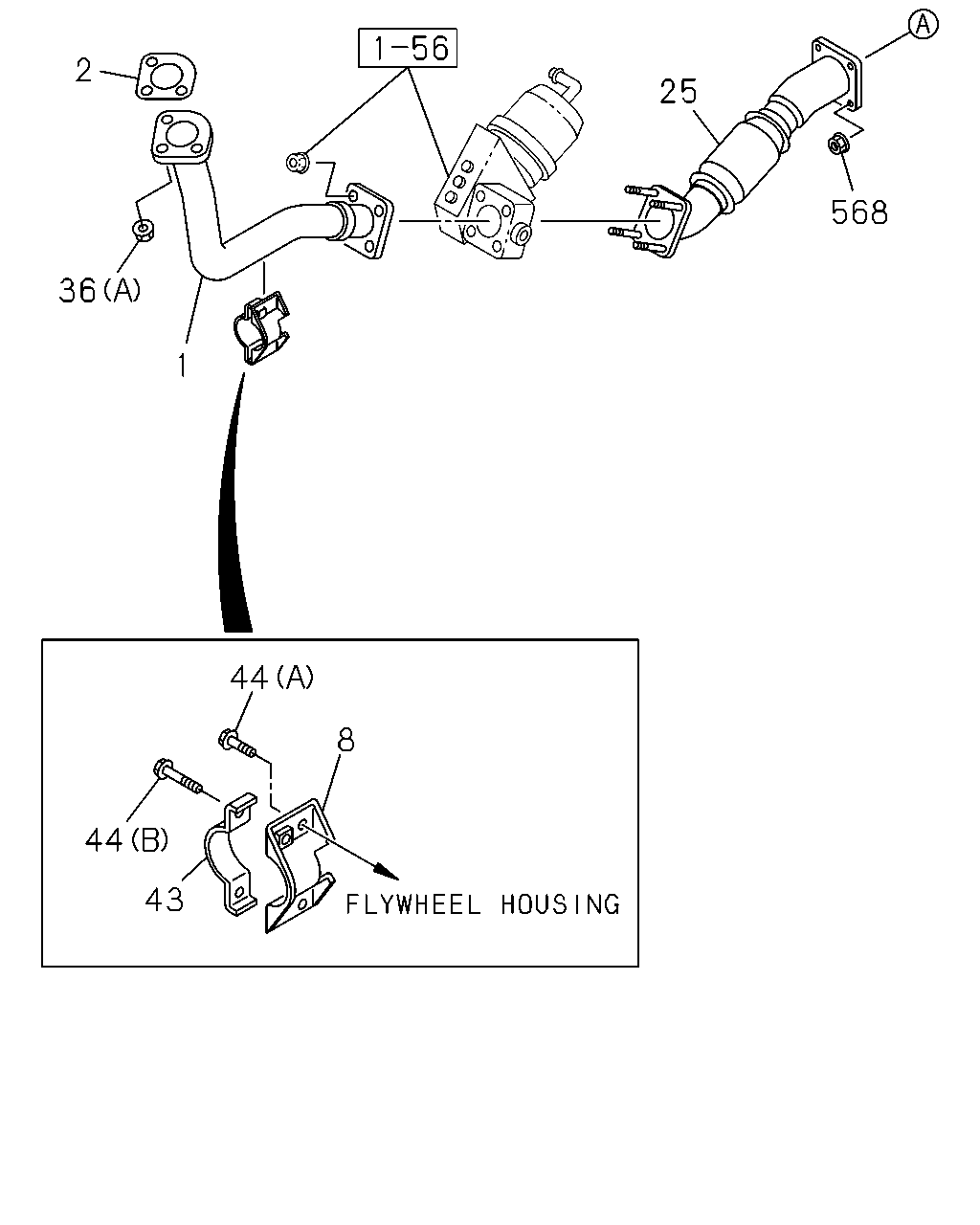

2 25 568 36 1 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH	8-98026-060-0	01	1	0710-
2	03.611 GASKET; PIPE TO MANIF	8-97384-590-0	01	1	0710-
8	03.704 BRACKET; EXH PIPE 03.613	8-98026-063-0	01	1	0710-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98026-061-2	01	1	0710-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-
36	03.613 NUT; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0710-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0710-
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0710-
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0710-
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-
568	03.704 NUT; DPD 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-

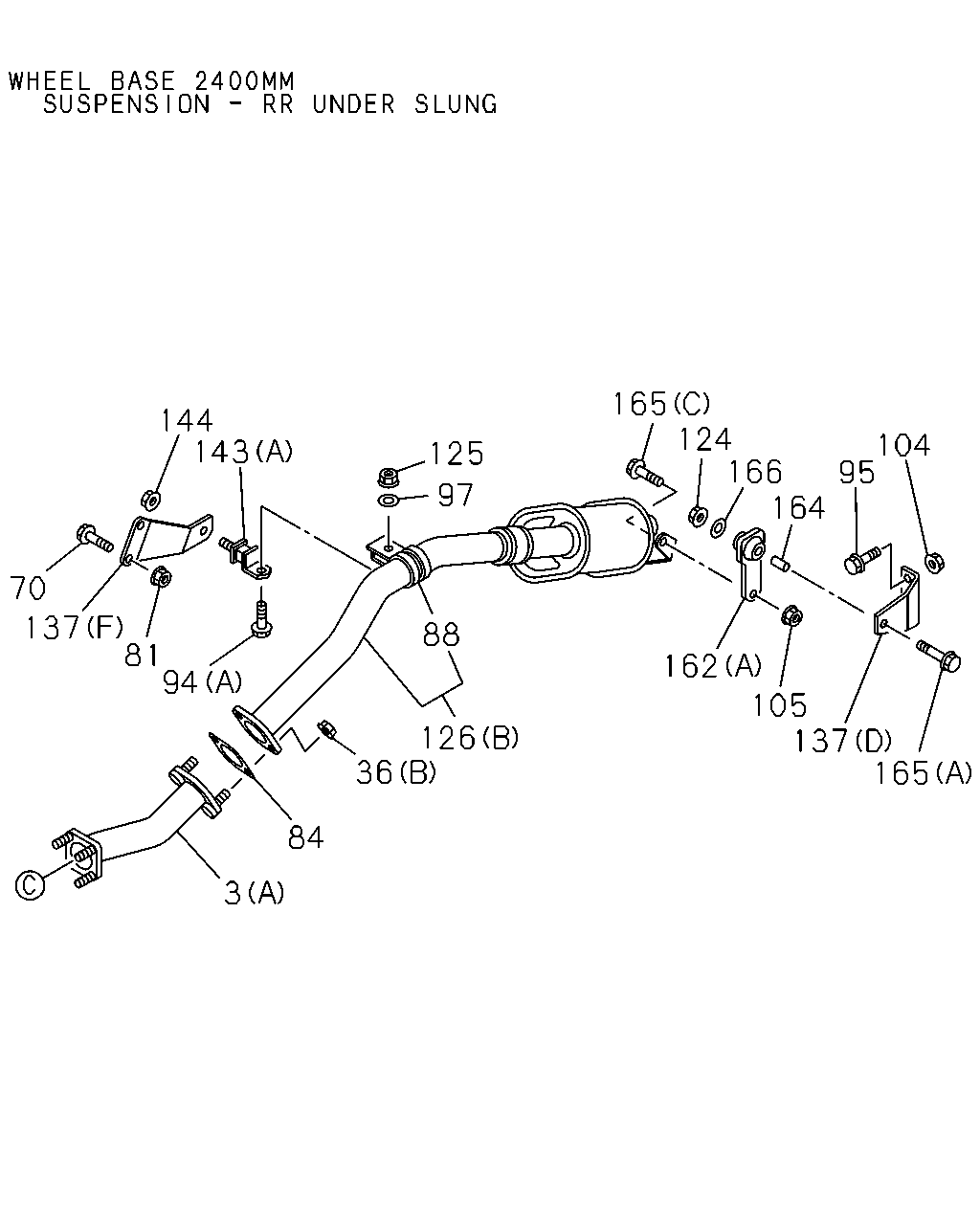

165 124 104 166 95 164 144 143 125 97 70 137 81 94 88 162 105 137 165 126 36 84 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98014-286-1	01	1	0710-
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) (B)	8-98005-237-0	01	1	0710-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-
36	03.613 NUT; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0710-
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-
81	03.704 NUT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
84	03.611 GASKET; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=65	8-97148-757-1	01	1	0710-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) ID=65	8-97148-757-1	01	1	0710-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	0710-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0710-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0710-
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0710-
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0710-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	0710-
105	03.704 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0710-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0710-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98072-128-0	01	1	0710-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98072-127-2	01	1	0710-
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (E)	8-98001-895-1	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (F)	8-98001-896-1	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98001-908-1	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0710-
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	0710-
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0710-
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0710-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98032-151-0	01	1	0710-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98032-150-0	01	1	0710-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (C) L=115	8-98034-765-0	01	1	0710-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) L=23	8-98006-011-0	01	1	0710-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	0710-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (C) M10X45 FLANGE	0-28051-045-0	01	1	0710-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0710-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0710-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0710-

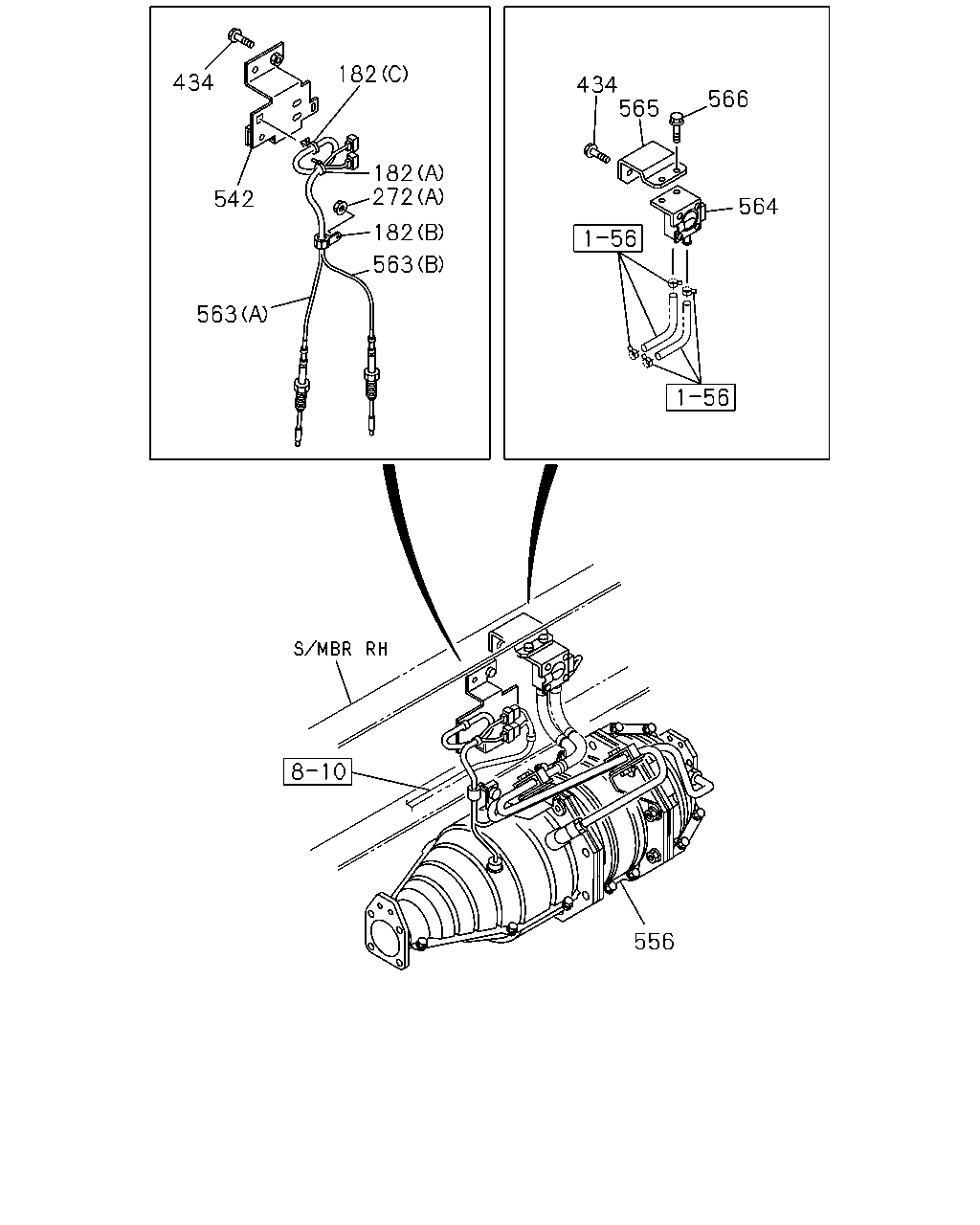

182 434 434 565 566 182 272 542 564 182 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
182	03.682 CLIP; HARNESS 02.587 (A) L=112	8-94232-618-0	01	1	0710-
182	03.682 CLIP; HARNESS (C) ID=7 L=7.5	8-97369-561-0	01	1	0710-
182	03.682 CLIP; HARNESS (B) ID=7	8-98002-767-0	01	1	0710-
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-
434	03.613 BOLT; BRKT WHEEL BASE 2400MM(24W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-
434	03.613 BOLT; BRKT WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-
434	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-
542	03.704 BRACKET	8-98047-896-0	01	1	0710-
556	03.701 DPD ASM	8-98036-810-7	01	1	0710-1011
556	03.701 DPD ASM	8-98084-595-3	01	1	1012-
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0710-
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0710-
564	01.150 SENSOR; PRESSURE,DPD	8-97359-985-2	01	1	0710-
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 2400MM(24W)	8-98029-348-0	01	1	0710-
565	03.706 BRACKET; SENSOR,PRESSURE WHEEL BASE 3300MM(33W)	8-98029-347-0	01	1	0710-
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-

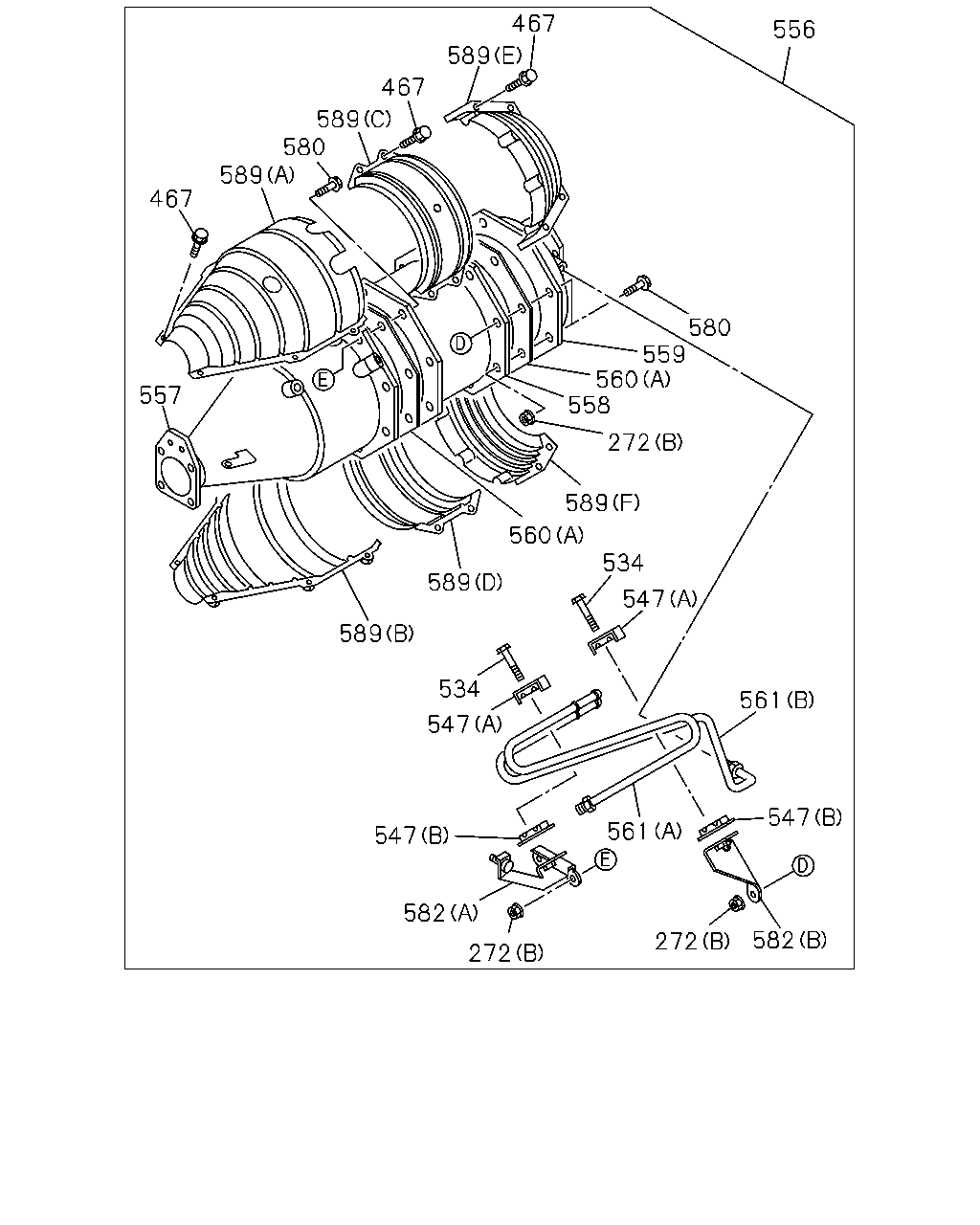

467 556 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
272	03.685 NUT; FLANGE 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-
272	03.685 NUT; FLANGE 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0710-
534	03.704 BOLT; CLIP 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0710-
547	03.682 CLIP; PIPE (A)	8-97381-635-0	02	1	0710-
547	03.682 CLIP; PIPE (B)	8-97381-636-0	02	1	0710-
556	03.701 DPD ASM	8-98036-810-7	01	1	0710-1011
556	03.701 DPD ASM	8-98084-595-3	01	1	1012-
557	03.701 CATALYST ASM	8-98036-815-6	01	1	0710-
558	03.634 FILTER ASM	8-98032-908-2	01	1	0710-
559	03.602 COVER; RR	8-98084-599-0	01	1	0710-1011
559	03.602 COVER; RR	8-98093-507-0	01	1	1012-
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0710-
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0710-
561	03.609 PIPE; DPD (A) FRONT	8-98032-910-0	01	1	0710-1011
561	03.609 PIPE; DPD (A) FRONT	8-98084-600-0	01	1	1012-
561	03.609 PIPE; DPD (B) REAR	8-98032-911-1	01	1	0710-1011
561	03.609 PIPE; DPD (B) REAR	8-98084-601-0	01	1	1012-
580	03.704 BOLT; FLANGE 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0710-
582	03.706 BRACKET; PIPE (A)	8-98032-919-0	01	1	0710-
582	03.706 BRACKET; PIPE (B)	8-98032-920-0	01	1	0710-
589	03.609 PROTECTOR; HEAT,DPD (C)	8-97383-660-0	01	1	0710-
589	03.609 PROTECTOR; HEAT,DPD (F)	8-97383-663-0	01	1	0710-
589	03.609 PROTECTOR; HEAT,DPD (A)	8-98032-921-0	01	1	0710-
589	03.609 PROTECTOR; HEAT,DPD (B)	8-98032-923-0	01	1	0710-
589	03.609 PROTECTOR; HEAT,DPD (D)	8-98032-924-0	01	1	0710-
589	03.609 PROTECTOR; HEAT,DPD (E)	8-98032-926-0	01	1	0710-

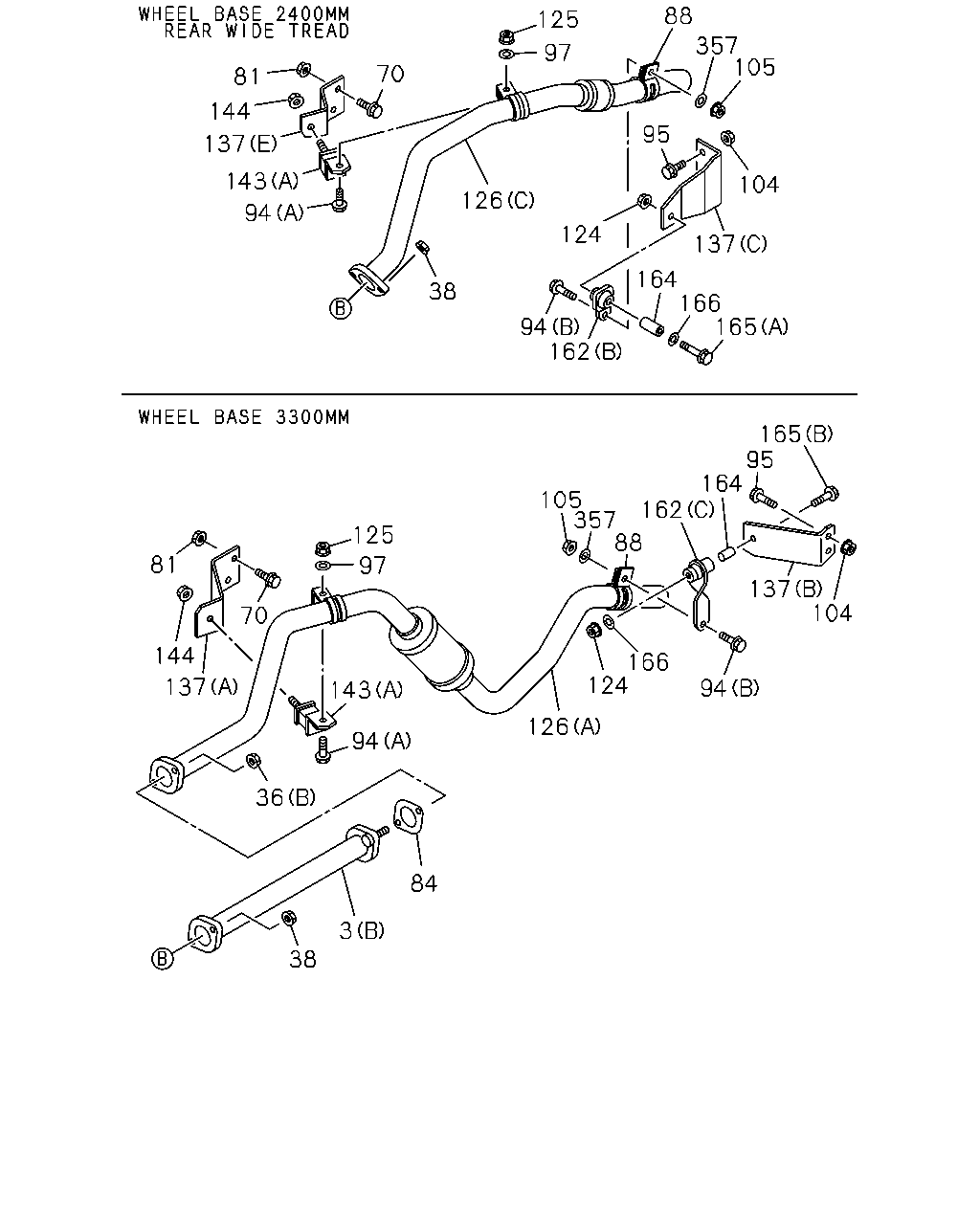

88 125 357 105 97 70 81 144 95 137 143 104 126 94 124 137 164 166 165 38 94 162 165 95 164 162 105 357 88 125 81 97 137 104 70 144 166 124 137 94 143 126 94 36 84 3 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98014-286-1	01	1	0710-
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W) (B)	8-98005-237-0	01	1	0710-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-
36	03.613 NUT; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0710-
38	00.002 NUT; SILENCER WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
38	00.002 NUT; SILENCER WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-
81	03.704 NUT; BRKT EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
84	03.611 GASKET; EXH PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=65	8-97148-757-1	01	1	0710-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) ID=65	8-97148-757-1	01	1	0710-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97373-158-0	01	1	0710-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0710-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	0710-
94	03.704 BOLT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0710-
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0710-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
105	03.704 NUT; CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.833 M10	0-91110-510-0	01	1	0710-
105	03.704 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0710-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-
124	03.704 NUT; SUPPORT RUBBER 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0710-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98072-128-0	01	1	0710-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98072-127-2	01	1	0710-
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (A)	8-98072-129-0	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (E)	8-98001-895-1	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (F)	8-98001-896-1	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98001-908-1	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98001-897-1	01	1	0710-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0710-
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	0710-
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0710-
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0710-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98032-151-0	01	1	0710-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98032-150-0	01	1	0710-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (C) L=115	8-98034-765-0	01	1	0710-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) L=23	8-98006-011-0	01	1	0710-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) L=37.5	9-22151-217-0	01	1	0710-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (C) M10X45 FLANGE	0-28051-045-0	01	1	0710-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0710-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	0710-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0710-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-

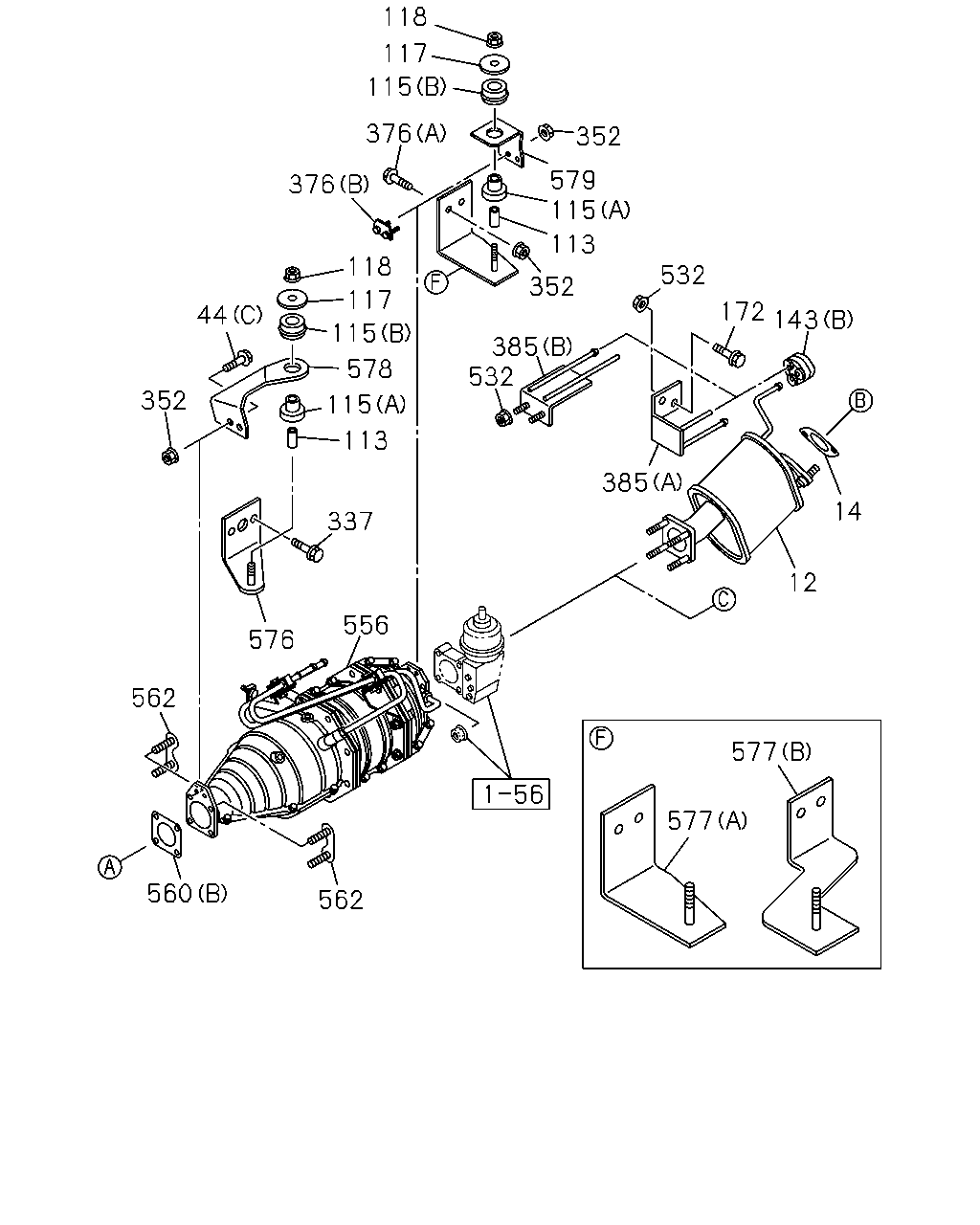

118 117 115 376 352 579 115 376 113 118 532 352 117 172 143 44 115 385 532 578 352 115 113 385 14 337 12 556 576 562 577 577 560 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98001-836-1	01	1	0710-
12	03.701 SILENCER ASM; EXH WHEEL BASE 3300MM(33W)	8-98034-019-1	01	1	0710-
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 03.611 ID=65	8-97148-757-1	01	1	0710-
14	03.704 GASKET; SILENCER TO EXH PIPE WHEEL BASE 3300MM(33W) 03.611 ID=65	8-97148-757-1	01	1	0710-
44	03.613 BOLT; BRKT 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0710-
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0710-
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0710-
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	0710-
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	0710-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0710-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0710-
143	03.704 RUBBER; SUPPORT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-97080-694-0	01	1	0710-
143	03.704 RUBBER; SUPPORT WHEEL BASE 3300MM(33W) (B)	8-97080-694-0	01	1	0710-
143	03.704 RUBBER; SUPPORT (A)	8-98034-767-0	01	1	0710-
172	03.708 BOLT WHEEL BASE 2400MM(24W) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-
337	03.706 BOLT; RUBBER,SUPPORT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-
376	03.708 BOLT; BRKT 03.690 (B) W/PLATE	8-98005-985-0	01	1	0710-
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98051-655-0	01	1	0710-
385	03.704 BRACKET; SILENCER MTG WHEEL BASE 3300MM(33W) (B)	8-98001-889-1	01	1	0710-
532	03.704 NUT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-
556	03.701 DPD ASM	8-98036-810-7	01	1	0710-1011
556	03.701 DPD ASM	8-98084-595-3	01	1	1012-
560	03.611 GASKET; DPD (A)	8-97331-947-0	02	1	0710-
560	03.611 GASKET; DPD (B) ID=64	8-97373-108-0	01	1	0710-
562	03.690 PLATE; STUD,BOLT	8-97373-966-0	02	1	0710-
576	03.706 BRACKET; DPD FRT TO FRAME	8-98001-862-0	01	1	0710-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) (A)	8-98001-880-0	01	1	0710-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (B)	8-98001-875-0	01	1	0710-
578	03.706 BRACKET; DPD FRT	8-98001-873-1	01	1	0710-
579	03.704 BRACKET; DPD RR WHEEL BASE 2400MM(24W)	8-98001-883-1	01	1	0710-
579	03.704 BRACKET; DPD RR WHEEL BASE 3300MM(33W)	8-98001-877-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
