◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51394 - NLR 85(AUST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#35431) — 99 parça

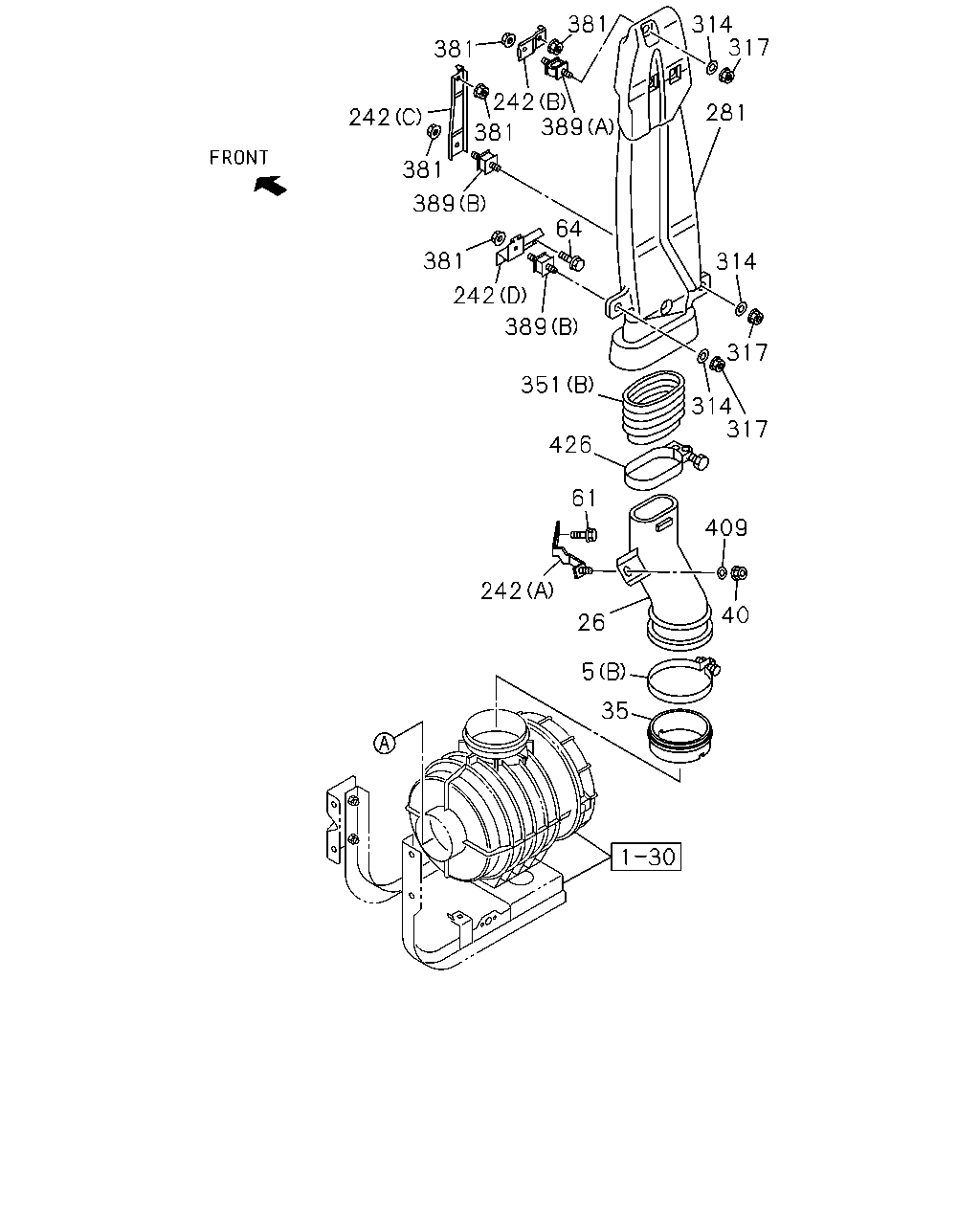

çizim 28976
381 314 317 381 242 389 281 242 381 381 389 64 381 314 242 389 317 351 314 317 426 61 409 242 40 26 5 35
BalonParca AdiParca NoAdetTipApplied Date
5 03.407 CLIP; AIR DUCT
03.417 (B) 		9-09915-504-1 01 1 0710-0802
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0803-
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0710-0810
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
(A) ID=50-65 		1-09707-204-0 01 1 0710-0810
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-0812
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (A) ID=45-65 		8-98133-348-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 01 1 0710-0811
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-0812
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65 		8-98096-418-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002-
26 03.417 DUCT; AIR INT 8-98023-339-0 01 1 0710-
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710-
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710-
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710-
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-2 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(F) 		8-98067-769-1 01 1 0710-0710
242 03.417 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0710-
281 03.417 DUCT; AIR,VERTICAL INT 8-97369-706-0 01 1 0710-
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710-
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710-
351 03.407 DUCT; AIR
03.417 (A) 		8-98067-267-0 01 1 0710-
351 03.407 DUCT; AIR
03.417 (B) 		8-97109-423-0 01 1 0710-0802
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0803-
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 0710-
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 0710-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710-
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710-
426 03.417 CLIP; DUCT
03.407 D=101.6 		9-09915-502-1 01 1 0710-

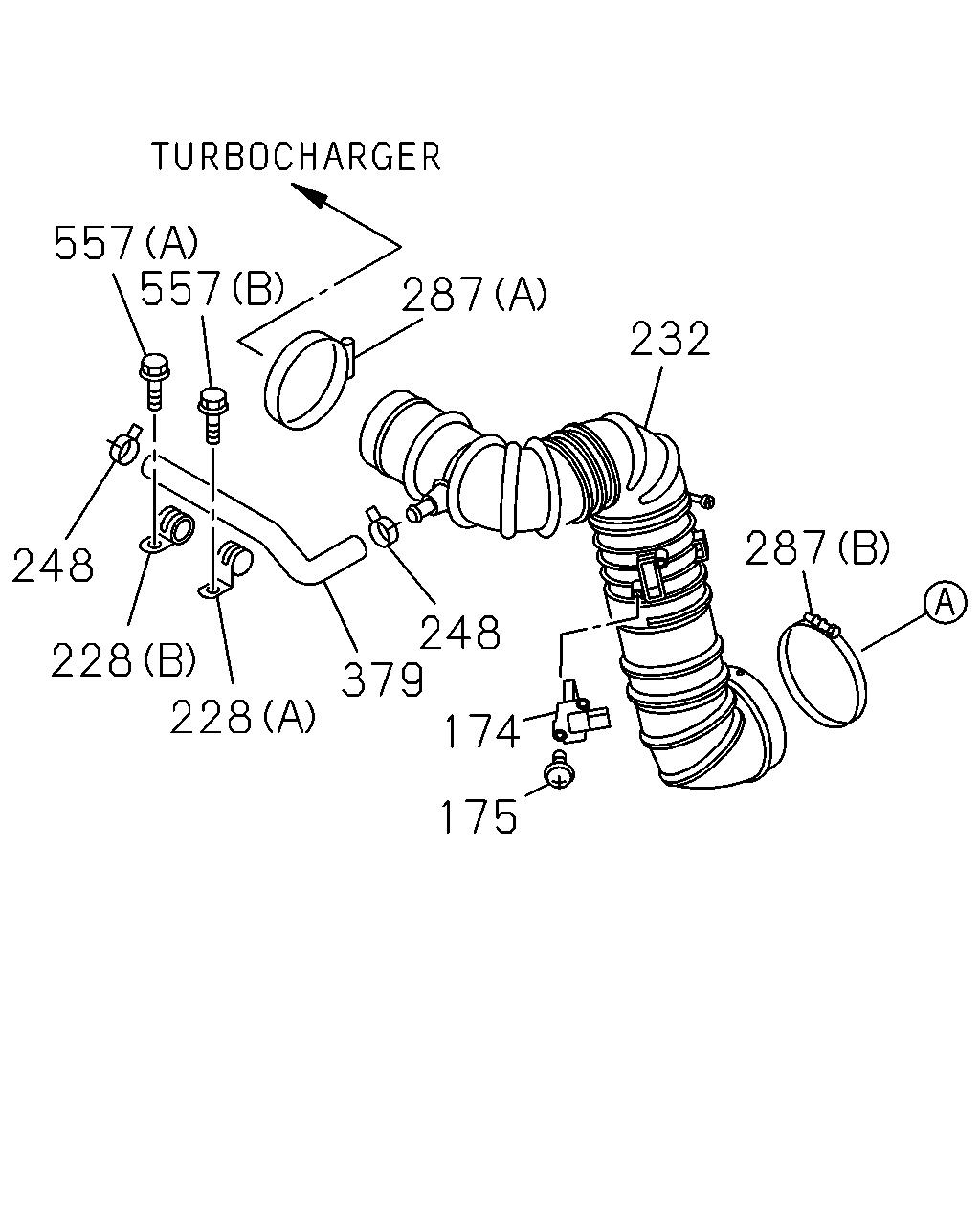

çizim 29268
557 557 287 232 287 248 248 379 228 228 174 175
BalonParca AdiParca NoAdetTipApplied Date
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710-
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-
228 03.278 CLIP; PCV HOSE
04.866 (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1001
228 03.278 CLIP; PCV HOSE
(B) ID=22 L=22 		8-98120-916-0 01 1 1002-
228 03.278 CLIP; PCV HOSE
09.242 (B) ID=22 L=22 		5-83574-045-0 01 1 0710-1001
228 03.278 CLIP; PCV HOSE
(A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1002-
232 03.417 HOSE; CONN 8-98048-136-1 01 1 0710-
248 03.417 CLIP; RUBBER HOSE
08.846 ID=21.7 		8-97203-074-0 02 1 0710-
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=117 		9-09915-075-1 01 1 0710-
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=68-85 		1-09707-202-0 01 1 0710-0810
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=65-85 		8-98133-350-0 01 1 0811-0812
287 03.417 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 0901-1001
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=70-90 		8-98122-372-0 01 1 1002-
379 03.675 HOSE; RUBBER
03.278 		8-98045-343-0 01 1 0710-
557 03.403 BOLT; HOSE CLIP
03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0710-
557 03.403 BOLT; HOSE CLIP
03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0710-

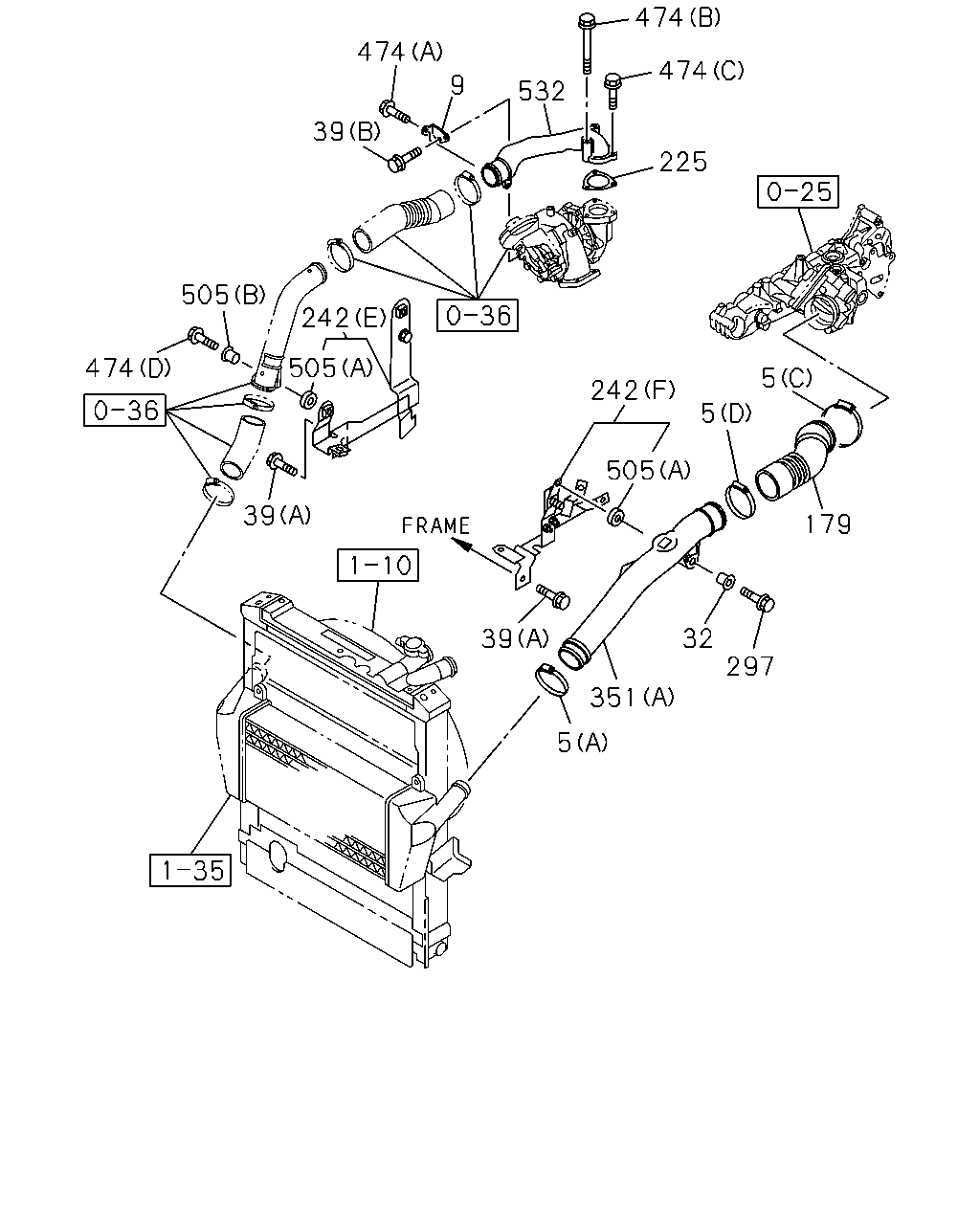

çizim 29463
474 474 9 474 532 39 225 505 242 505 474 5 242 5 505 39 179 32 39 297 351 5
BalonParca AdiParca NoAdetTipApplied Date
5 03.407 CLIP; AIR DUCT
03.417 (B) 		9-09915-504-1 01 1 0710-0802
5 03.407 CLIP; AIR DUCT
(B) ID=127 		1-14239-263-0 01 1 0803-
5 03.407 CLIP; AIR DUCT
(C) ID=68-85 		1-09707-202-0 01 1 0710-0810
5 03.407 CLIP; AIR DUCT
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
(A) ID=50-65 		1-09707-204-0 01 1 0710-0810
5 03.407 CLIP; AIR DUCT
(A) ID=45-65 		8-98133-348-0 01 1 0811-0812
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (A) ID=45-65 		8-98133-348-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 01 1 0710-0811
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0812-0812
5 03.407 CLIP; AIR DUCT
MANUAL TILT CAB<RWZ> (D) ID=55-75 		8-98133-349-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (D) ID=58-79 		1-09707-136-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (A) ID=60-65 		8-98096-418-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
(A) ID=60-65 		8-98096-418-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
EXC. MANUAL TILT CAB<RWZ> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001
5 03.407 CLIP; AIR DUCT
(C) ID=70-90 		8-98122-372-0 01 1 1002-
9 03.417 BRACKET; INT PIPE 8-98009-086-0 01 1 0710-
32 03.417 RUBBER; AIR DUCT MTG
03.265 OD=23 		8-97105-689-6 01 1 0710-
39 03.417 BOLT; BRKT
03.403 (A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
39 03.417 BOLT; BRKT
03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0710-
179 03.417 HOSE; AIR INT 8-98050-920-2 01 1 0710-
225 03.417 GASKET; AIR PIPE
03.270 		8-97202-328-1 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(E) 		8-97384-140-2 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(B) 		8-98067-764-1 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(C) 		8-98067-765-1 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(D) 		8-98067-766-1 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(A) 		8-98067-767-4 01 1 0710-
242 03.417 BRACKET; AIR DUCT
(F) 		8-98067-769-1 01 1 0710-0710
242 03.417 BRACKET; AIR DUCT
(F) 		8-98100-224-2 01 1 0710-
297 03.417 BOLT; DUCT
01.060 M8X35 FLANGE 		0-28650-835-0 01 1 0710-
351 03.407 DUCT; AIR
03.417 (A) 		8-98067-267-0 01 1 0710-
351 03.407 DUCT; AIR
03.417 (B) 		8-97109-423-0 01 1 0710-0802
351 03.407 DUCT; AIR
(B) 		8-98115-594-0 01 1 0803-
474 03.417 BOLT; PIPE
(B) M6X70 FLANGE 		0-28050-670-0 02 1 0710-
474 03.417 BOLT; PIPE
02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-
474 03.417 BOLT; PIPE
03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 0710-
474 03.417 BOLT; PIPE
01.060 (D) M8X35 FLANGE 		0-28650-835-0 01 1 0710-
505 03.406 RUBBER; MTG
03.265 (B) OD=23 		8-97105-689-6 01 1 0710-
505 03.406 RUBBER; MTG
01.277 (A) 		8-94395-766-0 01 1 0710-
505 03.406 RUBBER; MTG
01.277 (A) 		8-94395-766-0 01 1 0710-
532 03.417 PIPE; INTAKE 8-97385-203-1 01 1 0710-
