Isuzu WW
▶
TRUCKS
▶
EXR
▶
10672 - EXR LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11A - RADIATOR HOSE AND SUB TANK
▶
1-11A — RADIATOR HOSE AND SUB TANK
(#3543) — 57 parça
Tümü
A - 6RB1 STD ENG
B - 6RB1TC-N ENG
◀
[111A] RADIATOR HOSE (13 parça)

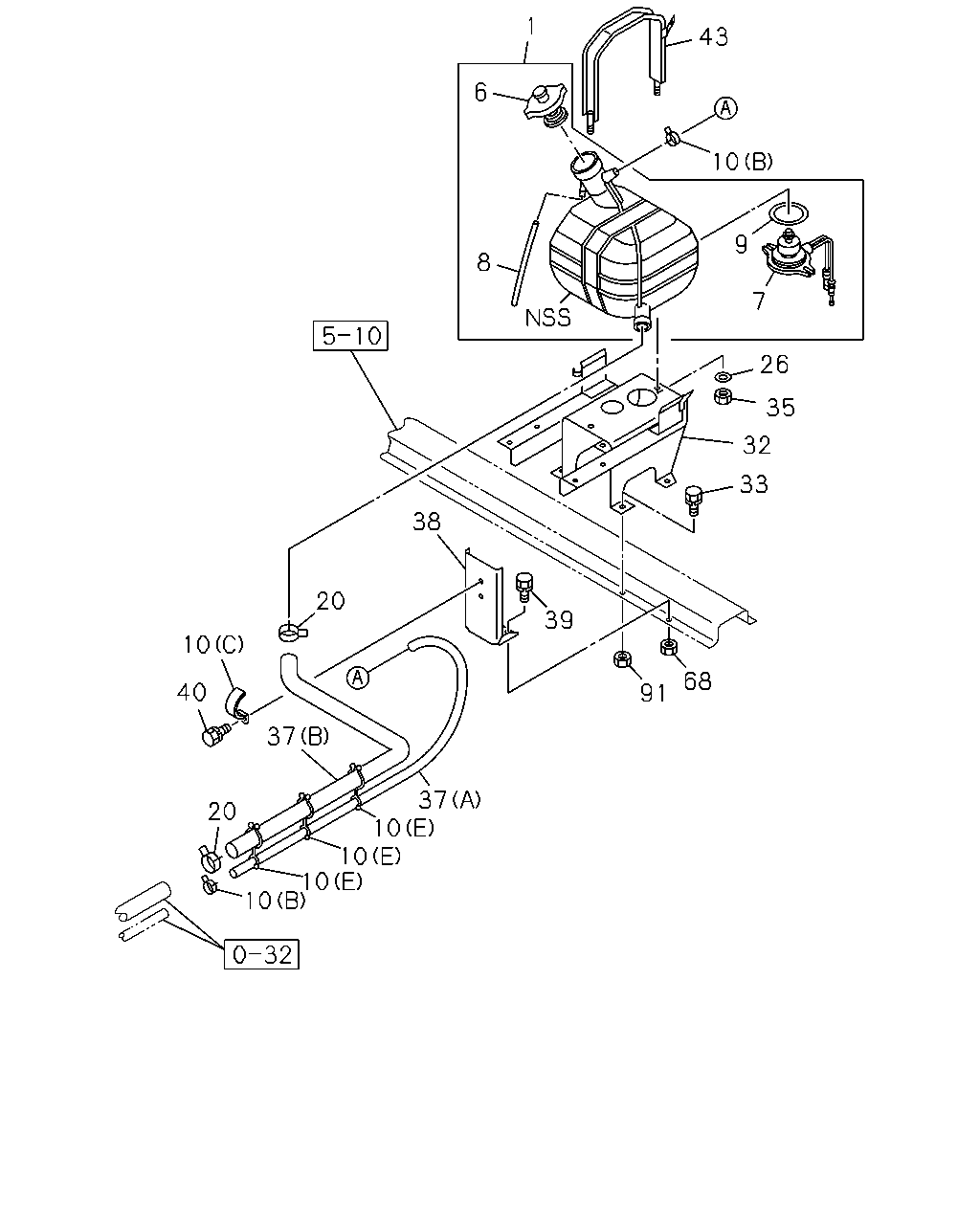

[111A] SURGE TANK AND HOSE (44 parça)
▶
10
42
10
41
10
42
10
10
56
56
55
56
128
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
CLIP; RUBBER HOSE
(C) D=43
1-09700-703-0
01
1
9002-
●
●
10
CLIP; RUBBER HOSE
(D) ID=44
1-09704-077-0
02
1
9002-
●
●
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
02
1
9002-
●
●
10
CLIP; RUBBER HOSE
(E) ID=44 & 16
1-09709-125-0
03
1
9002-
●
●
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
9012-
●
41
BOLT
M10X20 W/LK&PL WASHER
0-50141-020-0
01
1
9012-
●
42
HOSE; RUBBER
(A)
1-21437-163-0
01
1
9002-
●
42
HOSE; RUBBER
(B)
1-21437-164-0
01
1
9012-
●
55
HOSE; WATER,RAD OUTLET
RADIATOR HEAVY DUTY<V05>
1-21437-033-2
01
1
9002-
●
55
HOSE; WATER,RAD OUTLET
1-21437-033-2
01
1
9002-
●
55
HOSE; WATER,RAD OUTLET
EXC. RADIATOR HEAVY DUTY<V05>
1-21437-030-3
01
1
9002-
●
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
9002-
●
●
128
HOSE; WATER,RAD INL
1-21437-034-1
01
1
9002-
●
●
1
43
6
10
9
8
7
26
35
32
33
38
20
39
10
68
40
91
37
37
10
10
10
10
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
1-21481-080-1
01
1
9307-
●
●
1
TANK; SURGE,RAD
CAUTIONS ARABIAN<WJ7>
1-21481-055-1
01
1
9002-9306
●
●
1
TANK; SURGE,RAD
CAUTIONS CHINESE<SL7>
1-21481-054-1
01
1
9002-9306
●
●
1
TANK; SURGE,RAD
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>
1-21481-039-5
01
1
9002-9306
●
●
1
TANK; SURGE,RAD
CAUTIONS FRENCH<WJ8>
1-21481-053-1
01
1
9002-9306
●
●
6
CAP; SUB TANK
1-21450-083-4
01
1
9307-
●
●
6
CAP; SUB TANK
CAUTIONS ARABIAN<WJ7>
1-21450-093-1
01
1
9002-9306
●
●
6
CAP; SUB TANK
CAUTIONS CHINESE<SL7>
1-21450-092-1
01
1
9002-9306
●
●
6
CAP; SUB TANK
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>
1-21450-083-4
01
1
9002-9306
●
●
6
CAP; SUB TANK
CAUTIONS FRENCH<WJ8>
1-21450-091-1
01
1
9002-9306
●
●
7
SWITCH ASM; TANK
1-82480-022-3
01
1
9002-9306
●
●
7
SWITCH ASM; TANK
1-82480-045-0
01
1
9307-
●
●
8
HOSE; VINYL
L=1000 SERVICED BY L=3000
0-03259-300-0
01
1
9002-9306
●
●
8
HOSE; VINYL
L=680 SERVICED BY L=3000
0-03259-300-0
01
1
9307-
●
●
9
GASKET; SWITCH
ID=28 OD=35
1-09630-101-0
01
1
9002-9306
●
●
9
GASKET; SWITCH
ID=27.7
9-09565-228-0
01
1
9307-
●
●
10
CLIP; RUBBER HOSE
(C) D=43
1-09700-703-0
01
1
9002-
●
●
10
CLIP; RUBBER HOSE
(D) ID=44
1-09704-077-0
02
1
9002-
●
●
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
02
1
9002-
●
●
10
CLIP; RUBBER HOSE
(E) ID=44 & 16
1-09709-125-0
03
1
9002-
●
●
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
9012-
●
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
9002-
●
●
26
WASHER
CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> ID=8.4
9-09160-508-0
02
1
9002-9306
●
●
26
WASHER
ID=8.4
9-09160-508-0
04
1
9307-
●
●
26
WASHER
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> ID=8.4
9-09160-508-0
04
1
9002-9306
●
●
32
BRACKET; SUB TANK
1-21489-111-0
01
1
9002-9109
●
●
32
BRACKET; SUB TANK
1-21489-137-1
01
1
9110-
●
●
33
BOLT; BRKT
M10X25
9-01911-025-0
04
1
9002-9002
●
33
BOLT; BRKT
M10X25 W/LK WASHER
0-50041-025-0
04
1
9003-
●
●
35
NUT
M8
9-09110-408-0
04
1
9002-
●
●
37
HOSE; RUBBER
(A) L=1150 SERVICED BY L=3000
0-03259-300-0
01
1
9002-
●
●
37
HOSE; RUBBER
(B)
1-21437-161-1
01
1
9002-
●
●
38
BRACKET; RUBBER HOSE
1-21464-092-0
01
1
9002-9212
●
●
38
BRACKET; RUBBER HOSE
1-21464-341-0
01
1
9301-
●
●
39
BOLT; BRKT FIX
M10X25
9-01911-025-0
02
1
9002-9002
●
39
BOLT; BRKT FIX
M10X25 W/LK WASHER
0-50041-025-0
02
1
9003-9506
●
●
39
BOLT; BRKT FIX
M10X20 FLANGE
0-28081-020-0
02
1
9507-
●
●
40
BOLT; CLIP
M10X25
9-01911-025-0
01
1
9002-9002
●
40
BOLT; CLIP
M10X25 W/LK WASHER
0-50041-025-0
01
1
9003-9506
●
●
40
BOLT; CLIP
M10X20 FLANGE
0-28081-020-0
01
1
9507-
●
●
43
BAND ASM
1-21489-062-2
01
1
9002-9109
●
●
43
BAND ASM
1-21489-139-2
01
1
9110-
●
●
68
NUT; BRKT
M10
9-09110-510-0
02
1
9002-
●
●
91
NUT; SUB TANK TO BRKT
M10
9-09110-510-0
04
1
9002-
●
●
