◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51394 - NLR 85(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#35418) — 29 parça

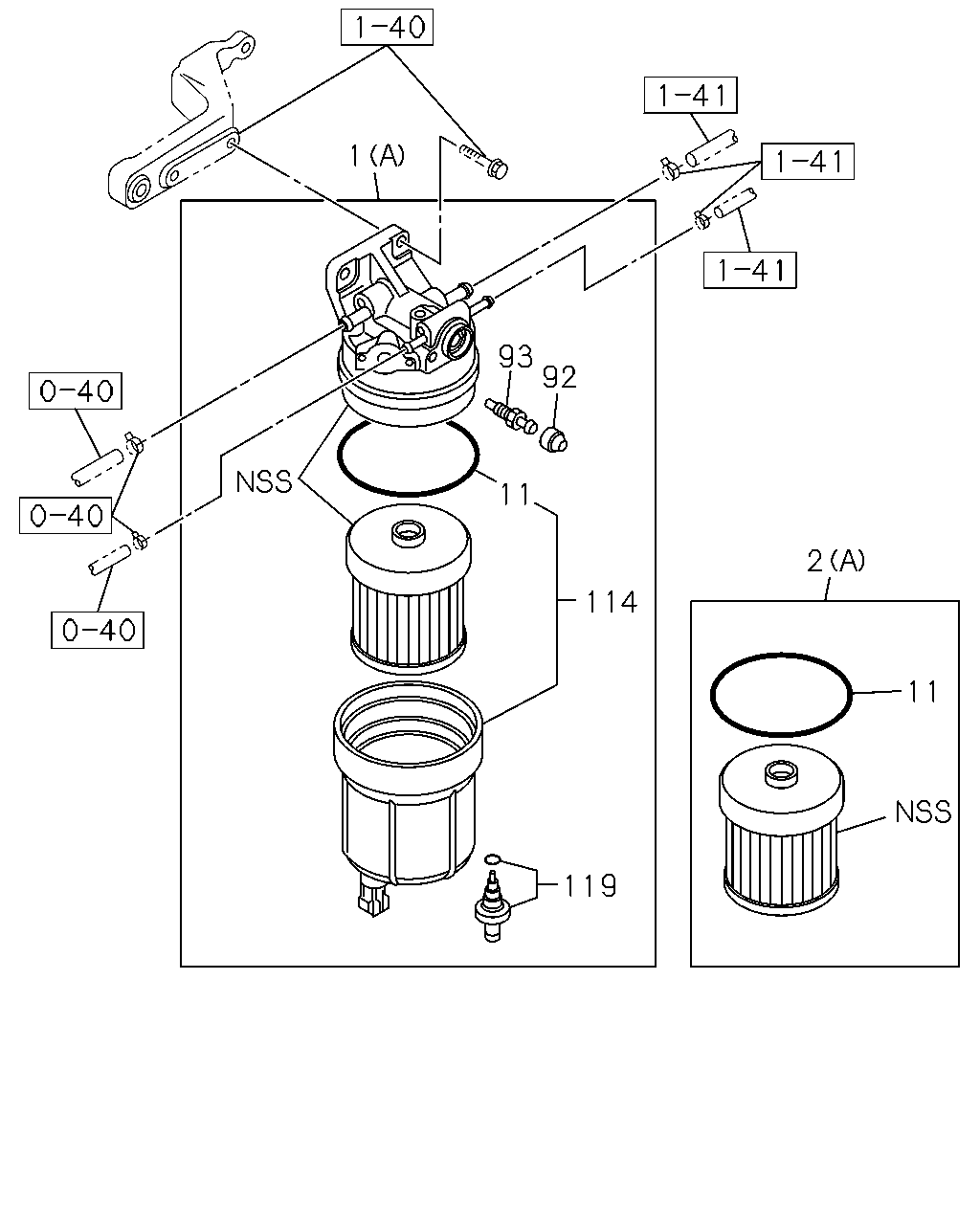

çizim 29347
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0710-1002
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-2 01 1 1003-
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-0 01 1 1012-
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0710-1002
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1112
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1012-
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 0710-1112
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201-
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 0710-
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 0710-
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 0710-
119 03.890 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 0710-

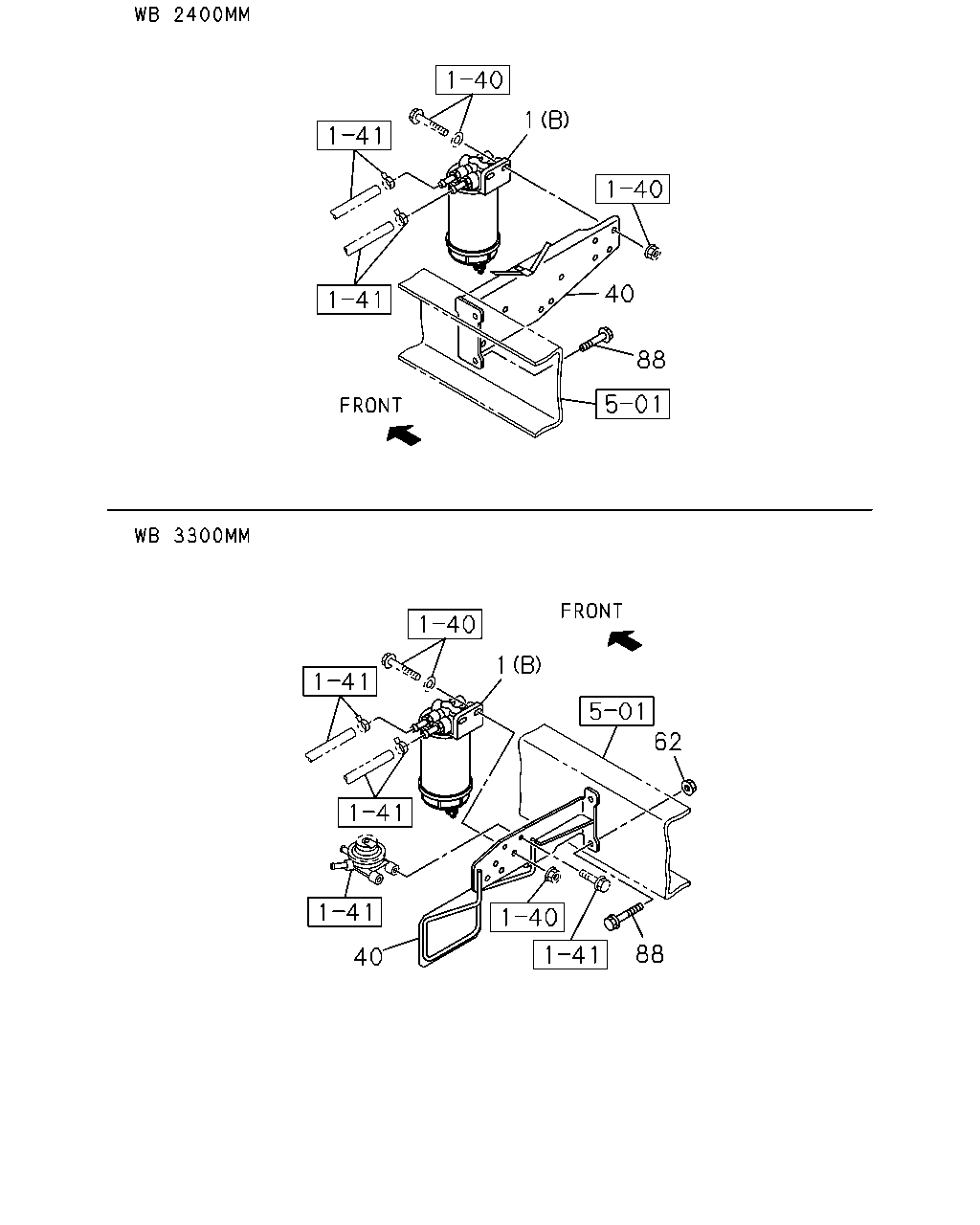

çizim 29405
1 40 88 1 62 88 40
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0710-1002
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-2 01 1 1003-
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-0 01 1 1012-
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) 		8-98107-351-2 01 1 0911-
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 		8-98107-354-3 01 1 0911-
62 03.895 NUT; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0911-
88 03.895 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 0911-

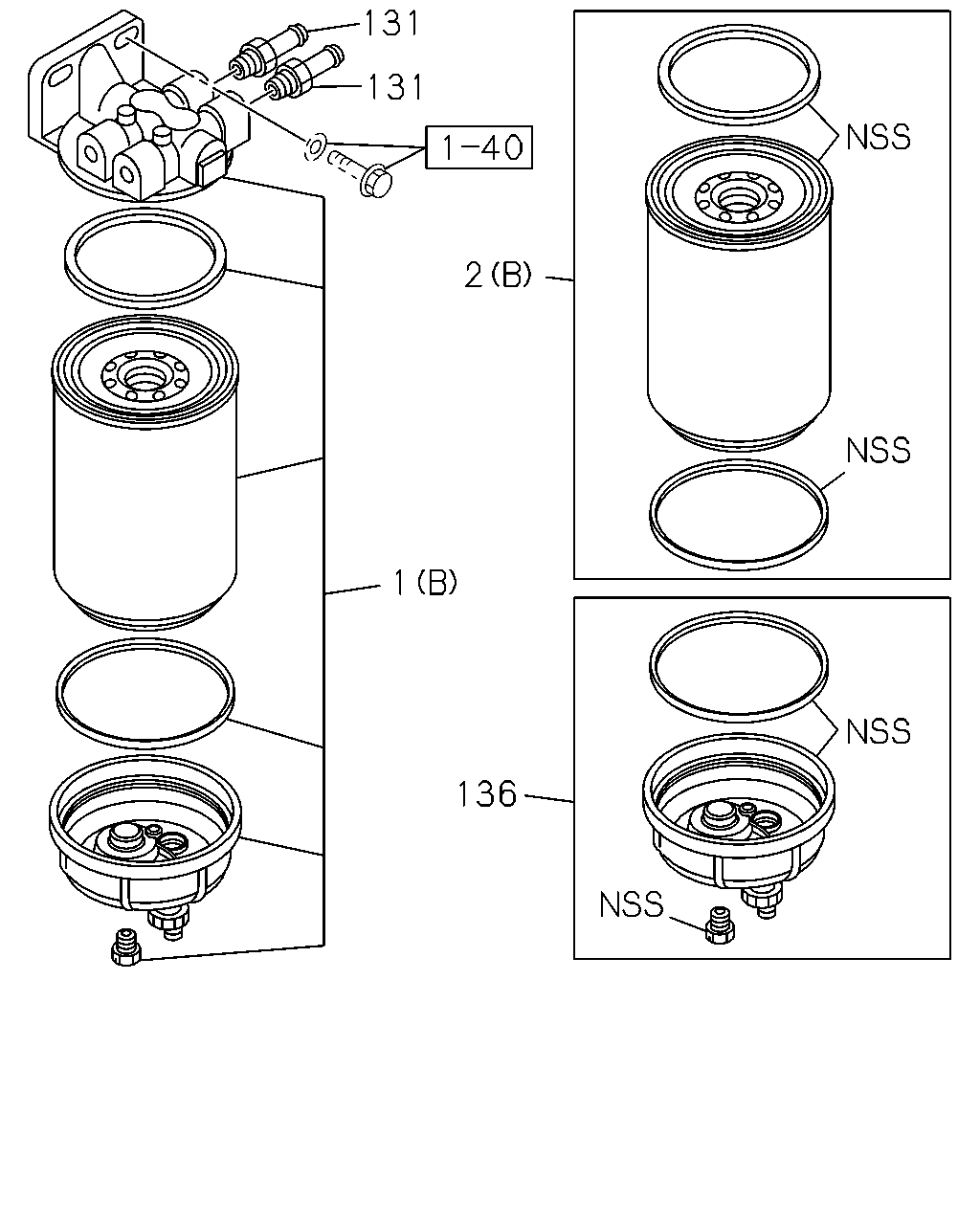

çizim 98691
131 131 2 1 136
BalonParca AdiParca NoAdetTipApplied Date
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0710-1002
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-2 01 1 1003-
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-0 01 1 1012-
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0710-1002
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1112
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 1012-
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1012-
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 1012-
