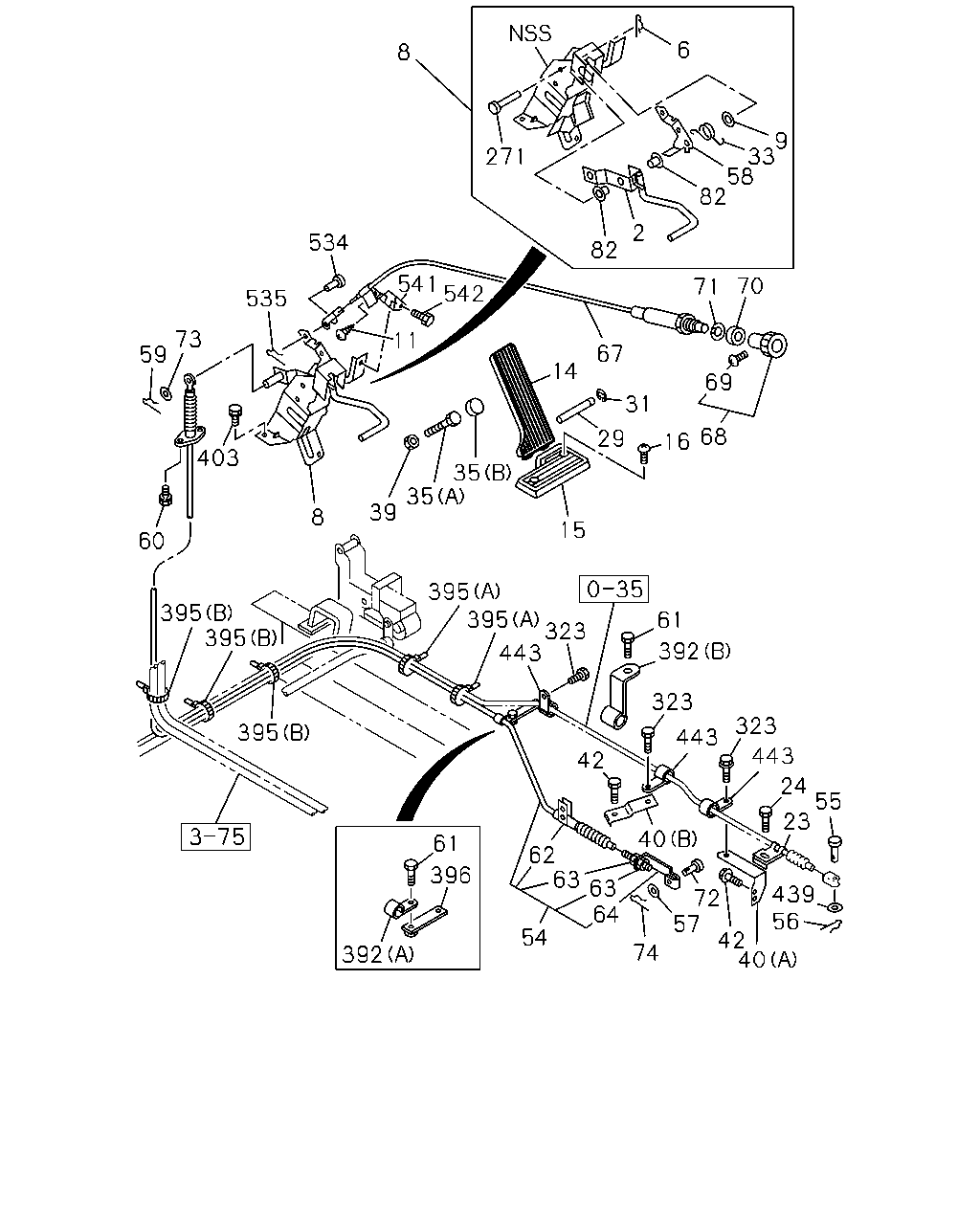

1-01B — ACCELERATOR PEDAL AND CONTROL (#3540) — 152 parça

6 8 9 33 58 82 271 2 534 541 82 70 71 542 535 73 59 11 67 14 69 31 403 68 29 16 35 35 39 8 15 60 395 395 395 61 323 443 392 323 443 24 395 42 55 23 40 61 62 439 63 63 64 396 72 56 57 54 392 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-73997-796-5	01	1	9002-	●	●
6	RING; SNAP,LINK TO LINK L=27.7	8-94202-777-0	01	1	9002-	●	●
8	LINK ASM; ENG CONT	1-23240-050-7	01	1	9002-	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9201-	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	9002-	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9002-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-770-1	01	1	9002-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9002-	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9002-	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	9002-	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9002-	●	●
33	SPRING; IDLING CONT LEVER	1-73997-824-0	01	1	9201-	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●
35	STOPPER; ACCEL PEDAL (B) RUBBER	1-23249-009-0	01	1	9002-	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9002-	●	●
40	BRACKET; ENG CONT CABLE (B)	1-47476-527-0	01	1	9002-	●	●
40	BRACKET; ENG CONT CABLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-15779-372-0	01	1	9504-	●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●
42	BOLT; BRKT,ENG CONT CABLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X20 FLANGE	0-28080-820-0	02	1	9504-	●	●
54	CABLE; ENG CONT L=1995	1-23210-748-6	01	1	9002-	●
54	CABLE; ENG CONT L=1945	1-23210-750-7	01	1	9307-		●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9002-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9002-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
58	LEVER; IDLING CONT	1-73997-781-2	01	1	9002-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9002-	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9303-	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01910-816-0	02	1	9002-9005	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-9302	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9303-9306	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9002-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9002-	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9002-	●	●
67	CABLE ASM; IDLE CONT L=347	1-73997-789-0	01	1	9002-	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9002-	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9002-	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9002-	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9002-	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9002-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9002-	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9002-	●	●
271	SHAFT; ENG CONT	1-09987-081-0	01	1	9002-	●	●
323	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
323	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
323	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
323	BOLT; CLIP EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X20 FLANGE	0-28080-820-0	02	1	9504-	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9002-9306	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9307-	●
392	CLIP; ACCEL CONT CABLE (B) ID=9 H=20 L=25	1-09701-073-0	01	1	9307-9307		●
392	CLIP; ACCEL CONT CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9308-		●
395	CLIP; BAND,ACCEL CONT CABLE (B) L=250	5-09707-030-1	03	1	9002-	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-0	01	1	9307-9307	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-1	01	1	9308-	●	●
396	BRACKET; CLIP	1-47476-881-0	01	1	9307-		●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9002-	●	●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	02	1	9002-9503	●	●
443	CLIP; CABLE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=9 L=20	9-09524-835-0	02	1	9504-	●	●
443	CLIP; CABLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=7 L=20	9-09524-635-0	01	1	9504-	●	●
443	CLIP; CABLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=7 L=20	9-09524-635-0	03	1	9504-	●	●
443	CLIP; CABLE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=9 L=20	9-09524-835-0	01	1	9504-	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9002-	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9002-	●	●
541	BRACKET; IDLING CONT CABLE	1-73997-797-1	01	1	9002-	●	●
542	BOLT; BRKT,IDLING CONT CABLE M6X16 W/LK&PL WASHER	9-01960-616-0	01	1	9002-9204	●
542	BOLT; BRKT,IDLING CONT CABLE M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9205-	●	●

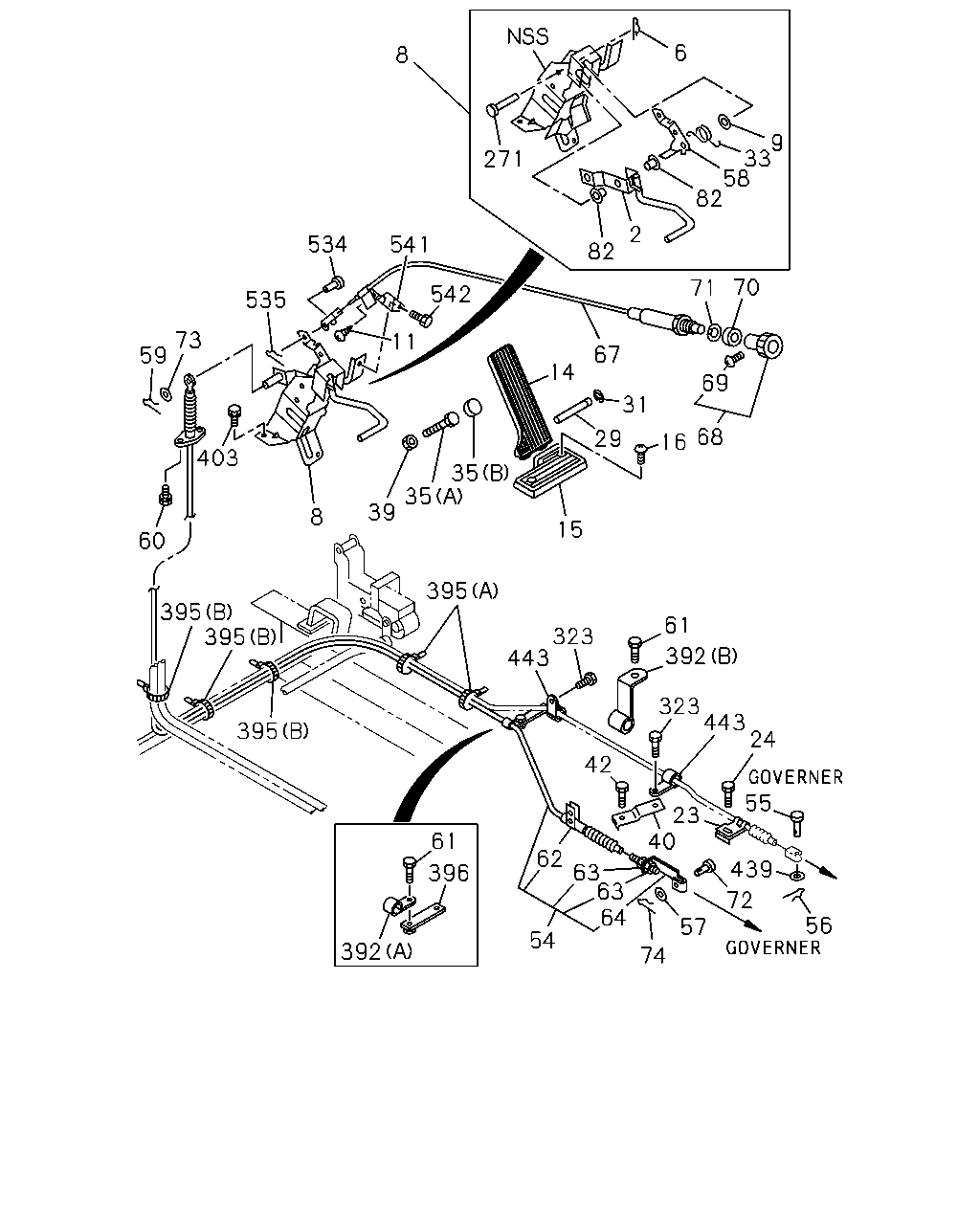

6 8 9 33 58 82 271 2 534 82 541 70 71 542 535 73 59 11 67 14 69 31 403 68 29 16 35 35 39 8 15 60 395 395 395 395 323 443 61 392 323 323 395 443 443 42 24 55 23 40 61 62 63 396 439 56 63 64 72 57 54 42 40 74 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-73997-796-5	01	1	9002-	●	●
6	RING; SNAP,LINK TO LINK L=27.7	8-94202-777-0	01	1	9002-	●	●
8	LINK ASM; ENG CONT	1-23240-050-7	01	1	9002-	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9201-	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	9002-	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9002-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-770-1	01	1	9002-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9002-	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9002-	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	9002-	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9002-	●	●
33	SPRING; IDLING CONT LEVER	1-73997-824-0	01	1	9201-	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●
35	STOPPER; ACCEL PEDAL (B) RUBBER	1-23249-009-0	01	1	9002-	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9002-	●	●
40	BRACKET; ENG CONT CABLE (B)	1-47476-527-0	01	1	9002-	●	●
40	BRACKET; ENG CONT CABLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-15779-372-0	01	1	9504-	●	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●
42	BOLT; BRKT,ENG CONT CABLE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●
42	BOLT; BRKT,ENG CONT CABLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X20 FLANGE	0-28080-820-0	02	1	9504-	●	●
54	CABLE; ENG CONT L=1995	1-23210-748-6	01	1	9002-	●
54	CABLE; ENG CONT L=1945	1-23210-750-7	01	1	9307-		●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9002-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9002-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
58	LEVER; IDLING CONT	1-73997-781-2	01	1	9002-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9002-	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9303-	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01910-816-0	02	1	9002-9005	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	02	1	9006-9302	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9303-9306	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9002-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9002-	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9002-	●	●
67	CABLE ASM; IDLE CONT L=347	1-73997-789-0	01	1	9002-	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9002-	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9002-	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9002-	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9002-	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9002-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9002-	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9002-	●	●
271	SHAFT; ENG CONT	1-09987-081-0	01	1	9002-	●	●
323	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204	●
323	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302	●
323	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●
323	BOLT; CLIP EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> M8X20 FLANGE	0-28080-820-0	02	1	9504-	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9002-9306	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9307-	●
392	CLIP; ACCEL CONT CABLE (B) ID=9 H=20 L=25	1-09701-073-0	01	1	9307-9307		●
392	CLIP; ACCEL CONT CABLE (B) ID=9 L=40	9-09524-875-0	01	1	9308-		●
395	CLIP; BAND,ACCEL CONT CABLE (B) L=250	5-09707-030-1	03	1	9002-	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-0	01	1	9307-9307	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-1	01	1	9308-	●	●
396	BRACKET; CLIP	1-47476-881-0	01	1	9307-		●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9002-	●	●
443	CLIP; CABLE ID=9 L=20	9-09524-835-0	02	1	9002-9503	●	●
443	CLIP; CABLE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=9 L=20	9-09524-835-0	02	1	9504-	●	●
443	CLIP; CABLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=7 L=20	9-09524-635-0	01	1	9504-	●	●
443	CLIP; CABLE EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=7 L=20	9-09524-635-0	03	1	9504-	●	●
443	CLIP; CABLE EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> ID=9 L=20	9-09524-835-0	01	1	9504-	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9002-	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9002-	●	●
541	BRACKET; IDLING CONT CABLE	1-73997-797-1	01	1	9002-	●	●
542	BOLT; BRKT,IDLING CONT CABLE M6X16 W/LK&PL WASHER	9-01960-616-0	01	1	9002-9204	●
542	BOLT; BRKT,IDLING CONT CABLE M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9205-	●	●
