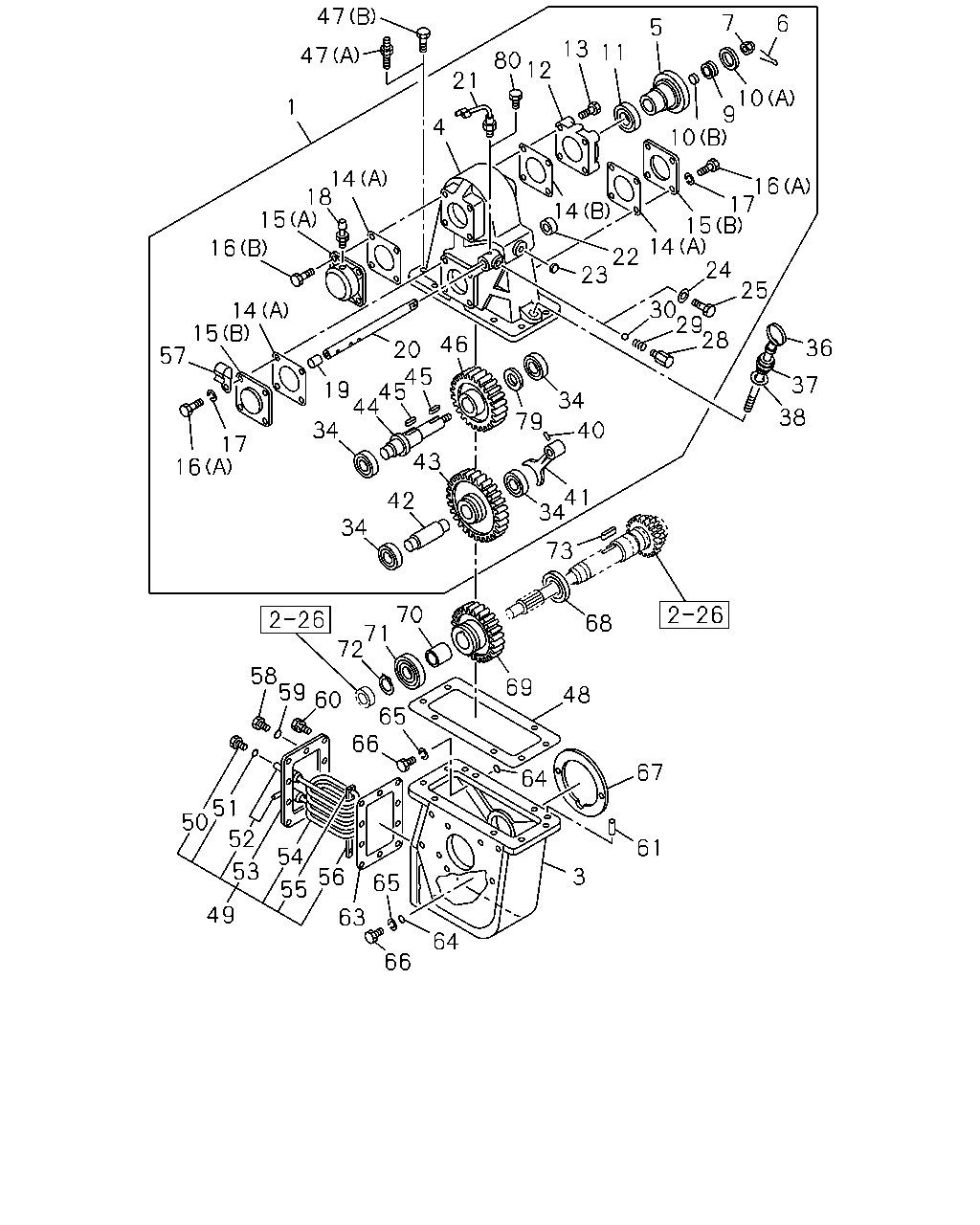

2-80 — POWER TAKE OFF; TRANSMISSION FRONT (#354) — 83 parça

47 7 6 5 13 11 47 80 12 21 10 9 10 1 4 14 18 16 17 15 14 24 25 14 15 16 22 23 30 29 28 14 15 57 46 36 20 45 44 37 34 38 79 34 40 17 43 16 41 34 42 34 73 70 68 71 72 58 59 69 48 60 65 66 64 67 51 50 52 61 54 65 53 3 56 55 49 63 64 66 19 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE ASM; GEAR TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC>	1-38000-235-2	01	1	9202-9208
1	CASE ASM; GEAR TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC>	1-38000-114-4	01	1	9209-
1	CASE ASM; GEAR TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	1-38000-198-4	01	1	9202-
3	CASE; GEAR TRANSMISSION FRONT PTO(RC2)	1-38111-066-0	01	1	9202-
4	CASE; GEAR,UPR,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38111-019-3	01	1	9202-
5	FLANGE; OUTPUT SHAFT,PTO TRANSMISSION FRONT PTO(RC2)	1-38512-014-0	01	1	9202-
6	PIN; SPLIT,OUTPUT SHAFT TRANSMISSION FRONT PTO(RC2) OD=3.7 L=30	9-08114-030-0	01	1	9202-
7	NUT; FLANGE FIX TRANSMISSION FRONT PTO(RC2) M18 SLOTTED	9-99116-418-0	01	1	9202-
9	WASHER; OUTPUT,FLANGE TRANSMISSION FRONT PTO(RC2)	1-38229-005-0	01	1	9202-
10	GASKET; OUTPUT SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2) (B) ID=17.8	9-09561-318-0	01	1	9202-
10	GASKET; OUTPUT SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> (A) ID=39.7	9-09561-240-0	01	1	9202-
11	SEAL; OIL,OUTPUT SHAFT TRANSMISSION FRONT PTO(RC2)	1-09625-159-0	01	1	9202-
12	RETAINER; UPR CASE TRANSMISSION FRONT PTO(RC2)	1-38175-002-0	01	1	9202-
13	BOLT; RET FIX TRANSMISSION FRONT PTO(RC2) M10X40 W/LK WASHER	0-50051-040-0	04	1	9202-
14	GASKET; BRG COVER TRANSMISSION FRONT PTO(RC2) (A)	1-38152-003-0	03	1	9202-
14	GASKET; BRG COVER TRANSMISSION FRONT PTO(RC2) (B)	1-38176-001-0	01	1	9202-
15	COVER; BRG,UPR CASE TRANSMISSION FRONT PTO(RC2) (B)	1-38151-006-0	02	1	9202-
15	COVER; BRG,UPR CASE TRANSMISSION FRONT PTO(RC2) (A)	1-38151-013-0	01	1	9202-
16	BOLT; BRG COVER FIX TRANSMISSION FRONT PTO(RC2) (A) M10X18	0-23801-018-0	08	1	9202-
16	BOLT; BRG COVER FIX TRANSMISSION FRONT PTO(RC2) (B) M10X22 W/LK WASHER	0-50051-022-0	04	1	9202-
17	WASHER; LK TRANSMISSION FRONT PTO(RC2) ID=10.2	9-09150-510-0	08	1	9202-
18	BREATHER TRANSMISSION FRONT PTO(RC2)	1-33547-004-2	01	1	9202-
19	COVER; SHIFT ROD TRANSMISSION FRONT PTO(RC2)	9-33545-001-0	01	1	9202-
20	ROD; GEAR SHIFTER TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC>	1-38371-016-1	01	1	9202-
20	ROD; GEAR SHIFTER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	1-38371-042-0	01	1	9202-
21	SWITCH; EXH BRAKE,PTO TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC>	1-82440-050-1	01	1	9202-9208
22	SEAL; OIL,SHIFT ROD TRANSMISSION FRONT PTO(RC2)	1-09625-158-0	01	1	9202-
23	PLUG; PLATE TRANSMISSION FRONT PTO(RC2)	9-09201-328-0	01	1	9202-
24	WASHER; LK,ROD SHIFTER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	1-38379-008-0	01	1	9202-
25	SCREW; ROD SHIFTER TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6>	9-06131-425-0	02	1	9202-
28	HOLDER; SPR,SHIFT ROD TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC>	1-38379-003-0	01	1	9202-
29	SPRING; SHIFTER ROD TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC>	9-09940-402-0	01	1	9202-
30	BALL; SHIFTER ROD TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC>	9-00097-009-0	01	1	9202-
34	BEARING; IDLE GEAR SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-09800-062-0	04	1	9202-
36	GAUGE; OIL LEVEL TRANSMISSION FRONT PTO(RC2)	1-38129-005-0	01	1	9202-
37	PLUG; OIL FILLER TRANSMISSION FRONT PTO(RC2)	1-09600-029-0	01	1	9202-
38	GASKET; LEVEL GAUGE TRANSMISSION FRONT PTO(RC2) ID=26.8	1-09623-058-0	01	1	9202-
40	PIN; SPR,SHIFTER ROD TRANSMISSION FRONT PTO(RC2)	9-09878-614-0	01	1	9202-
41	ARM; SHIFT,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38361-010-0	01	1	9202-
42	SPINDLE; IDLE GEAR TRANSMISSION FRONT PTO(RC2)	1-38211-002-0	01	1	9202-
43	GEAR; IDLE SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2) Z=57	1-38241-024-0	01	1	9202-
44	SHAFT; OUTPUT,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38221-018-0	01	1	9202-
45	KEY; FEATHER TRANSMISSION FRONT PTO(RC2)	9-08031-040-0	02	1	9202-
46	GEAR; OUTPUT,FRT PTO TRANSMISSION FRONT PTO(RC2) Z=43	1-38241-025-0	01	1	9202-
47	BOLT; UPR CASE FIX TRANSMISSION FRONT PTO(RC2) (B) M12X40 W/LK WASHER	0-50051-240-0	06	1	9202-9205
47	BOLT; UPR CASE FIX TRANSMISSION FRONT PTO(RC2) (B) M12X40 FLANGE	0-28181-240-0	06	1	9206-
47	BOLT; UPR CASE FIX TRANSMISSION FRONT PTO(RC2) (A) M12X25,M12X40 L=75	1-09029-044-0	02	1	9202-9205
47	BOLT; UPR CASE FIX TRANSMISSION FRONT PTO(RC2) (A)	1-09049-023-0	02	1	9206-
48	GASKET; GEAR CASE,UPR TO LWR TRANSMISSION FRONT PTO(RC2)	1-38113-005-0	01	1	9202-
49	PIPE ASM; WATER TRANSMISSION FRONT PTO(RC2)	1-38128-016-0	01	1	9202-
50	NUT; WATER PIPE CONN,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-09660-067-0	02	1	9202-
51	GASKET; WATER PIPE TRANSMISSION FRONT PTO(RC2)	1-09635-009-0	02	1	9202-
52	CONNECTOR; WATER PIPE TRANSMISSION FRONT PTO(RC2)	1-09660-066-0	02	1	9202-
53	COVER; SIDE,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38182-006-0	01	1	9202-
54	PIPE; WATER,OIL COOLING TRANSMISSION FRONT PTO(RC2)	1-38128-017-0	01	1	9202-
55	HOLDER; WATER PIPE TRANSMISSION FRONT PTO(RC2)	1-38129-011-0	01	1	9202-
56	WIRE; PIPE HOLDER FIX TRANSMISSION FRONT PTO(RC2)	9-08351-616-0	01	1	9202-
57	CLIP TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> ID=11 L=30	1-09701-002-0	01	1	9311-
58	PLUG; DRAIN,FRT PTO TRANSMISSION FRONT PTO(RC2) M16X12	1-09604-009-0	01	1	9202-
59	GASKET; DRAIN PLUG TRANSMISSION FRONT PTO(RC2) ID=16.2	9-09571-616-0	01	1	9202-
60	BOLT; SIDE COVER FIX TRANSMISSION FRONT PTO(RC2) M8X22 W/LK WASHER	0-50040-822-0	10	1	9202-9205
60	BOLT; SIDE COVER FIX TRANSMISSION FRONT PTO(RC2) M8X20 FLANGE	0-28080-820-0	10	1	9206-
61	PIN; KNOCK TRANSMISSION FRONT PTO(RC2) OD=10 L=20	9-08161-020-0	02	1	9202-
63	GASKET; SIDE COVER TRANSMISSION FRONT PTO(RC2)	1-38183-003-0	01	1	9202-
64	GASKET; PTO TO TRANS CASE TRANSMISSION FRONT PTO(RC2)	9-09561-116-0	05	1	9202-9205
64	GASKET; PTO TO TRANS CASE TRANSMISSION FRONT PTO(RC2)	9-09561-116-0	06	1	9206-
65	WASHER; LK TRANSMISSION FRONT PTO(RC2) ID=14.2	9-09150-514-0	05	1	9202-9205
66	BOLT; FRT PTO TO TRANS CASE TRANSMISSION FRONT PTO(RC2) M14X55	0-16806-455-0	02	1	9202-9203
66	BOLT; FRT PTO TO TRANS CASE TRANSMISSION FRONT PTO(RC2) M14X55	1-09033-016-0	02	1	9204-
66	BOLT; FRT PTO TO TRANS CASE TRANSMISSION FRONT PTO(RC2) M14X40	0-23801-440-0	03	1	9202-9203
66	BOLT; FRT PTO TO TRANS CASE TRANSMISSION FRONT PTO(RC2) M14X40 W/LK&PL WASHER	0-50151-440-0	03	1	9204-
67	GASKET; PTO CASE TO TRANS TRANSMISSION FRONT PTO(RC2)	1-38113-004-0	01	1	9202-
68	SEAL; OIL TRANSMISSION FRONT PTO(RC2) NOK	1-09625-505-0	01	1	9202-9211
68	SEAL; OIL TRANSMISSION FRONT PTO(RC2) NOK	1-09625-173-0	01	1	9212-
68	SEAL; OIL TRANSMISSION FRONT PTO(RC2) KOYO	1-09625-522-0	01	1	9202-9211
68	SEAL; OIL TRANSMISSION FRONT PTO(RC2) KOYO	9-09924-501-0	01	1	9212-9408
69	GEAR; DRIVE,TRANS SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2) Z=52	1-38241-085-0	01	1	9202-
70	COLLAR; TOP GEAR SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38216-001-0	01	1	9202-
71	BEARING; PTO,GEAR CASE,FRT TRANSMISSION FRONT PTO(RC2) NSK	1-09800-063-0	01	1	9202-
72	RETAINER; TRANS SHAFT PTO TRANSMISSION FRONT PTO(RC2) ID=45.8	9-09180-050-0	01	1	9202-
73	KEY; FEATHER TRANSMISSION FRONT PTO(RC2)	9-08031-040-0	01	1	9202-
79	COLLAR; DIST,OUTPUT SHAFT,FRT PTO TRANSMISSION FRONT PTO(RC2)	1-38226-038-0	01	1	9202-
80	PLUG; PTO CASE TRANSMISSION FRONT PTO(RC2) PTO CONTROL AIR LINK TYPE<SEC> M14X9	9-99202-314-0	01	1	9209-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
