◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#35396) — 9 parça

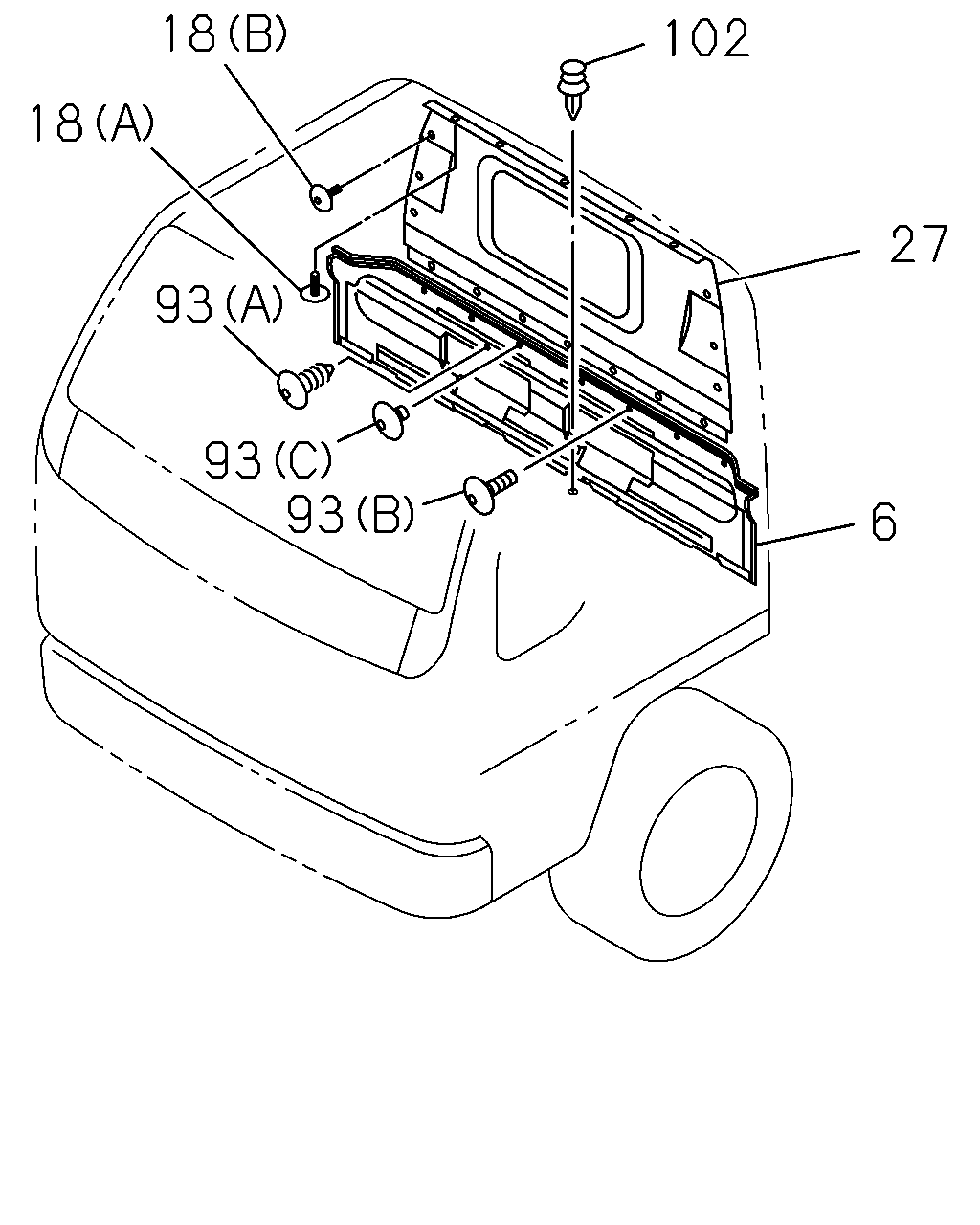

çizim 58686
18 102 18 27 93 93 93 6
BalonParca AdiParca NoAdetTipApplied Date
6 16.592 MAT; SILENCER,CAB BACK
GRADE XS(RBB) GRAY 		8-97582-816-4 01 1 0612-
18 16.587 CLIP; TRIM COVER,CAB BACK
GRADE XS(RBB) AUSTRALIA EQUIPMENT(RR3) (A) GRAY 		8-97406-432-0 07 1 0612-
18 16.587 CLIP; TRIM COVER,CAB BACK
GRADE XS(RBB) AUSTRALIA EQUIPMENT(RR3) (B) DARK GRAY 		8-97406-446-0 06 1 0612-
27 16.587 COVER; TRIM,BACK
GRADE XS(RBB) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97582-819-5 01 1 0612-
93 16.584 CLIP; SILENCER MATTERESS
GRADE XS(RBB) 16.166 (A) GRAY 		8-97405-295-0 02 1 0612-
93 16.584 CLIP; SILENCER MATTERESS
GRADE XS(RBB) 16.587 (B) GRAY 		8-97406-432-0 07 1 0612-
93 16.584 CLIP; SILENCER MATTERESS
GRADE XS(RBB) (C) GRAY 		8-97582-277-0 02 1 0612-0706
93 16.584 CLIP; SILENCER MATTERESS
GRADE XS(RBB) 16.587 (C) DARK GRAY 		8-97406-446-0 02 1 0707-
102 16.584 CLIP; TRAY,BACK PANEL
16.165 OD=7.9 BLACK 		8-94279-974-1 02 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
