◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#35394) — 10 parça

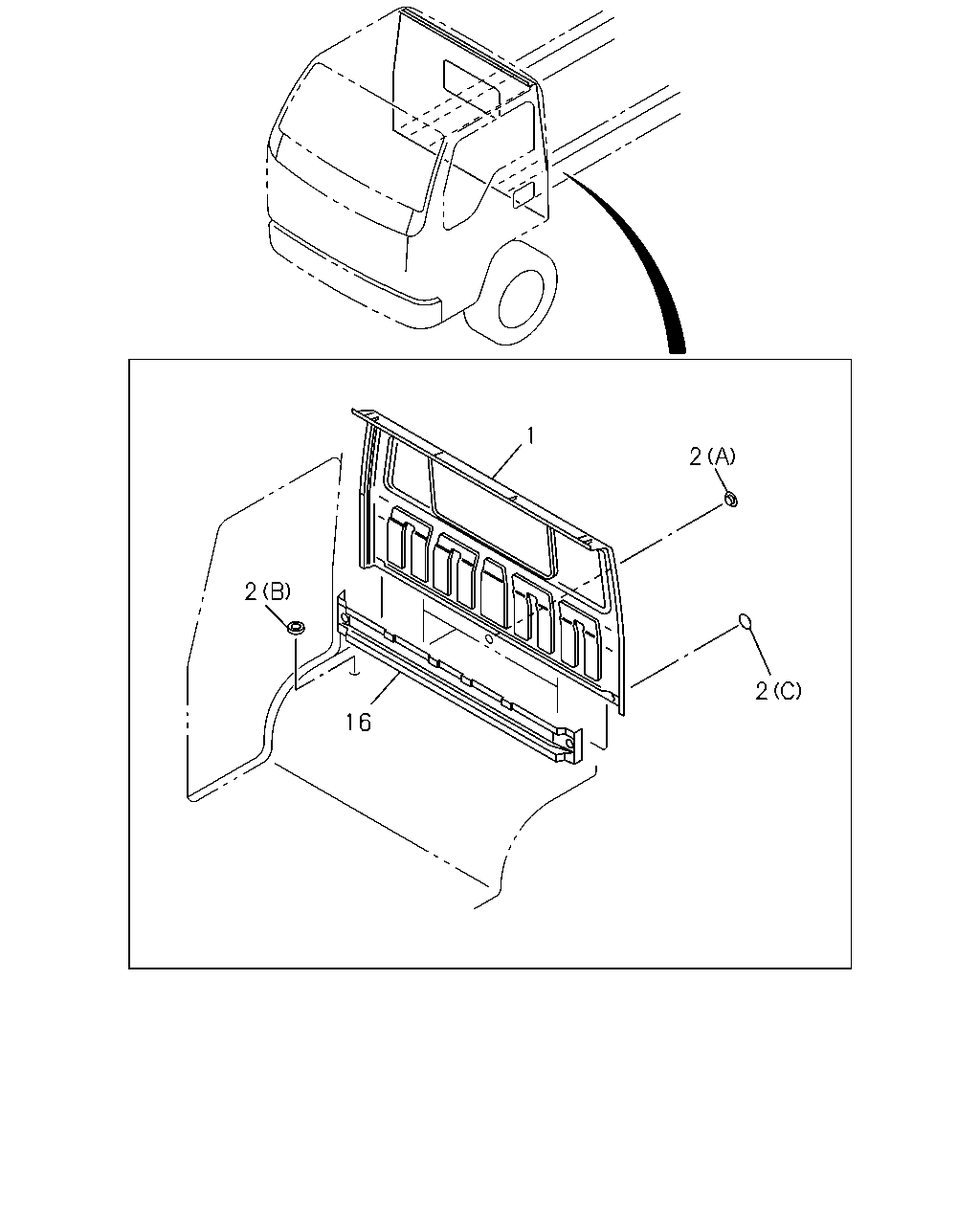

çizim 13476
1 2 2 2 16
BalonParca AdiParca NoAdetTipApplied Date
1 16.587 PANEL; BACK OUTER
4HK1-TCN ENG(RDQ) GRADE XS(RBB) 		8-97859-127-0 01 1 0612-0705
1 16.587 PANEL; BACK OUTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97859-127-0 01 1 0612-0705
1 16.587 PANEL; BACK OUTER 8-97859-127-0 01 1 0706-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 0612-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
02.580 (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0612-0710
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711-
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (B) OD=15.0 		8-94279-040-0 02 1 0612-
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97851-501-6 01 1 0612-
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ) GRADE XS(RBB) 		8-97851-501-6 01 1 0612-0705
16 16.575 REINFORCEMENT; BACK OUTER PNL
4HK1-TCN ENG(RDQ) 		8-97851-501-6 01 1 0706-
