Isuzu WW
▶
TRUCKS
▶
NPS
▶
51136 - NPS-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

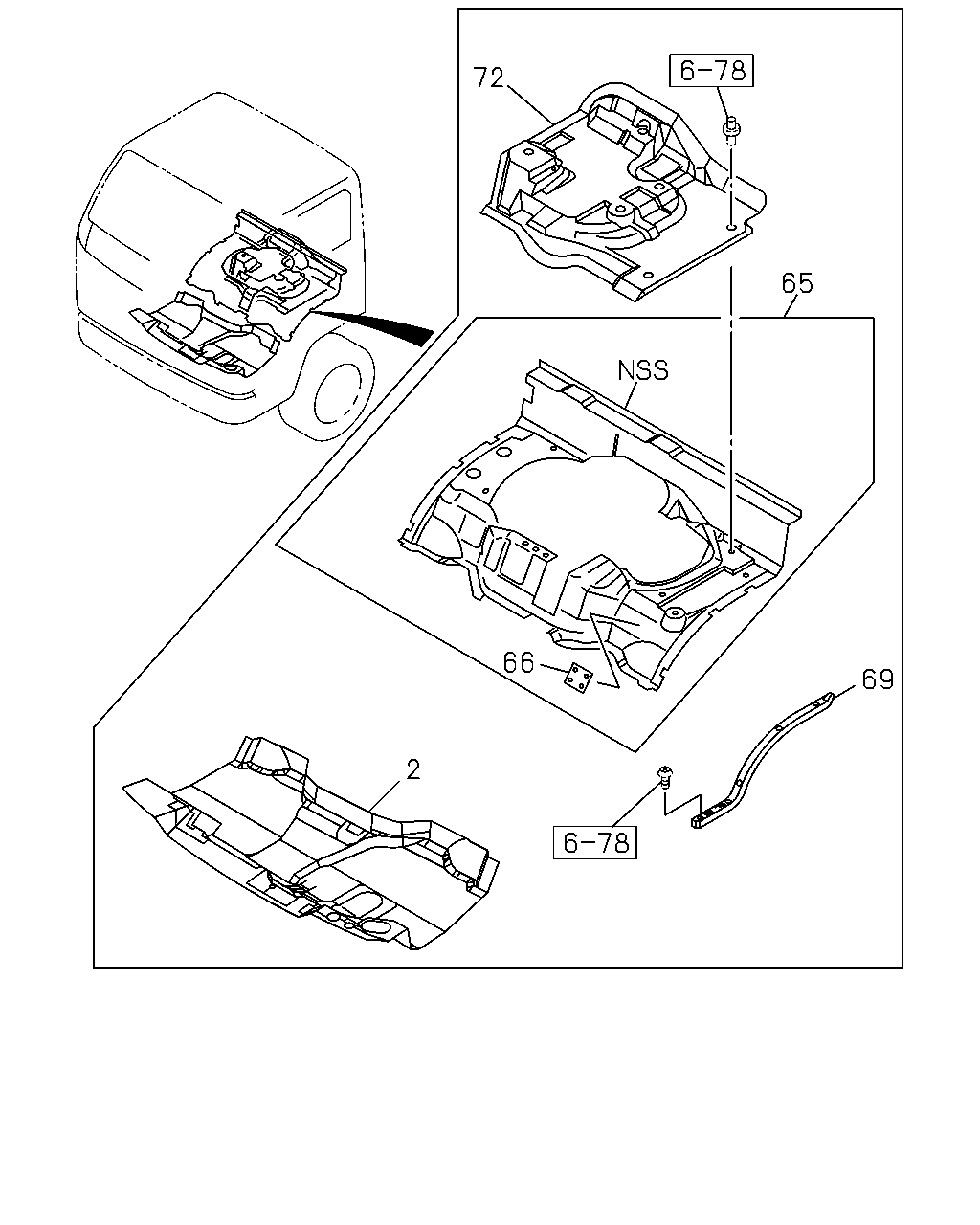

6-75 — MAT AND CARPET
(#35391) — 11 parça
72
65
66
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) AUSTRALIA EQUIPMENT(RR3) GRAY
8-97588-996-4
01
1
0612-
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY
8-97588-992-3
01
1
0612-
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60), AUSTRALIA EQUIPMENT(RR3) GRAY
8-97588-991-3
01
1
0612-
2
16.800 MAT; FLOOR
AUSTRALIA EQUIPMENT(RR3) EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY
8-97588-995-4
01
1
0612-
65
16.802 MAT ASM; SILENCER,CAB FLOOR
AUSTRALIA EQUIPMENT(RR3) GRAY
8-97589-107-1
01
1
0612-
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. AUSTRALIA EQUIPMENT(RR3) GRAY
8-97589-106-1
01
1
0612-
66
16.549 HOOK; COVER
GRAY
8-97583-948-0
02
1
0612-
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-804-1
01
1
0612-
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-228-1
01
1
0612-0702
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-478-0
01
1
0703-
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97589-118-1
01
1
0612-
