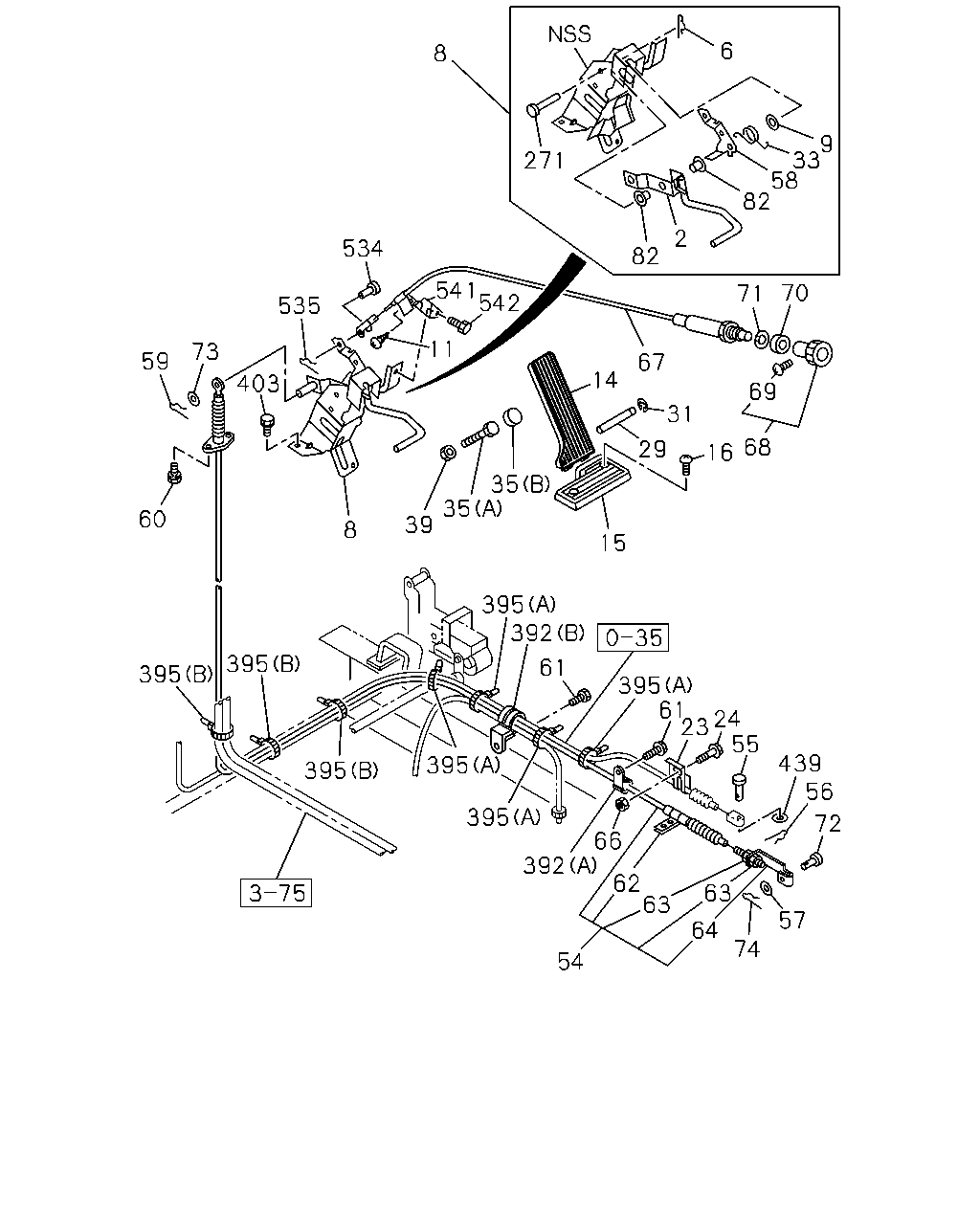

1-01A — ACCELERATOR PEDAL AND CONTROL (#3539) — 118 parça

6 8 9 33 58 82 271 2 534 541 82 70 71 542 535 403 11 73 59 67 14 69 31 68 29 16 35 35 39 60 8 15 395 392 61 395 395 395 61 24 23 55 439 56 395 395 395 72 66 392 62 63 63 57 74 64 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-73997-796-5	01	1	9002-	●	●
6	RING; SNAP,LINK TO LINK L=27.7	8-94202-777-0	01	1	9002-	●	●
8	LINK ASM; ENG CONT	1-23240-050-7	01	1	9002-	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9201-	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	9002-	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9002-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-770-1	01	1	9002-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9002-	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9002-	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	9002-	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9002-	●	●
33	SPRING; IDLING CONT LEVER	1-73997-824-0	01	1	9201-	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●
35	STOPPER; ACCEL PEDAL (B) RUBBER	1-23249-009-0	01	1	9002-	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9002-	●	●
54	CABLE; ENG CONT L=2780	1-23210-751-6	01	1	9002-	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9002-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9002-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
58	LEVER; IDLING CONT	1-73997-781-2	01	1	9002-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9002-	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9303-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9002-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9002-	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9002-	●	●
66	NUT; BRKT M8	9-09110-408-0	01	1	9002-	●	●
67	CABLE ASM; IDLE CONT L=347	1-73997-789-0	01	1	9002-	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9002-	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9002-	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9002-	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9002-	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9002-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9002-	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9002-	●	●
271	SHAFT; ENG CONT	1-09987-081-0	01	1	9002-	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9002-9306	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9	9-09524-825-0	01	1	9010-9306	●	●
392	CLIP; ACCEL CONT CABLE (B) ID=19 L=24 H=21	1-09700-109-1	01	1	9307-	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9307-	●	●
395	CLIP; BAND,ACCEL CONT CABLE (B) L=250	5-09707-030-1	03	1	9002-	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-0	02	1	9002-9306	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-1	03	1	9307-	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-0	01	1	9307-9307	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-1	01	1	9308-	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9002-	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9002-	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9002-	●	●
541	BRACKET; IDLING CONT CABLE	1-73997-797-1	01	1	9002-	●	●
542	BOLT; BRKT,IDLING CONT CABLE M6X16 W/LK&PL WASHER	9-01960-616-0	01	1	9002-9204	●	●
542	BOLT; BRKT,IDLING CONT CABLE M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9205-	●	●

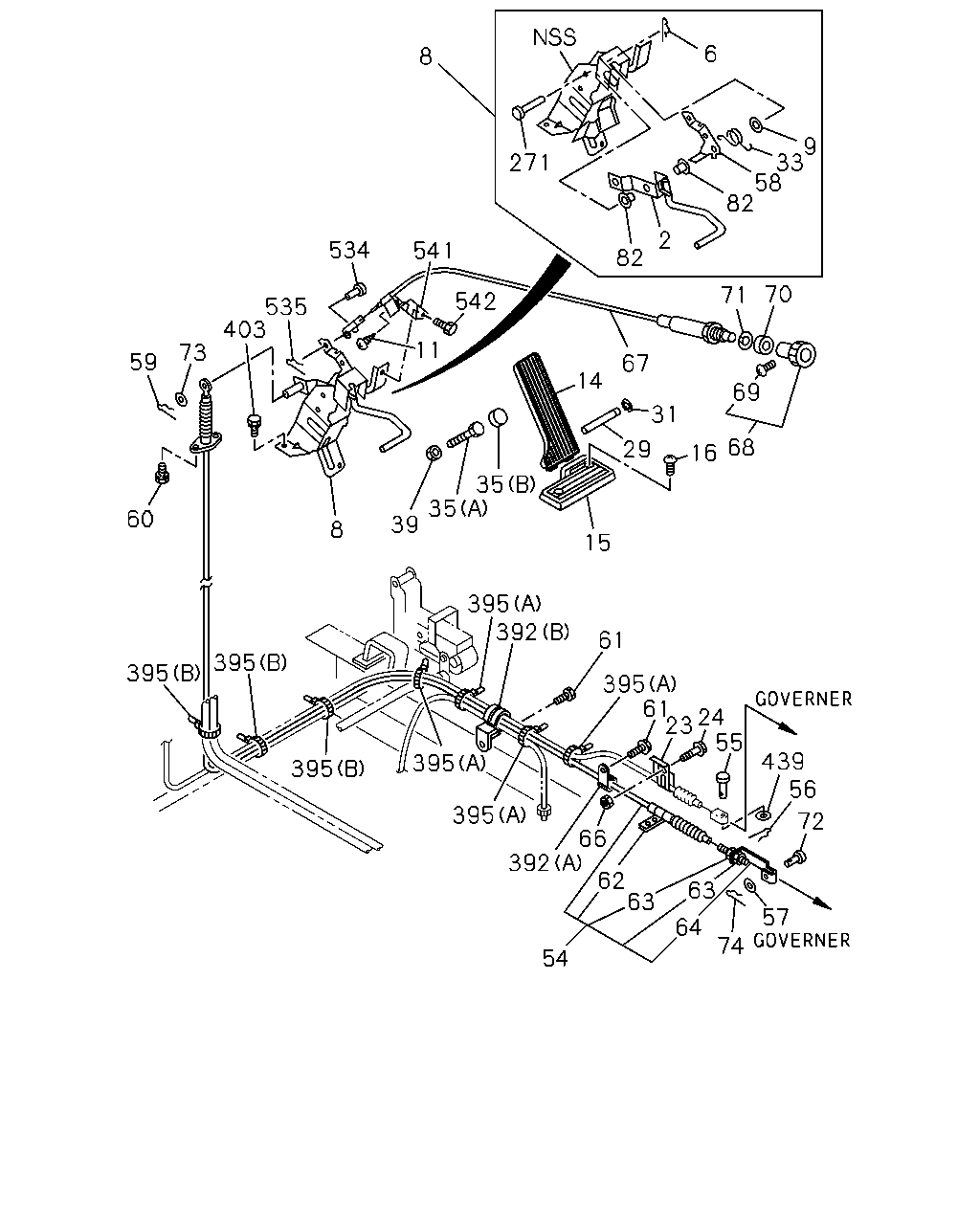

6 8 9 33 58 82 271 2 534 82 541 542 70 71 535 11 73 59 67 14 403 69 31 68 29 16 35 35 60 39 8 15 395 392 395 61 395 395 61 24 23 55 439 56 395 395 395 72 66 392 62 63 63 57 64 74 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LEVER; ENG CONT	1-73997-796-5	01	1	9002-	●	●
6	RING; SNAP,LINK TO LINK L=27.7	8-94202-777-0	01	1	9002-	●	●
8	LINK ASM; ENG CONT	1-23240-050-7	01	1	9002-	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	9201-	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	9002-	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	9002-	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-770-1	01	1	9002-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	9002-	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	9002-	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	9002-	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	9002-	●	●
33	SPRING; IDLING CONT LEVER	1-73997-824-0	01	1	9201-	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●
35	STOPPER; ACCEL PEDAL (B) RUBBER	1-23249-009-0	01	1	9002-	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	9002-	●	●
54	CABLE; ENG CONT L=2780	1-23210-751-6	01	1	9002-	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	9002-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	9002-	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
58	LEVER; IDLING CONT	1-73997-781-2	01	1	9002-	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	9002-	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	02	1	9002-9301	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9303-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	02	1	9307-	●	●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9002-	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9002-	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	9002-	●	●
66	NUT; BRKT M8	9-09110-408-0	01	1	9002-	●	●
67	CABLE ASM; IDLE CONT L=347	1-73997-789-0	01	1	9002-	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	9002-	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	9002-	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	9002-	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	9002-	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9002-	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	9002-	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9002-	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	9002-	●	●
271	SHAFT; ENG CONT	1-09987-081-0	01	1	9002-	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9002-9306	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9	9-09524-825-0	01	1	9010-9306	●	●
392	CLIP; ACCEL CONT CABLE (B) ID=19 L=24 H=21	1-09700-109-1	01	1	9307-	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9307-	●	●
395	CLIP; BAND,ACCEL CONT CABLE (B) L=250	5-09707-030-1	03	1	9002-	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-0	02	1	9002-9306	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-1	03	1	9307-	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-0	01	1	9307-9307	●	●
395	CLIP; BAND,ACCEL CONT CABLE (A) L=100	5-09707-036-1	01	1	9308-	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	9002-9301	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9002-	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	9002-	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9002-	●	●
541	BRACKET; IDLING CONT CABLE	1-73997-797-1	01	1	9002-	●	●
542	BOLT; BRKT,IDLING CONT CABLE M6X16 W/LK&PL WASHER	9-01960-616-0	01	1	9002-9204	●	●
542	BOLT; BRKT,IDLING CONT CABLE M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
