Isuzu WW
▶
TRUCKS
▶
NPS
▶
51136 - NPS-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

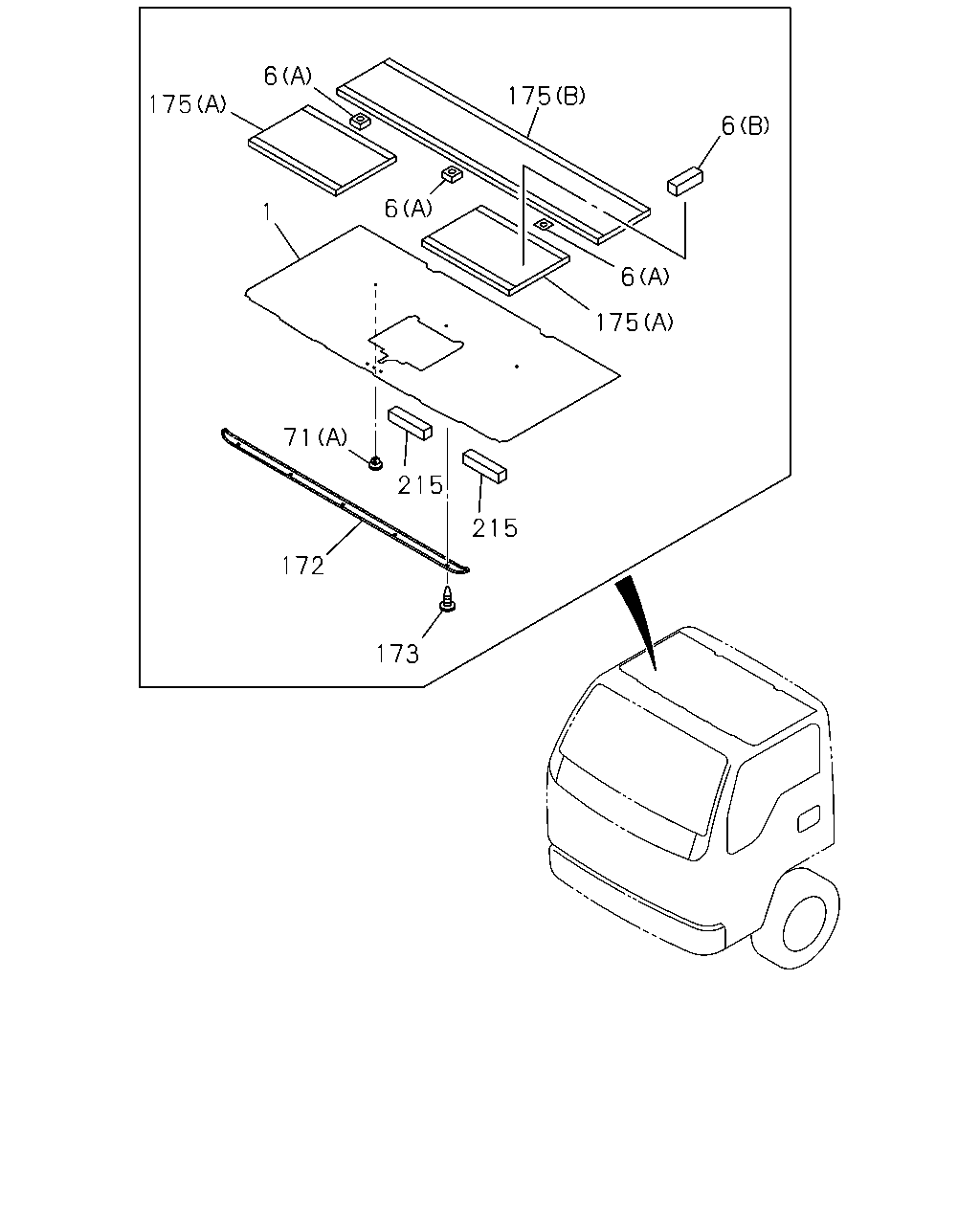

6-66 - HEAD LINING AND TRIM
▶
6-66 — HEAD LINING AND TRIM
(#35388) — 27 parça
◀
[666A] EXC.GRADE XS (15 parça)
[666A] GRADE XS (12 parça)
▶
6
175
175
6
6
1
6
175
71
215
215
172
173
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.742 LINING; HD
GRADE XS(RBB) LIGHT GRAY
8-97867-522-7
01
1
0612-
1
16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. GRADE XS(RBB),TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-224-2
01
1
0612-
1
16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. GRADE XS(RBB) LIGHT GRAY
8-97868-426-2
01
1
0612-
1
16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,GRADE XS(RBB), TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-427-2
01
1
0612-
1
16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,GRADE XS(RBB) LIGHT GRAY
8-97867-608-3
01
1
0612-
6
16.742 SPACER; HD LINING
EXC. GRADE XS(RBB) (A)
8-94353-014-0
03
1
0612-
6
16.742 SPACER; HD LINING
EXC. GRADE XS(RBB) 16.588 (B) H=10 L=55
8-97410-832-0
02
1
0612-
71
16.742 FASTENER; HD LINING
(A) DARK GRAY
8-97405-301-2
03
1
0612-
71
16.742 FASTENER; HD LINING
GRADE XS(RBB) (B) D5.8X20
8-97857-353-0
05
1
0612-
172
16.742 RETAINER; HEAD LINING
EXC. GRADE XS(RBB) LIGHT GRAY
8-97867-611-4
01
1
0612-
173
16.742 CLIP; RETAINER,HEAD LINING
EXC. GRADE XS(RBB) LIGHT GRAY, D6.8X11 PUSH RIVET
8-97867-240-0
05
1
0612-0708
173
16.742 CLIP; RETAINER,HEAD LINING
EXC. GRADE XS(RBB) DARK GRAY
8-97406-299-0
05
1
0709-
175
16.742 CUSHION; HEAD LINING
EXC. GRADE XS(RBB) (A)
8-97856-524-5
02
1
0612-
175
16.742 CUSHION; HEAD LINING
EXC. GRADE XS(RBB) (B)
8-97859-105-3
01
1
0612-
215
16.592 CUSHION; TRAY BACK PANEL
ROOF VENTILATOR<C55> EXC. GRADE XS(RBB) 16.587 L=100
8-97866-625-0
02
1
0612-
27
27
170
27
1
171
71
71
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.742 LINING; HD
GRADE XS(RBB) LIGHT GRAY
8-97867-522-7
01
1
0612-
1
16.742 LINING; HD
ROOF VENTILATOR<C55> EXC. GRADE XS(RBB),TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-224-2
01
1
0612-
1
16.742 LINING; HD
ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. GRADE XS(RBB) LIGHT GRAY
8-97868-426-2
01
1
0612-
1
16.742 LINING; HD
EXC. ROOF VENTILATOR<C55>,GRADE XS(RBB), TRAY ROOF HEAD<7EJ> LIGHT GRAY
8-97868-427-2
01
1
0612-
1
16.742 LINING; HD
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,GRADE XS(RBB) LIGHT GRAY
8-97867-608-3
01
1
0612-
27
16.165 INSULATION; ROOF
GRADE XS(RBB) (A)
8-97856-989-6
02
1
0612-
27
16.165 INSULATION; ROOF
GRADE XS(RBB) (B)
8-97859-504-2
01
1
0612-
71
16.742 FASTENER; HD LINING
(A) DARK GRAY
8-97405-301-2
03
1
0612-
71
16.742 FASTENER; HD LINING
GRADE XS(RBB) (B) D5.8X20
8-97857-353-0
05
1
0612-
170
16.742 FINISHER; HEAD LINING
GRADE XS(RBB) EXC. AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY
8-97867-524-2
01
1
0612-
171
16.742 CLIP; HEAD LINING
GRADE XS(RBB) (A) LIGHT GRAY
8-97859-865-0
02
1
0612-
171
16.742 CLIP; HEAD LINING
GRADE XS(RBB) (B) LIGHT GRAY
8-97859-866-0
07
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
