6-47 — MUD GUARD AND INSULATOR (#35386) — 114 parça

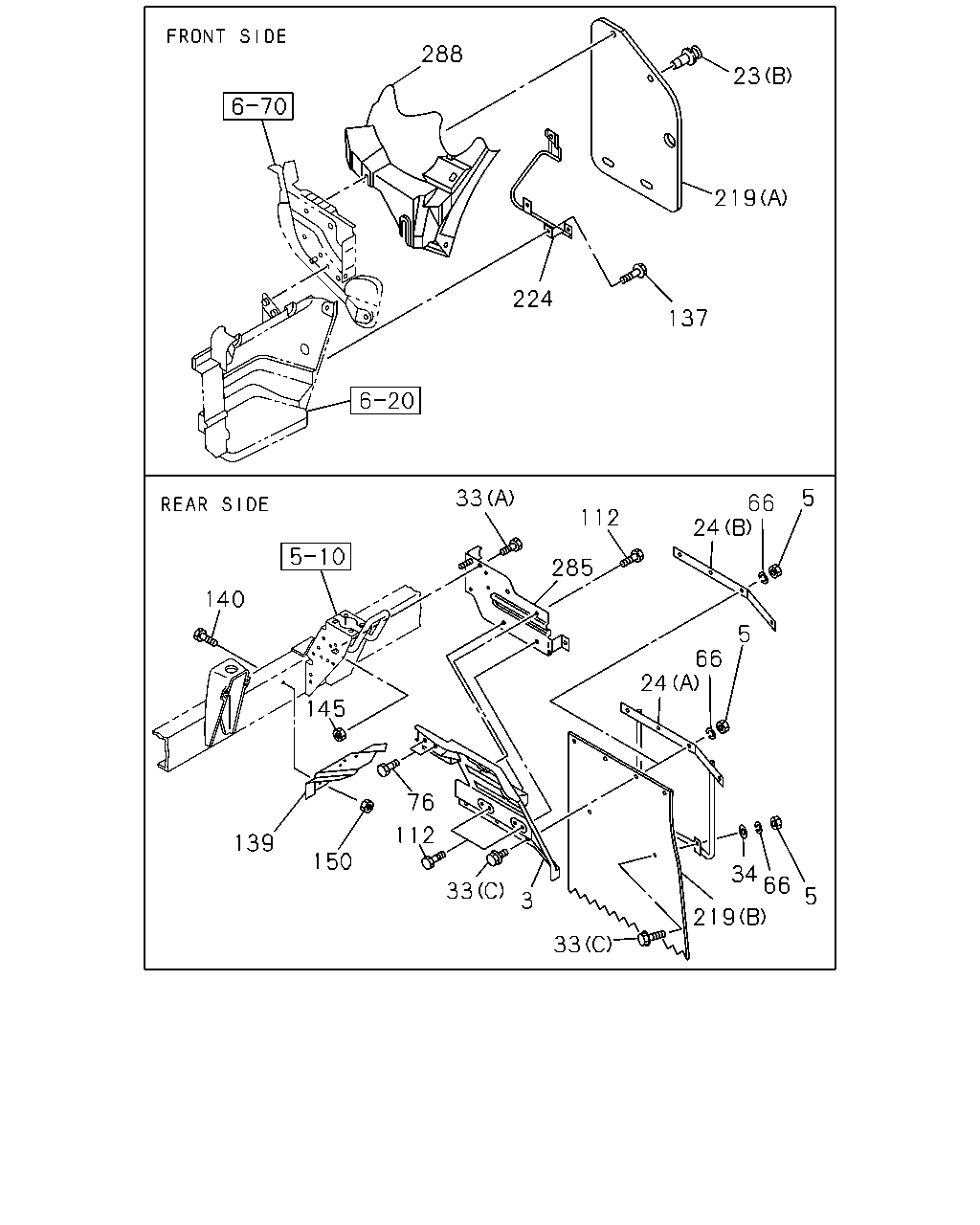

288 23 219 224 137 5 33 66 24 112 285 140 5 66 24 145 76 112 139 150 34 66 33 5 3 219 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.153 GUARD; MUD,RR	8-97366-988-1	01	1	0612-
3	08.153 GUARD; MUD,RR	8-97048-728-3	01	1	0612-
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) M6	0-91111-506-0	08	1	0612-
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3) M6	0-91111-506-0	12	1	0612-
23	08.154 FASTENER; MUD COVER 08.155 (A) OD=8	1-09983-125-0	02	1	0612-
23	08.154 FASTENER; MUD COVER 16.320 (B) OD=8.3	8-94279-989-0	08	1	0612-
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-97997-832-0	12	1	0612-
24	08.155 PLATE; MUD COVER AUSTRALIA EQUIPMENT(RR3) (B)	8-97095-186-0	02	1	0612-
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-489-0	01	1	0612-
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-488-0	01	1	0612-
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0612-
33	08.155 BOLT; MUD COVER 16.320 (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0612-0805
33	08.155 BOLT; MUD COVER 16.085 (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
33	08.155 BOLT; MUD COVER (B) M6X26 W/PL WASHER	8-98035-643-0	04	1	0612-
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	08	1	0612-
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	12	1	0612-
34	08.155 WASHER; PL,MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0612-
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) ID=6.1	0-91510-506-0	08	1	0612-
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3) ID=6.1	0-91510-506-0	12	1	0612-
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0612-
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0612-
137	08.155 BOLT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0612-
139	08.153 PANEL; SIDE	8-97222-098-0	01	1	0612-
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97222-097-1	01	1	0612-
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ)	8-97255-626-0	01	1	0612-
140	08.155 BOLT; SIDE PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0612-
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
219	08.155 FLAP; MUD GUARD (A)	8-97857-549-1	02	1	0612-
219	08.155 FLAP; MUD GUARD AUSTRALIA EQUIPMENT(RR3) (B)	8-97329-458-0	02	1	0612-
219	08.155 FLAP; MUD GUARD EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-97218-083-0	02	1	0612-
224	08.155 SUPPORT; MUD GUARD	8-97857-513-1	01	1	0612-
224	08.155 SUPPORT; MUD GUARD	8-97857-512-1	01	1	0612-
285	08.155 BRACKET; MUD COVER	8-97035-778-4	01	1	0612-
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97092-037-2	01	1	0612-
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ)	8-97035-780-4	01	1	0612-
288	08.155 LINER; TIRE HOUSE	8-97581-243-0	01	1	0612-
288	08.155 LINER; TIRE HOUSE	8-97581-242-0	01	1	0612-

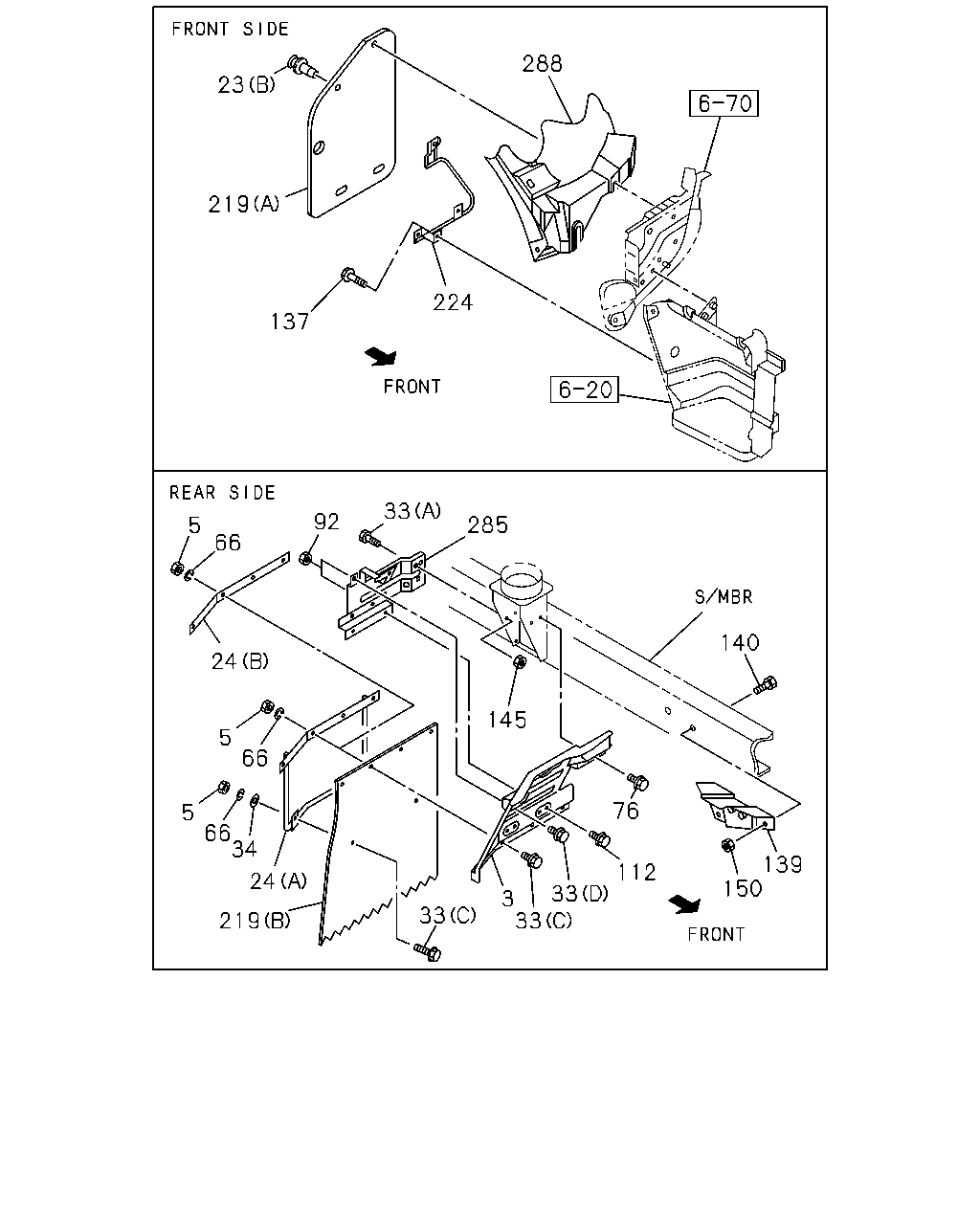

288 23 219 224 137 33 92 285 5 66 140 24 145 5 66 76 5 66 34 139 150 112 24 33 3 33 33 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	08.153 GUARD; MUD,RR	8-97366-988-1	01	1	0612-
3	08.153 GUARD; MUD,RR	8-97048-728-3	01	1	0612-
5	08.155 NUT; FLAP RUBBER AUSTRALIA EQUIPMENT(RR3) M6	0-91111-506-0	08	1	0612-
5	08.155 NUT; FLAP RUBBER EXC. AUSTRALIA EQUIPMENT(RR3) M6	0-91111-506-0	12	1	0612-
23	08.154 FASTENER; MUD COVER 08.155 (A) OD=8	1-09983-125-0	02	1	0612-
23	08.154 FASTENER; MUD COVER 16.320 (B) OD=8.3	8-94279-989-0	08	1	0612-
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-97997-832-0	12	1	0612-
24	08.155 PLATE; MUD COVER AUSTRALIA EQUIPMENT(RR3) (B)	8-97095-186-0	02	1	0612-
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-489-0	01	1	0612-
24	08.155 PLATE; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97066-488-0	01	1	0612-
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0612-
33	08.155 BOLT; MUD COVER 16.320 (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0612-0805
33	08.155 BOLT; MUD COVER 16.085 (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
33	08.155 BOLT; MUD COVER (B) M6X26 W/PL WASHER	8-98035-643-0	04	1	0612-
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	08	1	0612-
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	12	1	0612-
34	08.155 WASHER; PL,MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0612-
66	08.155 WASHER; LK AUSTRALIA EQUIPMENT(RR3) ID=6.1	0-91510-506-0	08	1	0612-
66	08.155 WASHER; LK EXC. AUSTRALIA EQUIPMENT(RR3) ID=6.1	0-91510-506-0	12	1	0612-
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0612-
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0612-
137	08.155 BOLT 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0612-
139	08.153 PANEL; SIDE	8-97222-098-0	01	1	0612-
139	08.153 PANEL; SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97222-097-1	01	1	0612-
139	08.153 PANEL; SIDE 4HK1-TCN ENG(RDQ)	8-97255-626-0	01	1	0612-
140	08.155 BOLT; SIDE PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0612-
140	08.155 BOLT; SIDE PANEL 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0612-
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
219	08.155 FLAP; MUD GUARD (A)	8-97857-549-1	02	1	0612-
219	08.155 FLAP; MUD GUARD AUSTRALIA EQUIPMENT(RR3) (B)	8-97329-458-0	02	1	0612-
219	08.155 FLAP; MUD GUARD EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-97218-083-0	02	1	0612-
224	08.155 SUPPORT; MUD GUARD	8-97857-513-1	01	1	0612-
224	08.155 SUPPORT; MUD GUARD	8-97857-512-1	01	1	0612-
285	08.155 BRACKET; MUD COVER	8-97035-778-4	01	1	0612-
285	08.155 BRACKET; MUD COVER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97092-037-2	01	1	0612-
285	08.155 BRACKET; MUD COVER 4HK1-TCN ENG(RDQ)	8-97035-780-4	01	1	0612-
288	08.155 LINER; TIRE HOUSE	8-97581-243-0	01	1	0612-
288	08.155 LINER; TIRE HOUSE	8-97581-242-0	01	1	0612-

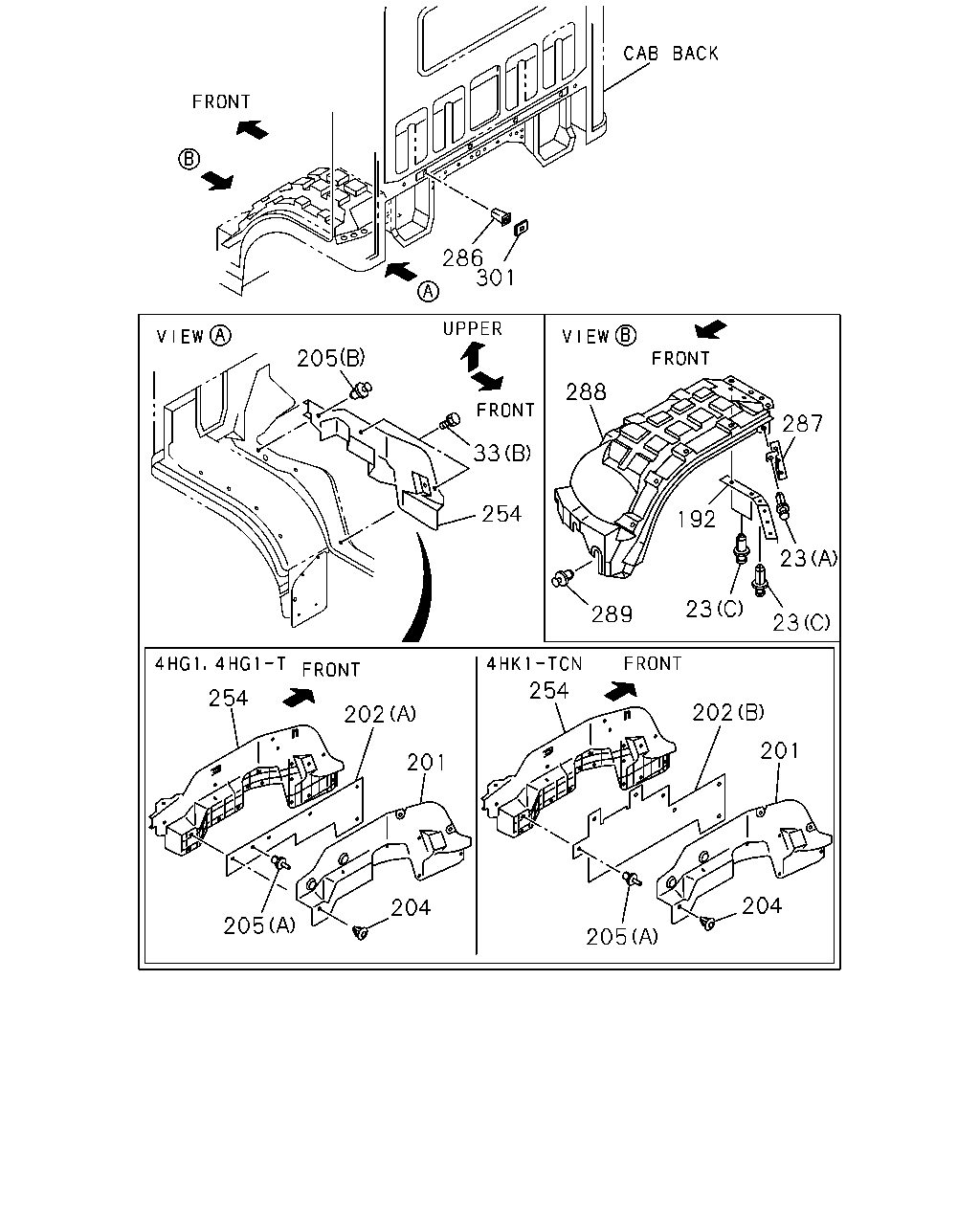

286 301 205 288 287 33 254 192 23 23 289 23 254 254 202 202 201 201 204 204 205 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	08.154 FASTENER; MUD COVER 08.155 (A) OD=8	1-09983-125-0	02	1	0612-
23	08.154 FASTENER; MUD COVER 16.320 (B) OD=8.3	8-94279-989-0	08	1	0612-
23	08.154 FASTENER; MUD COVER 16.320 (C) OD=8.3	8-97997-832-0	12	1	0612-
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0612-
33	08.155 BOLT; MUD COVER 16.320 (D) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0612-0805
33	08.155 BOLT; MUD COVER 16.085 (D) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-
33	08.155 BOLT; MUD COVER (B) M6X26 W/PL WASHER	8-98035-643-0	04	1	0612-
33	08.155 BOLT; MUD COVER AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	08	1	0612-
33	08.155 BOLT; MUD COVER EXC. AUSTRALIA EQUIPMENT(RR3) 09.242 (C) M6X16 FLANGE	0-28050-616-0	12	1	0612-
192	08.153 SEAL; MUD COVER	8-97857-299-3	01	1	0612-
192	08.153 SEAL; MUD COVER	8-97857-298-3	01	1	0612-
201	08.155 INSULATOR; VALANCE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-631-3	01	1	0612-
201	08.155 INSULATOR; VALANCE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-630-3	01	1	0612-
201	08.155 INSULATOR; VALANCE 4HK1-TCN ENG(RDQ)	8-98013-416-0	01	1	0612-
201	08.155 INSULATOR; VALANCE 4HK1-TCN ENG(RDQ)	8-97892-184-1	01	1	0612-
202	08.155 RUBBER; MUD,VALANCE PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97857-171-0	01	1	0612-
202	08.155 RUBBER; MUD,VALANCE PANEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97857-170-0	01	1	0612-
202	08.155 RUBBER; MUD,VALANCE PANEL 4HK1-TCN ENG(RDQ) (B)	8-98013-417-0	01	1	0612-
202	08.155 RUBBER; MUD,VALANCE PANEL 4HK1-TCN ENG(RDQ) (B)	8-97997-869-1	01	1	0612-
204	08.155 CLIP; VALANCE,INSULATOR 4HG1-T ENG(RDP),4HG1 ENG(RJH) OD=18 L=17	8-94279-702-0	12	1	0612-
204	08.155 CLIP; VALANCE,INSULATOR 4HK1-TCN ENG(RDQ) OD=18 L=17	8-94279-702-0	10	1	0612-
205	08.155 FASTENER; MUD COVER 12.934 (B) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0612-
205	08.155 FASTENER; MUD COVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	5-09989-002-0	12	1	0612-
205	08.155 FASTENER; MUD COVER 4HK1-TCN ENG(RDQ) (A)	5-09989-002-0	15	1	0612-
254	08.153 COVER; MUD,VALANCE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-359-3	01	1	0612-
254	08.153 COVER; MUD,VALANCE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-358-3	01	1	0612-
254	08.153 COVER; MUD,VALANCE 4HK1-TCN ENG(RDQ)	8-98013-415-1	01	1	0612-
254	08.153 COVER; MUD,VALANCE 4HK1-TCN ENG(RDQ)	8-97892-183-0	01	1	0612-
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0612-
287	08.155 BRACKET; SEAL,MUD COVER	8-97856-348-3	01	1	0612-
287	08.155 BRACKET; SEAL,MUD COVER	8-97856-347-3	01	1	0612-
288	08.155 LINER; TIRE HOUSE	8-97581-243-0	01	1	0612-
288	08.155 LINER; TIRE HOUSE	8-97581-242-0	01	1	0612-
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0612-
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0612-
