0-87 — COUPLING; INJECTION PUMP (#3538) — 54 parça

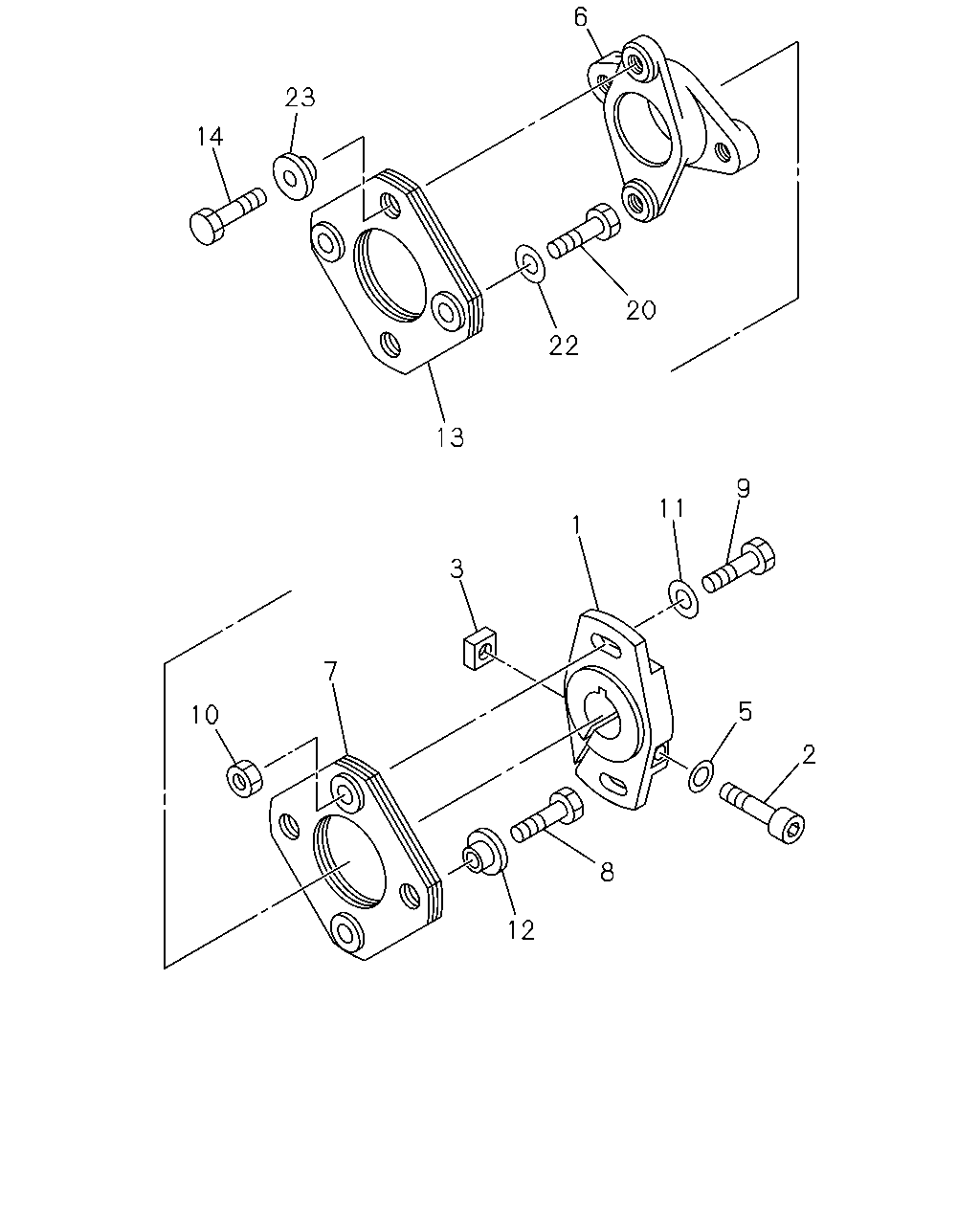

çizim 38634
6 23 14 20 22 13 9 11 1 3 7 5 10 2 8 12
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 1-15789-004-0 01 1 9002- ●
1 COUPLING; INJ PUMP DRIVE 1-15782-004-0 01 1 9012- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9002- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-020-0 01 1 9012- ●
3 NUT; COUPLING FIX,INJ PUMP 1-15789-033-0 01 1 9012- ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 9012- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 9-81381-309-0 01 1 9002- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15781-002-0 01 1 9012- ●
7 PLATE; COUPLING,COUPLING SIDE 9-81381-116-0 01 1 9002- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-003-0 01 1 9012- ●
8 BOLT; PLATE TO CROSS COUPLING 9-81385-022-0 02 1 9002- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-018-0 02 1 9012- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 9-81385-023-0 02 1 9002- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-016-0 02 1 9012- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 9-09110-508-0 02 1 9002- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-073-0 02 1 9012- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-007-0 02 1 9002- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-017-0 02 1 9012- ●
12 WASHER; PLATE TO CROSS COUPLING 1-15789-014-0 02 1 9002- ●
12 WASHER; PLATE TO CROSS COUPLING 1-15789-019-0 02 1 9012- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81381-116-0 01 1 9002- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-023-0 01 1 9012- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 9-81385-022-0 02 1 9002- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-018-0 02 1 9012- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-040-0 02 1 9002- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-024-0 02 1 9012- ●
22 WASHER; PL,COUPLING TO INJ PUMP 1-15789-011-0 02 1 9012- ●
23 BUSHING; PLATE 1-15789-019-0 02 1 9012- ●

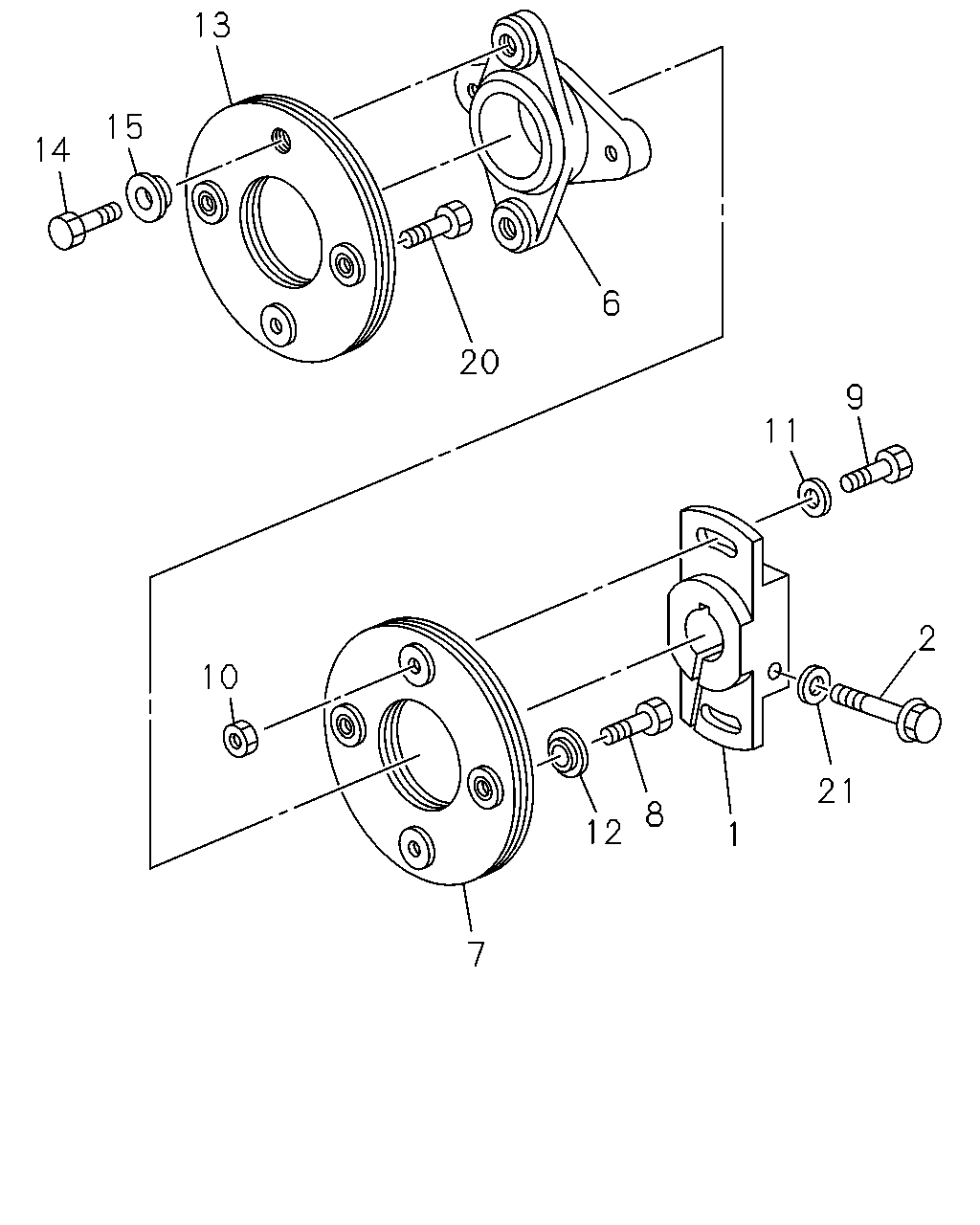

çizim 39211
13 15 14 6 20 9 11 2 10 21 8 12 1 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 1-15789-004-0 01 1 9002- ●
1 COUPLING; INJ PUMP DRIVE 1-15782-004-0 01 1 9012- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9002- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-020-0 01 1 9012- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 9-81381-309-0 01 1 9002- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15781-002-0 01 1 9012- ●
7 PLATE; COUPLING,COUPLING SIDE 9-81381-116-0 01 1 9002- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-003-0 01 1 9012- ●
8 BOLT; PLATE TO CROSS COUPLING 9-81385-022-0 02 1 9002- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-018-0 02 1 9012- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 9-81385-023-0 02 1 9002- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-016-0 02 1 9012- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 9-09110-508-0 02 1 9002- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-073-0 02 1 9012- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-007-0 02 1 9002- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-017-0 02 1 9012- ●
12 WASHER; PLATE TO CROSS COUPLING 1-15789-014-0 02 1 9002- ●
12 WASHER; PLATE TO CROSS COUPLING 1-15789-019-0 02 1 9012- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81381-116-0 01 1 9002- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-023-0 01 1 9012- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 9-81385-022-0 02 1 9002- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-018-0 02 1 9012- ●
15 WASHER; PLATE TO CROSS COUPLING 1-15789-014-0 02 1 9002- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-040-0 02 1 9002- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-024-0 02 1 9012- ●
21 WASHER; LK,COUPLING TO INJ PUMP 1-15789-011-0 02 1 9002- ●
