Isuzu WW
▶
TRUCKS
▶
NPS
▶
51136 - NPS-RHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

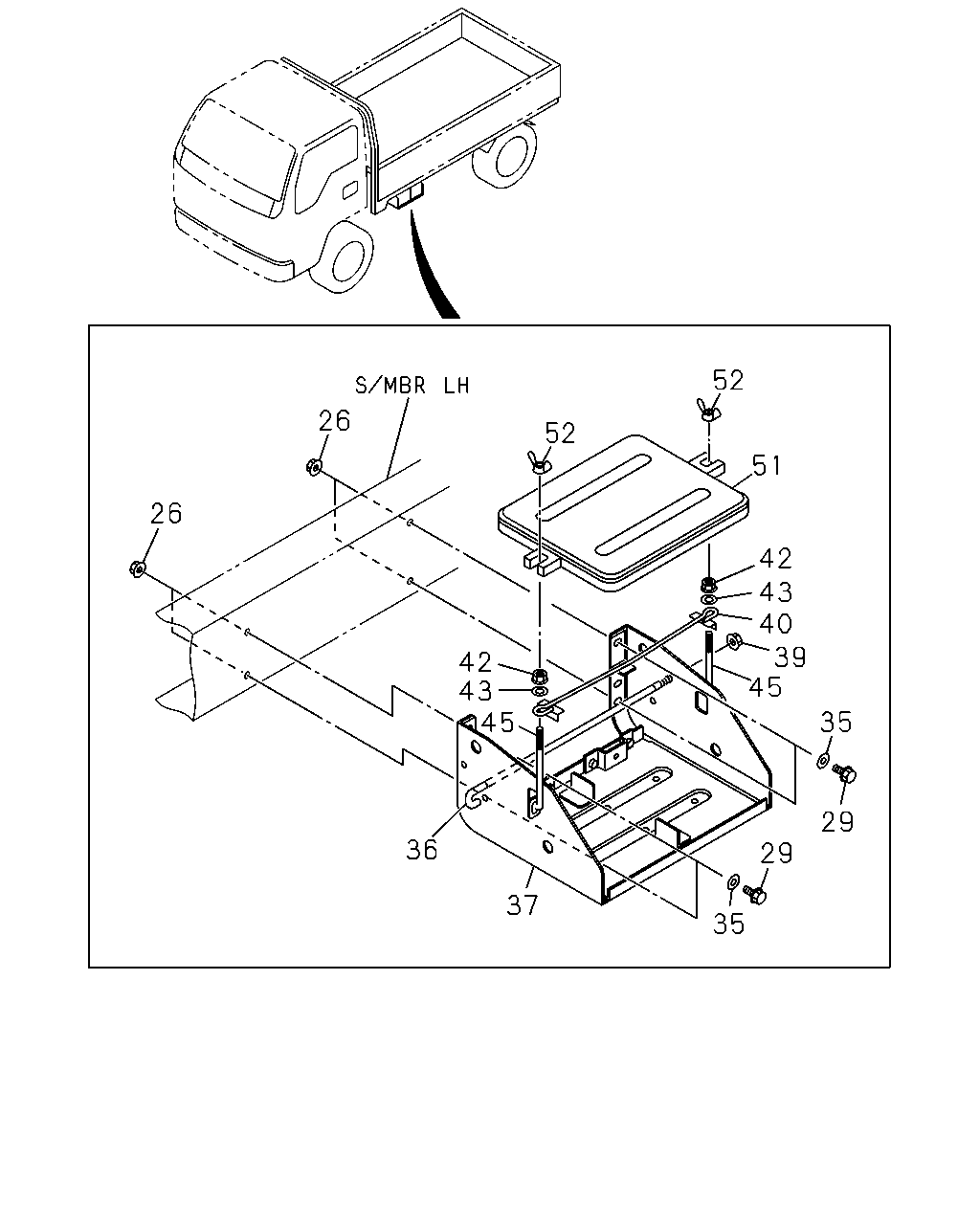

5-20 — BATTERY CARRIER
(#35373) — 13 parça
52
26
52
51
26
42
43
40
39
45
42
43
45
35
29
36
29
37
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
02
1
0612-
29
02.334 BOLT; BRKT TO FRAME
EXC. BATTERY 115E41R<6XD> 04.439 M10X30 W/LK WASHER
0-50541-030-0
04
1
0612-
35
02.334 WASHER; PL,BATTERY CARRIER
EXC. BATTERY 115E41R<6XD> 04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0612-
36
02.334 STOPPER; BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC>
8-94145-894-0
01
1
0612-
37
02.333 BRACKET; BATTERY
EXC. BATTERY 115E41R<6XD>
8-97384-068-2
01
1
0612-0612
37
02.333 BRACKET; BATTERY
EXC. BATTERY 115E41R<6XD>
8-97384-067-2
01
1
0701-
39
02.334 NUT; STOPPER,BATTERY
BATTERY 65D23R(7DQ),BATTERY 75D23R<7PC> 01.062 M6 FLANGE
0-91180-106-0
01
1
0612-
40
02.335 CLAMP; BATTERY
EXC. BATTERY 115E41R<6XD>
5-53615-004-1
01
1
0612-
42
02.334 NUT; CLAMP
EXC. BATTERY 115E41R<6XD> M8
0-91110-508-0
02
1
0612-
43
02.334 WASHER; PL,CLAMP
EXC. BATTERY 115E41R<6XD> 02.277 ID=8.4 OD=22
0-91614-708-0
02
1
0612-
45
02.334 ROD; TENSION,BATTERY
EXC. BATTERY 115E41R<6XD>
9-53616-615-0
02
1
0612-
51
02.335 COVER; BATTERY
EXC. BATTERY 115E41R<6XD>
8-97120-747-0
01
1
0612-
52
02.335 NUT; WING,COVER FIX
EXC. BATTERY 115E41R<6XD> M8 WING NUT
0-91118-408-0
02
1
0612-
