Isuzu WW
▶
TRUCKS
▶
NPS
▶
51136 - NPS-RHD
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#35372) — 51 parça
◀

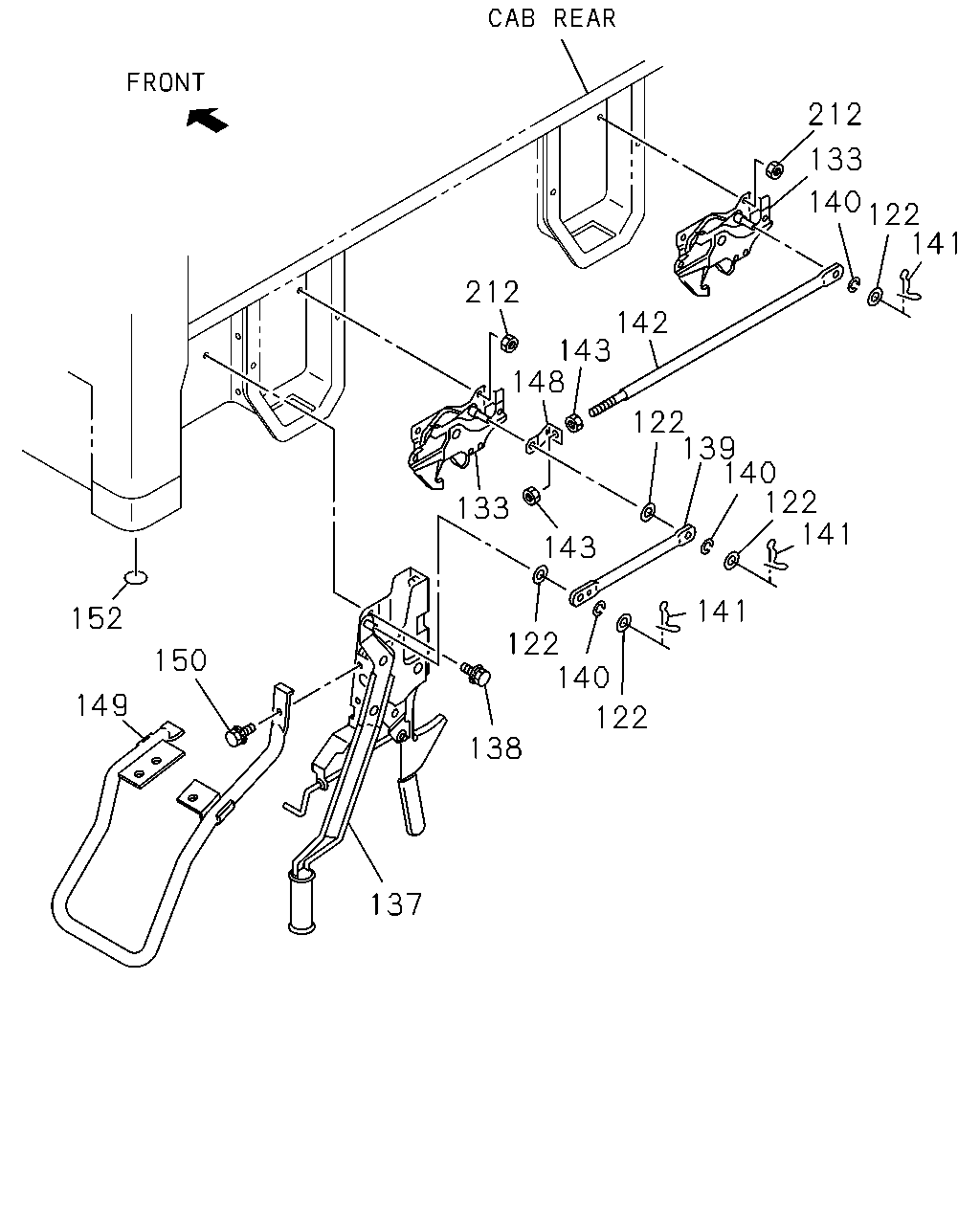

[515A] CAB LOCK (18 parça)
[515A] CAB STAY (22 parça)
[515A] TORSION BAR LEVER (11 parça)
▶
212
133
140
122
141
212
142
143
148
122
139
140
122
141
133
143
141
152
122
140
150
149
122
138
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
122
09.005 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003 ID=12.5 OD=22
8-94279-627-0
05
1
0612-0707
122
09.005 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 04.439 ID=12.5 OD=22
0-91610-512-0
05
1
0708-
133
09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ>
8-97853-056-7
01
1
0612-
133
09.005 LOCK ASM; CAB
MANUAL TILT CAB<RWZ>
8-97853-055-8
01
1
0612-
137
09.005 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ>
8-97856-293-9
01
1
0612-
138
09.005 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> 03.483 M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0612-
139
09.005 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ>
8-97997-597-0
01
1
0612-
140
09.005 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22
8-98060-839-0
03
1
0612-
141
09.005 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 09.003
1-09987-158-1
03
1
0612-
142
09.005 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ>
1-79718-581-0
01
1
0612-
143
09.005 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 09.008 M10
1-09984-142-0
02
1
0612-
148
09.005 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ>
8-97856-106-0
01
1
0612-
149
16.450 HANDLE; TILT
MANUAL TILT CAB<RWZ>
8-97853-500-5
01
1
0612-
150
16.450 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE
0-28650-820-0
03
1
0612-
152
09.003 GROMMET; DUMMY HOLE,CAB TILT LOC
16.165 OD=25 BLACK
1-76798-019-0
02
1
0612-
212
09.005 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE
1-09985-340-0
08
1
0612-0711
212
09.005 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE
0-91180-108-0
08
1
0712-0712
212
09.005 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE
1-09985-340-0
08
1
0801-
146
104
103
98
99
81
145
85
83
144
97
96
120
95
97
93
99
97
101
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
81
09.003 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ>
8-97120-943-0
01
1
0612-
83
09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=8 L=32
8-97039-548-0
01
1
0612-
85
09.003 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ>
8-94331-481-0
01
1
0612-
92
09.003 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ>
8-97096-653-0
01
1
0612-
93
09.003 PIN; CAB STAY
MANUAL TILT CAB<RWZ> OD=12 L=53
8-97218-926-0
01
1
0612-
95
09.003 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ>
8-94160-167-2
01
1
0612-
96
09.003 PIN; JOINT
MANUAL TILT CAB<RWZ> OD=10 L=36
8-97096-661-0
01
1
0612-
97
09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT
8-97022-565-0
01
1
0612-
97
09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT
8-97022-566-0
01
1
0612-
97
09.011 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT
8-97022-567-0
01
1
0612-
98
09.003 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0
8-97184-701-0
01
1
0612-
99
09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> 03.162 (B) M10 FLANGE
0-91180-110-0
02
1
0612-
99
09.003 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10
8-97185-205-1
01
1
0612-
101
09.003 SPACER
MANUAL TILT CAB<RWZ>
8-94121-864-1
01
1
0612-
103
09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40
8-97184-683-0
01
1
0612-0805
103
09.003 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40
8-97359-151-0
01
1
0806-
104
09.003 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE
0-28660-820-0
03
1
0612-
120
09.003 WASHER; NYLON
MANUAL TILT CAB<RWZ> ID=10 OD=20
8-97103-223-0
01
1
0612-
144
09.009 BRACKET ASM; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ>
8-97853-066-4
02
1
0612-
145
09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 04.634 M8X24.5 W/LK&PL WASHER
8-94279-208-0
12
1
0612-0808
145
09.008 BOLT; CAB RR MTG BRKT
EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER
8-98051-939-0
12
1
0809-
146
09.003 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ>
8-97076-588-2
01
1
0612-
15
12
1
38
324
3
15
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.003 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ>
8-97379-902-1
01
1
0612-
1
09.003 LEVER; TORSION BAR
EXC. MANUAL TILT CAB<RWZ>
8-97379-903-0
01
1
0612-
3
09.003 BOLT; LEVER
EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER
8-97326-378-0
04
1
0612-
3
09.003 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER
8-97326-378-0
06
1
0612-0612
3
09.003 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER
8-97359-033-0
06
1
0612-
12
09.003 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ>
8-97261-871-0
01
1
0612-
15
09.003 RING; SNAP,TORSION BAR
4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ>
8-97359-034-0
02
1
0612-
15
09.003 RING; SNAP,TORSION BAR
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>
8-97359-034-0
01
1
0612-
38
09.005 NUT; LK
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 07.833 M14
0-91110-514-0
01
1
0612-0612
38
09.005 NUT; LK
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> M14
8-98039-988-0
01
1
0612-
324
09.003 BOLT; ADJUST
4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> M14X55
8-98004-319-1
01
1
0612-
