5-10 — CAB MOUNTING; FRAME SIDE (#35371) — 89 parça

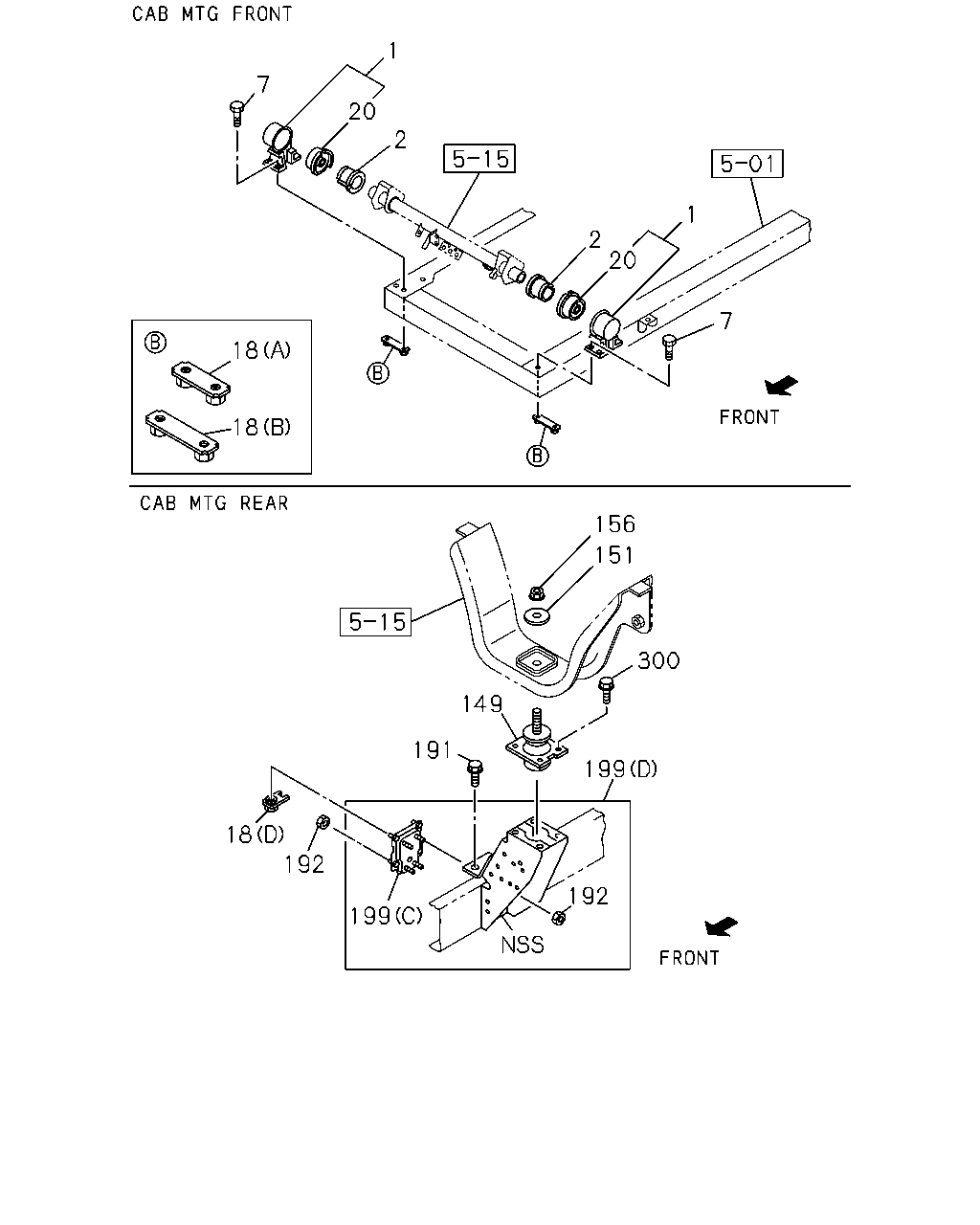

1 7 20 2 1 2 20 7 18 156 151 300 149 191 199 18 192 192 199 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.003 BRACKET; CAB MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	0612-
1	09.003 BRACKET; CAB MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	0612-
1	09.003 BRACKET; CAB MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0612-
1	09.003 BRACKET; CAB MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0612-
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-98000-402-2	01	1	0612-
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-270-1	01	1	0612-
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0612-
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0612-
18	09.003 PLATE; MTG BRKT FIX (D)	8-97351-393-0	02	1	0612-
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0612-
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0612-
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0612-
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0612-
18	09.003 PLATE; MTG BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0612-
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0612-
20	09.003 RUBBER; MTG,CAB BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0612-
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ>	8-97095-149-3	02	1	0612-0804
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ>	8-98021-561-0	02	1	0805-
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ>	8-97086-440-3	02	1	0612-0612
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ>	8-98038-868-0	02	1	0701-
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> ID=16.5 OD=58	8-97034-383-1	02	1	0612-
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=16.4 OD=62	8-97034-382-0	02	1	0612-0612
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=17 OD=62	8-97359-042-1	02	1	0612-
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 M16	0-91111-516-0	02	1	0612-
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> M14 FLANGE	0-91180-114-0	02	1	0612-
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	02	1	0612-
192	09.003 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.042 M12 FLANGE	0-91180-112-0	04	1	0612-
192	09.003 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.042 M12 FLANGE	0-91180-112-0	04	1	0612-
192	09.003 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	08	1	0612-
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0612-
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97035-310-4	02	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-97092-102-5	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-97092-102-5	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97326-522-1	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ> (A)	8-97326-520-0	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL TILT CAB<RWZ> (D)	8-97326-521-0	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (C)	8-97092-102-5	02	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (A)	8-97376-992-0	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (A)	8-97376-991-0	01	1	0612-
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0612-

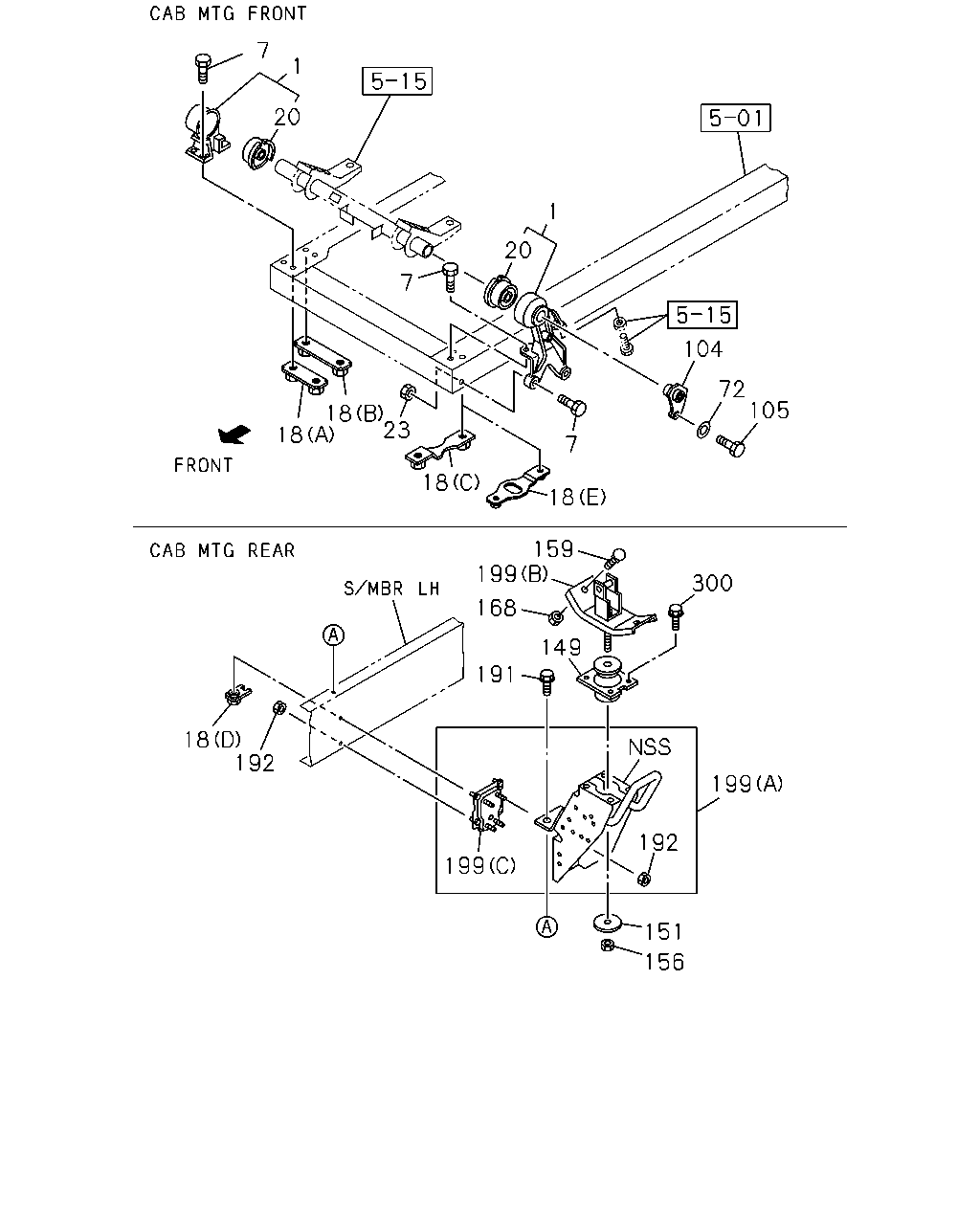

7 1 20 1 20 7 104 72 105 18 23 18 7 18 18 159 199 300 168 149 191 18 192 199 192 199 151 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.003 BRACKET; CAB MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	0612-
1	09.003 BRACKET; CAB MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	0612-
1	09.003 BRACKET; CAB MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0612-
1	09.003 BRACKET; CAB MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0612-
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-98000-402-2	01	1	0612-
1	09.003 BRACKET; CAB MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97330-270-1	01	1	0612-
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0612-
18	09.003 PLATE; MTG BRKT FIX (D)	8-97351-393-0	02	1	0612-
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0612-
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0612-
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0612-
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0612-
18	09.003 PLATE; MTG BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0612-
18	09.003 PLATE; MTG BRKT FIX 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (E)	8-97388-371-0	01	1	0612-
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-1	02	1	0612-
20	09.003 RUBBER; MTG,CAB BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0612-
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	02	1	0612-
72	09.003 WASHER; PL,BRKT TO FRAME 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0612-
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ>	8-97033-624-3	01	1	0612-
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ>	8-97164-690-3	01	1	0612-
105	09.023 BOLT; BRKT TO CAB FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0612-
105	09.023 BOLT; BRKT TO CAB FRAME 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0612-
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ>	8-97095-149-3	02	1	0612-0804
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ>	8-98021-561-0	02	1	0805-
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ>	8-97086-440-3	02	1	0612-0612
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ>	8-98038-868-0	02	1	0701-
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> ID=16.5 OD=58	8-97034-383-1	02	1	0612-
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=16.4 OD=62	8-97034-382-0	02	1	0612-0612
151	09.011 WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=17 OD=62	8-97359-042-1	02	1	0612-
156	07.529 NUT; CAB MTG RR MANUAL TILT CAB<RWZ> 00.785 M16	0-91111-516-0	02	1	0612-
156	07.529 NUT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ> M14 FLANGE	0-91180-114-0	02	1	0612-
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0612-
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0612-
191	09.003 BOLT; BRKT FIX M12X40 FLANGE	0-28651-240-0	02	1	0612-
192	09.003 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.042 M12 FLANGE	0-91180-112-0	04	1	0612-
192	09.003 NUT; BRKT FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.042 M12 FLANGE	0-91180-112-0	04	1	0612-
192	09.003 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	08	1	0612-
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0612-
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (B)	8-97035-310-4	02	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-97092-102-5	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C)	8-97092-102-5	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97326-522-1	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) MANUAL TILT CAB<RWZ> (A)	8-97326-520-0	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. MANUAL TILT CAB<RWZ> (D)	8-97326-521-0	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (C)	8-97092-102-5	02	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (A)	8-97376-992-0	01	1	0612-
199	09.003 BRACKET; CAB RR MTG 4HK1-TCN ENG(RDQ) MANUAL TILT CAB<RWZ> (A)	8-97376-991-0	01	1	0612-
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
