5-01 — FRAME AND OTHER PARTS (#35370) — 115 parça

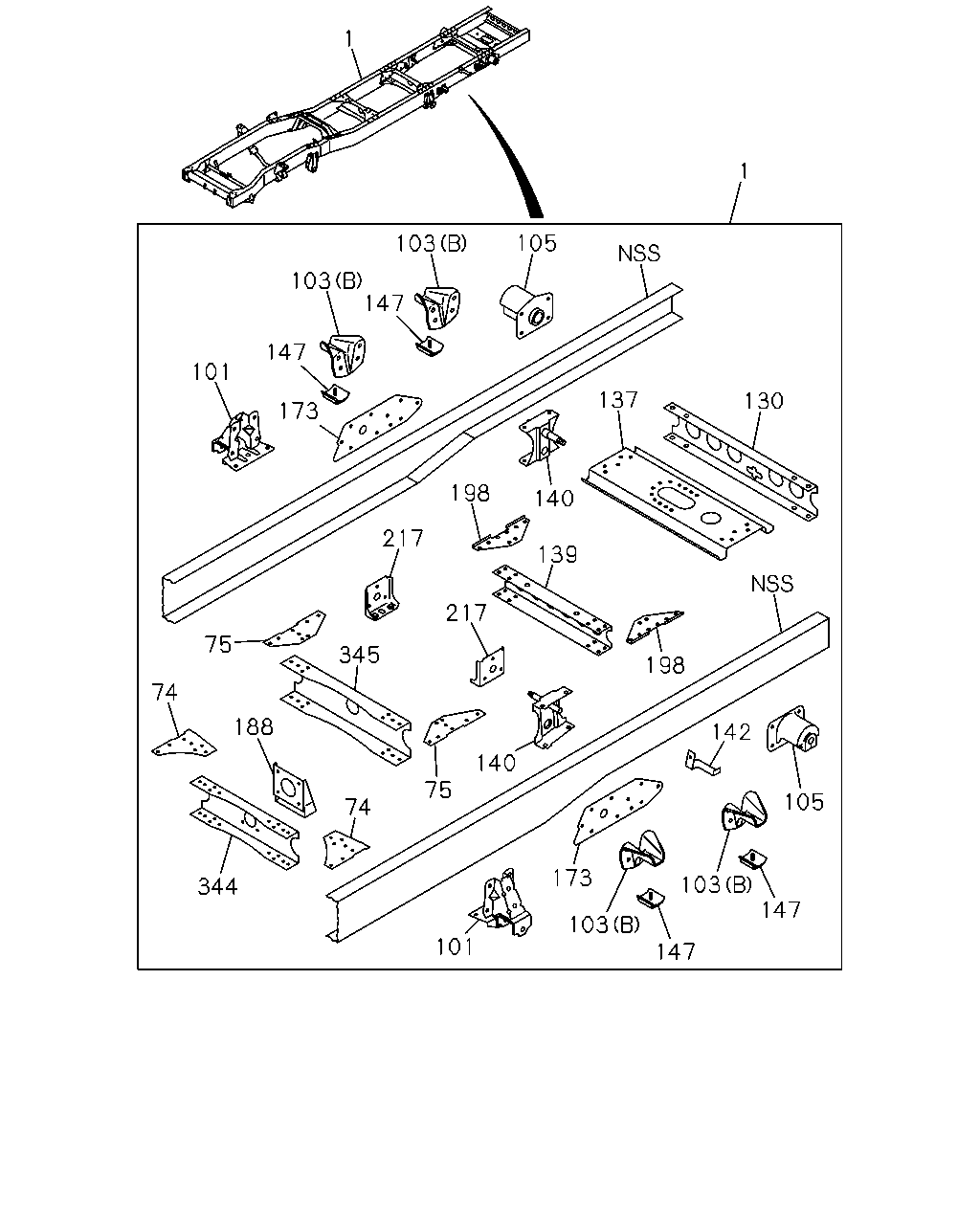

1 1 105 103 103 147 147 101 137 130 173 198 140 217 139 217 75 345 198 74 188 142 140 75 105 74 173 103 344 147 103 101 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME PRESS KOUGYOU<7RZ>	8-97377-812-1	01	1	0612-0612
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97377-812-1	01	1	0701-
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) FRAME PRESS KOUGYOU<7RZ>	8-97377-811-3	01	1	0612-0612
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ)	8-97377-811-3	01	1	0701-
74	07.039 GUSSET; 4TH C/MBR FRAME PRESS KOUGYOU<7RZ> RH UPPER, LH LOWER	8-97079-406-0	02	1	0612-0612
74	07.039 GUSSET; 4TH C/MBR RH UPPER, LH LOWER	8-97079-406-0	02	1	0701-
74	07.039 GUSSET; 4TH C/MBR FRAME PRESS KOUGYOU<7RZ> LH UPPER, RH LOWER	8-97079-407-0	02	1	0612-0612
74	07.039 GUSSET; 4TH C/MBR LH UPPER, RH LOWER	8-97079-407-0	02	1	0701-
75	07.039 GUSSET; 5TH C/MBR FRAME PRESS KOUGYOU<7RZ> RH UPPER, LH LOWER	8-94319-528-0	02	1	0612-0612
75	07.039 GUSSET; 5TH C/MBR RH UPPER, LH LOWER	8-94319-528-0	02	1	0701-
75	07.039 GUSSET; 5TH C/MBR FRAME PRESS KOUGYOU<7RZ> LH UPPER, RH LOWER	8-94319-529-0	02	1	0612-0612
75	07.039 GUSSET; 5TH C/MBR LH UPPER, RH LOWER	8-94319-529-0	02	1	0701-
101	07.112 BRACKET; RR SPR,FRT FRAME PRESS KOUGYOU<7RZ>	8-94101-296-3	02	1	0612-0612
101	07.112 BRACKET; RR SPR,FRT	8-94101-296-3	02	1	0701-
103	07.420 STOPPER; SUB SPR FRAME PRESS KOUGYOU<7RZ> 07.112 (A)	8-94101-392-0	02	1	0612-0612
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	0701-
103	07.420 STOPPER; SUB SPR FRAME PRESS KOUGYOU<7RZ> (B)	8-97223-748-0	04	1	0612-0612
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	04	1	0701-
105	07.112 BRACKET; RR SPR,RR FRAME PRESS KOUGYOU<7RZ>	9-53353-615-1	02	1	0612-0612
105	07.112 BRACKET; RR SPR,RR	9-53353-615-1	02	1	0701-
130	07.014 MEMBER; CROSS,END FRAME PRESS KOUGYOU<7RZ>	8-94473-386-0	01	1	0612-0612
130	07.014 MEMBER; CROSS,END	8-94473-386-0	01	1	0701-
137	07.629 BRACKET; SPARE TIRE FRAME PRESS KOUGYOU<7RZ>	8-97076-885-1	01	1	0612-0612
137	07.629 BRACKET; SPARE TIRE	8-97076-885-1	01	1	0701-
139	07.012 MEMBER; CROSS,6TH FRAME PRESS KOUGYOU<7RZ>	8-94473-385-1	01	1	0612-0612
139	07.012 MEMBER; CROSS,6TH	8-94473-385-1	01	1	0701-
140	07.112 BRACKET; S/ABS,RR FRAME PRESS KOUGYOU<7RZ>	8-94342-188-0	01	1	0612-0612
140	07.112 BRACKET; S/ABS,RR	8-94342-188-0	01	1	0701-
140	07.112 BRACKET; S/ABS,RR FRAME PRESS KOUGYOU<7RZ>	8-94342-189-0	01	1	0612-0612
140	07.112 BRACKET; S/ABS,RR	8-94342-189-0	01	1	0701-
142	04.845 BRACKET; FLEX HOSE,BRAKE FRAME PRESS KOUGYOU<7RZ> 07.112	8-94162-749-2	01	1	0612-0612
142	04.845 BRACKET; FLEX HOSE,BRAKE 07.112	8-94162-749-2	01	1	0701-
147	07.535 RUBBER; SUB SPRING FRAME PRESS KOUGYOU<7RZ>	8-97254-387-0	04	1	0612-0612
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0701-
173	07.112 STIFFENER; RR SPRING FRAME PRESS KOUGYOU<7RZ> FRONT	8-97208-576-0	02	1	0612-0612
173	07.112 STIFFENER; RR SPRING FRONT	8-97208-576-0	02	1	0701-
173	07.112 STIFFENER; RR SPRING FRAME PRESS KOUGYOU<7RZ> REAR	8-97208-577-0	02	1	0612-0612
173	07.112 STIFFENER; RR SPRING REAR	8-97208-577-0	02	1	0701-
188	07.039 BRACKET; SUPPORT,CTR BRG FRAME PRESS KOUGYOU<7RZ>	8-97043-581-0	01	1	0612-0612
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97043-581-0	01	1	0701-
198	07.039 GUSSET; 6TH C/MBR FRAME PRESS KOUGYOU<7RZ> RH UPPER, LH LOWER	8-94319-528-0	02	1	0612-0612
198	07.039 GUSSET; 6TH C/MBR RH UPPER, LH LOWER	8-94319-528-0	02	1	0701-
198	07.039 GUSSET; 6TH C/MBR FRAME PRESS KOUGYOU<7RZ> LH UPPER, RH LOWER	8-94319-529-0	02	1	0612-0612
198	07.039 GUSSET; 6TH C/MBR LH UPPER, RH LOWER	8-94319-529-0	02	1	0701-
217	07.535 BRACKET; HELPER RUBBER,RR SPRING FRAME PRESS KOUGYOU<7RZ>	8-94258-963-0	02	1	0612-0612
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-94258-963-0	02	1	0701-
344	07.012 MEMBER; CROSS,4TH 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME PRESS KOUGYOU<7RZ>	8-97079-405-4	01	1	0612-0612
344	07.012 MEMBER; CROSS,4TH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97079-405-4	01	1	0701-
344	07.012 MEMBER; CROSS,4TH 4HK1-TCN ENG(RDQ) FRAME PRESS KOUGYOU<7RZ>	8-98024-625-0	01	1	0612-0612
344	07.012 MEMBER; CROSS,4TH 4HK1-TCN ENG(RDQ)	8-98024-625-0	01	1	0701-
345	07.012 MEMBER; CROSS,5TH FRAME PRESS KOUGYOU<7RZ>	8-97180-545-5	01	1	0612-0612
345	07.012 MEMBER; CROSS,5TH	8-97180-545-5	01	1	0701-

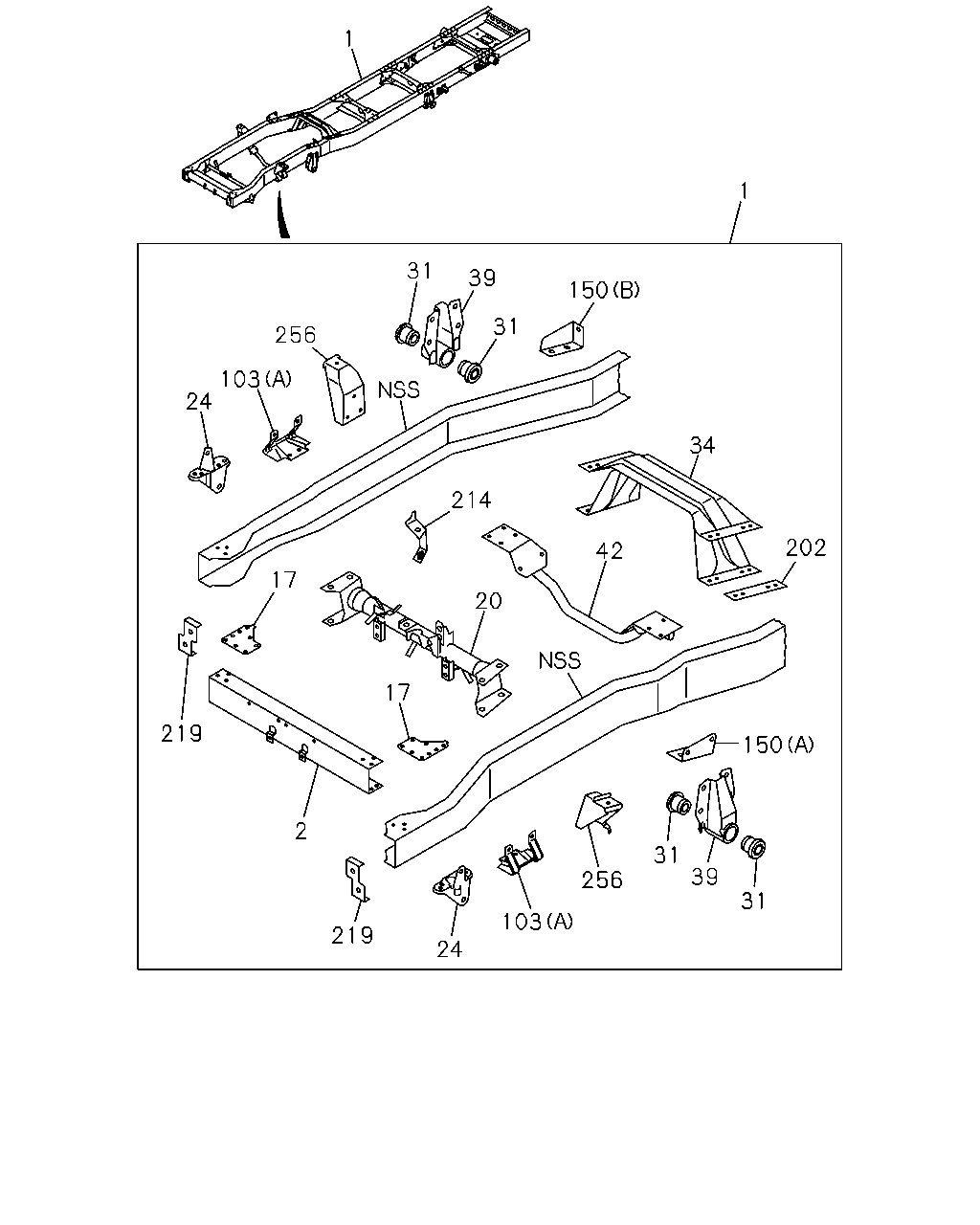

1 1 31 39 150 31 256 103 24 34 214 202 42 17 20 17 219 150 2 31 39 256 31 103 219 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME PRESS KOUGYOU<7RZ>	8-97377-812-1	01	1	0612-0612
1	07.003 FRAME ASM 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97377-812-1	01	1	0701-
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ) FRAME PRESS KOUGYOU<7RZ>	8-97377-811-3	01	1	0612-0612
1	07.003 FRAME ASM 4HK1-TCN ENG(RDQ)	8-97377-811-3	01	1	0701-
2	07.010 MEMBER; CROSS,1ST FRAME PRESS KOUGYOU<7RZ>	8-97042-532-8	01	1	0612-0612
2	07.010 MEMBER; CROSS,1ST	8-97042-532-8	01	1	0701-
17	07.039 GUSSET; 1ST C/MBR FRAME PRESS KOUGYOU<7RZ>	8-97088-205-1	02	1	0612-0612
17	07.039 GUSSET; 1ST C/MBR	8-97088-205-1	02	1	0701-
20	07.012 MEMBER; CROSS,2ND FRAME PRESS KOUGYOU<7RZ>	8-97377-814-0	01	1	0612-0612
20	07.012 MEMBER; CROSS,2ND	8-97377-814-0	01	1	0701-
24	07.105 BRACKET; FRT SPR,FRT FRAME PRESS KOUGYOU<7RZ>	8-97086-593-1	01	1	0612-0612
24	07.105 BRACKET; FRT SPR,FRT	8-97086-593-1	01	1	0701-
24	07.105 BRACKET; FRT SPR,FRT FRAME PRESS KOUGYOU<7RZ>	8-97086-592-1	01	1	0612-0612
24	07.105 BRACKET; FRT SPR,FRT	8-97086-592-1	01	1	0701-
31	07.428 BUSHING; FRT SPR,RR FRAME PRESS KOUGYOU<7RZ> 07.524	8-97184-699-1	04	1	0612-0612
31	07.428 BUSHING; FRT SPR,RR 07.524	8-97184-699-1	04	1	0701-
34	07.012 MEMBER; CROSS,3RD FRAME PRESS KOUGYOU<7RZ>	8-97353-677-0	01	1	0612-0612
34	07.012 MEMBER; CROSS,3RD	8-97353-677-0	01	1	0701-
39	07.112 BRACKET; FRT SPR,RR FRAME PRESS KOUGYOU<7RZ>	8-97046-283-1	02	1	0612-0612
39	07.112 BRACKET; FRT SPR,RR	8-97046-283-1	02	1	0701-
42	07.011 MEMBER; CROSS,ENG MTG FRAME PRESS KOUGYOU<7RZ>	8-97088-742-1	01	1	0612-0612
42	07.011 MEMBER; CROSS,ENG MTG	8-97088-742-1	01	1	0701-
103	07.420 STOPPER; SUB SPR FRAME PRESS KOUGYOU<7RZ> 07.112 (A)	8-94101-392-0	02	1	0612-0612
103	07.420 STOPPER; SUB SPR 07.112 (A)	8-94101-392-0	02	1	0701-
103	07.420 STOPPER; SUB SPR FRAME PRESS KOUGYOU<7RZ> (B)	8-97223-748-0	04	1	0612-0612
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	04	1	0701-
150	03.616 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) FRAME PRESS KOUGYOU<7RZ> (A)	8-97354-440-0	01	1	0612-0612
150	03.616 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) (A)	8-97354-440-0	01	1	0701-
150	03.616 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) FRAME PRESS KOUGYOU<7RZ> (B)	8-98019-590-0	01	1	0612-0612
150	03.616 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ) (B)	8-98019-590-0	01	1	0701-
202	07.105 SPACER; 3RD C/MBR FRAME PRESS KOUGYOU<7RZ>	8-97314-627-1	04	1	0612-0612
202	07.105 SPACER; 3RD C/MBR	8-97314-627-1	04	1	0701-
214	07.112 BRACKET; GEAR CONT FRAME PRESS KOUGYOU<7RZ>	8-97065-489-5	01	1	0612-0612
214	07.112 BRACKET; GEAR CONT	8-97065-489-5	01	1	0701-
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA FRAME PRESS KOUGYOU<7RZ>	8-97081-350-0	01	1	0612-0612
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-97081-350-0	01	1	0701-
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA FRAME PRESS KOUGYOU<7RZ>	8-97081-351-0	01	1	0612-0612
219	07.869 BRACKET; BACK BAR,FRT BUMPER,FRA	8-97081-351-0	01	1	0701-
256	07.395 BRACKET; S/ABS FRAME PRESS KOUGYOU<7RZ>	8-97077-463-3	01	1	0612-0612
256	07.395 BRACKET; S/ABS	8-97077-463-3	01	1	0701-
256	07.395 BRACKET; S/ABS FRAME PRESS KOUGYOU<7RZ>	8-94314-431-3	01	1	0612-0612
256	07.395 BRACKET; S/ABS	8-94314-431-3	01	1	0701-

376 376 376 376 376 376 376 376 376 376 376 376 376 526 176 118 67 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
67	07.011 NUT; C/MBR FRAME PRESS KOUGYOU<7RZ> 06.509 M12 FLANGE	8-94436-194-0	08	1	0612-0612
67	07.011 NUT; C/MBR 06.509 M12 FLANGE	8-94436-194-0	08	1	0701-
118	07.529 NUT; STOPPER FRAME PRESS KOUGYOU<7RZ> M8 LOCK NUT	0-91370-008-0	04	1	0612-0612
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	04	1	0701-
176	04.085 BOLT; C/MBR,ENG MTG FRAME PRESS KOUGYOU<7RZ> M12X35 FLANGE	0-28061-235-0	08	1	0612-0612
176	04.085 BOLT; C/MBR,ENG MTG M12X35 FLANGE	0-28061-235-0	08	1	0701-
376	07.039 RIVET; FRAME 07.011 (A) D8X24 TAPER END	9-06750-824-0	AR	1	0612-
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	0612-
376	07.039 RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	0612-
376	07.039 RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	0612-
376	07.039 RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	0612-
376	07.039 RIVET; FRAME (F) D10X30 TAPER END	9-06751-030-0	AR	1	0612-
376	07.039 RIVET; FRAME (G) D10X32 TAPER END	9-06751-032-0	AR	1	0612-
376	07.039 RIVET; FRAME (H) D10X36 TAPER END	9-06751-036-0	AR	1	0612-
376	07.039 RIVET; FRAME 07.105 (I) D12X30 TAPER END	9-06751-230-0	AR	1	0612-
376	07.039 RIVET; FRAME 07.535 (J) D12X34 TAPER END	9-06751-234-0	AR	1	0612-
376	07.039 RIVET; FRAME 07.428 (K) D12X36 TAPER END	9-06751-236-0	AR	1	0612-
376	07.039 RIVET; FRAME (L) D13X40 TAPER END	9-06751-340-0	AR	1	0612-
376	07.039 RIVET; FRAME (M) D13X42 TAPER END	9-06751-342-0	AR	1	0612-
526	07.039 BOLT; BRKT TO S/MBR 4HG1-T ENG(RDP),4HG1 ENG(RJH) 09.003 M12X30 FLANGE	0-28051-230-0	02	1	0706-
527	07.039 NUT; BRKT TO S/MBR 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.509 M12 FLANGE	8-94436-194-0	02	1	0706-
