0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#3537) — 33 parça

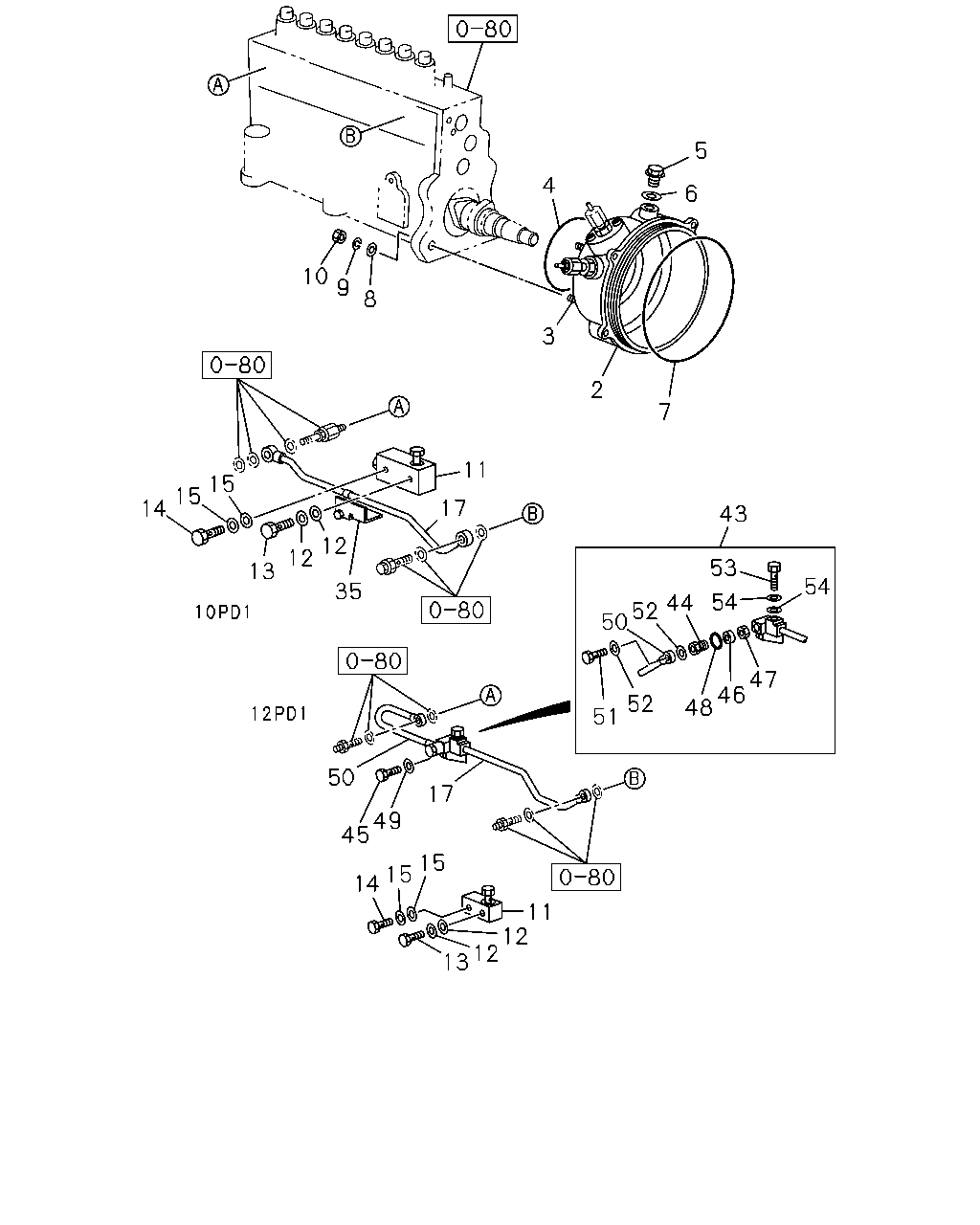

çizim 7392
5 4 6 10 9 8 3 2 7 15 11 15 17 14 43 12 12 53 13 54 35 54 44 52 50 47 46 48 52 51 50 17 49 45 15 15 14 11 12 12 13
BalonParca AdiParca NoAdetTipApplied Date A B
2 BRACKET; HSG & TIMER,INJ PUMP 1-19751-083-0 01 1 9002- ● ●
3 STUD; HSG BRKT,INJ PUMP 1-15749-445-0 04 1 9002- ● ●
4 GASKET; HSG BRKT,HSG SIDE,INJ PUMP 1-15629-077-0 01 1 9002-9108 ●
4 GASKET; HSG BRKT,HSG SIDE,INJ PUMP 1-15619-322-0 01 1 9109- ● ●
5 PLUG; HSG BRKT,INJ PUMP 1-15619-284-0 01 1 9002- ● ●
6 GASKET; PLUG,INJ PUMP BRKT 1-15629-056-0 01 1 9002- ● ●
7 GASKET; HSG BRKT,ENG SIDE 1-09623-459-0 01 1 9002- ● ●
8 WASHER; PL,HSG BRKT,INJ PUMP
ID=10.5 		9-09164-510-0 04 1 9002- ● ●
9 WASHER; LK,HSG BRKT,INJ PUMP
ID=10.2 		9-09150-610-0 04 1 9002- ● ●
10 NUT; HSG BRKT,INJ PUMP 9-88410-456-0 04 1 9002- ● ●
11 CONNECTOR; BYPASS 1-15629-079-0 01 1 9002- ● ●
12 GASKET; EYE BOLT,FUEL PIPE TO HSG 1-15759-012-0 02 1 9002-9108 ●
12 GASKET; EYE BOLT,FUEL PIPE TO HSG 1-09630-085-0 02 1 9109- ● ●
13 BOLT; EYE,FUEL PIPE TO PUMP HSG 1-15619-287-0 01 1 9002- ● ●
14 BOLT; EYE,FUEL PIPE TO HSG,INJ PUMP 1-15619-287-0 01 1 9002- ● ●
15 GASKET; FUEL PIPE,INJ PUMP 1-15759-012-0 02 1 9002-9108 ●
15 GASKET; FUEL PIPE,INJ PUMP 1-09630-085-0 02 1 9109- ● ●
17 PIPE; FUEL OVERFLOW FRT,INJ PUMP 1-15619-270-0 01 1 9002- ●
17 PIPE; FUEL OVERFLOW FRT,INJ PUMP 1-15619-255-0 01 1 9307- ●
35 BRACKET; FUEL CUT VLV,INJ PUMP 1-15619-269-0 01 1 9002-9108 ●
35 BRACKET; FUEL CUT VLV,INJ PUMP 1-15619-269-0 01 1 9109- ●
43 PIPE ASM; FUEL OVERFLOW,INJ PUMP 1-15619-272-0 01 1 9307- ●
44 ADAPTER; EYE BOLT,INJ PUMP 1-15619-241-0 01 1 9307- ●
45 BOLT; FUEL PIPE TO HSG,INJ PUMP 1-15729-412-0 01 1 9307- ●
46 VALVE; CHECK,FUEL PIPE,INJ PUMP 5-15755-004-0 01 1 9307- ●
47 GASKET; CHECK VLV,INJ PUMP 5-15729-115-0 01 1 9307- ●
48 GASKET; PIPE ADAPTER,INJ PUMP 1-09623-052-0 01 1 9307- ●
49 WASHER; PL,FUEL PIPE TO HSG,INJ PUMP 1-15729-913-0 01 1 9307- ●
50 PIPE; FUEL OVERFLOW RR,INJ PUMP 1-15619-273-0 01 1 9307- ●
51 BOLT; EYE,FUEL OVERFLOW PIPE,INJ PUMP 1-15759-011-0 01 1 9307- ●
52 GASKET; EYE BOLT,FUEL OVERFLOW PIPE
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9307- ●
53 BOLT; EYE,FUEL RETURN PIPE,INJ PUMP 1-15759-011-0 01 1 9307- ●
54 GASKET; FUEL RETURN PIPE,INJ PUMP
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9307- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
