Isuzu WW
▶
TRUCKS
▶
NPS
▶
51136 - NPS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

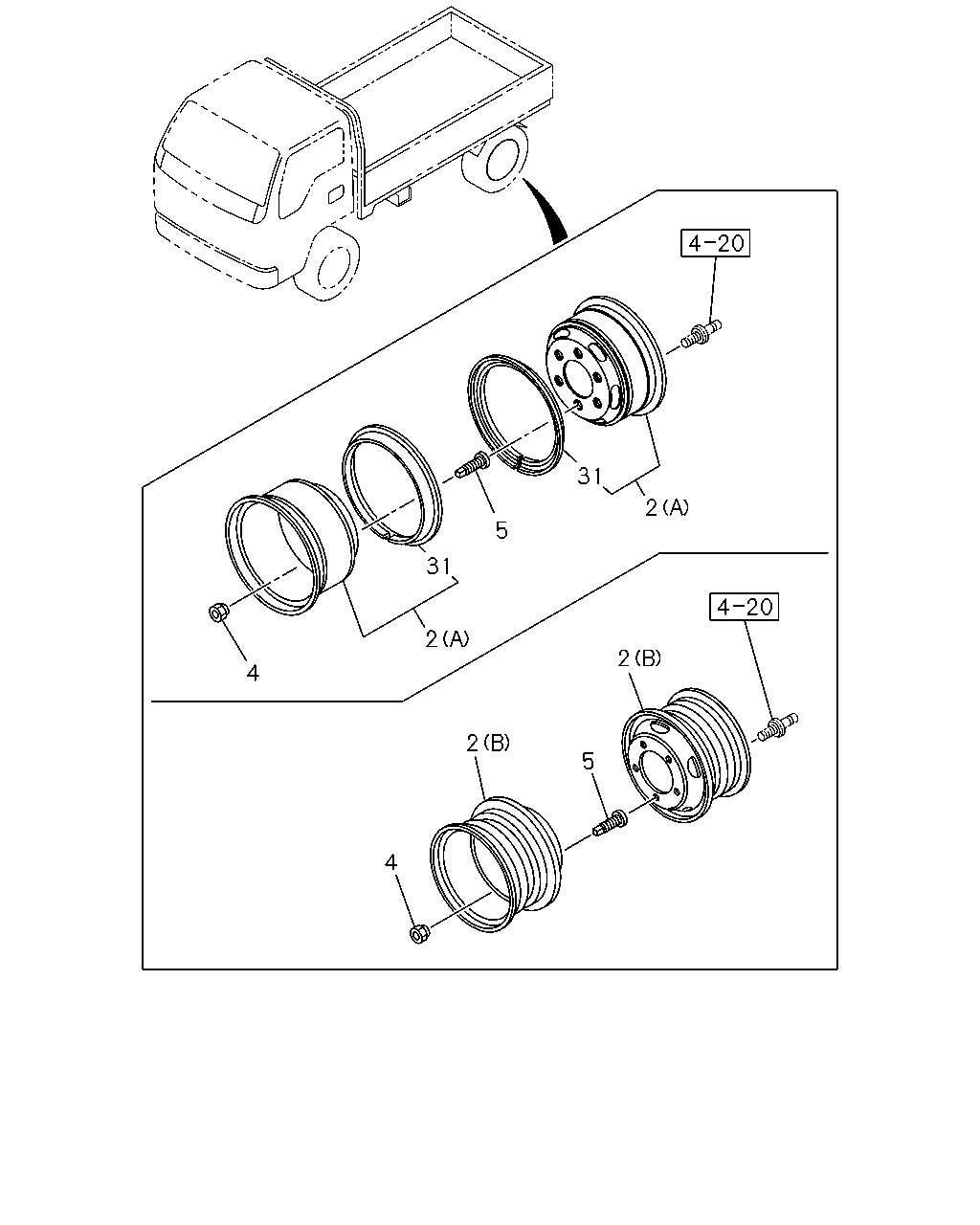

4-80 — ROAD WHEEL
(#35369) — 24 parça
◀
[480A] FRONT (8 parça)
[480A] SPARE (6 parça)
[480A] REAR (10 parça)
▶
3
31
2
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
0612-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
0612-
2
05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
01
1
0612-
2
05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
06
1
0612-
3
05.813 NUT; WHEEL,FRT AXLE
M20 LH THREAD
8-97359-808-0
06
1
0612-
3
05.813 NUT; WHEEL,FRT AXLE
M20 RH THREAD
8-97359-807-0
06
1
0612-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
0612-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
0612-
31
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
0612-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
0612-
2
05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
01
1
0612-
2
05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
06
1
0612-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
0612-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
0612-
31
2
5
31
2
2
4
2
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
01
1
0612-
2
05.803 WHEEL; DISC
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (A) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE
8-94438-670-4
06
1
0612-
2
05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
01
1
0612-
2
05.803 WHEEL; DISC
FRT&RR 8.50R17.5 17.5X6.00-127 6-WHL/NUT(CSN) (B) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE
8-98012-855-0
06
1
0612-
4
05.813 NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
0612-
4
05.813 NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
0612-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
0612-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
0612-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) SPARE 16X6.00GS STAMP, BLACK
8-94412-585-0
01
1
0612-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) FRONT,REAR 16X6.00GS STAMP, BLACK
8-94412-585-0
06
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
