Isuzu WW
▶
TRUCKS
▶
NPS
▶
51136 - NPS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

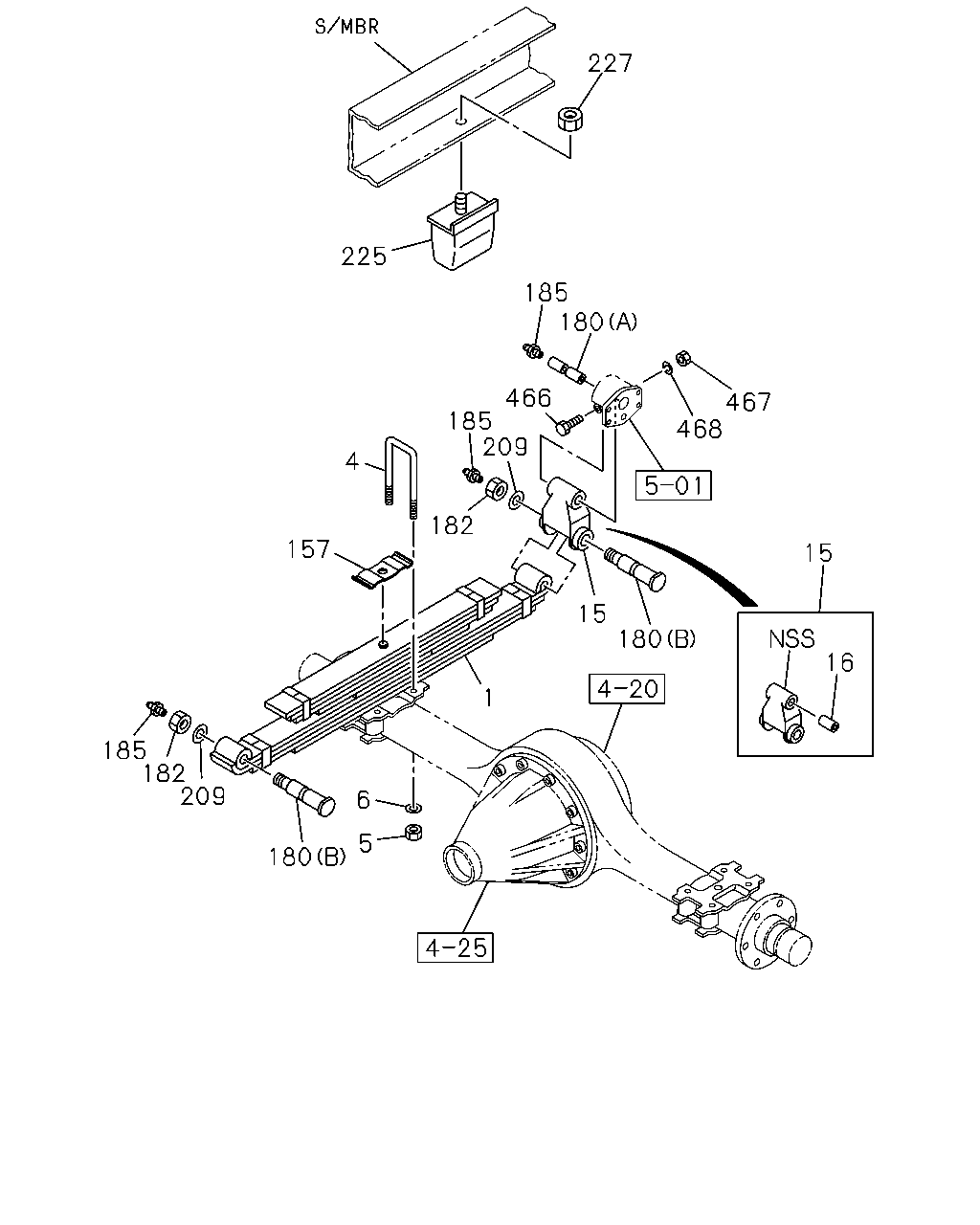

4-60 — REAR SUSPENSION
(#35366) — 20 parça
227
225
185
180
466
467
468
185
209
4
182
157
15
15
180
16
1
185
182
209
6
5
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF
8-97075-952-0
02
1
0612-
4
07.516 U-BOLT; RR SPR
L=295
8-94132-358-2
04
1
0612-
5
07.529 NUT; U-BOLT,RR SPR
07.516 M16
8-94107-767-0
08
1
0612-0612
5
07.529 NUT; U-BOLT,RR SPR
07.417 M16
8-97360-121-0
08
1
0612-
6
07.516 WASHER; PL,U-BOLT
ID=16.4
8-97360-118-0
08
1
0612-
15
07.523 SHACKLE; RR SPR
8-94126-188-4
02
1
0612-
16
07.524 BUSHING; SHACKLE,RR SPR
ID=25
9-51151-032-0
02
1
0612-0902
16
07.524 BUSHING; SHACKLE,RR SPR
ID=25
8-98082-176-0
02
1
0903-
157
07.518 CLAMP; UPR,RR SPR
L=140 T=4.5
8-94118-509-1
02
1
0612-
180
07.529 PIN; RR SPR
07.524 (A) DO=25 L=115 PT1/8
1-51361-016-0
02
1
0612-
180
07.529 PIN; RR SPR
(B) L=121
8-94122-174-3
04
1
0612-
182
07.529 NUT; PIN,RR SPR
05.812 REAR M20
0-91110-520-0
02
1
0612-
182
07.529 NUT; PIN,RR SPR
06.234 FRONT M20
0-91111-520-0
02
1
0612-
185
08.984 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
06
1
0612-
209
07.529 WASHER; PL
8-97073-436-0
04
1
0612-
225
07.535 RUBBER; CUSHION,RR SPR
8-94118-510-5
02
1
0612-
227
07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE
0-91180-112-0
02
1
0612-
466
07.529 BOLT; SPRING PIN
M12X55
0-10811-255-0
02
1
0612-
467
07.529 NUT; SPRING PIN
05.002 M12
0-91110-512-0
02
1
0612-
468
07.529 WASHER; LK,SPRING PIN
03.634 ID=12.2
0-91510-512-0
02
1
0612-
