◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51136 - NPS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#35365) — 17 parça

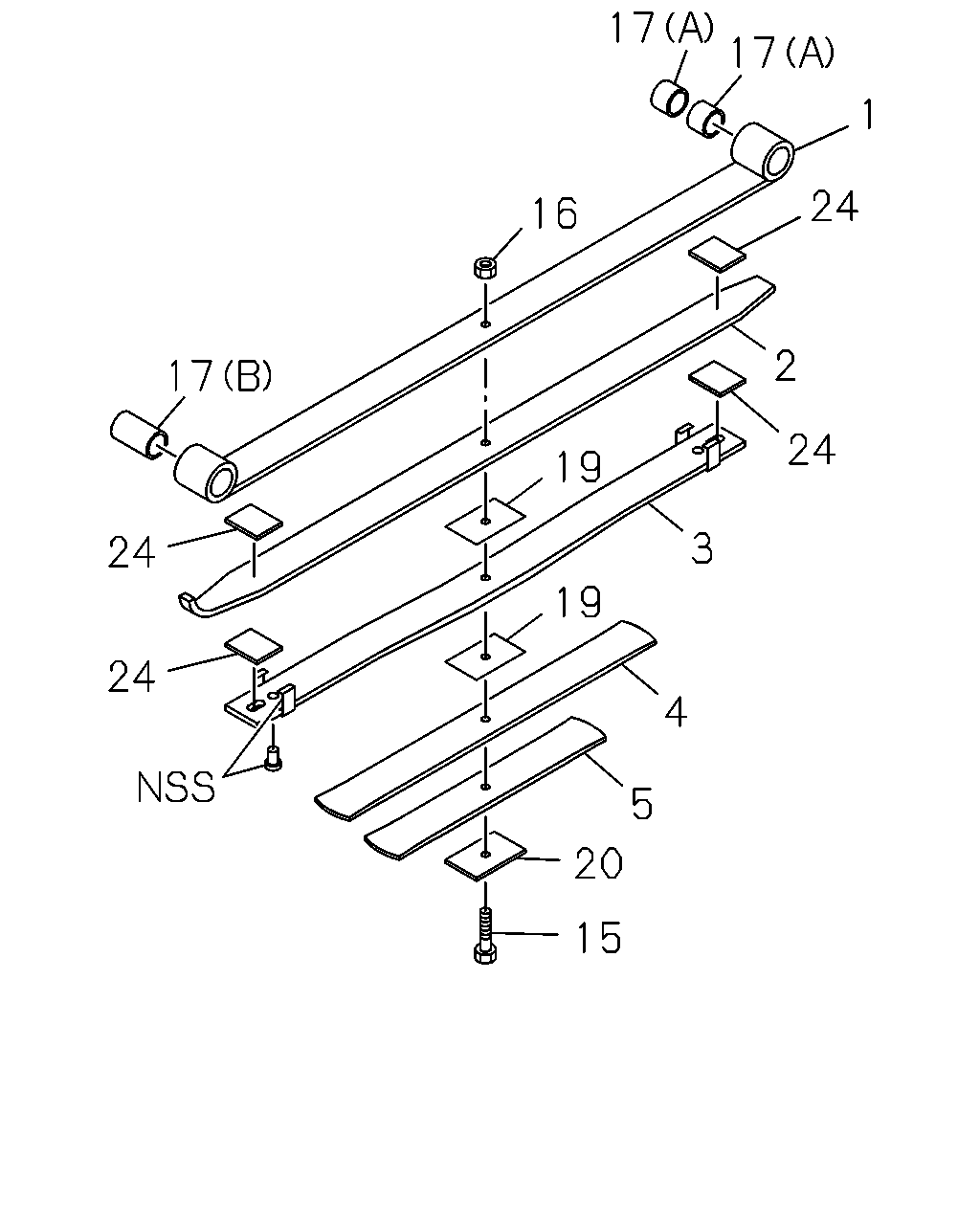

çizim 57446
1 24 16 2 24 19 3 24 19 24 4 5 20 15 17 17 17
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-97092-451-1, 97092451 		8-97108-371-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-97092-452-1, 97092452 		8-97108-376-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-97092-451-1, 97092451 		8-97108-372-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-97092-452-1, 97092452 		8-97108-377-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-97092-451-1, 97092451 		8-97108-373-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-97092-452-1, 97092452 		8-97108-378-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-97092-451-1, 97092451 		8-97108-374-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-97092-452-1, 97092452 		8-97108-379-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-97092-451-1, 97092451 		8-97108-375-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-97092-452-1, 97092452 		8-97108-380-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
M18X85 ASM PART: A = 8-97092-451-1, 97092451, B = 8-97092-452-1, 97092452 		8-94329-695-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
06.216, M18 ASM PART: A = 8-97092-451-1, 97092451, B = 8-97092-452-1, 97092452 		9-99110-518-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
07.524, (A) ASM PART: A = 8-97092-451-1, 97092451, B = 8-97092-452-1, 97092452 		8-94118-588-1 02 1 -
17 07.413 BUSHING; LEAF SPR,FRT
(B), OD=42 L=81 ASM PART: A = 8-97092-451-1, 97092451, B = 8-97092-452-1, 97092452 		8-97081-586-0 01 1 -
19 07.425 SPACER; LEAF SPRING,FRT
ASM PART: A = 8-97092-451-1, 97092451, B = 8-97092-452-1, 97092452 		8-97084-847-0 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
T=6 ASM PART: A = 8-97092-451-1, 97092451, B = 8-97092-452-1, 97092452 		8-97094-598-0 01 1 -
24 07.436 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-97092-451-1, 97092451, B = 8-97092-452-1, 97092452 		8-97084-848-0 04 1 -
