4-42 — POWER STEERING OIL PUMP (#35363) — 103 parça

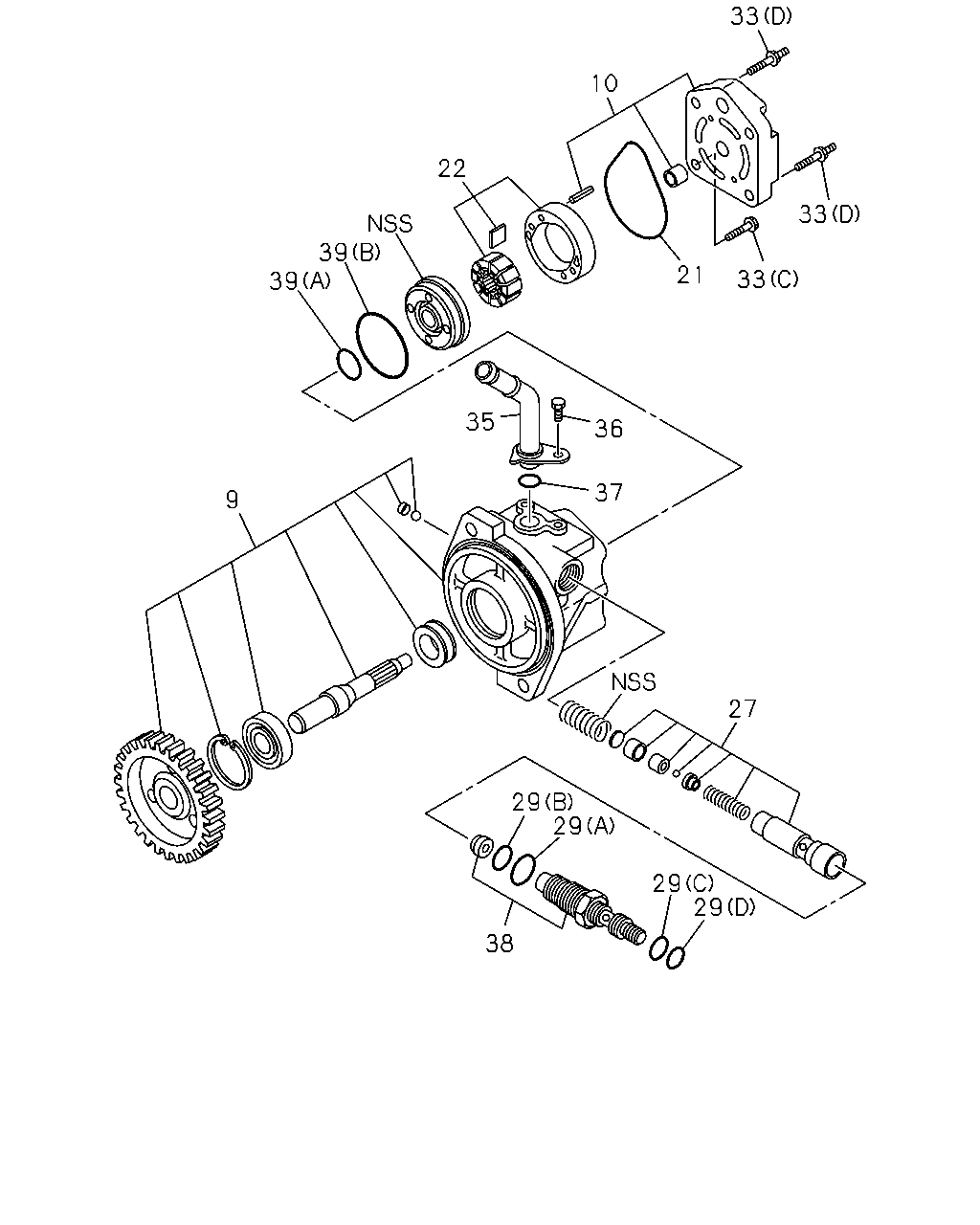

33 10 22 33 39 39 21 33 35 36 37 9 27 29 29 29 29 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97388-641-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98058-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98116-059-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: B = 8-98138-131-0, 98138131	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97388-651-1, 97388651	8-97062-329-0	02	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98058-088-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97075-587-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98139-288-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-97075-581-0	01	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: A = 8-97388-651-1, 97388651	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: A = 8-97388-651-1, 97388651	8-97075-585-0	01	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-98138-131-0, 98138131	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (D) ASM PART: B = 8-98138-131-0, 98138131	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97388-640-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97388-651-1, 97388651	8-94379-664-0	02	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98138-131-0, 98138131	8-97184-763-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0805
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0806-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98139-291-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-97147-441-0	01	1	-

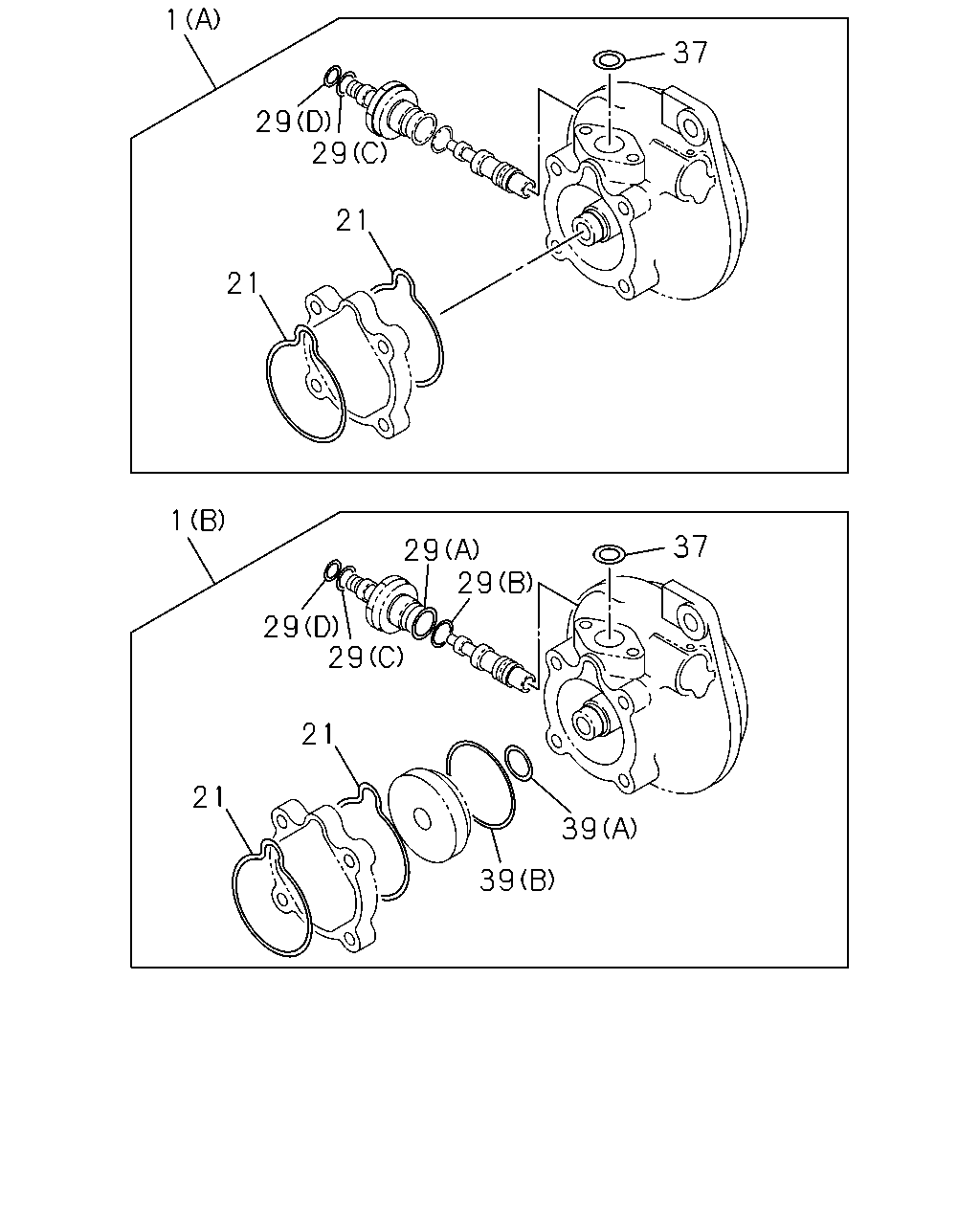

1 21 37 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97388-651-1, 97388651	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97388-651-1, 97388651	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-98138-131-0, 98138131	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-98138-131-0, 98138131	8-98058-096-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: B = 8-98138-131-0, 98138131	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97388-651-1, 97388651	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-97075-581-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0805
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0806-

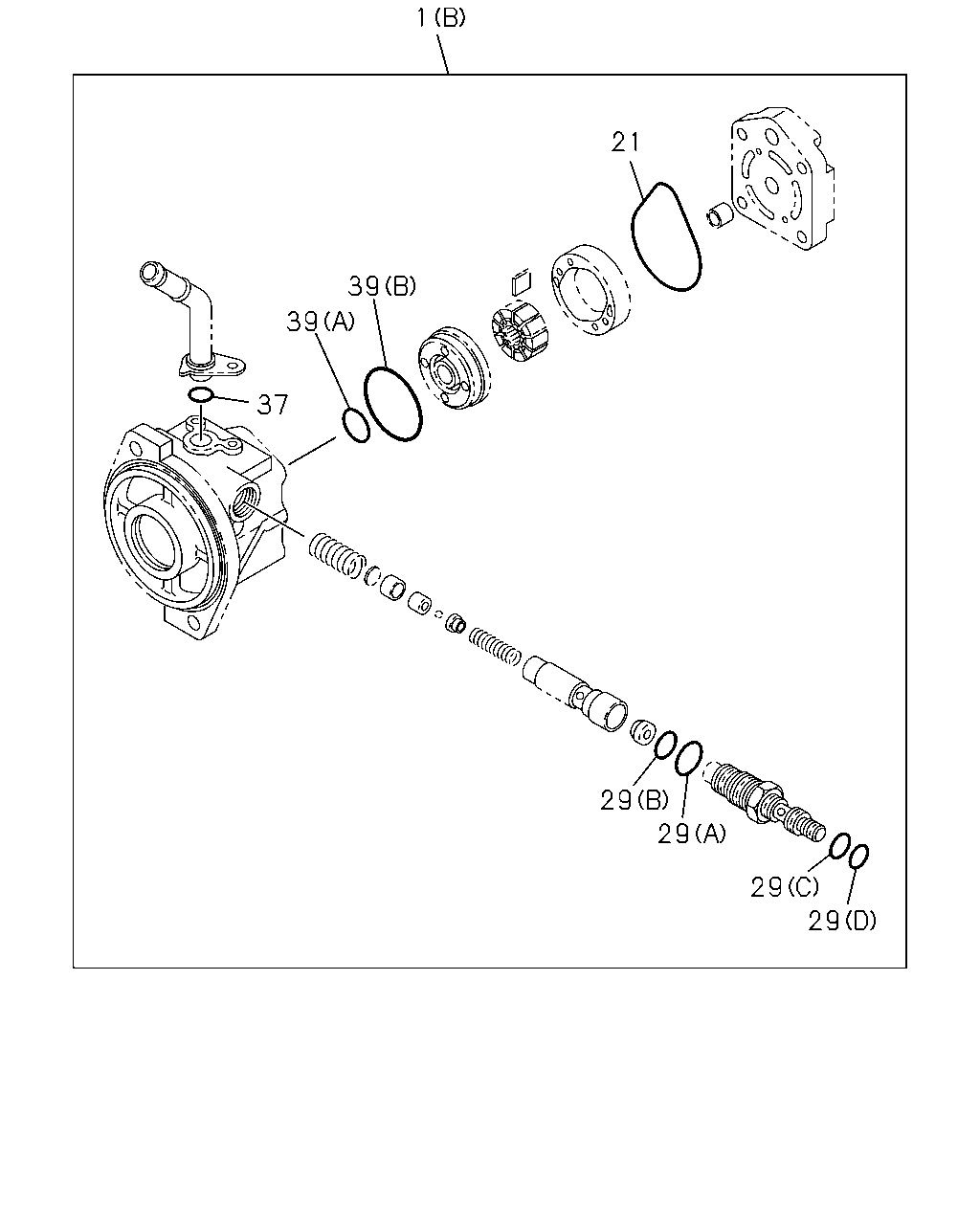

1 21 39 39 37 29 29 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97388-651-1, 97388651	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97388-651-1, 97388651	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-98138-131-0, 98138131	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-98138-131-0, 98138131	8-98058-096-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: B = 8-98138-131-0, 98138131	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97388-651-1, 97388651	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-97075-581-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0805
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0806-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-97147-441-0	01	1	-

1 37 21 21 1 37 29 29 29 29 21 21 39 39 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97388-651-1, 97388651	8-97388-648-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97388-651-1, 97388651	8-97388-649-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (A) ASM PART: B = 8-98138-131-0, 98138131	8-98058-095-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-98138-131-0, 98138131	8-98058-096-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: B = 8-98138-131-0, 98138131	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97388-651-1, 97388651	8-97062-329-0	02	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-97075-581-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0805
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0806-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-97147-441-0	01	1	-

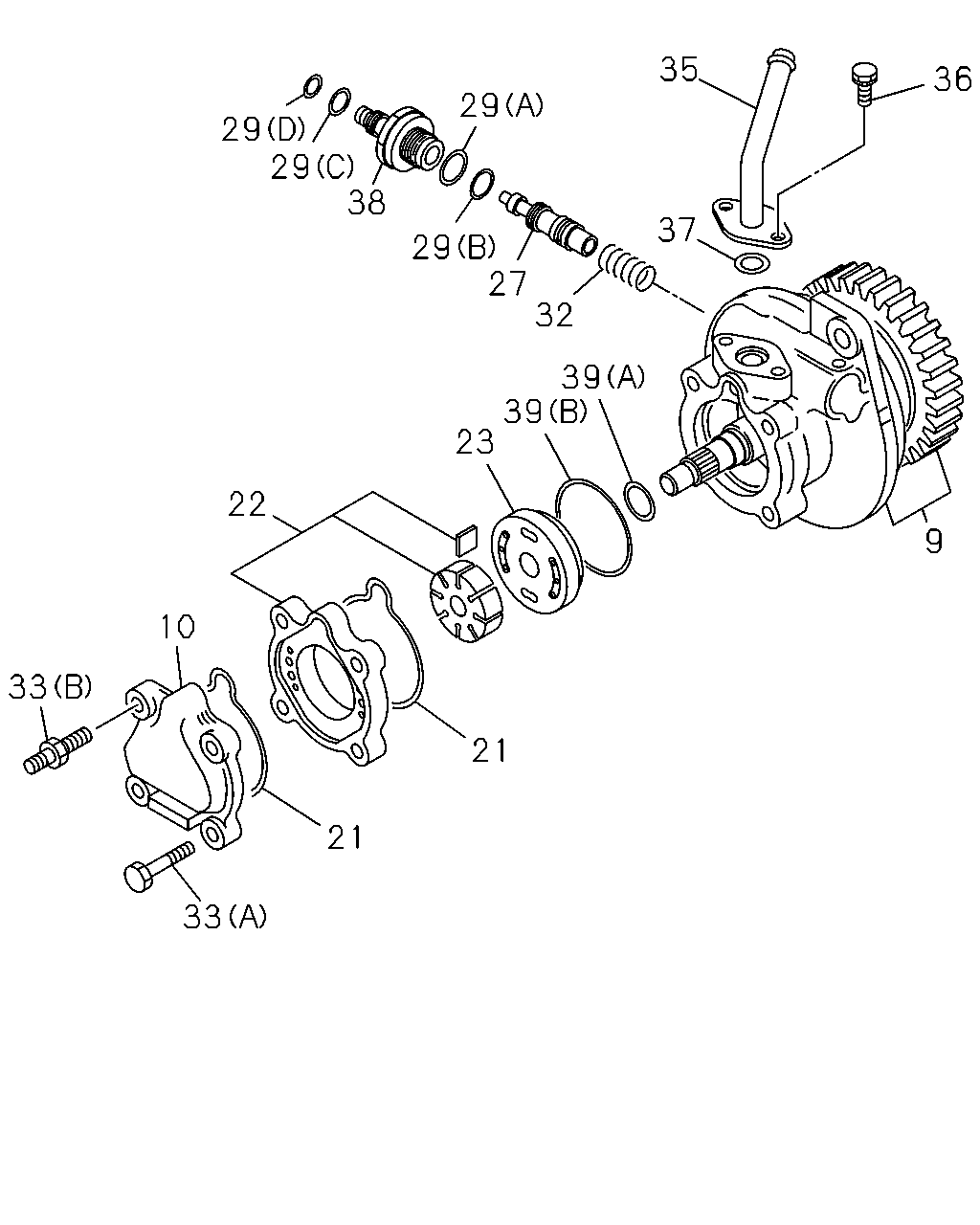

35 36 29 38 37 27 32 39 23 22 9 10 21 21 33 29 29 29 39 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97388-641-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98058-097-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97029-772-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98116-059-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: B = 8-98138-131-0, 98138131	8-94380-746-0	01	1	-
21	06.609 GASKET; FRT COVER TO BODY ASM PART: A = 8-97388-651-1, 97388651	8-97062-329-0	02	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97148-690-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98058-088-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97147-453-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97075-587-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98139-288-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (A) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-658-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (B) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-659-0	01	1	-
29	06.609 GASKET; PLUG TO VLV 06.674, (C) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-666-0	01	1	-
29	06.609 GASKET; PLUG TO VLV (D) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-97075-581-0	01	1	-
32	06.606 SPRING; OIL PUMP 06.612 ASM PART: A = 8-97388-651-1, 97388651	8-94379-654-0	01	1	-
33	06.606 BOLT; COVER 06.608, (A) ASM PART: A = 8-97388-651-1, 97388651	8-97029-773-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: A = 8-97388-651-1, 97388651	8-97075-585-0	01	1	-
33	06.606 BOLT; COVER (C) ASM PART: B = 8-98138-131-0, 98138131	8-97184-761-0	01	1	-
33	06.606 BOLT; COVER (D) ASM PART: B = 8-98138-131-0, 98138131	8-98139-286-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97388-640-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98139-290-0	01	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: A = 8-97388-651-1, 97388651	8-94379-664-0	02	1	-
36	06.602 BOLT; CONN,PIPE ASM PART: B = 8-98138-131-0, 98138131	8-97184-763-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97184-767-0	01	1	-0805
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-97184-767-0	01	1	-
37	06.635 GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97357-781-0	01	1	0806-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97388-651-1, 97388651	8-97093-504-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-98138-131-0, 98138131	8-98139-291-0	01	1	-
39	06.609 GASKET; OIL PUMP (B) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-94379-647-0	01	1	-
39	06.609 GASKET; OIL PUMP (A) ASM PART: A = 8-97388-651-1, 97388651, B = 8-98138-131-0, 98138131	8-97147-441-0	01	1	-
