Sayfa 4-25 - Isuzu EPC

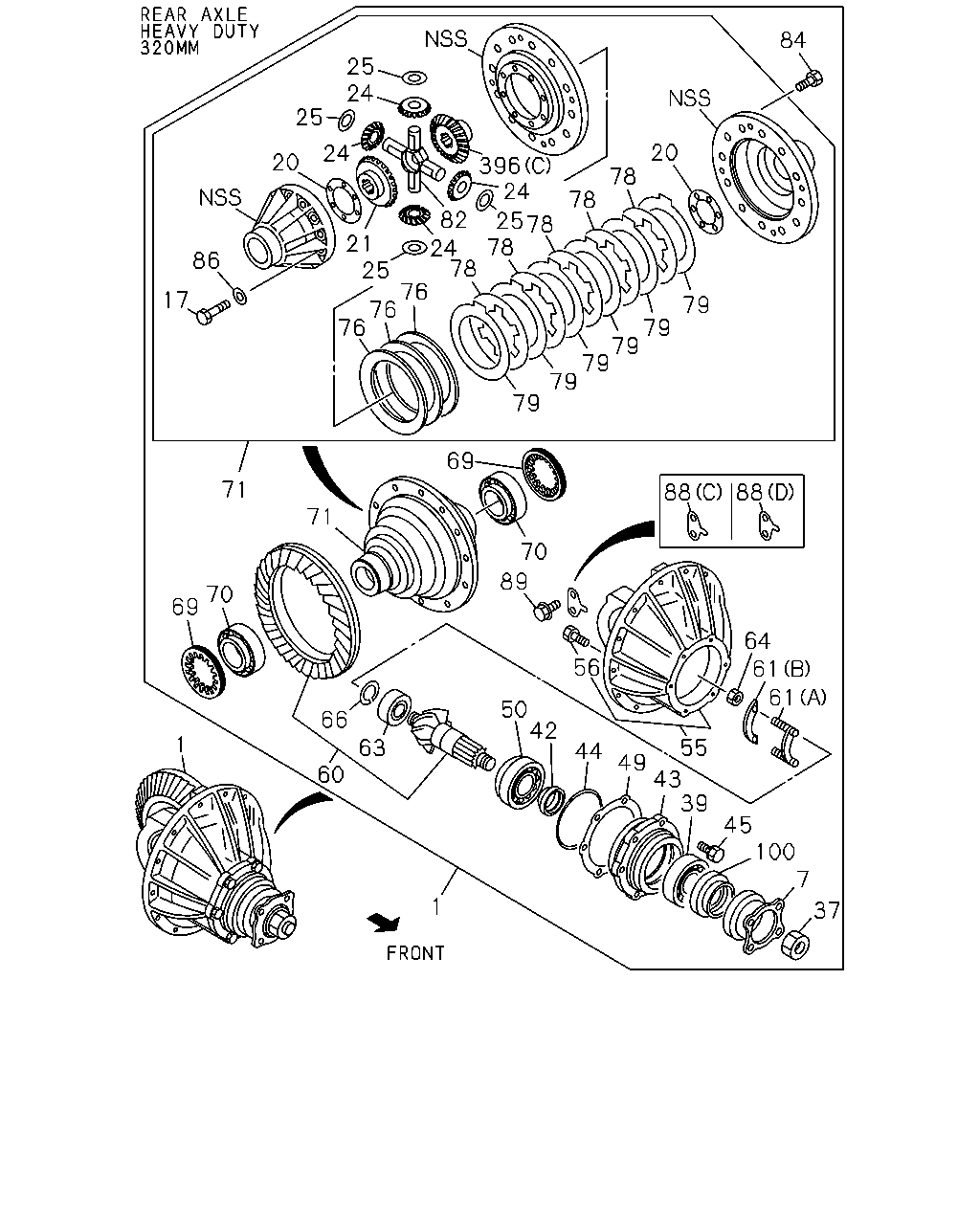

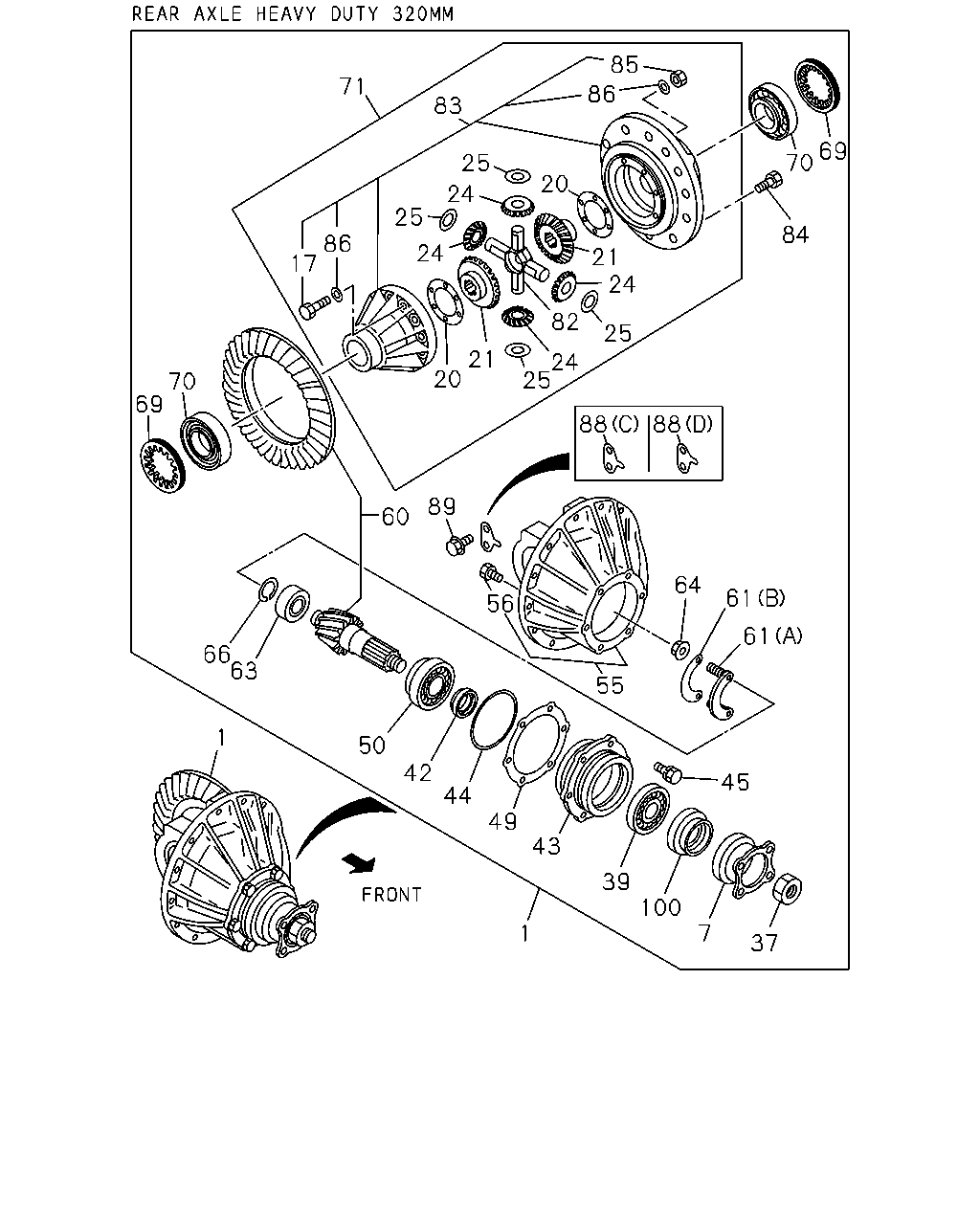

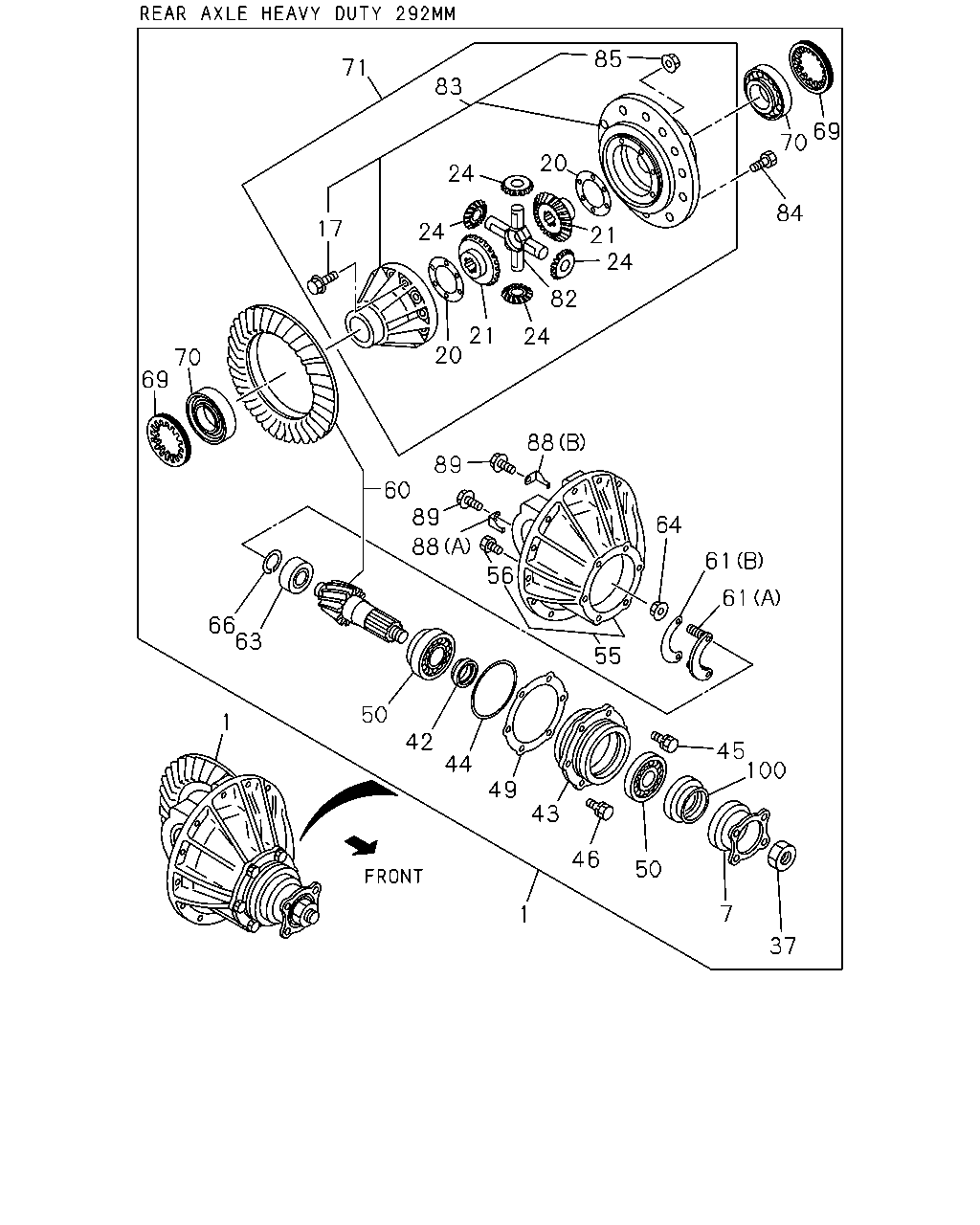

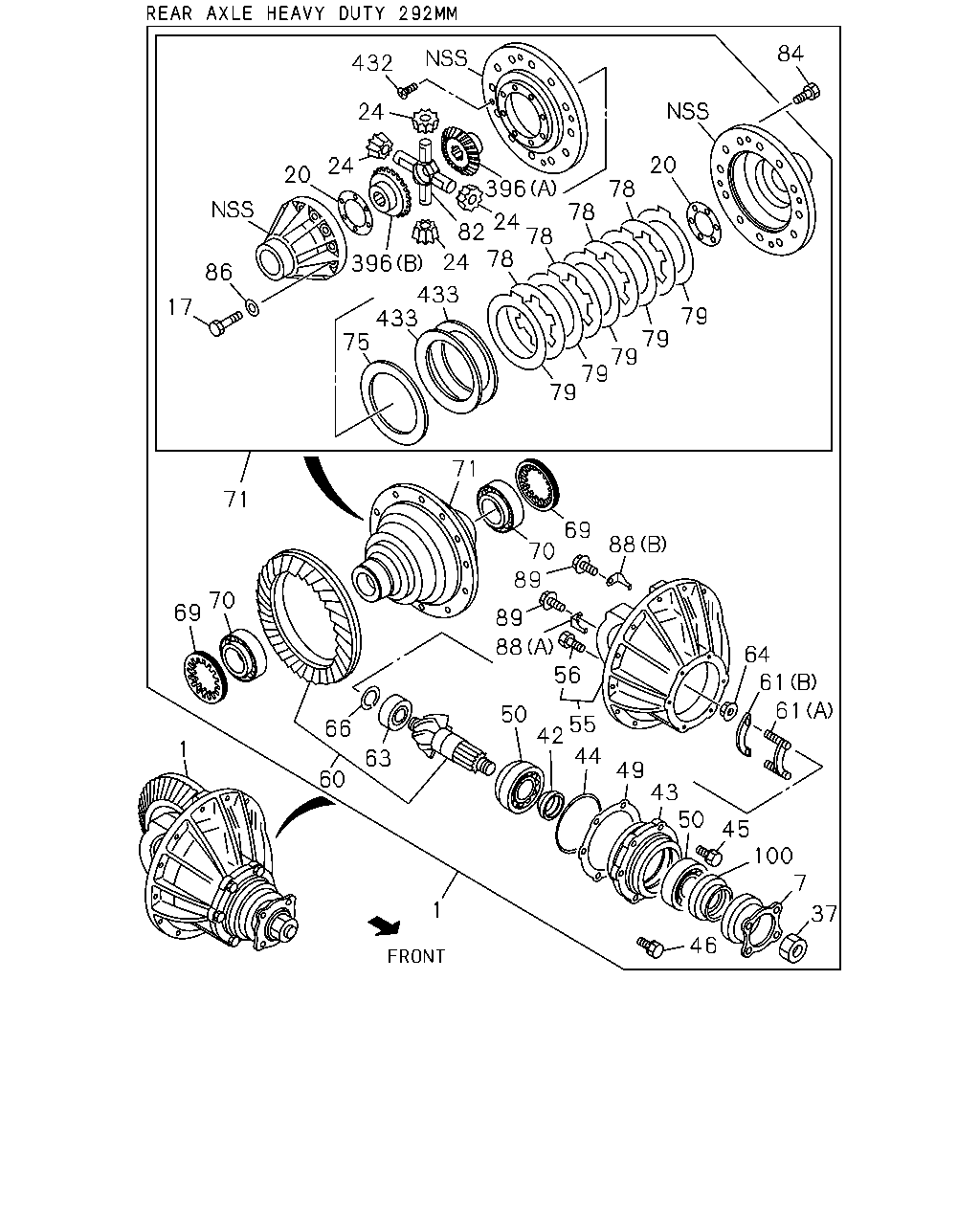

4-25 — REAR FINAL DRIVE (#35356) — 539 parça

84 432 24 20 24 20 396 78 78 24 82 78 78 24 396 86 433 433 75 17 79 79 79 79 79 71 71 69 70 88 89 70 69 89 88 64 61 56 61 50 55 42 66 1 44 63 49 43 50 60 45 100 7 1 37 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	0802-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0612-
7	05.545 FLANGE; FINAL 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0612-
7	05.545 FLANGE; FINAL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-095-2	01	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0612-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0612-0801
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0802-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0612-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0612-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0612-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0612-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0612-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0612-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0612-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0612-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0612-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0612-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0612-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0612-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0612-
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50051-435-0	01	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0612-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0612-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0612-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0612-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0612-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-160-0	01	1	0612-0801
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0802-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0612-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 41/8	8-97174-099-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0612-
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0612-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0612-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0612-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0612-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0612-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0612-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0612-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0612-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0612-0801
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0802-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0612-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0612-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0612-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0802-
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0612-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0802-
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0612-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0802-
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0612-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0802-
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0612-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0802-
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0612-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0802-
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0612-0801
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0802-
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0612-0801
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0802-
78	05.511 DISC; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0612-0805
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0806-
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0612-0801
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0802-
79	05.511 PLATE; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0612-0805
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0806-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0612-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0612-0801
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0802-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0612-0801
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0802-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0612-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0612-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0612-0707
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0708-0801
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0802-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0612-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0612-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0612-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0612-
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0612-0801
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0802-
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0612-0801
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0802-
396	05.515 GEAR; DIFF,LSD 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0612-0805
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0806-
432	05.650 SCREW REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0612-0707
432	05.650 SCREW REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0708-0801
432	05.650 SCREW REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0802-
433	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0612-0801
433	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0802-

84 25 24 396 24 25 20 24 20 78 78 25 78 78 82 24 78 21 25 86 76 76 76 17 79 79 79 79 79 79 69 71 71 70 89 70 69 64 61 56 61 50 42 66 1 55 63 44 49 43 39 60 45 100 7 1 37 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	0802-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0612-
7	05.545 FLANGE; FINAL 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0612-
7	05.545 FLANGE; FINAL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-095-2	01	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0612-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0612-0801
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0802-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0612-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0612-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0612-0805
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0612-0805
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0612-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0612-
25	05.528 WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	0612-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0612-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0612-
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> NSK	1-09812-026-0	01	1	0806-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	0612-0805
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> JTEKT	5-09812-062-1	01	1	0806-
39	05.484 BEARING; FINAL PINION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) JTEKT	5-09812-062-1	01	1	0806-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	0612-0805
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> NSK	5-09812-063-0	01	1	0806-
39	05.484 BEARING; FINAL PINION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) NSK	5-09812-063-0	01	1	0806-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0612-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0612-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0612-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0612-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0612-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0612-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0612-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0612-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0612-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0612-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0612-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0612-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-160-0	01	1	0612-0801
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0802-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0612-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 41/8	8-97174-099-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0612-
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0612-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0612-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0612-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0612-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0612-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0612-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0612-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0612-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0612-0801
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0802-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0612-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0612-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-
76	05.511 DISC; BEVEL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0612-0805
76	05.511 DISC; BEVEL REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0806-
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0612-0801
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0802-
78	05.511 DISC; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0612-0805
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0806-
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0612-0801
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0802-
79	05.511 PLATE; FRICTION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0612-0805
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0806-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0612-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0612-0801
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0802-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0612-0801
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0802-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0612-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0612-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0612-0707
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0708-0801
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0802-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0612-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0612-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0612-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0612-
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0612-0801
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 05.528 (B) Z=20	8-97362-598-0	01	1	0802-
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0612-0801
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> (A) Z=20	8-97362-717-0	01	1	0802-
396	05.515 GEAR; DIFF,LSD 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0612-0805
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0806-

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 64 88 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	0802-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0612-
7	05.545 FLANGE; FINAL 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0612-
7	05.545 FLANGE; FINAL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-095-2	01	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0612-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0612-0801
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0802-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0612-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0612-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0612-0805
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0612-0805
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0612-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0612-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0612-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0612-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0612-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0612-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0612-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0612-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0612-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0612-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0612-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0612-
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50051-435-0	01	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0612-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0612-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0612-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0612-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0612-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-160-0	01	1	0612-0801
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0802-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0612-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 41/8	8-97174-099-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0612-
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0612-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0612-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0612-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0612-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0612-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0612-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0612-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0612-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0612-0801
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0802-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0612-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0612-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0612-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0612-0801
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0802-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0612-
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0612-
83	05.510 CAGE ASM; DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0612-0805
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0612-0801
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0802-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0612-
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0612-
85	05.510 NUT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0612-0805
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0612-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0612-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0612-

85 71 86 83 69 70 25 20 24 25 84 86 17 24 21 24 82 25 21 20 24 25 70 69 89 60 64 61 56 61 66 63 55 1 50 42 45 44 49 43 39 100 7 1 37 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98015-154-0	01	1	0802-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-98015-128-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97367-508-0	01	1	0612-
1	05.505 DRIVE ASM; FINAL,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-97377-911-0	01	1	0612-
7	05.545 FLANGE; FINAL 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0612-
7	05.545 FLANGE; FINAL 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-095-2	01	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0612-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0612-0801
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0802-
17	05.510 BOLT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0612-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0612-0801
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0802-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0612-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0612-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0612-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0612-0805
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-
21	05.528 GEAR; SIDE,DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0612-0805
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0612-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0612-
25	05.528 WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	0612-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0612-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0612-
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> NSK	1-09812-026-0	01	1	0806-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	5-09812-062-1	01	1	0612-0805
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> JTEKT	5-09812-062-1	01	1	0806-
39	05.484 BEARING; FINAL PINION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) JTEKT	5-09812-062-1	01	1	0806-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NSK	5-09812-063-0	01	1	0612-0805
39	05.484 BEARING; FINAL PINION 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> NSK	5-09812-063-0	01	1	0806-
39	05.484 BEARING; FINAL PINION 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) NSK	5-09812-063-0	01	1	0806-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0612-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0612-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0612-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0612-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0612-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0612-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0612-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0612-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0701-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0612-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0612-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0612-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0612-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0612-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0612-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 43/7(R42) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97319-160-0	01	1	0612-0801
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1) 39/7	8-97319-160-0	01	1	0802-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) 43/7	8-97320-103-0	01	1	0612-
60	05.529 GEAR SET; FINAL DRIVE,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 41/8	8-97174-099-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0612-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0612-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0612-
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0612-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0612-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0612-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0612-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0612-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0612-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0612-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0612-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0612-0801
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0802-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0612-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0612-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0612-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0612-0801
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0802-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0612-
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0612-
83	05.510 CAGE ASM; DIFF 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0612-0805
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0612-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0612-0801
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0802-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0612-
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0612-
85	05.510 NUT; DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0612-0805
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0612-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0612-0707
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0708-0801
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 39/7(GV1),FINAL GEAR RATIO 43/7(R42) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0802-
86	05.510 WASHER; PL,DIFF CAGE SETTING 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0612-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0612-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0612-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0612-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0612-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0612-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
