◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84 - FEED PUMP; INJECTION PUMP ▶
0-84 — FEED PUMP; INJECTION PUMP (#3535) — 106 parça

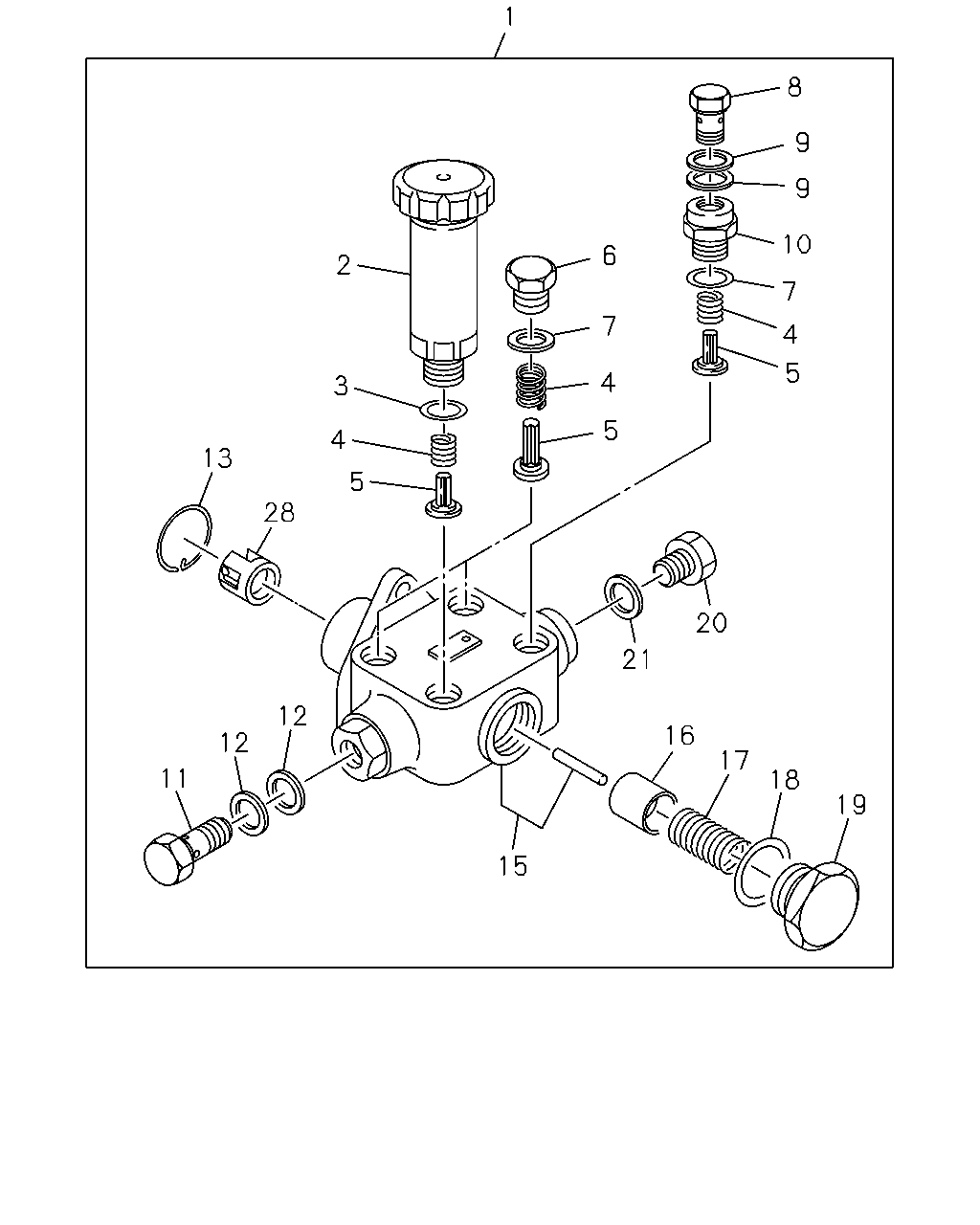

çizim 35546
1 8 9 9 10 6 2 7 7 4 5 4 3 5 4 13 5 28 20 21 12 16 12 17 11 18 19 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: J = 1-15602-949-1 		1-15740-459-0 01 1 -9404
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: J = 1-15602-949-1 		1-15750-068-0 01 1 -9404
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3 		1-15750-068-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2 		1-15750-084-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15750-130-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: J = 1-15602-949-1 		9-81350-047-0 01 1 9405-
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15761-006-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3, J = 1-15602-949-1 		8-94131-130-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-702-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-602-0 04 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-009-0 02 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3, J = 1-15602-949-1 		1-15759-009-0 03 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81355-031-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15602-434-7, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, J = 1-15602-949-1 		1-15759-029-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-09630-085-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, J = 1-15602-949-1 		1-15759-012-0 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-052-0 01 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2 		1-89967-393-5 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, J = 1-15602-949-1 		1-15759-011-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15602-434-7, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-029-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-09630-085-0 02 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, J = 1-15602-949-1 		1-15759-012-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81355-062-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3, J = 1-15602-949-1 		1-15751-010-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15751-011-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		8-94171-185-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-004-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-09630-085-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2 		1-15759-012-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: G = 1-15602-734-3 		1-15745-004-0 01 1 -9205
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: G = 1-15602-734-3 		1-15754-004-0 01 1 9206-
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		1-15754-004-0 01 1 -

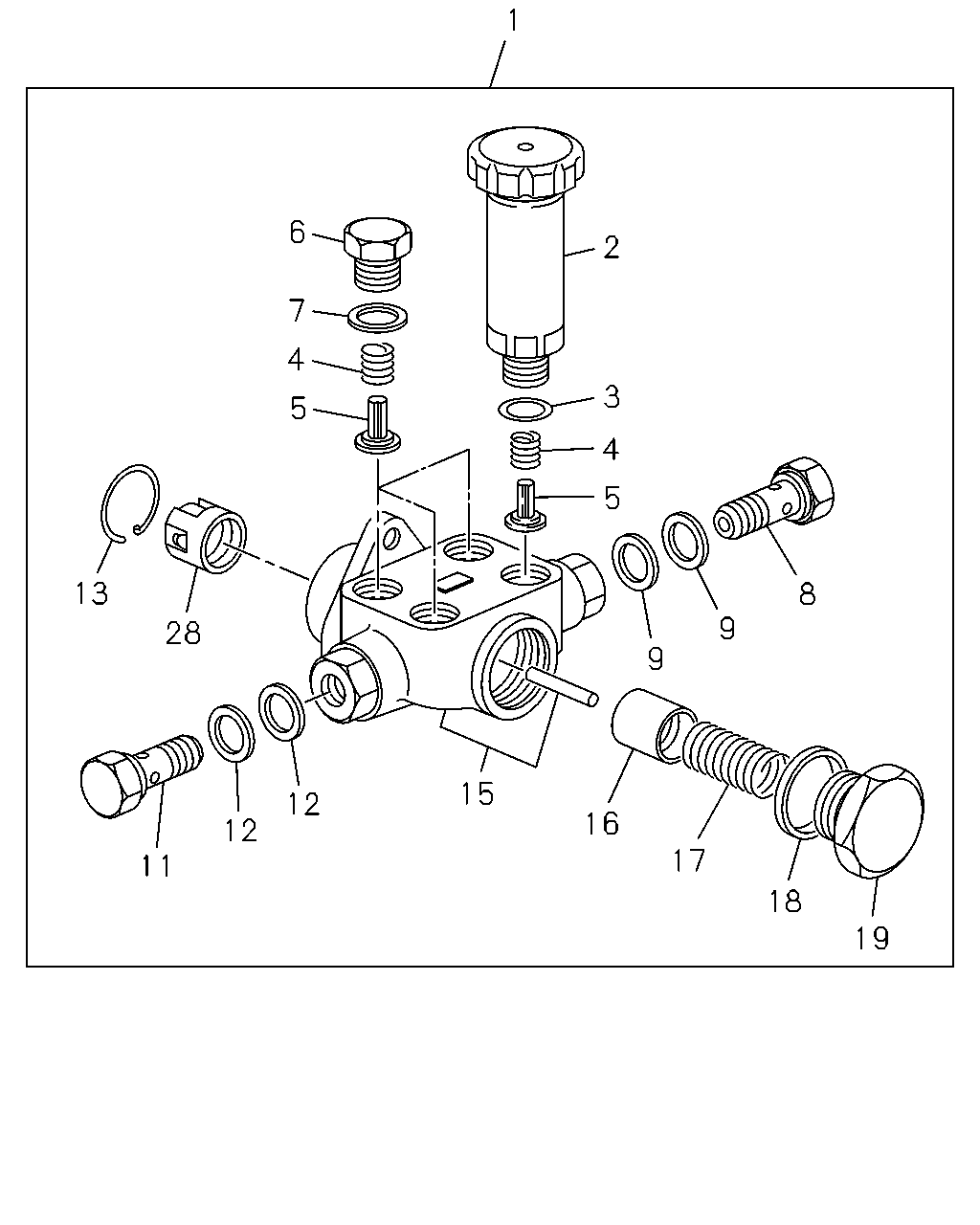

çizim 36520
1 6 2 7 4 3 5 4 5 13 8 9 28 9 15 12 16 12 17 11 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: J = 1-15602-949-1 		1-15740-459-0 01 1 -9404
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: J = 1-15602-949-1 		1-15750-068-0 01 1 -9404
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3 		1-15750-068-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2 		1-15750-084-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15750-130-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: J = 1-15602-949-1 		9-81350-047-0 01 1 9405-
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15761-006-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3, J = 1-15602-949-1 		8-94131-130-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-702-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-602-0 04 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-009-0 02 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3, J = 1-15602-949-1 		1-15759-009-0 03 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81355-031-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15602-434-7, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, J = 1-15602-949-1 		1-15759-029-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-09630-085-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, J = 1-15602-949-1 		1-15759-012-0 02 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, J = 1-15602-949-1 		1-15759-011-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15602-434-7, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-029-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-09630-085-0 02 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, J = 1-15602-949-1 		1-15759-012-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81355-062-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3, J = 1-15602-949-1 		1-15751-010-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15751-011-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		8-94171-185-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: G = 1-15602-734-3 		1-15745-004-0 01 1 -9205
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: G = 1-15602-734-3 		1-15754-004-0 01 1 9206-
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		1-15754-004-0 01 1 -

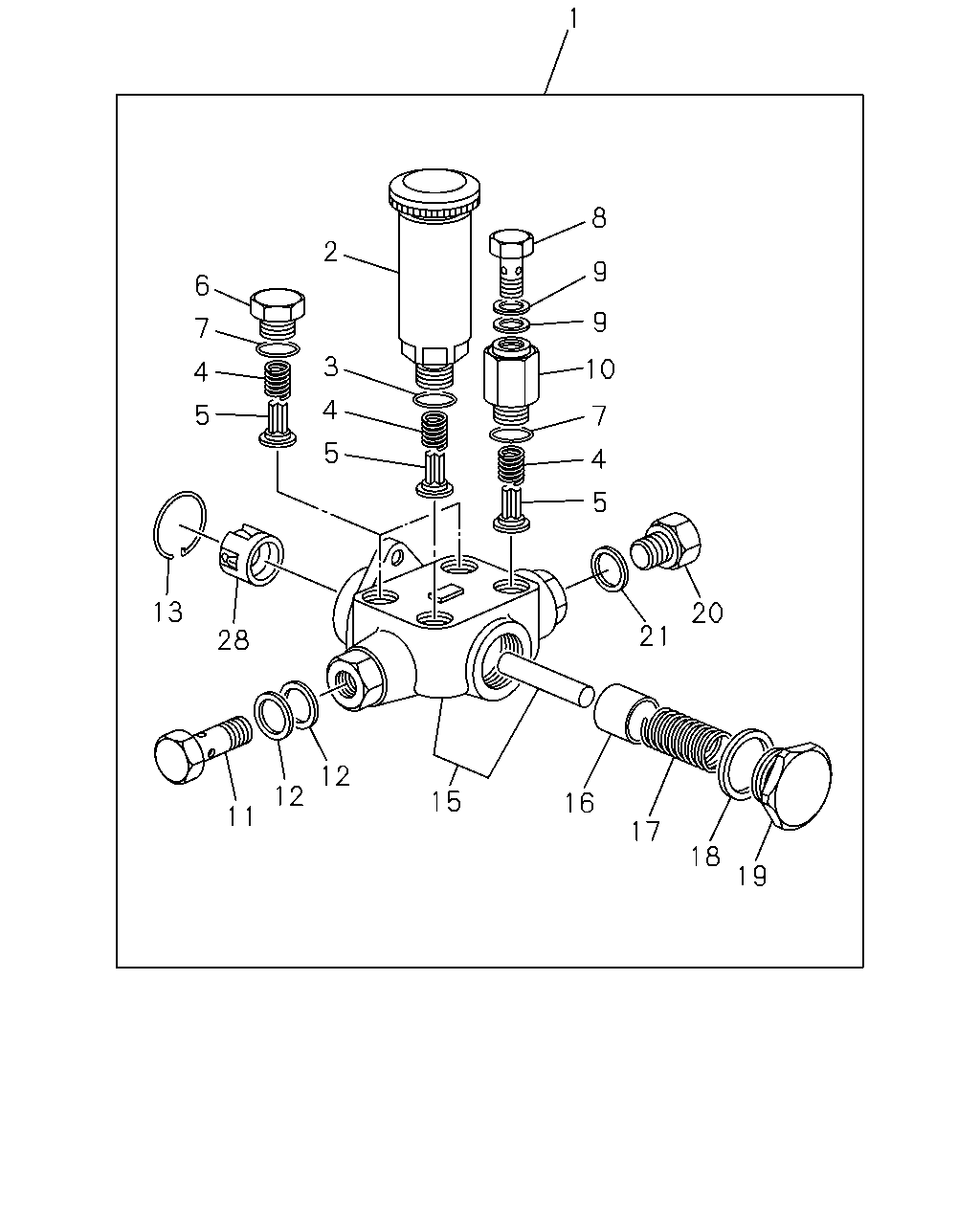

çizim 37710
1 8 2 9 6 9 7 3 10 4 4 5 7 5 4 5 13 20 21 28 12 12 15 16 11 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: J = 1-15602-949-1 		1-15740-459-0 01 1 -9404
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: J = 1-15602-949-1 		1-15750-068-0 01 1 -9404
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3 		1-15750-068-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2 		1-15750-084-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15750-130-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: J = 1-15602-949-1 		9-81350-047-0 01 1 9405-
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15761-006-0 01 1 -
2 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3, J = 1-15602-949-1 		8-94131-130-0 01 1 -
3 GASKET; PRIMING PUMP,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		1-19623-016-0 01 1 -
4 SPRING; VLV,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-702-0 04 1 -
5 VALVE; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-602-0 04 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-009-0 02 1 -
6 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3, J = 1-15602-949-1 		1-15759-009-0 03 1 -
7 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81355-031-0 03 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: A = 1-15602-434-7, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-011-0 01 1 -
8 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, J = 1-15602-949-1 		1-15759-029-0 01 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-09630-085-0 02 1 -
9 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, J = 1-15602-949-1 		1-15759-012-0 02 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-052-0 01 1 -
10 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2 		1-89967-393-5 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, J = 1-15602-949-1 		1-15759-011-0 01 1 -
11 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 1-15602-434-7, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-029-0 01 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-09630-085-0 02 1 -
12 GASKET; EYE BOLT,INL,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, J = 1-15602-949-1 		1-15759-012-0 02 1 -
13 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81355-062-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, G = 1-15602-734-3, J = 1-15602-949-1 		1-15751-010-0 01 1 -
15 HOUSING; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15751-011-0 01 1 -
16 PISTON; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-205-0 01 1 -
17 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81351-503-0 01 1 -
18 GASKET; PISTON PLUG,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		9-81355-035-0 01 1 -
19 PLUG; PISTON SPRING,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, G = 1-15602-734-3, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		8-94171-185-0 01 1 -
20 PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-15759-004-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ID=14.2 OD=19.2 ASM PART: H = 1-15602-912-1, I = 1-15602-914-1, K = 1-15603-021-3 		1-09630-085-0 01 1 -
21 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, E = 1-15602-599-2, F = 1-15602-601-2 		1-15759-012-0 01 1 -
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: G = 1-15602-734-3 		1-15745-004-0 01 1 -9205
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: G = 1-15602-734-3 		1-15754-004-0 01 1 9206-
28 TAPPET ASM; FUEL FEED PUMP
ASM PART: A = 1-15602-434-7, B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-457-1, E = 1-15602-599-2, F = 1-15602-601-2, H = 1-15602-912-1, I = 1-15602-914-1, J = 1-15602-949-1, K = 1-15603-021-3 		1-15754-004-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
