4-01 — PROPELLER SHAFT (#35348) — 90 parça

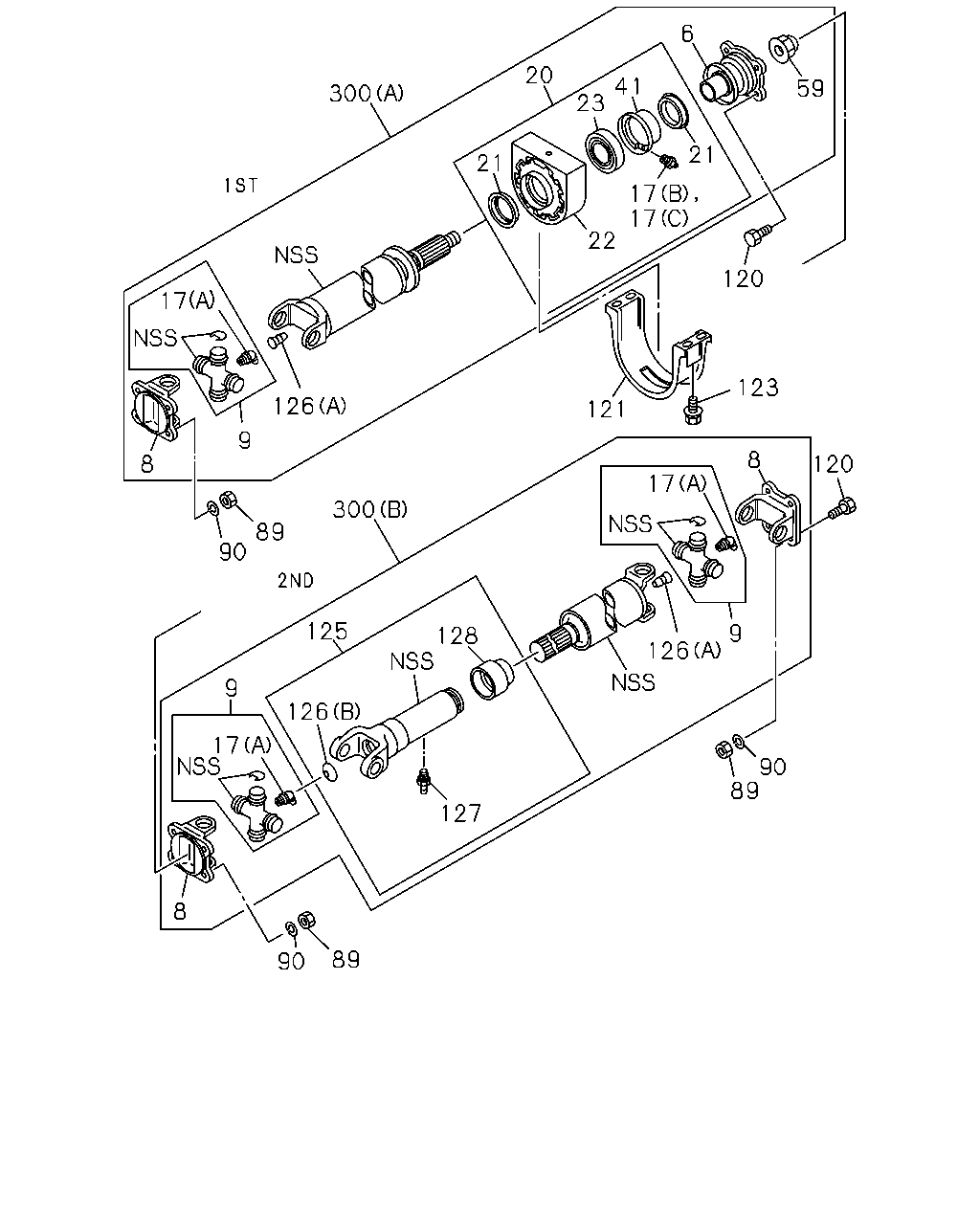

6 20 41 23 59 300 21 21 17 17 22 120 17 123 126 121 9 8 8 120 17 300 89 90 125 9 128 126 9 126 17 90 89 127 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97036-123-0	01	1	0612-
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HK1-TCN ENG(RDQ) 05.556	1-37245-115-0	01	1	0612-
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT	8-97178-365-0	01	1	0612-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-97322-663-0	01	1	0612-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-97322-663-0	02	1	0612-0805
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-97322-663-0	02	1	0806-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) REAR D=80	1-37211-037-4	01	1	0612-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) REAR D=80	1-37211-037-4	02	1	0612-
9	05.548 JOURNAL ASM; PROP SHAFT FRONT	8-97167-317-0	01	1	0612-
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-97322-749-0	01	1	0612-0612
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-98033-605-0	01	1	0701-
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-97322-749-0	02	1	0612-0612
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-98033-605-0	02	1	0701-0805
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-98033-605-0	02	1	0806-
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) REAR	1-37300-103-0	01	1	0612-
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) REAR	1-37300-103-0	02	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) M6 STRAIGHT	0-90301-406-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ) (C) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0612-
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-1	01	1	0612-0702
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98020-880-0	01	1	0703-
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HK1-TCN ENG(RDQ)	8-97131-143-1	01	1	0612-
21	05.590 SEAL; OIL,CENTER BRG 4HG1-T ENG(RDP),4HG1 ENG(RJH) 05.601 ID=49	5-09625-067-1	02	1	0612-
21	05.590 SEAL; OIL,CENTER BRG 4HK1-TCN ENG(RDQ) ID=54	1-09625-161-0	02	1	0612-
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-37516-005-2	01	1	0612-0612
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98020-875-0	01	1	0701-
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HK1-TCN ENG(RDQ)	8-97131-125-0	01	1	0612-
23	05.600 BEARING; CENTER,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) OD=80	5-09800-068-0	01	1	0612-
23	05.600 BEARING; CENTER,PROP SHAFT 4HK1-TCN ENG(RDQ)	9-00090-071-0	01	1	0612-
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-37512-004-0	01	1	0612-0612
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98020-795-0	01	1	0701-
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HK1-TCN ENG(RDQ) 05.600	1-37529-068-0	01	1	0612-
59	05.586 NUT; RET TO SUPPORT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.412 M27 H=25	8-97253-126-0	01	1	0612-0612
59	05.586 NUT; RET TO SUPPORT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.525 M27 H=25	8-97360-410-0	01	1	0701-
59	05.586 NUT; RET TO SUPPORT 4HK1-TCN ENG(RDQ) M30	8-97160-857-0	01	1	0612-
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-0	12	1	0612-
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	12	1	0612-
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-0	08	1	0612-
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0612-
123	05.601 BOLT; RET M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0612-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) L=183	8-97327-979-1	01	1	0612-0805
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) L=183	8-97327-979-1	01	1	0806-0806
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) L=183	8-97327-979-1	01	1	0806-0806
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) L=183	8-97327-979-1	01	1	0807-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) L=183	8-98040-513-0	01	1	0612-
126	05.556 PLUG; SPLINED YOKE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) (B)	1-09600-014-0	02	1	0612-
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0612-
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0612-
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-94366-900-0	01	1	0612-0805
126	05.556 PLUG; SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-94366-900-0	01	1	0806-
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 08.984 PT1/8 STRAIGHT	0-90301-410-0	02	1	0612-
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0612-0805
127	05.586 NIPPLE; GREASE,SPLINED YOKE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0806-
128	05.586 SEAL; SLEEVE 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) 05.560	1-37247-001-1	02	1	0612-
128	05.586 SEAL; SLEEVE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97145-746-0	01	1	0612-0805
128	05.586 SEAL; SLEEVE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97145-746-0	01	1	0806-
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 320MM(6CP) (B) L=1059	8-97308-060-2	01	1	0806-
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=452	8-97314-842-3	01	1	0612-
300	05.544 SHAFT ASM; PROP,RR 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR AXLE HEAVY DUTY 292MM(G73) (B) L=1074	8-97308-061-2	01	1	0612-
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) (A) L=428	8-97376-940-0	01	1	0612-
300	05.544 SHAFT ASM; PROP,RR 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) (B) L=1080	8-97214-108-0	01	1	0612-

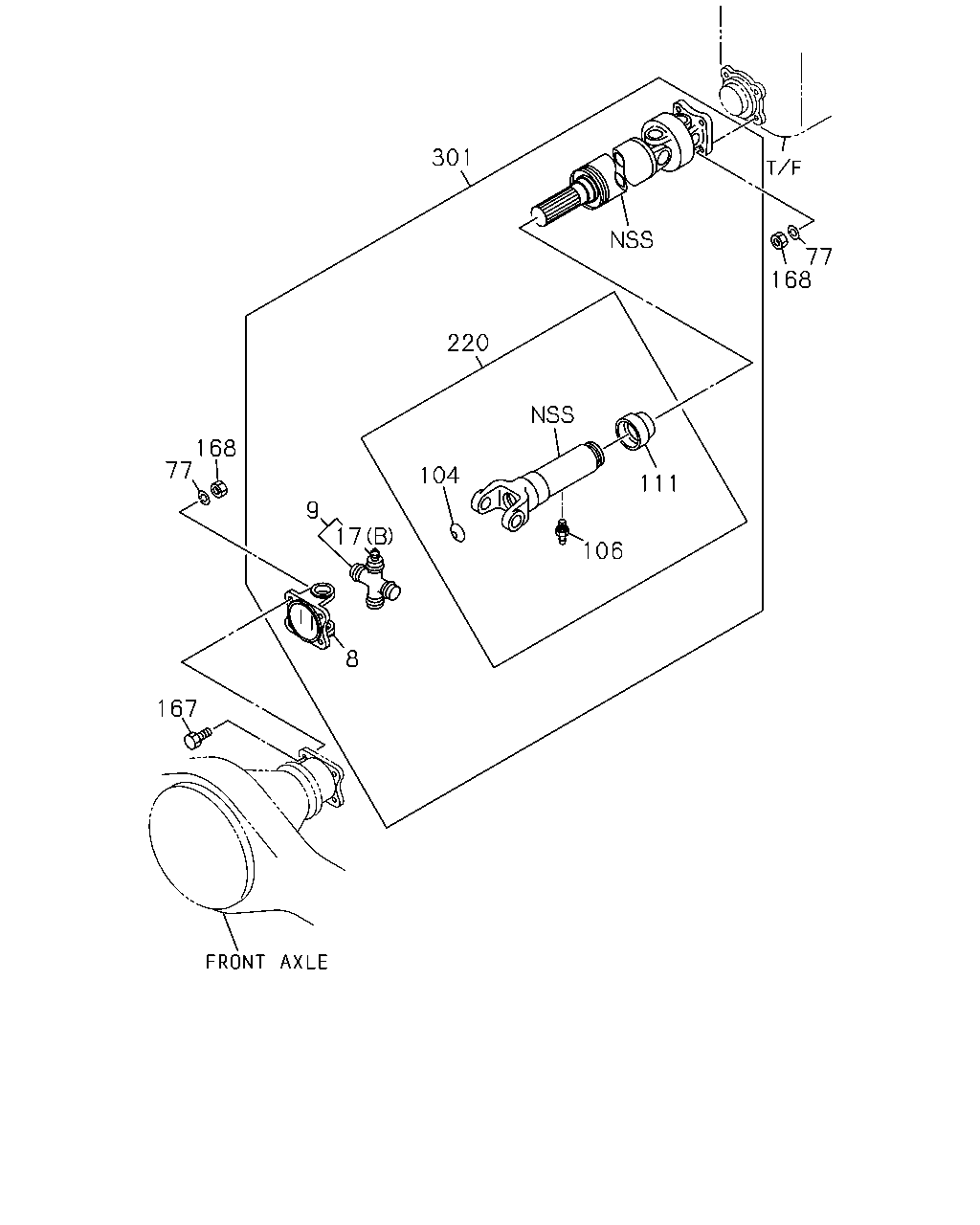

301 77 168 220 168 77 104 111 9 17 106 8 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	05.544 YOKE; FLANGE,PROP SHAFT FRONT	8-97178-365-0	01	1	0612-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-97322-663-0	01	1	0612-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-97322-663-0	02	1	0612-0805
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-97322-663-0	02	1	0806-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) REAR D=80	1-37211-037-4	01	1	0612-
8	05.544 YOKE; FLANGE,PROP SHAFT 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) REAR D=80	1-37211-037-4	02	1	0612-
9	05.548 JOURNAL ASM; PROP SHAFT FRONT	8-97167-317-0	01	1	0612-
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-97322-749-0	01	1	0612-0612
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-98033-605-0	01	1	0701-
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-97322-749-0	02	1	0612-0612
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-98033-605-0	02	1	0701-0805
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) REAR	8-98033-605-0	02	1	0806-
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) REAR	1-37300-103-0	01	1	0612-
9	05.548 JOURNAL ASM; PROP SHAFT 4HK1-TCN ENG(RDQ) REAR AXLE HEAVY DUTY 320MM(6CP) REAR	1-37300-103-0	02	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) M6 STRAIGHT	0-90301-406-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	0-90301-406-0	01	1	0612-
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HK1-TCN ENG(RDQ) (C) PT1/16 ELBOW 40 DEGREES	8-97240-194-0	01	1	0612-
77	05.586 WASHER; LK,YOKE TO FLANGE,PROP S 00.002 ID=10.2	0-91510-610-0	08	1	0612-
104	05.556 PLUG; SLEEVE YOKE	8-97020-598-0	01	1	0612-
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0612-
111	05.545 RING; SLEEVE	8-97020-597-1	01	1	0612-
167	05.586 BOLT; YOKE TO FLANGE,PROP SHAFT M10X29	8-98056-948-0	04	1	0612-
168	05.586 NUT; YOKE TO FLANGE,PROP SHAFT M10	8-98056-949-0	08	1	0612-
220	05.544 YOKE; SPLINED 05.545	8-97167-316-0	01	1	0612-
301	05.544 SHAFT ASM; PROP,FRT L=794	8-97300-127-0	01	1	0612-
