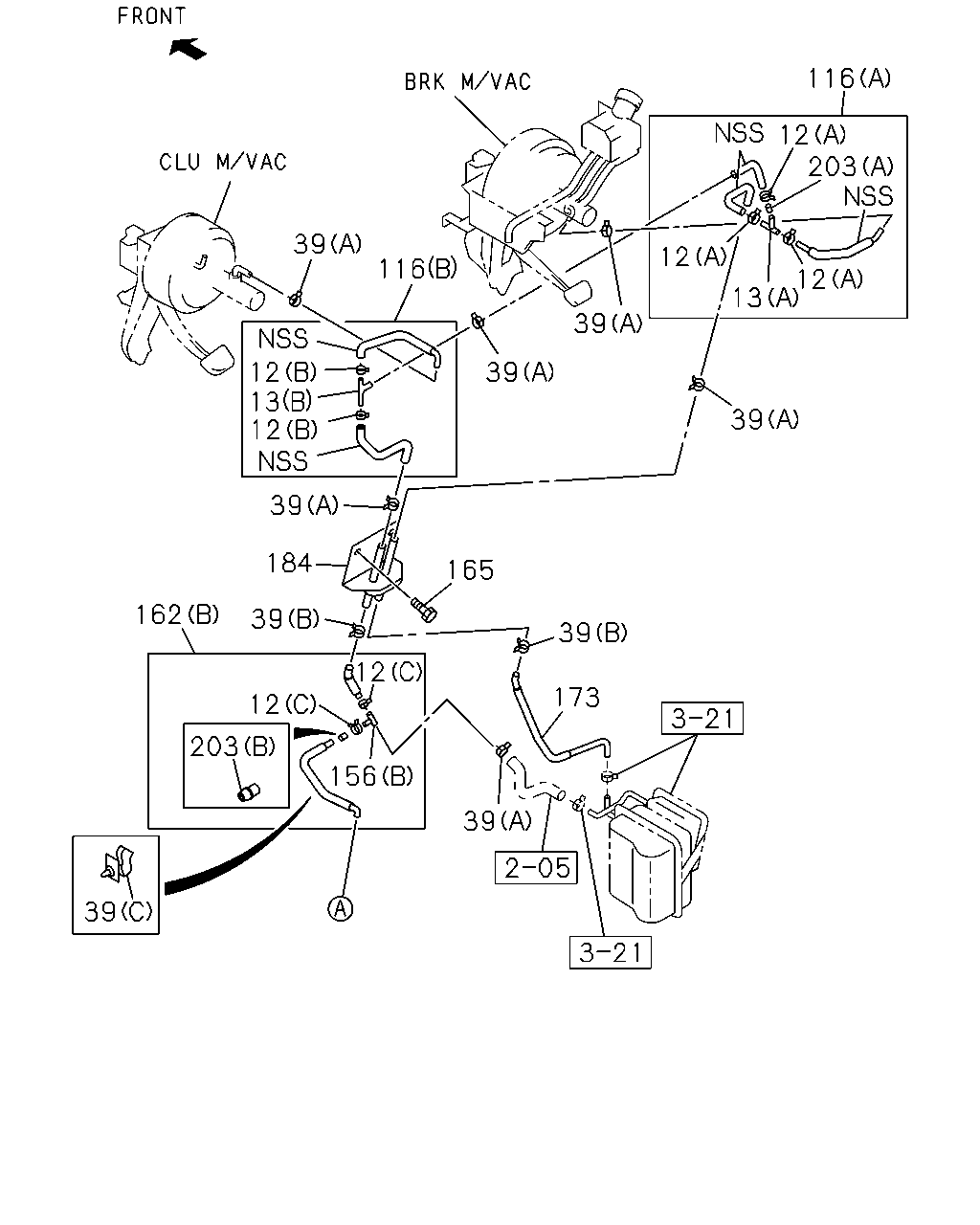

3-60 — BRAKE PIPING; VACUUM (#35347) — 70 parça

116 12 203 39 12 116 12 13 39 12 13 12 39 39 39 184 165 162 39 39 12 173 12 203 156 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0612-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0612-
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0612-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0612-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0612-
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0612-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0612-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0612-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0612-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97314-597-1	01	1	0612-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 3WAY	8-94167-478-0	01	1	0612-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98000-392-0	01	1	0612-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0612-
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0612-
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0612-
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0612-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0612-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0612-

33 33 33 136 128 84 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	04.930 CLIP; VAC PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0612-
33	04.930 CLIP; VAC PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0612-
33	04.930 CLIP; VAC PIPE (A) ID=10 H=40	8-94462-219-0	02	1	0612-
33	04.930 CLIP; VAC PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0612-
84	04.931 PROTECTOR; EDGE,VAC HOSE 03.008 L=80	5-22439-006-0	01	1	0612-
128	04.930 NUT; CLIP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-
136	04.681 CLIP; VAC HOSE 03.162 (A) L=140	5-09707-031-1	01	1	0612-
136	04.681 CLIP; VAC HOSE (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0612-

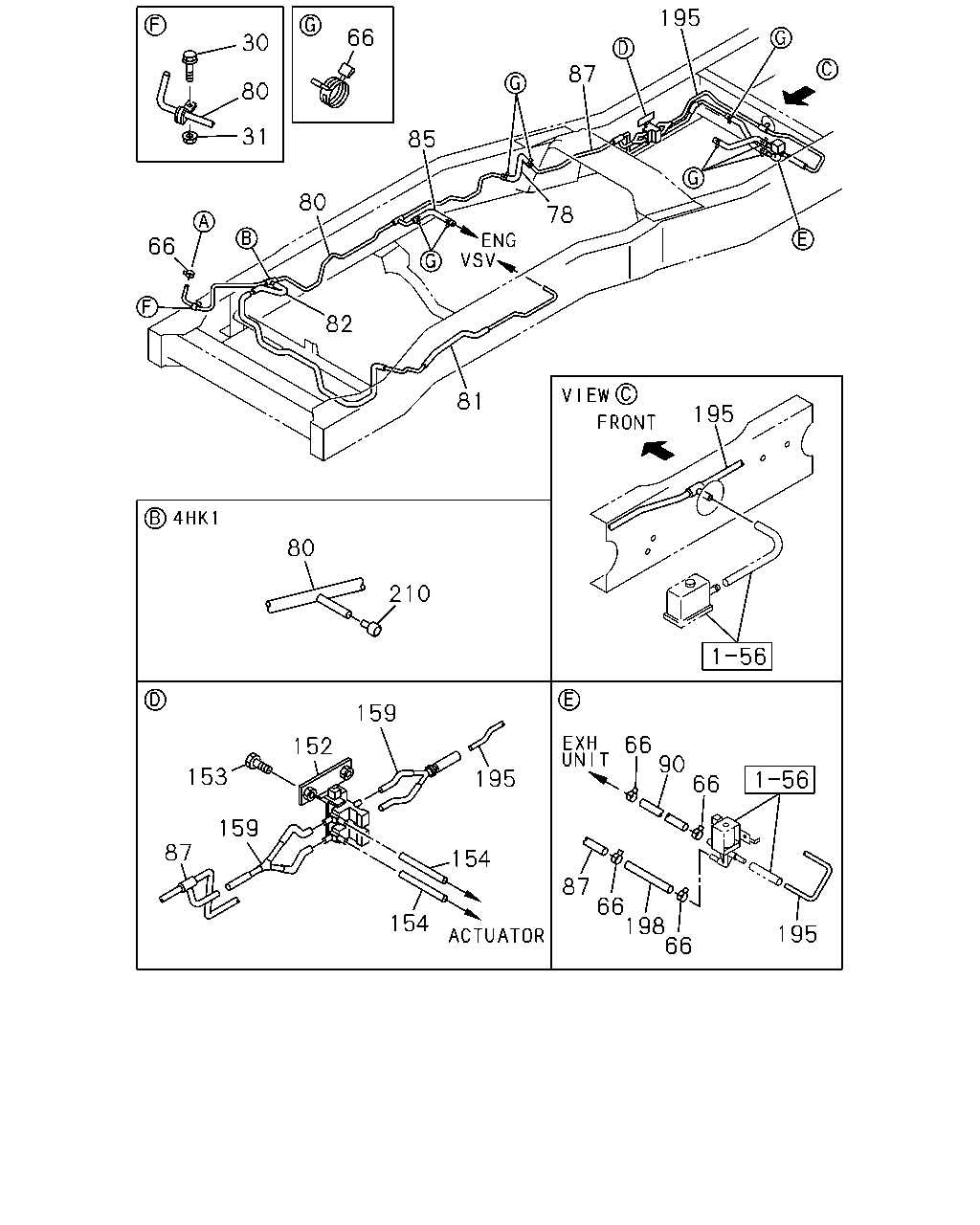

195 66 30 87 80 31 85 80 78 66 82 81 195 80 210 159 66 90 66 152 153 195 159 87 154 87 66 198 66 154 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0612-
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	11	1	0612-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0612-
80	04.930 PIPE; VAC,ENG SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97373-725-0	01	1	0612-
80	04.930 PIPE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ)	8-97325-798-2	01	1	0612-
81	04.930 PIPE; VAC,VSV 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97374-192-0	01	1	0612-
82	04.931 HOSE; VAC,VSV 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.962 L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0612-
85	04.931 HOSE; VAC,ENG SIDE 4HG1 ENG(RJH) L=260	8-97091-967-0	01	1	0612-
85	04.931 HOSE; VAC,ENG SIDE 4HG1-T ENG(RDP)	8-97109-066-0	01	1	0612-
85	04.931 HOSE; VAC,ENG SIDE 4HK1-TCN ENG(RDQ)	8-97239-327-0	01	1	0612-
87	04.930 PIPE; VAC,ENG TO MAG VLV	8-97325-805-2	01	1	0612-
90	04.931 HOSE; VAC,MAG VLV 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97374-081-0	01	1	0612-
90	04.931 HOSE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) 03.630 L=360 SERVICED BY L=3000	0-08258-300-0	01	1	0612-
152	04.690 VALVE; VAC SWITCHING,TRANSFER CO	8-94481-999-4	01	1	0612-
153	04.686 BOLT; VSV 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0612-
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=150 SERVICED BY L=3000	0-04840-300-0	01	1	0612-
154	04.931 HOSE; VSV TO ACTUATOR 08.962 L=250 SERVICED BY L=3000	0-04840-300-0	01	1	0612-
159	04.931 HOSE ASM; VAC	8-94481-279-1	02	1	0612-
195	04.685 PIPE; VAC,UNION TO VSV	8-97325-809-2	01	1	0612-
198	04.931 HOSE; VAC,PIPE TO MAG VLV 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0612-
210	04.931 RUBBER; CAP 4HK1-TCN ENG(RDQ)	8-97108-680-0	01	1	0612-

12 116 203 12 12 13 39 39 184 39 165 39 173 39 162 202 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0612-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=14.5	8-94167-480-0	02	1	0612-
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=15.5	8-94367-944-0	02	1	0612-
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0612-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.931 (B) 3WAY	8-94167-478-0	01	1	0612-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0612-
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0612-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	06	1	0612-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=16	8-94238-568-0	03	1	0612-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-97314-596-1	01	1	0612-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97379-286-1	01	1	0612-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97314-597-1	01	1	0612-
162	04.931 HOSE; VAC POWER ASSIST CLUTCH(S2T) (B)	8-98000-392-0	01	1	0612-
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97040-991-2	01	1	0612-
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0612-
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0612-
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0612-
202	04.686 SEAL EXC. POWER ASSIST CLUTCH(S2T) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0612-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0612-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0612-
